FR 48

Industrial-Robot Poland

PolandReleased

FR 48

AFORMIC

Industrial-Robot Poland

PolandReleased

★Not rated yet

Compare

Sources:

aformic.com

Industries:

Automotive Warehouse & Logistics Manufacturing

Uses:

Intralogistics Loading Material-Handling Pallet-Transportation UnloadingAutonomous intralogistics transport

Price:

Not announced

Model:

AFORMIC FR 48 reach-truck AMR

DESCRIPTION

FR 48 is an Industrial-Robot from AFORMIC. It is built for Intralogistics, Loading, Material-Handling. Key figures: 3800 kg, 1600 kg payload.

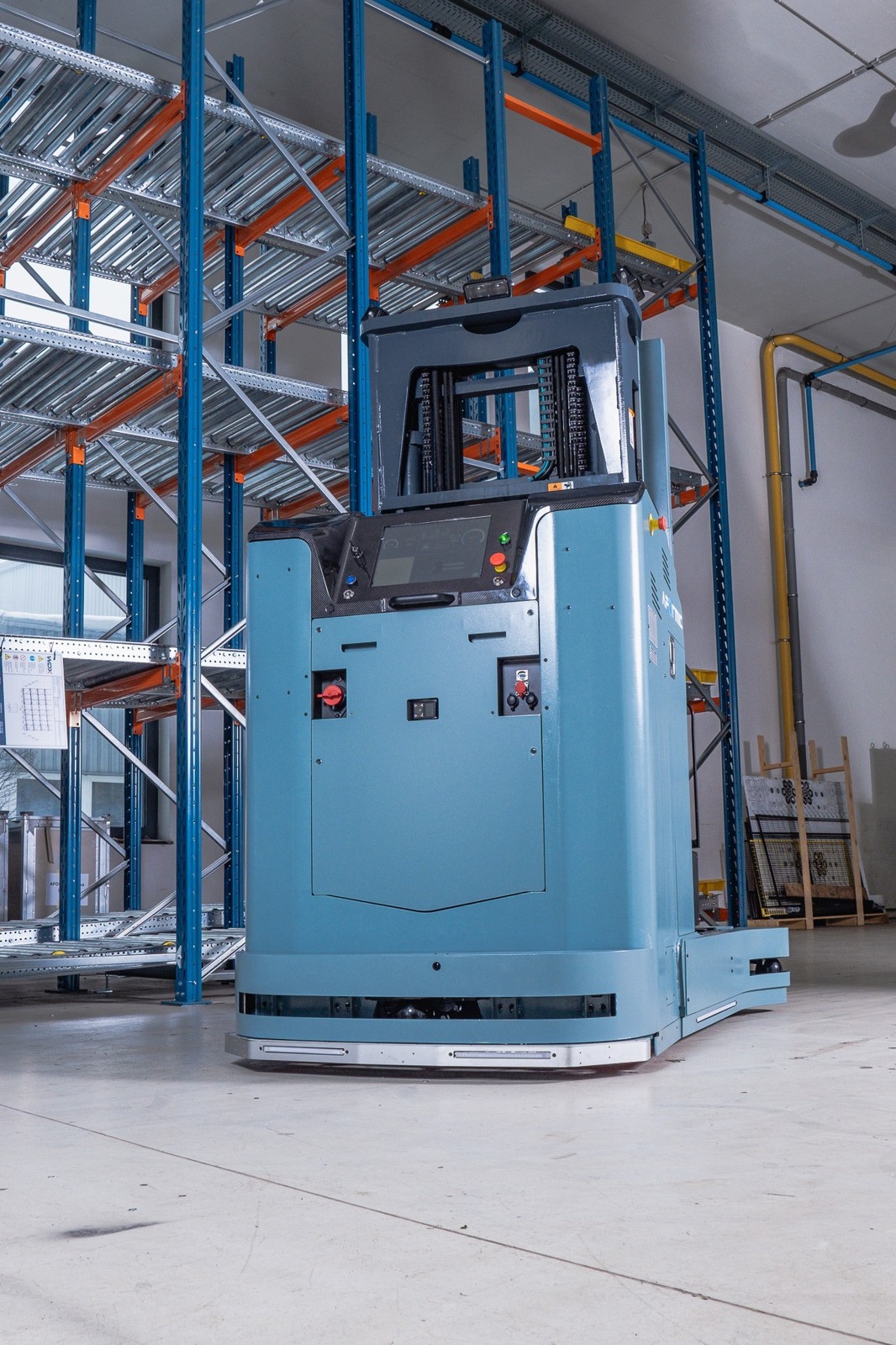

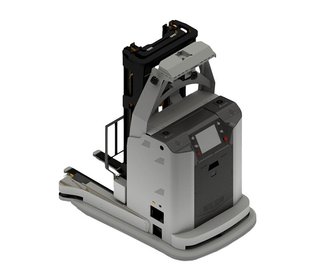

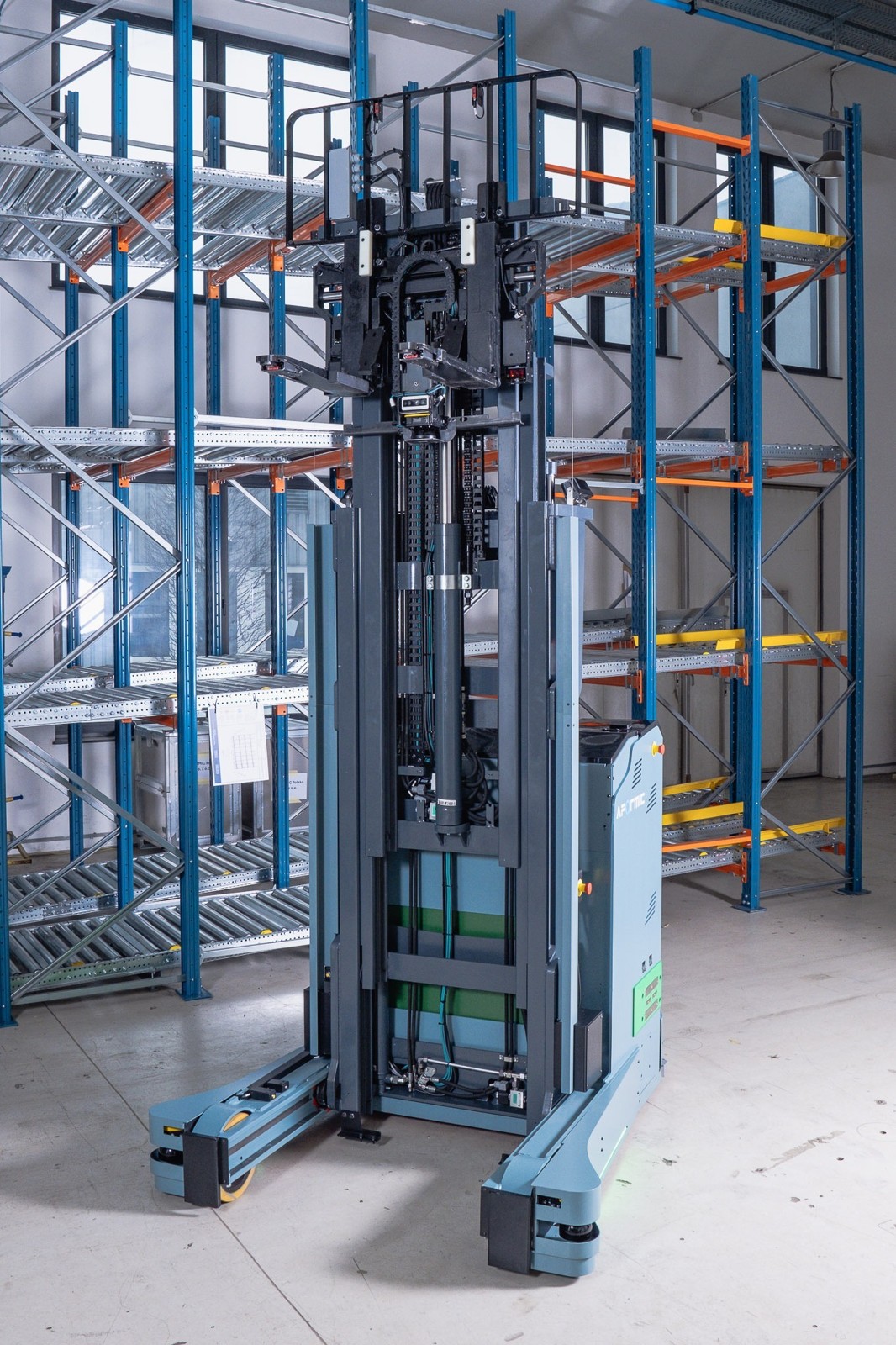

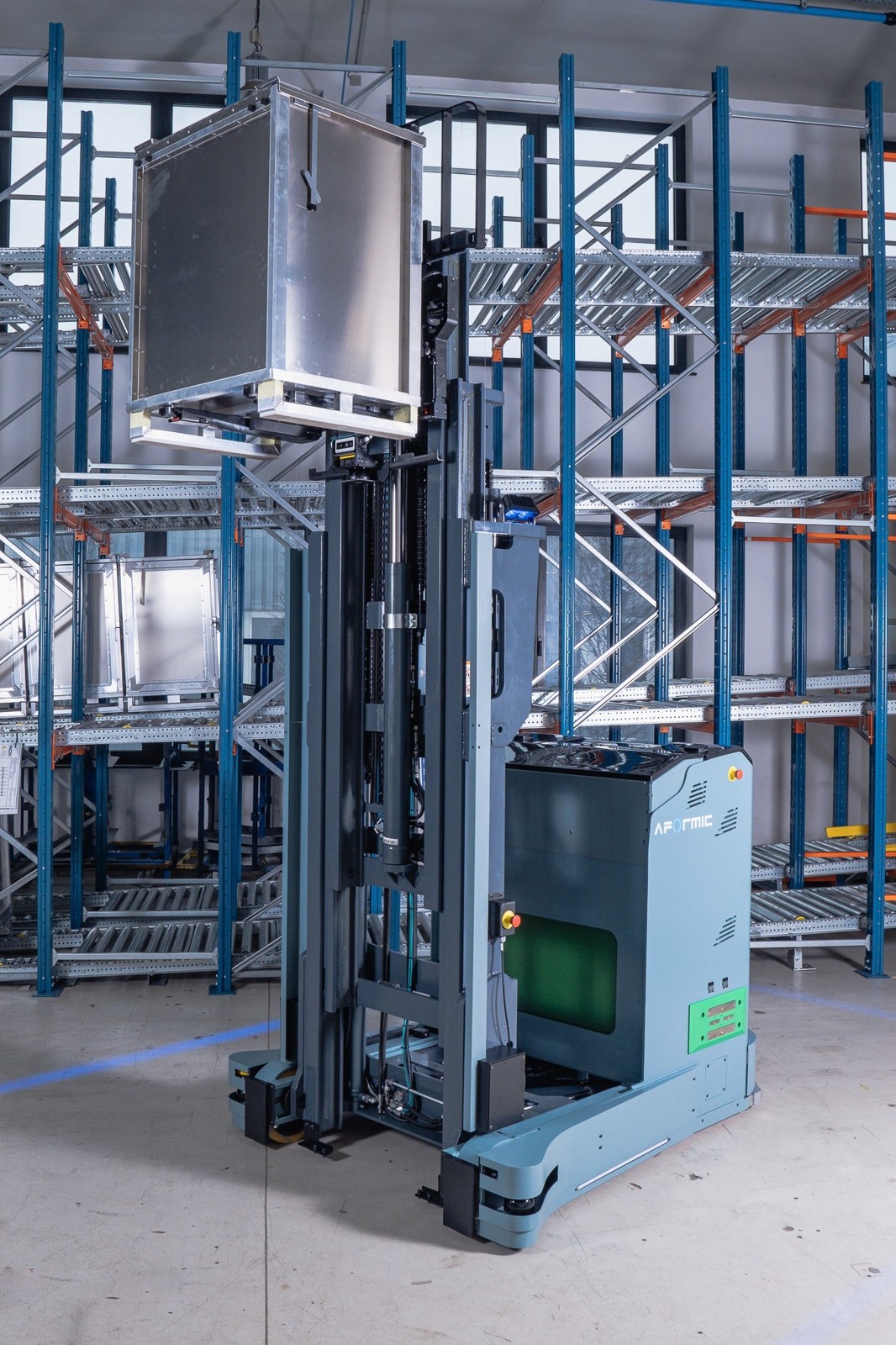

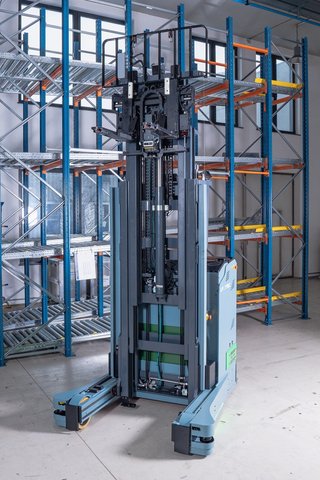

FR 48 is AFORMIC's autonomous reach truck, with a mast that moves forwards and backwards to reach into racks. It lifts 1.6 t to 4.8 m (AFORMIC's headline says up to 7 m). It measures 2120 x 1555 x 2380 mm, weighs 3800 kg, carries 1600 kg, lifts 4800 mm and travels at up to 1.5 m/s with +/-10 mm positioning accuracy. Drive: steerable traction wheel (8 kW). It navigates by lidar SLAM using safety laser scanners with a 360-degree field of view, and is managed by AFORMIC's QURSOR fleet platform, which handles task allocation, path planning, traffic and KANBAN workflows. Power comes from a Li-Ion 460 Ah, 48 V battery.

FEATURES

Payload: 1600 kg (3,500 lb)
Dimensions (LxWxH): 2120 x 1555 x 2380 mm (83.5 × 61.2 × 93.7 in)
Lifting height: 4800 mm (189 in)
Weight: 3800 kg (8,400 lb)
Max speed: 1.5 m/s (4.9 ft/s)
Drive: steerable traction wheel
drive power 8 kW
Positioning accuracy +/- 1.0 cm (0.4 in)
Safety: Laser scanner field of view: 360° Safety scanners:
Sick Micro Scanners: 3 units
Sick Nano Scanners: 1 unit Emergency push buttons: 2 units Blue spot lamp: 1 unit One front and two rear safety bumpers
Battery: Li-Ion 460 Ah, 48 V
Lidar SLAM navigation
no floor tape, wires or markers
Managed by the QURSOR fleet management platform

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	3800 kg
Dimensions	L 2.12 m × W 1.55 m × H 2.38 m
Payload	1600 kg
Repeatability	±10 mm
Mobility
Movement Type	Wheeled
Speed	5.4 km/h
Environment	Indoor factories and warehouses
Actuators	steerable traction wheel (8 kW)
Power
Battery Life	Li-Ion 460 Ah, 48 V
Sensing & Compute
Sensors	SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers
Connectivity	Wireless link to QURSOR fleet manager
Software / AI	AFORMIC QURSOR fleet management

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	3800 kg
Dimensions	L 2.12 m × W 1.55 m × H 2.38 m
Payload	1600 kg
Repeatability	±10 mm
Mobility
Movement Type	Wheeled
Speed	5.4 km/h
Environment	Indoor factories and warehouses
Actuators	steerable traction wheel (8 kW)
Power
Battery Life	Li-Ion 460 Ah, 48 V
Sensing & Compute
Sensors	SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers
Connectivity	Wireless link to QURSOR fleet manager
Software / AI	AFORMIC QURSOR fleet management

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the FR 48?

Who makes the FR 48?

The FR 48 is made by AFORMIC, a robotics company based in Poland.

How much does the FR 48 cost?

AFORMIC has not publicly announced pricing for the FR 48. You can enquire through RobotAIGeek for current pricing.

What is the FR 48 used for?

The FR 48 is designed for intralogistics, loading, material-handling, and pallet-transportation. It is used in automotive, warehouse & logistics, and manufacturing settings.
