DESCRIPTION
Four-Way Pallet Shuttle is a Mobile-Robots from Craftsman Storage Systems. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 342 kg, 480 min runtime, 1500 kg payload, released 2025.

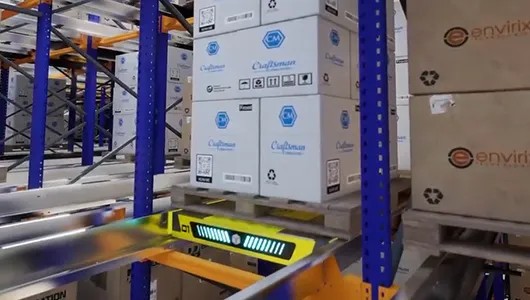

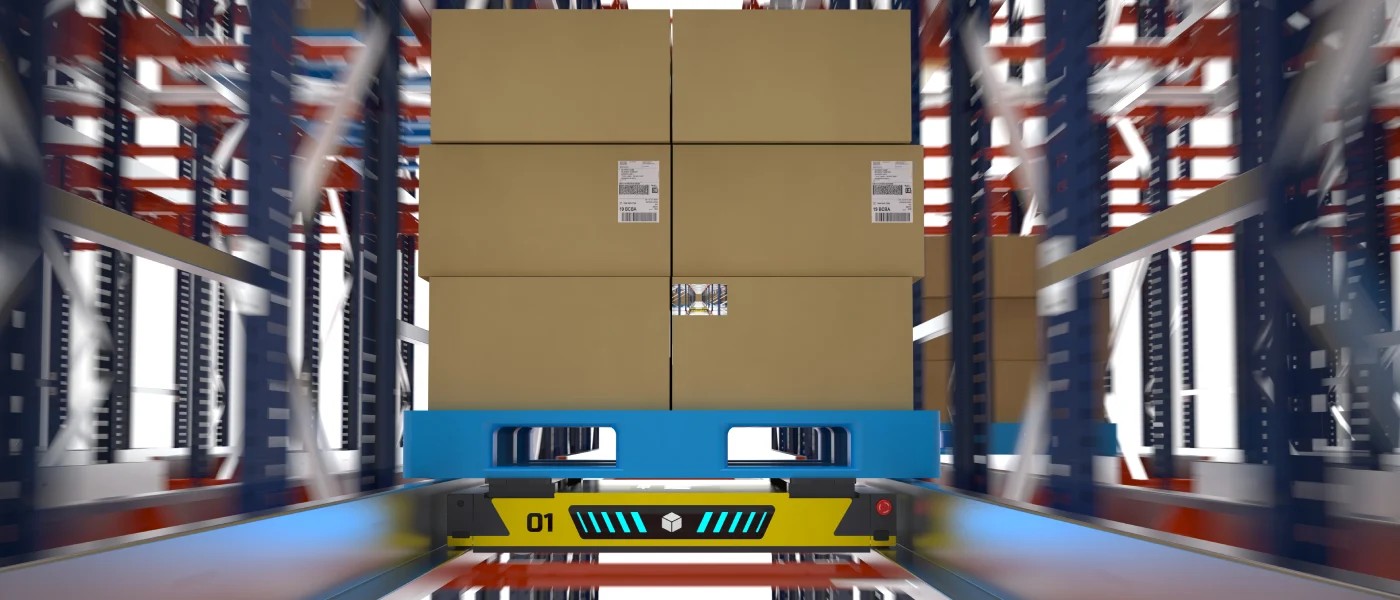

The Four-Way Pallet Shuttle is a battery-powered robotic vehicle from Craftsman Storage Systems that stores and retrieves pallets inside high-density racking. Unlike a conventional radio shuttle, it can travel forward, backward and sideways along the rack's rail grid, so it can reach any lane on its level without dedicated aisles, and it works with pallet lifts, conveyors and robot arms under the control of a warehouse management system. The shuttle is only 125 mm high. It drives under a pallet, raises it in about 1.5 seconds and carries it to the target position, locating itself with RFID tags, magnetic induction and wheel odometry to within 1 mm. Safety features include laser detection, safe torque off (STO) power protection and a 256-point matrix that detects pallet misalignment and rack tilt; a long-range Wi-Fi link and a central controller coordinate several shuttles at once. The standard model carries 1,500 kg, weighs 342 kg and measures 1,192 x 972 x 125 mm; a heavy-load model carries 2,000 kg. Both run at 1.2 m/s loaded and 1.6 m/s empty on 48 V lithium iron phosphate batteries, giving 8-10 hours per charge in normal conditions, and cold-store versions operate from -25 to 0 C. Craftsman lists manufacturing, FMCG, cold storage, pharmaceuticals and logistics as its main markets.
FEATURES
- Four-way travel: forward, backward and sideways inside the racking
- Works with pallet lifts, conveyors and robotic arms
- Standard model: rated load 1,500 kg, shuttle weight 342 kg, dimensions 1,192 x 972 x 125 mm
- Heavy-load model: rated load 2,000 kg, shuttle weight 420 kg, dimensions 1,392 x 1,300 x 150 mm
- Standard pallet sizes: 1,200 x 800, 1,000 x 1,200 and 1,100 x 1,100 mm
- Heavy-load pallet sizes: 1,200-1,600 x 1,000-1,200 mm and 1,600-2,000 x 1,200-1,400 mm
- Speed: 1.2 m/s full load / 1.6 m/s no load
- Reversing time: 2.5 s (standard) / 3.5 s (heavy load)
- Jacking time: 1.5 s
- Positioning: RFID + magnetic induction + odometer
- Positioning accuracy: +/-1 mm
- Battery: lithium iron phosphate, 48 V
- Battery capacity: 48 V / 45 Ah (standard), 48 V / 38 Ah (standard, cold), 48 V / 50 Ah (heavy load), 48 V / 45 Ah (heavy load, cold)
- Full battery life: 8-10 h (normal) / 6-8 h (cold)
- Full charge time: 1.5 h (normal) / 2.5 h (cold)
- Operating temperature: -15 to 45 C (normal) / -25 to 0 C (cold-store version)
- Dual battery management systems against overcurrent, overcharging and overheating
- IP68-rated industrial controller
- Weather-resistant charging pile rated for 100,000+ connector cycles with short-circuit and overvoltage protection
- Laser detection, STO power safeguarding and a 256-point matrix for pallet misalignment and rack-tilt detection
- Long-range Wi-Fi
- one central controller with LED status monitor manages multiple shuttles
- Built-in rescue tool and modular construction for fast fault repair
- WMS and ERP integration
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 342 kg |
|---|---|
| Dimensions | L 1.19 m × W 972 mm × H 125 mm |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor pallet racking, including cold stores down to -25 C, -15°C to 45°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | RFID reader, Magnetic induction sensors, Wheel odometer, Laser detection, 256-point pallet misalignment / rack-tilt matrix |
| Connectivity | Long-range Wi-Fi |
| Software / AI | Central shuttle controller; WMS and ERP integration |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 342 kg |
|---|---|
| Dimensions | L 1.19 m × W 972 mm × H 125 mm |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor pallet racking, including cold stores down to -25 C, -15°C to 45°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | RFID reader, Magnetic induction sensors, Wheel odometer, Laser detection, 256-point pallet misalignment / rack-tilt matrix |
| Connectivity | Long-range Wi-Fi |
| Software / AI | Central shuttle controller; WMS and ERP integration |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Four-Way Pallet Shuttle?
The Four-Way Pallet Shuttle is a battery-powered robotic vehicle from Craftsman Storage Systems that stores and retrieves pallets inside high-density racking.
Who makes the Four-Way Pallet Shuttle?
The Four-Way Pallet Shuttle is made by Craftsman Storage Systems, a robotics company based in India.
How much does the Four-Way Pallet Shuttle cost?
Craftsman Storage Systems has not publicly announced pricing for the Four-Way Pallet Shuttle. You can enquire through RobotAIGeek for current pricing.
What is the Four-Way Pallet Shuttle used for?
The Four-Way Pallet Shuttle is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in healthcare, warehouse & logistics, manufacturing, and retail settings.
What is the payload capacity of the Four-Way Pallet Shuttle?
The Four-Way Pallet Shuttle has a payload capacity of 1,500 kg.
How much does the Four-Way Pallet Shuttle weigh?
The Four-Way Pallet Shuttle weighs 342 kg.
How fast is the Four-Way Pallet Shuttle?
The Four-Way Pallet Shuttle can move at speeds of up to 5.76 km/h.
What is the battery life of the Four-Way Pallet Shuttle?
The Four-Way Pallet Shuttle runs for about 480 minutes on a charge.
