DESCRIPTION

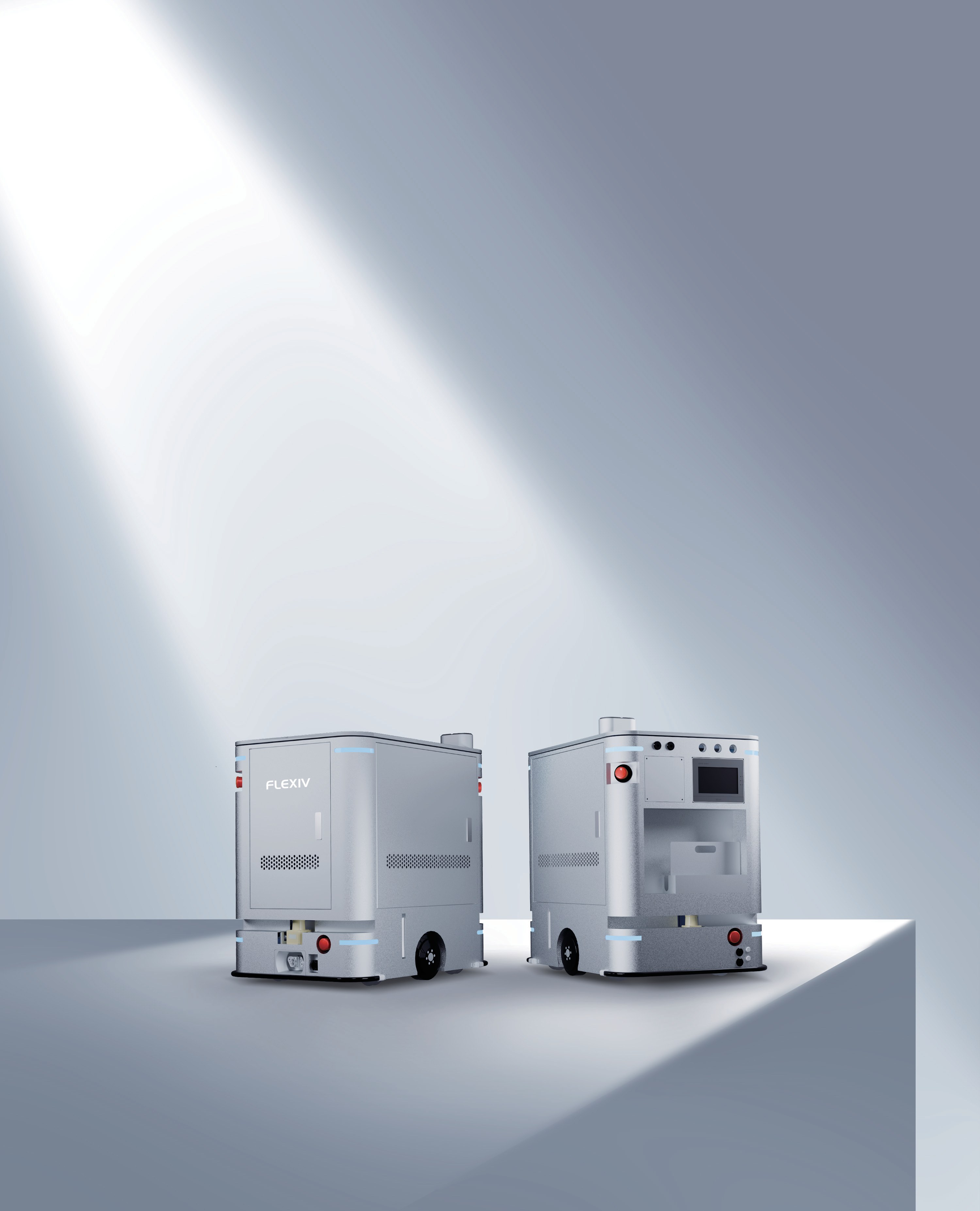

The FMR 300 is Flexiv's first self-developed autonomous mobile robot platform, built to carry its adaptive arms beyond fixed workcells. The compact two-wheel-differential platform (791 x 620 x 874 mm, 290 kg) carries up to 300 kg on its 760 x 585 mm lifting top plate, navigates by dual-LiDAR laser SLAM with ±5 mm / ±1° accuracy, and runs 8 hours on a 48 V / 72 Ah lithium iron phosphate pack with 10-80% charging in under 2 hours. A suspension system handles 5% slopes, 5 mm steps and 30 mm gaps, and it threads aisles as narrow as 820 mm at up to 1.5 m/s.
FEATURES
- Laser SLAM with reflector and QR-code positioning options
- ±5 mm navigation accuracy
- 300 kg top-plate payload on a 290 kg body
- 8 h battery with automatic charging dock
- built-in collision detection with optional 3D visual obstacle avoidance
- standardized interfaces for Rizon 4 / Rizon 10 arms, grippers and 2D/3D vision.
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 290 kg |
|---|---|
| Dimensions | H 874 mm |
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | IP20, 0°C to 50°C |
| Power | |
| Battery Life | 8 h (typical working conditions) |
| Charging Type | Manual / automatic dock |
| Charging Time | <=2 h (10-80%) |
| Sensing & Compute | |
| Sensors | 2x LiDAR (laser SLAM), optional PGV position-guided vision, optional 3D visual obstacle avoidance |
| Connectivity | Dual-band Wi-Fi 802.11ac with roaming, 2x Ethernet, CAN, 2x RS485 |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 290 kg |
|---|---|
| Dimensions | H 874 mm |
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | IP20, 0°C to 50°C |
| Power | |
| Battery Life | 8 h (typical working conditions) |
| Charging Type | Manual / automatic dock |
| Charging Time | <=2 h (10-80%) |
| Sensing & Compute | |
| Sensors | 2x LiDAR (laser SLAM), optional PGV position-guided vision, optional 3D visual obstacle avoidance |
| Connectivity | Dual-band Wi-Fi 802.11ac with roaming, 2x Ethernet, CAN, 2x RS485 |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FMR 300?
The FMR 300 is Flexiv's first self-developed autonomous mobile robot platform, built to carry its adaptive arms beyond fixed workcells.
Who makes the FMR 300?
The FMR 300 is made by Flexiv, a robotics company based in United States.
How much does the FMR 300 cost?
Flexiv has not publicly announced pricing for the FMR 300. You can enquire through RobotAIGeek for current pricing.
What is the FMR 300 used for?
The FMR 300 is designed for delivery. It is used in research, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the FMR 300?
The FMR 300 has a payload capacity of 300 kg.
How much does the FMR 300 weigh?
The FMR 300 weighs 290 kg.
How fast is the FMR 300?
The FMR 300 can move at speeds of up to 5.4 km/h.
What is the battery life of the FMR 300?
The FMR 300 runs for 8 h (typical working conditions) on a charge. It takes <=2 h (10-80%) to charge.
