FC Slim

IBG Automation

Industrial-Robot Germany

GermanyReleased

★Not rated yet

Compare

Sources:

goeke-group.com

Industries:

Automotive Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling TransportAutomated in-plant transport (AGV)

Price:

Not announced

Model:

IBG Factory Cruiser FC Slim AGV

DESCRIPTION

FC Slim is an Industrial-Robot from IBG Automation. It is built for Intralogistics, Material-Handling, Transport. Key figures: 450 kg, 1440 min runtime.

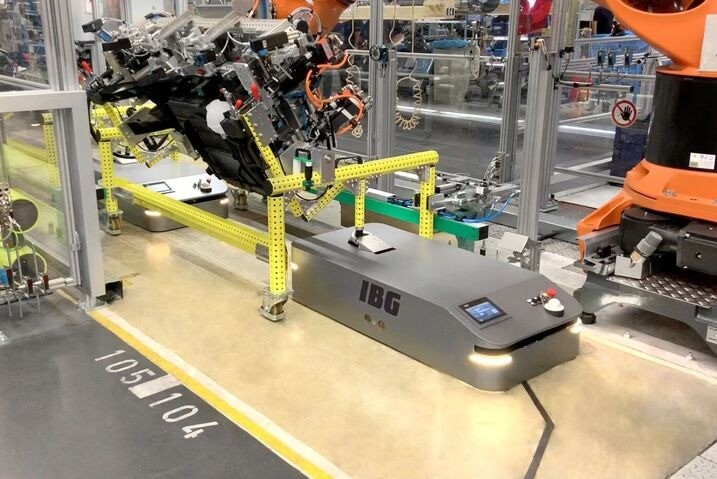

FC Slim is a flat IBG Factory Cruiser AGV for automatically moving transport trolleys and other unpowered load carriers, which it picks up with a safety clutch. Only 350 mm high on a 1,500 x 700 mm footprint, it follows magnetic tracks with magnetic-track scanners and takes its driving commands and stopping points from RFID tags, while safety scanners watch the surroundings for obstacles.\nIt weighs 450 kg, is rated to tow 150 kg, travels at up to 1.2 m/s and runs 24 hours on a LiFePO4 battery that recharges in 1.5 hours.

FEATURES

Picks up unpowered trolleys with a safety clutch
1,500 x 700 x 350 mm
450 kg own weight
Rated towing capacity 150 kg
Magnetic-track navigation
RFID tags for commands and stops
Safety scanners
24 h operating time
1.5 h charging
LiFePO4
up to 1.2 m/s

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	450 kg
Dimensions	L 1.5 m × W 700 mm × H 350 mm
Mobility
Movement Type	Wheeled
Speed	4.32 km/h
Environment	Factory production and warehouse floors (indoor)
Power
Battery Life	1440 min
Sensing & Compute
Sensors	safety laser scanner, magnetic track scanner, RFID reader

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	450 kg
Dimensions	L 1.5 m × W 700 mm × H 350 mm
Mobility
Movement Type	Wheeled
Speed	4.32 km/h
Environment	Factory production and warehouse floors (indoor)
Power
Battery Life	1440 min
Sensing & Compute
Sensors	safety laser scanner, magnetic track scanner, RFID reader

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the FC Slim?

FC Slim is a flat IBG Factory Cruiser AGV for automatically moving transport trolleys and other unpowered load carriers, which it picks up with a safety clutch.

Who makes the FC Slim?

The FC Slim is made by IBG Automation, a robotics company based in Germany.

How much does the FC Slim cost?

IBG Automation has not publicly announced pricing for the FC Slim. You can enquire through RobotAIGeek for current pricing.

What is the FC Slim used for?

The FC Slim is designed for intralogistics, material-handling, transport, and automated in-plant transport (agv). It is used in automotive, warehouse & logistics, and manufacturing settings.
