DESCRIPTION
FC RoboLite is an Industrial-Robot from IBG Automation. It is built for Intralogistics, Material-Handling, Pick-and-place. Key figures: 300 kg, 1440 min runtime, 1000 kg payload, 6 degrees of freedom.

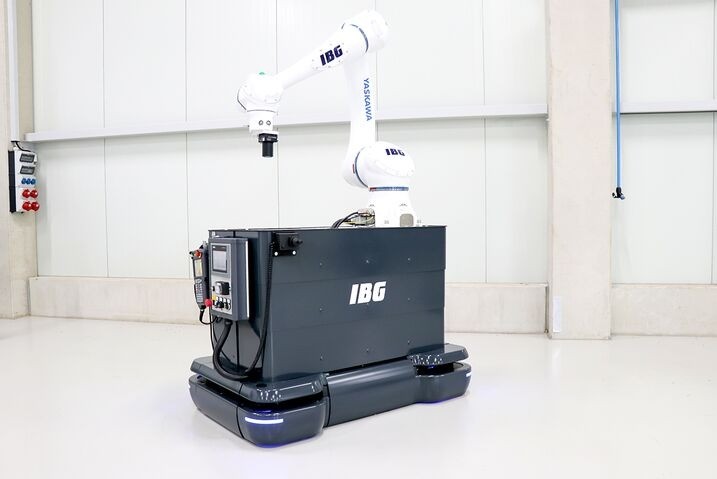

FC RoboLite combines IBG's FC Compact AGV with a collaborative six-axis Yaskawa MOTOMAN HC20DTP robot arm, so one vehicle can drive to a station and handle parts there. The base measures 1,600 x 950 mm from 500 mm high, weighs 300 kg, is rated for 1,000 kg, travels at up to 1.2 m/s and runs 24 hours on a LiFePO4 battery with 1.5-hour charging and intermediate charging for continuous operation.\nThe arm lifts up to 20 kg with +/-0.05 mm repeatability over a 1,900 mm reach and suits fenceless handling and palletising. IBG builds the vehicle from modular, industry-standard components so it can be integrated into existing hardware, software and mixed traffic in production and logistics.
FEATURES
- FC Compact AGV base: 1,600 x 950 mm, height from 500 mm, 300 kg own weight, 1,000 kg rated payload
- Yaskawa MOTOMAN HC20DTP collaborative arm: 6 axes, 20 kg, +/-0.05 mm repeatability, 1,900 mm reach, 140 kg
- 24 h operating time
- 1.5 h charging
- intermediate charging for continuous operation
- LiFePO4 battery
- up to 1.2 m/s
- Modular mechanics, electrics and software
- mixed traffic with people
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 300 kg |
|---|---|
| Dimensions | L 1.6 m × W 950 mm |
| Payload | 1000 kg |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Wheeled |
| Degrees of Freedom | 6 |
| Speed | 4.32 km/h |
| Environment | Factory production and warehouse floors (indoor) |
| Power | |
| Battery Life | 1440 min |
| Sensing & Compute | |
| Sensors | safety laser scanner |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 300 kg |
|---|---|
| Dimensions | L 1.6 m × W 950 mm |
| Payload | 1000 kg |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Wheeled |
| Degrees of Freedom | 6 |
| Speed | 4.32 km/h |
| Environment | Factory production and warehouse floors (indoor) |
| Power | |
| Battery Life | 1440 min |
| Sensing & Compute | |
| Sensors | safety laser scanner |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FC RoboLite?
FC RoboLite combines IBG's FC Compact AGV with a collaborative six-axis Yaskawa MOTOMAN HC20DTP robot arm, so one vehicle can drive to a station and handle parts there.
Who makes the FC RoboLite?
The FC RoboLite is made by IBG Automation, a robotics company based in Germany.
How much does the FC RoboLite cost?
IBG Automation has not publicly announced pricing for the FC RoboLite. You can enquire through RobotAIGeek for current pricing.
What is the FC RoboLite used for?
The FC RoboLite is designed for intralogistics, material-handling, pick-and-place, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the FC RoboLite?
The FC RoboLite has a payload capacity of 1,000 kg.
How much does the FC RoboLite weigh?
The FC RoboLite weighs 300 kg.
How fast is the FC RoboLite?
The FC RoboLite can move at speeds of up to 4.32 km/h.
What is the battery life of the FC RoboLite?
The FC RoboLite runs for about 1,440 minutes on a charge.
