DESCRIPTION
FC Omni is an Industrial-Robot from IBG Automation. It is built for Intralogistics, Material-Handling, Transport.

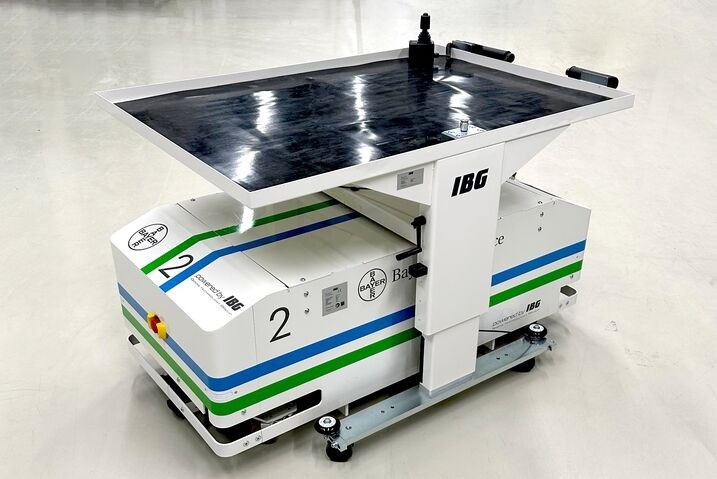

FC Omni is an IBG Factory Cruiser AGV built to move small load carriers (KLT) between production areas. It couples under a transport table with four rotatable rollers that holds up to three KLTs side by side, secures the boxes against slipping and carries up to 300 kg, and pulls the table to its destination.\nThe vehicle runs on a 48 V drive with an active electric brake and a 48 V lithium-ion battery with battery management. An additive navigation system emulates a virtual track with +/-10 mm positioning accuracy, safety laser scanners guard its path and let it stop or replan around people and obstacles, and a WLAN client links it to the logistics control centre; a 7-inch touch panel serves local operation. Options include hybrid magnetic-track guidance with RFID positioning and extra ground clearance for uneven floors and slopes of up to 12 degrees.
FEATURES
- Pulls KLT transport tables via an underside coupling
- table takes 3 KLTs side by side, max. 300 kg
- Virtual-track navigation, positioning accuracy +/-10 mm
- Safety laser scanners
- stops or replans around people and obstacles
- 48 V drive with active electric brake
- 48 V lithium-ion battery with BMS
- WLAN link to the logistics control centre
- 7-inch touch panel
- Option: hybrid magnetic-track guidance with RFID positioning
- Option: higher ground clearance for slopes up to 12 degrees
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Factory production and warehouse floors (indoor) |
| Power | |
| Battery Life | 48 V lithium-ion with battery management system |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID reader (option), magnetic track sensor (option) |
| Connectivity | WLAN |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Factory production and warehouse floors (indoor) |
| Power | |
| Battery Life | 48 V lithium-ion with battery management system |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID reader (option), magnetic track sensor (option) |
| Connectivity | WLAN |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FC Omni?
FC Omni is an IBG Factory Cruiser AGV built to move small load carriers (KLT) between production areas. It couples under a transport table with four rotatable rollers that holds up to three KLTs side by side, secures the boxes against slipping and carries up to 300 kg, and pulls the table to its destination.\nThe vehic…
Who makes the FC Omni?
The FC Omni is made by IBG Automation, a robotics company based in Germany.
How much does the FC Omni cost?
IBG Automation has not publicly announced pricing for the FC Omni. You can enquire through RobotAIGeek for current pricing.
What is the FC Omni used for?
The FC Omni is designed for intralogistics, material-handling, transport, and automated in-plant transport (agv). It is used in automotive, warehouse & logistics, and manufacturing settings.
