DESCRIPTION
FC 450 is an Industrial-Robot from IBG Automation. It is built for Intralogistics, Material-Handling, Transport. Key figures: 450 kg.

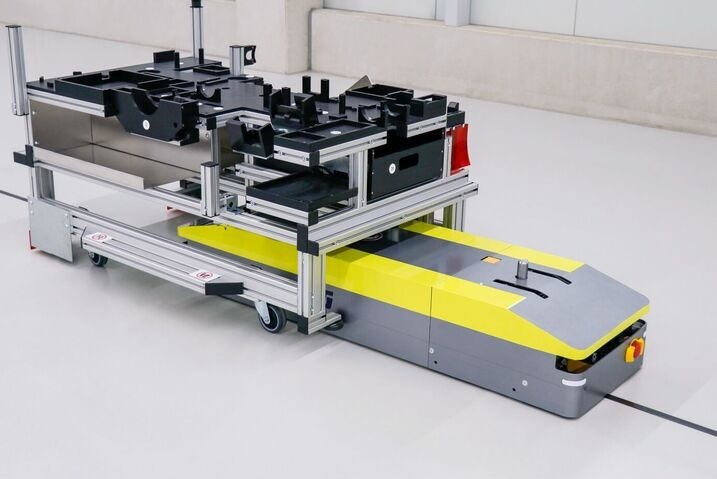

FC 450 is an IBG Factory Cruiser AGV for plants with narrow aisles and tight curves. It drives under unpowered load carriers and picks them up automatically by their lifting bolts, so trolleys move between stations without manual coupling. The vehicle measures 1,450 x 700 x 350 mm, weighs 450 kg, is rated to tow 150 kg and travels at up to 1.0 m/s.\nIt navigates along magnetic tracks with magnetic-track scanners, receives driving commands and stopping points from RFID tags, and uses safety scanners to detect obstacles and people.
FEATURES
- Automatic pick-up of unpowered load carriers with lifting bolts
- For narrow aisles and tight curves
- 1,450 x 700 x 350 mm
- 450 kg own weight
- Rated towing capacity 150 kg
- Magnetic-track navigation
- RFID tags for commands and stops
- safety scanners
- Up to 1.0 m/s
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 450 kg |
|---|---|
| Dimensions | L 1.45 m × W 700 mm × H 350 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Factory production and warehouse floors (indoor) |
| Sensing & Compute | |
| Sensors | safety laser scanner, magnetic track scanner, RFID reader |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 450 kg |
|---|---|
| Dimensions | L 1.45 m × W 700 mm × H 350 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Factory production and warehouse floors (indoor) |
| Sensing & Compute | |
| Sensors | safety laser scanner, magnetic track scanner, RFID reader |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FC 450?
FC 450 is an IBG Factory Cruiser AGV for plants with narrow aisles and tight curves. It drives under unpowered load carriers and picks them up automatically by their lifting bolts, so trolleys move between stations without manual coupling.
Who makes the FC 450?
The FC 450 is made by IBG Automation, a robotics company based in Germany.
How much does the FC 450 cost?
IBG Automation has not publicly announced pricing for the FC 450. You can enquire through RobotAIGeek for current pricing.
What is the FC 450 used for?
The FC 450 is designed for intralogistics, material-handling, transport, and automated in-plant transport (agv). It is used in automotive, warehouse & logistics, and manufacturing settings.
How much does the FC 450 weigh?
The FC 450 weighs 450 kg.
How fast is the FC 450?
The FC 450 can move at speeds of up to 3.6 km/h.
