DESCRIPTION

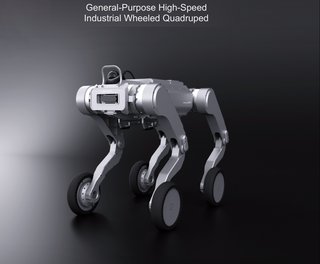

The EXPLORER S01 is the light, fast end of Micbot's range — 55 kg against the P1's 77, and quick enough at 8 m/s to be the fastest machine the company builds. It is a general-purpose high-speed industrial wheeled quadruped built on a dual-planetary-frame drive, standing 850 by 570 by 700 mm and dropping to a 250 mm low profile to get under obstacles. Carrying up to 50 kg, it trades the P1's heavy payload and explosion protection for speed and modularity, though it keeps the family's protection standard of an IP67 body with IP68 wheels and a -40 °C to 85 °C range at up to 95% humidity. Two 48 V 22 Ah packs give five to eight hours and recharge in under two, and 181 TOPS of compute drives a standard sensor set of LiDAR, HD depth camera, ultrasonic radar and IMU. Step capability is the honest limit of the lighter build at 75 mm, well short of the P1's 250 mm, but slopes to 45 degrees are unchanged. Bluetooth 5.4, Wi-Fi, OTA, app and host support, expansion ports and secondary development make it the modular multi-scenario platform of the line.
FEATURES
- Up to 8 m/s, the fastest platform in the Micbot range, on a dual-planetary-frame drive
- 55 kg with battery carrying a rated 50 kg payload
- 850 x 570 x 700 mm standing with an 850 x 570 x 250 mm low-profile configuration
- two 48 V 22 Ah packs of NMC, solid-state lithium or LFP for 5-8 hours, recharging in under 2 hours
- 181 TOPS compute platform
- standard LiDAR, HD depth camera, ultrasonic radar and IMU
- IP67 body with IP68 wheel protection, -40 °C to 85 °C and 0-95% RH non-condensing
- 75 mm maximum step height and slopes to 45 degrees
- Bluetooth 5.4 and Wi-Fi with OTA update, app and host support, handheld remote control, expansion ports and secondary development
- RS485 and triple USB radar port, HDMI camera port, HDMI and USB audio-video port
- one-year warranty with charger.
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 55 kg |
|---|---|
| Dimensions | L 850 mm × W 570 mm × H 700 mm |
| Payload | 50 kg |
| Mobility | |
| Movement Type | Quadruped, Wheeled |
| Speed | 28.8 km/h |
| Manipulation | Low |
| Environment | Outdoor and industrial; IP67 body and IP68 wheels; -40 °C to 85 °C, 0-95% RH non-condensing; 75 mm maximum step height, slope to 45°, IP67 body, IP68 wheels, -40°C to 85°C |
| Actuators | Dual-planetary-frame drive; wheel-legged quadruped on 150 mm wheels (reference) |
| Power | |
| Battery Life | 5-8 h |
| Charging Time | <=2 h |
| Sensing & Compute | |
| Sensors | standard LiDAR, HD depth camera, ultrasonic radar, IMU |
| Connectivity | Bluetooth 5.4 and Wi-Fi; RS485 x1 and USB x3 radar port; HDMI x1 camera port; HDMI x1 and USB x1 audio-video port |
| Software / AI | Integrated sensing, planning, control and drive platform; OTA update; app and host support; secondary development |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 55 kg |
|---|---|
| Dimensions | L 850 mm × W 570 mm × H 700 mm |
| Payload | 50 kg |
| Mobility | |
| Movement Type | Quadruped, Wheeled |
| Speed | 28.8 km/h |
| Manipulation | Low |
| Environment | Outdoor and industrial; IP67 body and IP68 wheels; -40 °C to 85 °C, 0-95% RH non-condensing; 75 mm maximum step height, slope to 45°, IP67 body, IP68 wheels, -40°C to 85°C |
| Actuators | Dual-planetary-frame drive; wheel-legged quadruped on 150 mm wheels (reference) |
| Power | |
| Battery Life | 5-8 h |
| Charging Time | <=2 h |
| Sensing & Compute | |
| Sensors | standard LiDAR, HD depth camera, ultrasonic radar, IMU |
| Connectivity | Bluetooth 5.4 and Wi-Fi; RS485 x1 and USB x3 radar port; HDMI x1 camera port; HDMI x1 and USB x1 audio-video port |
| Software / AI | Integrated sensing, planning, control and drive platform; OTA update; app and host support; secondary development |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the EXPLORER S01?
The EXPLORER S01 is the light, fast end of Micbot's range — 55 kg against the P1's 77, and quick enough at 8 m/s to be the fastest machine the company builds.
Who makes the EXPLORER S01?
The EXPLORER S01 is made by MICBOT, a robotics company based in China.
How much does the EXPLORER S01 cost?
MICBOT has not publicly announced pricing for the EXPLORER S01. You can enquire through RobotAIGeek for current pricing.
What is the EXPLORER S01 used for?
The EXPLORER S01 is designed for inspection, patrol, general-purpose industrial inspection, and infrastructure survey. It is used in energy, research, manufacturing, and security & patrol settings.
What is the payload capacity of the EXPLORER S01?
The EXPLORER S01 has a payload capacity of 50 kg.
How much does the EXPLORER S01 weigh?
The EXPLORER S01 weighs 55 kg.
How fast is the EXPLORER S01?
The EXPLORER S01 can move at speeds of up to 28.8 km/h.
What is the battery life of the EXPLORER S01?
The EXPLORER S01 runs for 5-8 h on a charge. It takes <=2 h to charge.
