ECOBOT 6

Oppent

Collaborative-Robot Italy

ItalyReleased

★Not rated yet

Compare

Sources:

oppent.com

Industries:

Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling TransportIntralogistics

Price:

Not announced

Model:

Oppent ECOBOT 6 autonomous mobile robot

DESCRIPTION

ECOBOT 6 is a Collaborative-Robot from Oppent. It is built for Intralogistics, Material-Handling, Transport. Key figures: 240 kg, 480 min runtime, 300 kg payload.

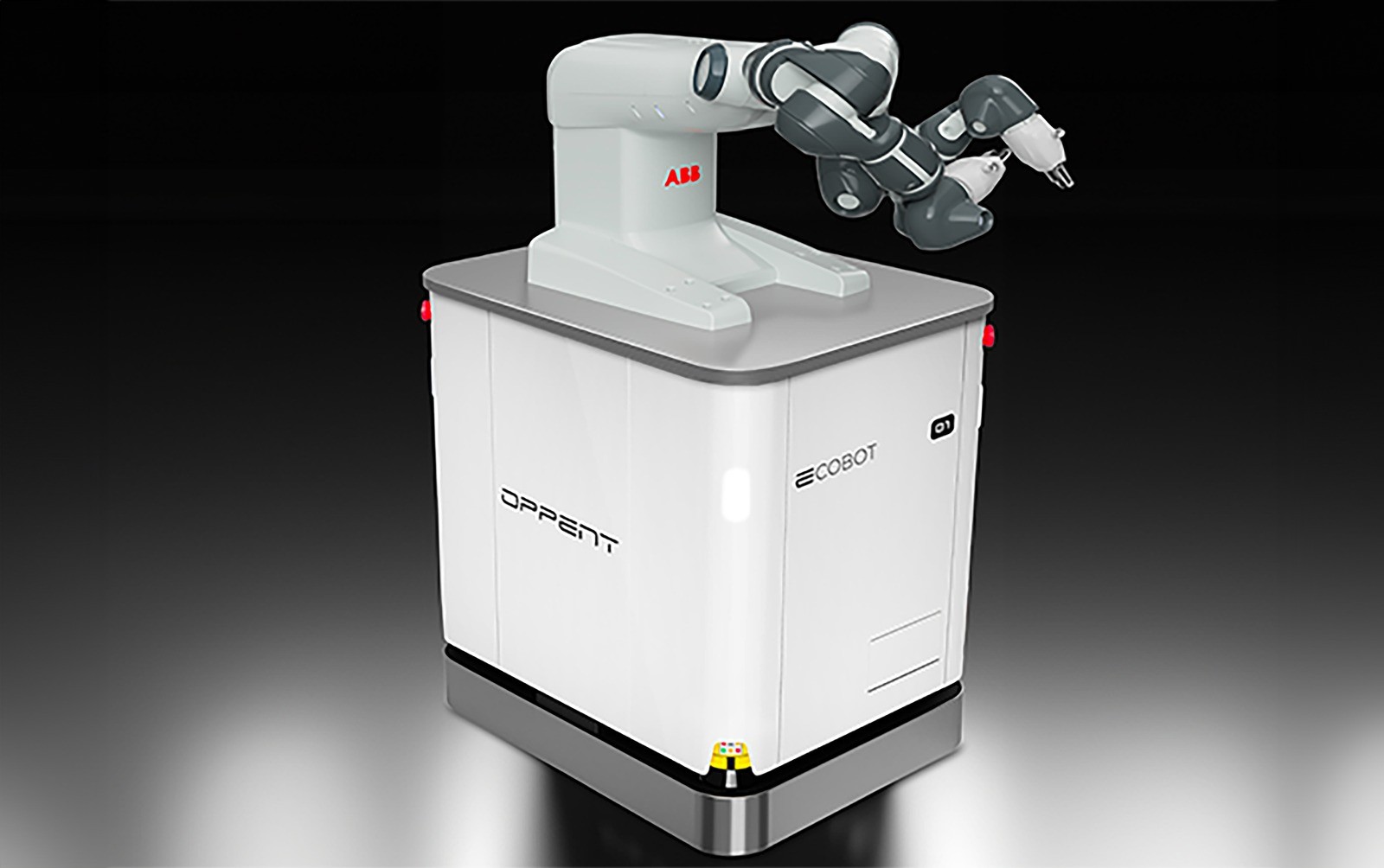

ECOBOT 6 is a model in Oppent's ECOBOT family of autonomous mobile robots, built in Italy. It is a mobile manipulator: an ABB YuMi collaborative robot rides on the vehicle so it can drive to a station and pick, place, assemble or test parts there.\nPer its datasheet it measures 1,058 x 625 x 800 mm, weighs 240 kg without batteries and carries 300 kg nominal (350 kg maximum) on ABB YuMi collaborative robot mounted on top. It uses differential, bidirectional drive (2 x 300 W), travels at up to 1.0 m/s and climbs 3% slopes. It navigates naturally by laser scanner, positions to +/-10 mm and +/-1 deg and turns on its own axis, and runs about 8 hours on a LiFePO4 24 V 120 Ah (PureLead 24 V 120 Ah option) battery with 3 h recharge. Safety comes from 2 Sick S300 laser scanners, sensitive edges, 2 e-stops, Sick Flexi safety controller, and the vehicle conforms to ISO 3691-4:2020 for driverless industrial trucks.

FEATURES

Nominal payload 300 kg
maximum 350 kg
Equipment: ABB YuMi collaborative robot mounted on top
Size 1,058 x 625 x 800 mm
240 kg without batteries
Drive: differential, bidirectional drive (2 x 300 W)
max speed 1.0 m/s
slopes up to 3%
Battery: LiFePO4 24 V 120 Ah (PureLead 24 V 120 Ah option)
about 8 h autonomy, 3 h recharge
Safety: 2 Sick S300 laser scanners, sensitive edges, 2 e-stops, Sick Flexi safety controller
Carries an ABB YuMi dual-arm cobot
Natural navigation by laser scanner (odometric closed loop)
map acquired automatically by the robot
Positioning accuracy +/-10 mm and +/-1 deg
turns on its own axis
Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
Indoor use +5 to 35 C, 30-80% RH
IP degree 13 (datasheet)
Stainless steel (AISI 304) chassis
complies with Machinery Directive and ISO 3691-4:2020

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	240 kg
Dimensions	L 1.06 m × W 625 mm × H 800 mm
Payload	300 kg
Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Indoor factories and warehouses (+5 to 35 C)
Power
Battery Life	480 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	240 kg
Dimensions	L 1.06 m × W 625 mm × H 800 mm
Payload	300 kg
Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Indoor factories and warehouses (+5 to 35 C)
Power
Battery Life	480 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the ECOBOT 6?

Who makes the ECOBOT 6?

The ECOBOT 6 is made by Oppent, a robotics company based in Italy.

How much does the ECOBOT 6 cost?

Oppent has not publicly announced pricing for the ECOBOT 6. You can enquire through RobotAIGeek for current pricing.

What is the ECOBOT 6 used for?

The ECOBOT 6 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
