ECABINET 3

Oppent

Delivery-Robots Italy

ItalyReleased

★Not rated yet

Compare

Sources:

oppent.com

Industries:

Healthcare

Uses:

Intralogistics Material-Handling Delivery TransportIntralogistics

Price:

Not announced

Model:

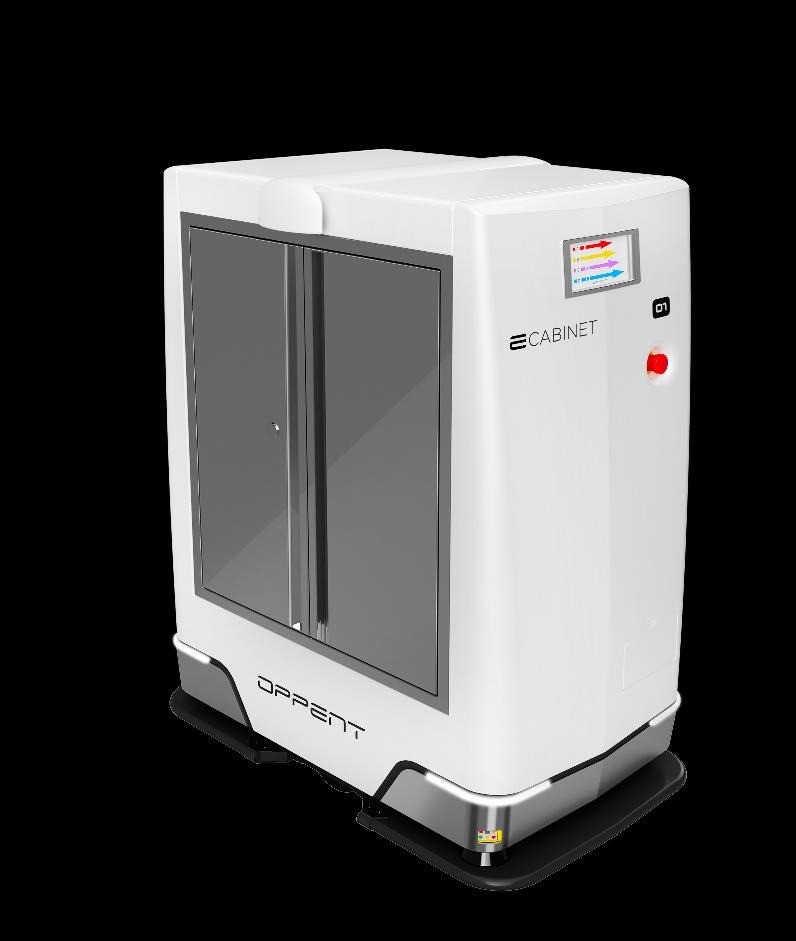

Oppent ECABINET 3 autonomous mobile robot

DESCRIPTION

ECABINET 3 is a Delivery-Robots from Oppent. It is built for Intralogistics, Material-Handling, Delivery. Key figures: 270 kg, 360 min runtime, 300 kg payload.

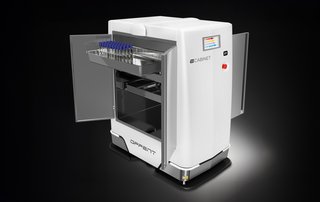

ECABINET 3 is a model in Oppent's ECABINET family of autonomous mobile robots, built in Italy. It is a self-driving lockable cabinet: two doors open from either side onto 600 x 400 mm drawers and shelves, so delicate healthcare materials and instruments travel protected and traceable.\nPer its datasheet it measures 1,058 x 625 x 1,545 mm, weighs 270 kg without batteries and carries 300 kg nominal (350 kg maximum) on 2-door double-access cabinet (inside 610 x 415 x 840 mm) with electric lock, for 600 x 400 mm drawers. It uses diamond-layout, bidirectional drive (1 x 300 W), travels at up to 1.0 m/s and climbs 3% slopes. It navigates naturally by laser scanner, positions to +/-10 mm and +/-1 deg and turns on its own axis, and runs about 6 hours on a LiFePO4 24 V 60 Ah (PureLead 24 V 60 Ah option) battery with 2 h recharge. Safety comes from 2 Sick S300 and 2 Sick TiM361S laser scanners, sensitive edges, 2 e-stops, Sick Flexi safety controller, and the vehicle conforms to ISO 3691-4:2020 for driverless industrial trucks.

FEATURES

Nominal payload 300 kg
maximum 350 kg
Equipment: 2-door double-access cabinet (inside 610 x 415 x 840 mm) with electric lock, for 600 x 400 mm drawers
Size 1,058 x 625 x 1,545 mm
270 kg without batteries
Drive: diamond-layout, bidirectional drive (1 x 300 W)
max speed 1.0 m/s
slopes up to 3%
Battery: LiFePO4 24 V 60 Ah (PureLead 24 V 60 Ah option)
about 6 h autonomy, 2 h recharge
Safety: 2 Sick S300 and 2 Sick TiM361S laser scanners, sensitive edges, 2 e-stops, Sick Flexi safety controller
Electrically locked cabinet with two doors
Drawers and shelves for 600 x 400 mm trays
Natural navigation by laser scanner (odometric closed loop)
map acquired automatically by the robot
Positioning accuracy +/-10 mm and +/-1 deg
turns on its own axis
Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
Indoor use +5 to 35 C, 30-80% RH
IP degree 13 (datasheet)
Stainless steel (AISI 304) chassis
complies with Machinery Directive and ISO 3691-4:2020

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	270 kg
Dimensions	L 1.06 m × W 625 mm × H 1.54 m
Payload	300 kg
Mobility
Movement Type	Wheeled
Speed	3.6 km/h
Environment	Indoor hospitals and factories (+5 to 35 C)
Power
Battery Life	360 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
