DUS V9975

Demcon unmanned systems

Mobile-Robots

NetherlandsReleased

★Not rated yet

Compare

Sources:

demcon-unmanned.nl

Industries:

Defence Energy Government Security & Patrol

Uses:

Security Surveying Monitoring PatrolUncrewed hydrographic and environmental survey

Price:

Not announced

Model:

Demcon DUS V9975 10 m high-endurance dual-use USV

DESCRIPTION

DUS V9975 is a Mobile-Robots from Demcon unmanned systems. It is built for Security, Surveying, Monitoring.

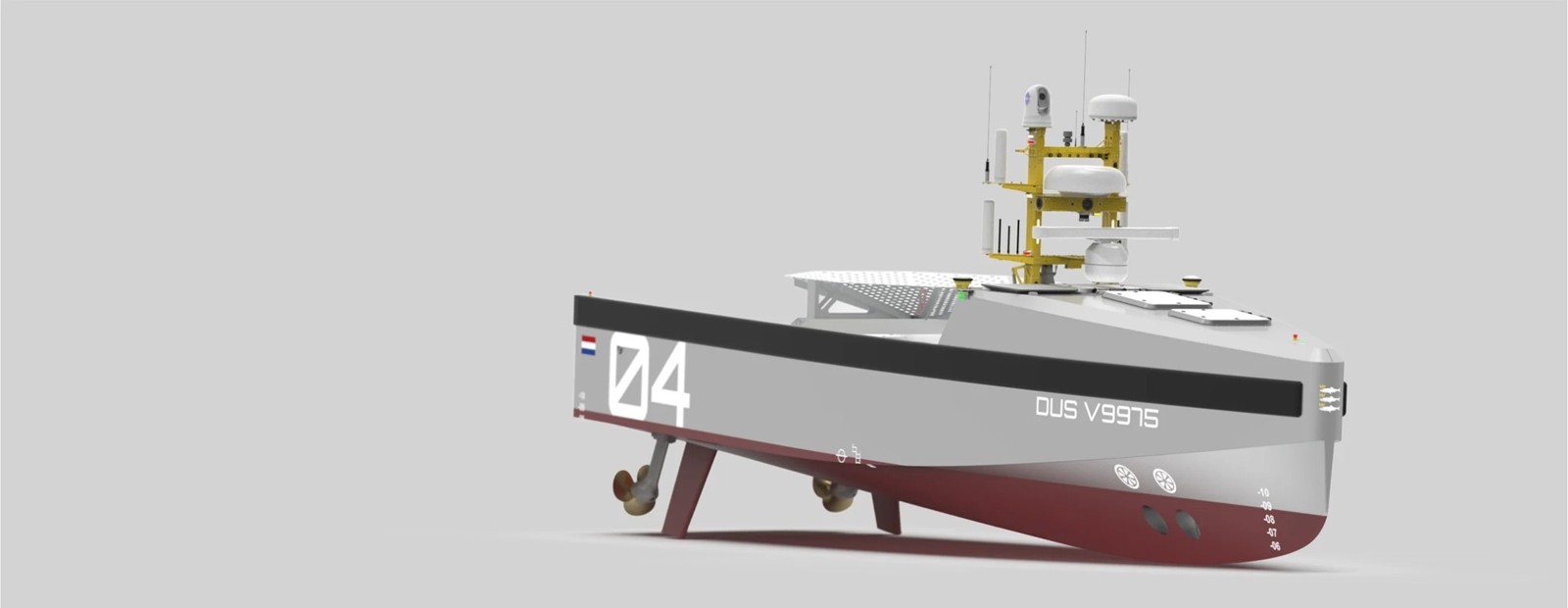

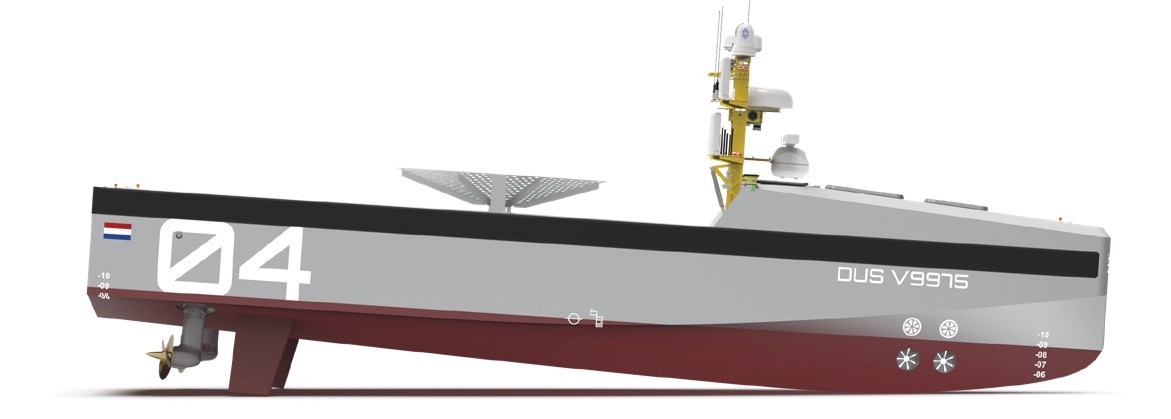

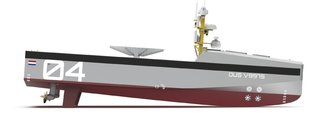

The DUS V9975 is Demcon unmanned systems' 10-metre, high-endurance uncrewed surface vessel for dual-use missions - offshore security and guarding as well as long-term maritime data collection. It runs autonomously for up to 40 days on station, is built for ocean crossings and high sea states, and can be launched and recovered from other vessels or from a harbour. The self-righting aluminium hull measures 9.90 x 2.30 x 3.75 m with a 0.45 m draught and travels in a 40 ft container. Two 80 kW marine engines on HVO biodiesel (2,000 l of tanks) drive fixed-pitch propellers or optional waterjets to 30 knots, with 11 and 8 knot transit speeds, and two 15 kW bow thrusters give dynamic positioning. Cameras, thermal cameras, lidar, radar and AIS provide 360-degree awareness, and payloads fit in a moonpool, on a 5.00 x 2.00 m deck, on the mast or under tow.

FEATURES

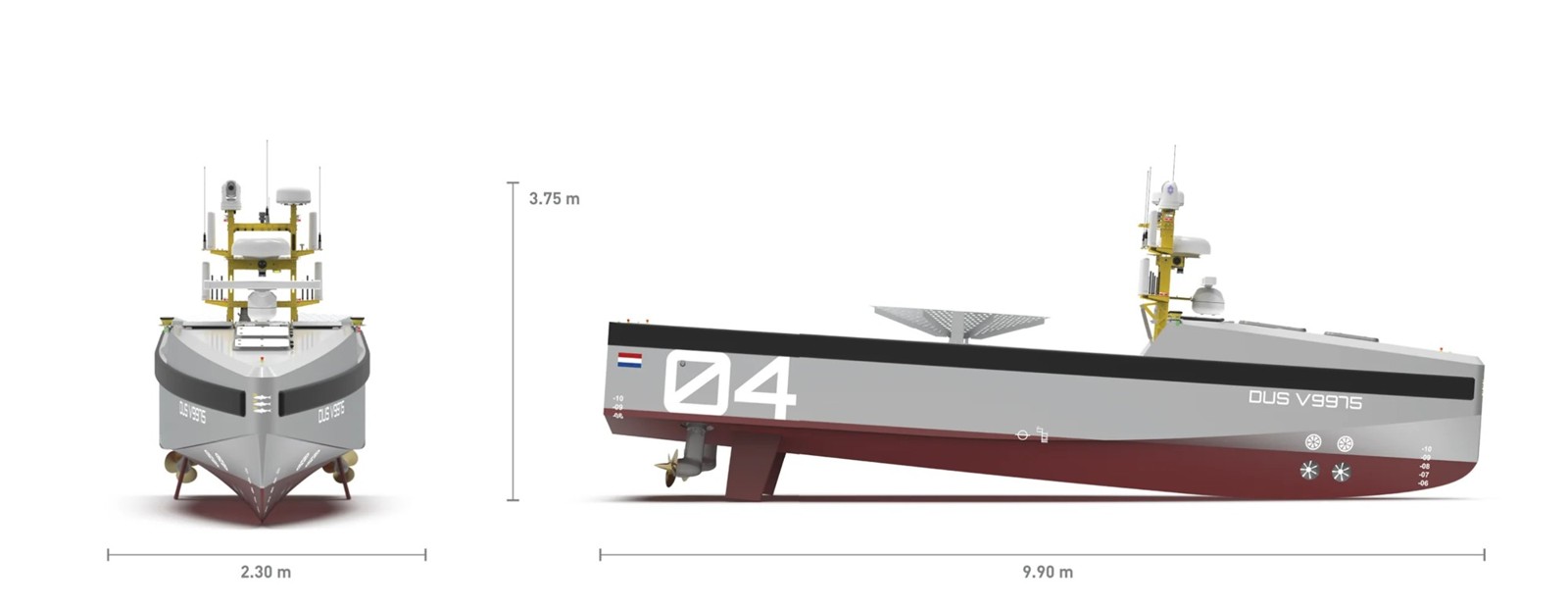

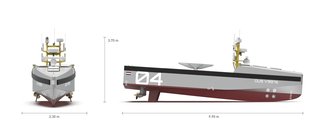

Dimensions: L.O.A. 9.90 m, breadth 2.30 m, height 3.75 m, draught 0.45 m
gross tonnage 3.80 T
40 ft container transportable
Classification: DNV craft type, AROS notation
Speed 30.0 knots max
transit 11.0 / 8.0 knots
stand-by endurance 40 days
sea state 6 with gyro stabiliser and bilge keels
Propulsion: 2 x 80 kW main marine engines with fixed-pitch propellers (waterjets optional), 2 x 15 kW rim-driven bow thrusters for dynamic positioning
Fuel: HVO100 biodiesel, 2000 l tanks (stand-by consumption 0.002 m3/h)
Communication: 2 x dual 4G/5G LTE, Starlink, Iridium, dual-band Wi-Fi, AIS Class A and VDES, VHF/UHF over VoIP
Situational awareness: heated daylight cameras, thermal cameras, lidar, radar, pan-tilt-zoom camera, AIS
primary and secondary GNSS INS
Payloads: moonpool, deck 5.00 x 2.00 m, mast, towed payloads, tethered winch
Launch and recovery from vessels or harbour
self-righting hull
Software: DEMCON Unmanned Mission Software, DEMCON Advanced Control System (DAC) autopilot, DEMCON Autonomy System
patented USV Dynamic Positioning

TECHNICAL SPECIFICATIONS

Verified

Physical
Dimensions	L 9.9 m × W 2.3 m × H 3.75 m
Materials	Marine-grade aluminium hull
Mobility
Movement Type	Aquatic
Speed	55.56 km/h
Environment	Open ocean, high sea states
Actuators	2 x 80 kW marine engines (fixed-pitch propellers or waterjets), 2 x 15 kW rim-driven bow thrusters
Power
Battery Life	Diesel (HVO100), 2000 l tanks
Sensing & Compute
Sensors	lidar, radar, daylight and thermal cameras, pan-tilt-zoom camera, AIS, dual GNSS INS
Connectivity	Dual 4G/5G LTE, Starlink, Iridium, Wi-Fi, AIS Class A/VDES, VHF/UHF
Software / AI	DEMCON Unmanned Mission Software, DEMCON Advanced Control System (DAC) autopilot, DEMCON Autonomy System; patented USV Dynamic Positioning

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Dimensions	L 9.9 m × W 2.3 m × H 3.75 m
Materials	Marine-grade aluminium hull
Mobility
Movement Type	Aquatic
Speed	55.56 km/h
Environment	Open ocean, high sea states
Actuators	2 x 80 kW marine engines (fixed-pitch propellers or waterjets), 2 x 15 kW rim-driven bow thrusters
Power
Battery Life	Diesel (HVO100), 2000 l tanks
Sensing & Compute
Sensors	lidar, radar, daylight and thermal cameras, pan-tilt-zoom camera, AIS, dual GNSS INS
Connectivity	Dual 4G/5G LTE, Starlink, Iridium, Wi-Fi, AIS Class A/VDES, VHF/UHF
Software / AI	DEMCON Unmanned Mission Software, DEMCON Advanced Control System (DAC) autopilot, DEMCON Autonomy System; patented USV Dynamic Positioning

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the DUS V9975?

The DUS V9975 is Demcon unmanned systems' 10-metre, high-endurance uncrewed surface vessel for dual-use missions - offshore security and guarding as well as long-term maritime data collection.
