DUS OV5750

Demcon unmanned systems

Mobile-Robots

NetherlandsReleased

★Not rated yet

Compare

Sources:

demcon-unmanned.nl

Industries:

Energy Government Research Construction

Uses:

Mapping Surveying Inspection MonitoringUncrewed hydrographic and environmental survey

Price:

Not announced

Model:

Demcon DUS OV5750 DNV type-approved offshore hybrid USV

DESCRIPTION

DUS OV5750 is a Mobile-Robots from Demcon unmanned systems. It is built for Mapping, Surveying, Inspection.

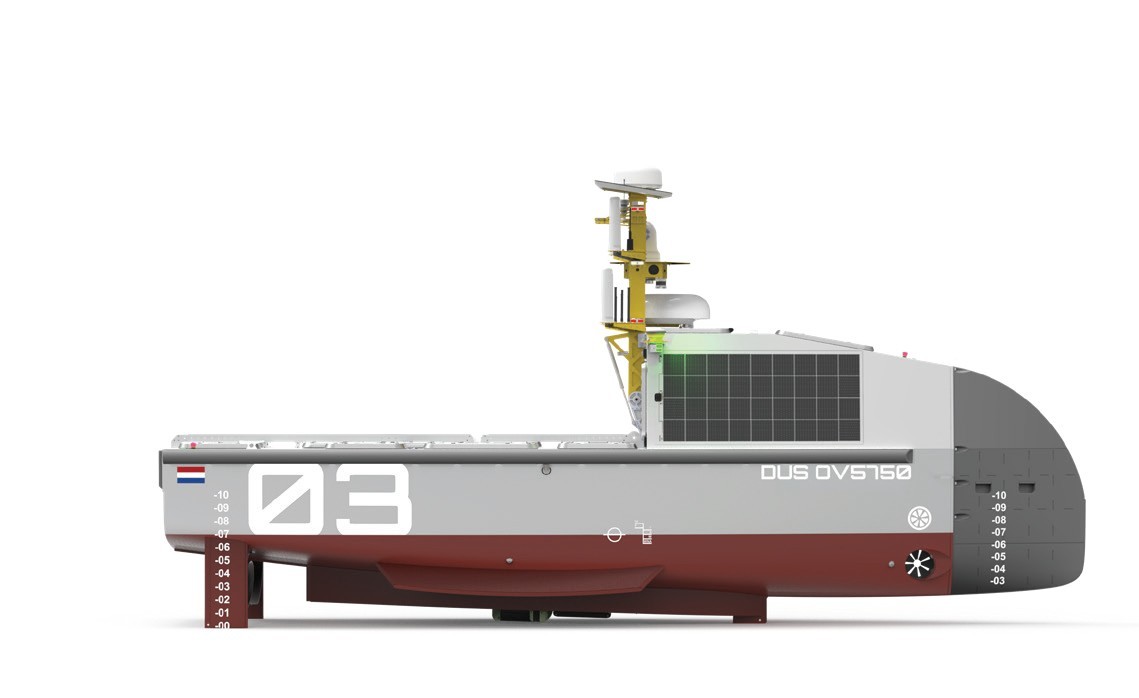

The DUS OV5750 is Demcon unmanned systems' offshore uncrewed surface vessel, type-approved for hydrographic survey and data collection and class-certified to DNV's craft standard (DNV-ST-0342) and the DNV-CG-0264 notation for autonomous and remotely operated ships. Mission-critical power, propulsion, situational awareness and communication are triple-redundant, and it operates in sea states up to 6. The self-righting aluminium hull is 6.80 m long (5.75 m for transport, so it fits a 20 ft container), 2.10 m wide, 2.20-3.50 m high and draws 0.45 m. Hybrid propulsion - two 15 kW rim-driven main thrusters and a 15 kW bow thruster, two 10 kWh lithium batteries and two 6.4 kW generators burning HVO biofuel, with solar backup - gives 8 knots maximum, 4 knots cruise, a range of 1,100 nautical miles and up to 30 days on station. Cameras, thermal cameras, lidar, radar and AIS give 360-degree awareness, and its moonpool, deck, mast and towing points carry survey sensors as well as aerial and underwater drones.

FEATURES

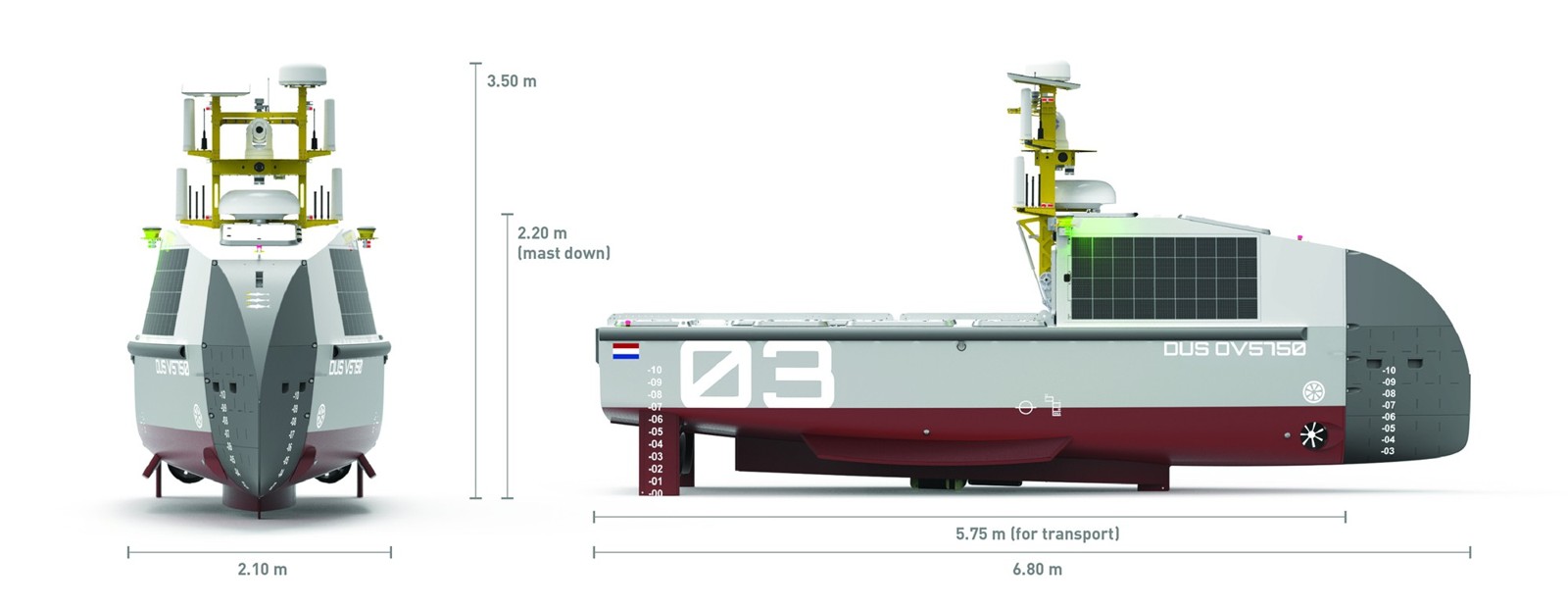

Dimensions: L.O.A. 6.80 m (5.75 m for transport, fits a 20 ft container), breadth 2.10 m, height 2.20-3.50 m (mast down/up), draught 0.45 m
gross tonnage 3.50 T
Classification: DNV type approval - DNV-ST-0342 craft standard and DNV-CG-0264 (AROS) notation
Hull: self-righting, round-bilge marine-grade aluminium, 11 watertight lockable compartments
gyro stabiliser and bilge keels
Speed 8.0 knots max, 4.0 knots cruise
range 1,100 nm
stand-by endurance 30 days
sea state 6
Propulsion: 2 x 15 kW rim-driven main thrusters + 1 x 15 kW rim-driven bow thruster
Power: 2 x 10 kWh lithium batteries, 2 x 6.4 kW Stage V generators on HVO100 biodiesel (2 x 250 l tanks), solar backup
2 x 2900 W chargers, 0-100% in under 4 hours
Redundancy: triple redundancy in power, propulsion, situational awareness and communication
Communication: 2 x dual 4G/5G LTE, Starlink, Iridium, dual-band Wi-Fi, AIS Class A, VHF/UHF over VoIP, encrypted networking
Situational awareness: heated daylight cameras, thermal cameras, lidar, radar, pan-tilt-zoom camera, AIS
primary and secondary GNSS INS
Payloads: moonpool 1.20 x 0.50 x 1.15 m, deck 3.30 x 1.80 m, mast and towed payloads
launches aerial and underwater drones
Software: DEMCON Unmanned Mission Software, DEMCON Advanced Control System (DAC) autopilot, DEMCON Autonomy System
patented USV Dynamic Positioning

TECHNICAL SPECIFICATIONS

Verified

Physical
Dimensions	L 6.8 m × W 2.1 m × H 2.2 m
Materials	Marine-grade aluminium hull
Mobility
Movement Type	Aquatic
Speed	14.82 km/h
Environment	Offshore waters up to sea state 6
Actuators	Hybrid electric: 2 x 15 kW rim-driven main thrusters, 1 x 15 kW bow thruster
Power
Battery Life	2 x 10 kWh lithium + 2 x 6.4 kW HVO generators
Charging Type	2 x 2900 W (230 V) chargers; onboard generators; solar backup
Sensing & Compute
Sensors	lidar, radar, daylight and thermal cameras, pan-tilt-zoom camera, AIS, dual GNSS INS
Connectivity	Dual 4G/5G LTE, Starlink, Iridium, Wi-Fi, AIS Class A, VHF/UHF
Software / AI	DEMCON Unmanned Mission Software, DEMCON Advanced Control System (DAC) autopilot, DEMCON Autonomy System; patented USV Dynamic Positioning

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.
