DESCRIPTION
DUS V3000 is a Mobile-Robots from Demcon unmanned systems. It is built for Mapping, Surveying, Inspection. Key figures: 350 kg, 1440 min runtime.

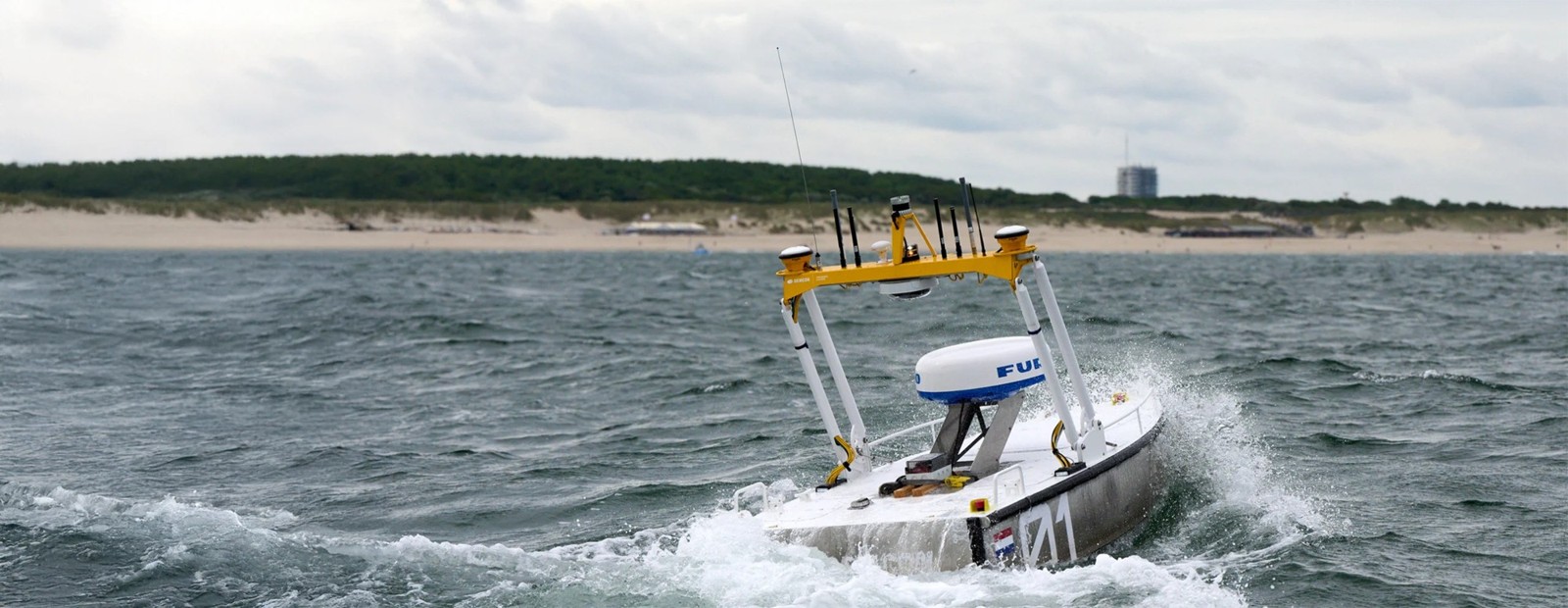

The DUS V3000 is Demcon unmanned systems' award-winning, fully electric uncrewed survey vessel, developed with Van Oord's hydrographic survey team for data collection from shallow inland water to rough nearshore saltwater. It operates beyond visual line of sight, combining multi-sensor situational awareness and autonomous navigation with redundant mission-critical components and cybersecurity, and Demcon says multiple vessels have been deployed on projects worldwide. The standard vessel measures 3.00 x 1.30 m (length available from 2.50 to 6.00 m; Martens en Van Oord bought a 4 m V4000), stands 1.30-2.00 m with the mast down or up, draws 0.35 m and weighs 350 kg dry. Two 11 kW rim-driven main thrusters and a 5 kW bow thruster give 8 knots, and two 5 kWh lithium batteries provide up to 24 hours or 70 km, recharging in under 4 hours; a biodiesel or fuel-cell range extender is optional. The aluminium hull has five watertight compartments and a moonpool with interchangeable payload brackets, and Demcon's patented dynamic positioning supports station-keeping, weathervaning, loitering and virtual anchoring.
FEATURES

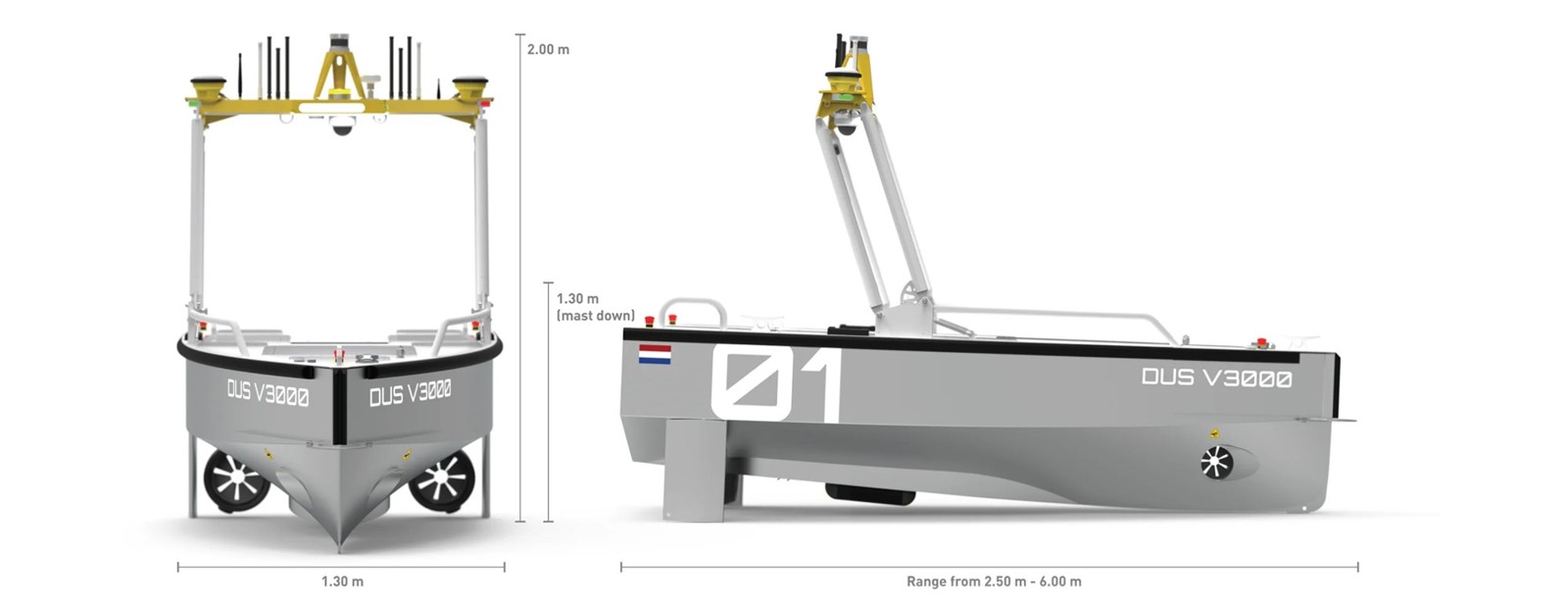

- Dimensions: L.O.A. 3.00 m (range 2.50-6.00 m), breadth 1.30 m, height 1.30-2.00 m (mast down/up), draught 0.35 m
- dry weight 350 kg
- Hull: marine-grade aluminium, load-bearing (no cradle), 5 watertight lockable compartments
- Speed (max) 8.0 knots
- range up to 70 km
- endurance up to 24 hours
- sea state 4
- Propulsion: 2 x 11 kW rim-driven main thrusters + 1 x 5 kW rim-driven bow thruster
- fully electric, no gears or lubricants
- Power: 2 x 5 kWh lithium batteries
- 2900 W fast charger, 0-100% in under 4 hours
- optional HVO biodiesel or fuel-cell range extender
- Communication: dual 4G/5G LTE, Starlink, dual-band Wi-Fi, AIS Class B, automatic datalink switching, encrypted VPN networking
- Situational awareness: daylight/IR cameras, lidar, radar, AIS, optional pan-tilt-zoom camera
- Navigation: dual-RTK GNSS INS, ADMIRALTY vector charts
- Control modes: manual/hybrid, dynamic positioning (station-keeping, weathervaning, loitering, virtual anchoring), autopilot navigation
- Payloads: moonpool with interchangeable brackets, RC DEMCON moonpool winch, deck, towed and mast payloads
- Transport: trailerable, container-ready and air-cargo compatible
- Compliance: DNV-CG-0264 (AROS) compliant, EN ISO 12100, ISO 9001
- Software: DEMCON Unmanned Mission Software, DEMCON Advanced Control System (DAC) autopilot, DEMCON Autonomy System
- patented USV Dynamic Positioning
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 350 kg |
|---|---|
| Dimensions | L 3 m × W 1.3 m × H 1.3 m |
| Materials | Marine-grade aluminium hull |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 14.82 km/h |
| Environment | Inland waters, rivers and nearshore saltwater up to sea state 4 |
| Actuators | 2 x 11 kW rim-driven main thrusters, 1 x 5 kW rim-driven bow thruster |
| Power | |
| Battery Life | 1440 min |
| Charging Type | 2900 W (230 V) fast charger |
| Sensing & Compute | |
| Sensors | lidar, radar, daylight/IR cameras, AIS, dual-RTK GNSS INS |
| Connectivity | Dual 4G/5G LTE, Starlink, dual-band Wi-Fi, AIS Class B |
| Software / AI | DEMCON Unmanned Mission Software, DEMCON Advanced Control System (DAC) autopilot, DEMCON Autonomy System; patented USV Dynamic Positioning |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 350 kg |
|---|---|
| Dimensions | L 3 m × W 1.3 m × H 1.3 m |
| Materials | Marine-grade aluminium hull |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 14.82 km/h |
| Environment | Inland waters, rivers and nearshore saltwater up to sea state 4 |
| Actuators | 2 x 11 kW rim-driven main thrusters, 1 x 5 kW rim-driven bow thruster |
| Power | |
| Battery Life | 1440 min |
| Charging Type | 2900 W (230 V) fast charger |
| Sensing & Compute | |
| Sensors | lidar, radar, daylight/IR cameras, AIS, dual-RTK GNSS INS |
| Connectivity | Dual 4G/5G LTE, Starlink, dual-band Wi-Fi, AIS Class B |
| Software / AI | DEMCON Unmanned Mission Software, DEMCON Advanced Control System (DAC) autopilot, DEMCON Autonomy System; patented USV Dynamic Positioning |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the DUS V3000?
The DUS V3000 is Demcon unmanned systems' award-winning, fully electric uncrewed survey vessel, developed with Van Oord's hydrographic survey team for data collection from shallow inland water to rough nearshore saltwater.
Who makes the DUS V3000?
The DUS V3000 is made by Demcon unmanned systems, a robotics company based in Netherlands.
How much does the DUS V3000 cost?
Demcon unmanned systems has not publicly announced pricing for the DUS V3000. You can enquire through RobotAIGeek for current pricing.
What is the DUS V3000 used for?
The DUS V3000 is designed for mapping, surveying, inspection, and monitoring. It is used in energy, government, research, and construction settings.
How much does the DUS V3000 weigh?
The DUS V3000 weighs 350 kg.
How fast is the DUS V3000?
The DUS V3000 can move at speeds of up to 14.82 km/h.
What is the battery life of the DUS V3000?
The DUS V3000 runs for about 1,440 minutes on a charge.
