DESCRIPTION
DUS CV2000 is a Mobile-Robots from Demcon unmanned systems. It is built for Mapping, Surveying, Inspection. Key figures: 100 kg, 600 min runtime.

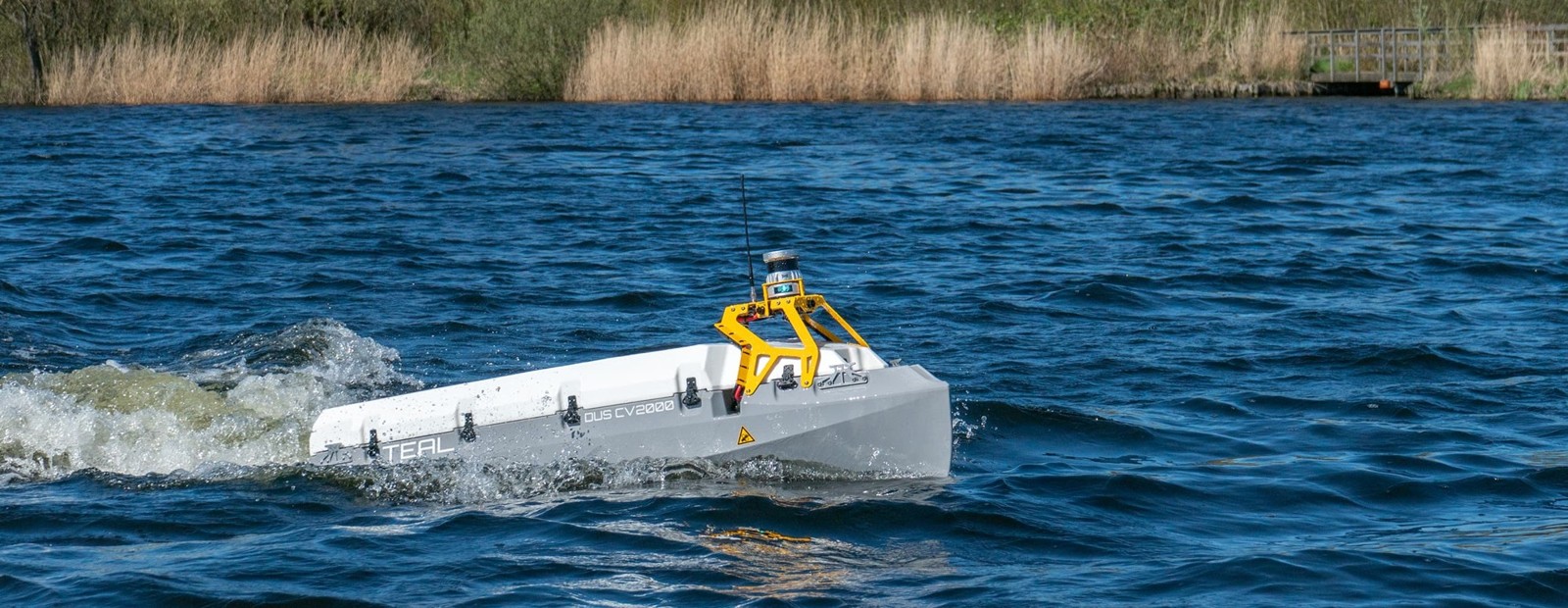

The DUS CV2000 is Demcon unmanned systems' compact, fully electric uncrewed surface vessel for high-precision inland work. Its shallow draft and low-profile hull let it navigate autonomously in turbulent, confined and overgrown water such as floodplains, groin fields and creeks, for hydrographic, environmental and asset-management missions. It measures 1.90 x 0.60 x 0.75 m with a 0.25 m draught and weighs 100 kg dry. Two 3 kW rim-driven main thrusters and a 3 kW bow thruster give a top speed of 4.5 knots, and a 3.5 kWh lithium battery lasts 10 hours (43 km) at 2.3 knots, recharging in under 2 hours. The impact-resistant HDPE hull is built like a flight case and carries a moonpool for hull-mounted ADCP, side-scan sonar, echo sounders, sub-bottom profilers and water-sampling tools. A 32-line lidar, a four-sensor 360-degree camera and AIS feed object detection and collision avoidance, and Demcon's patented dynamic positioning holds station hands-free near shorelines.
FEATURES

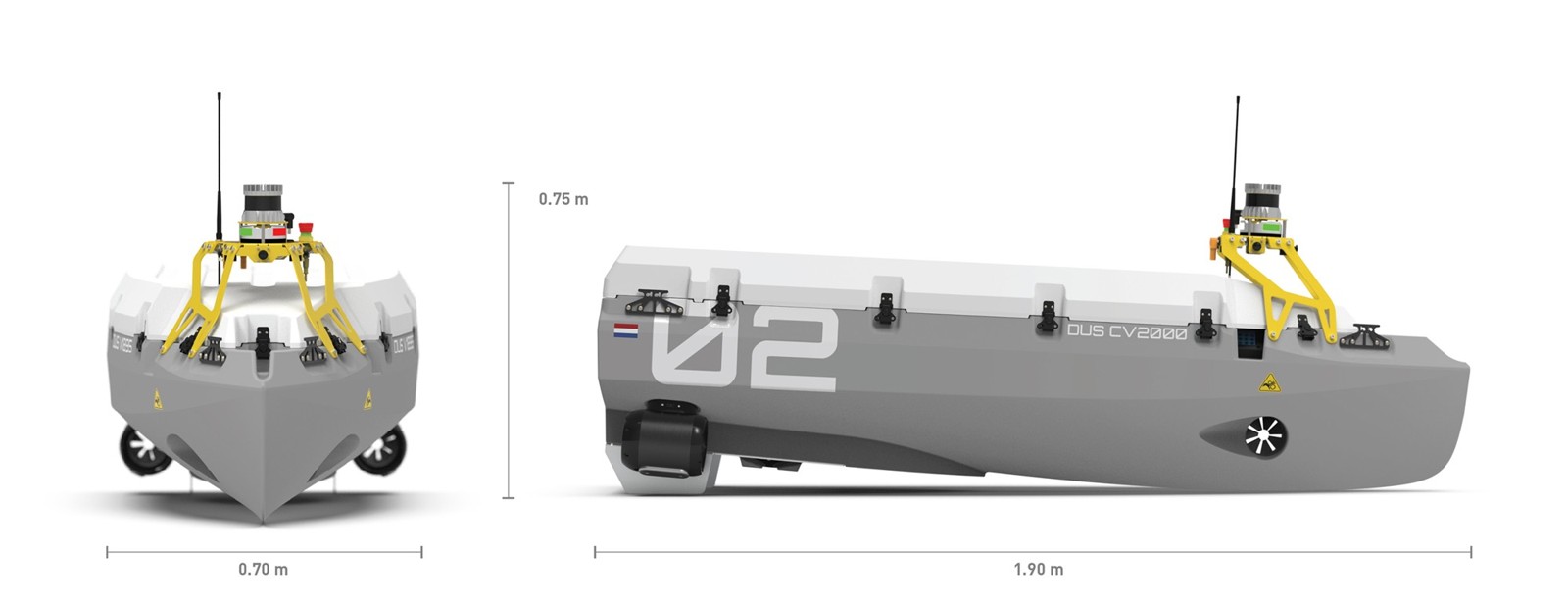

- Dimensions: L.O.A. 1.90 m, breadth 0.60 m, height 0.75 m, draught 0.25 m
- dry weight 100 kg
- Hull: HDPE and marine-grade aluminium, load-bearing (no cradle), single lockable hatch
- Speed (max) 4.5 knots
- endurance 43 km / 10 h at 2.3 knots or 27.5 km / 3.5 h at 4 knots
- seaworthiness 3
- Propulsion: 2 x 3 kW rim-driven main thrusters + 1 x 3 kW rim-driven bow thruster
- Power: 3.5 kWh lithium battery
- 1700 W fast charger, 0-100% in under 2 hours
- Communication: 2 x dual 4G/5G LTE modems, Wi-Fi 6 line-of-sight link, AIS Class B/A (VDES), VHF/UHF radio over VoIP
- Navigation: dual-antenna GNSS INS (0.015 deg roll/pitch, 0.05 deg heading), ADMIRALTY vector charts
- Situational awareness: AIS, 360-degree daylight camera (4 sensors), 32-line lidar
- Payloads: moonpool 0.275 x 0.32 x 0.35 m for ADCP, side-scan sonar, multi/single-beam echo sounders, SBP, water-quality sampling
- remote-controlled DEMCON moonpool winch
- Safety: object detection, collision avoidance, autonomous emergency braking, thruster-failure control mixer, cyber-secured
- Compliance: DNV-CG-0264 (AROS) compliant, EN ISO 12100, ISO 9001
- Software: DEMCON Unmanned Mission Software, DEMCON Advanced Control System (DAC) autopilot, DEMCON Autonomy System
- patented USV Dynamic Positioning
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 100 kg |
|---|---|
| Dimensions | L 1.9 m × W 600 mm × H 750 mm |
| Materials | HDPE and marine-grade aluminium hull |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 8.33 km/h |
| Environment | Rivers, floodplains, creeks and other shallow inland waters |
| Actuators | 2 x 3 kW rim-driven main thrusters, 1 x 3 kW rim-driven bow thruster |
| Power | |
| Battery Life | 600 min |
| Charging Type | 1700 W (230 V) fast charger |
| Sensing & Compute | |
| Sensors | 32-line lidar, 360-degree daylight camera (4 sensors), AIS, dual-antenna GNSS INS |
| Connectivity | Dual 4G/5G LTE, Wi-Fi 6 LOS link, AIS, VHF/UHF (VoIP) |
| Software / AI | DEMCON Unmanned Mission Software, DEMCON Advanced Control System (DAC) autopilot, DEMCON Autonomy System; patented USV Dynamic Positioning |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 100 kg |
|---|---|
| Dimensions | L 1.9 m × W 600 mm × H 750 mm |
| Materials | HDPE and marine-grade aluminium hull |
| Mobility | |
| Movement Type | Aquatic |
| Speed | 8.33 km/h |
| Environment | Rivers, floodplains, creeks and other shallow inland waters |
| Actuators | 2 x 3 kW rim-driven main thrusters, 1 x 3 kW rim-driven bow thruster |
| Power | |
| Battery Life | 600 min |
| Charging Type | 1700 W (230 V) fast charger |
| Sensing & Compute | |
| Sensors | 32-line lidar, 360-degree daylight camera (4 sensors), AIS, dual-antenna GNSS INS |
| Connectivity | Dual 4G/5G LTE, Wi-Fi 6 LOS link, AIS, VHF/UHF (VoIP) |
| Software / AI | DEMCON Unmanned Mission Software, DEMCON Advanced Control System (DAC) autopilot, DEMCON Autonomy System; patented USV Dynamic Positioning |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the DUS CV2000?
The DUS CV2000 is Demcon unmanned systems' compact, fully electric uncrewed surface vessel for high-precision inland work. Its shallow draft and low-profile hull let it navigate autonomously in turbulent, confined and overgrown water such as floodplains, groin fields and creeks, for hydrographic, environmental and asse…
Who makes the DUS CV2000?
The DUS CV2000 is made by Demcon unmanned systems, a robotics company based in Netherlands.
How much does the DUS CV2000 cost?
Demcon unmanned systems has not publicly announced pricing for the DUS CV2000. You can enquire through RobotAIGeek for current pricing.
What is the DUS CV2000 used for?
The DUS CV2000 is designed for mapping, surveying, inspection, and monitoring. It is used in energy, government, research, and construction settings.
How much does the DUS CV2000 weigh?
The DUS CV2000 weighs 100 kg.
How fast is the DUS CV2000?
The DUS CV2000 can move at speeds of up to 8.33 km/h.
What is the battery life of the DUS CV2000?
The DUS CV2000 runs for about 600 minutes on a charge.
