DOK-ING MVC8 Komodo

DOK-ING
MilitaryCroatiaCroatiaReleased
DOK-ING MVC8 Komodo
Compare
Sources:
dok-ing.hr
Industries:
DefenceGovernmentConstruction
Uses:
ReconnaissanceRescueSecurityInspection
Price:
Not announced

DESCRIPTION

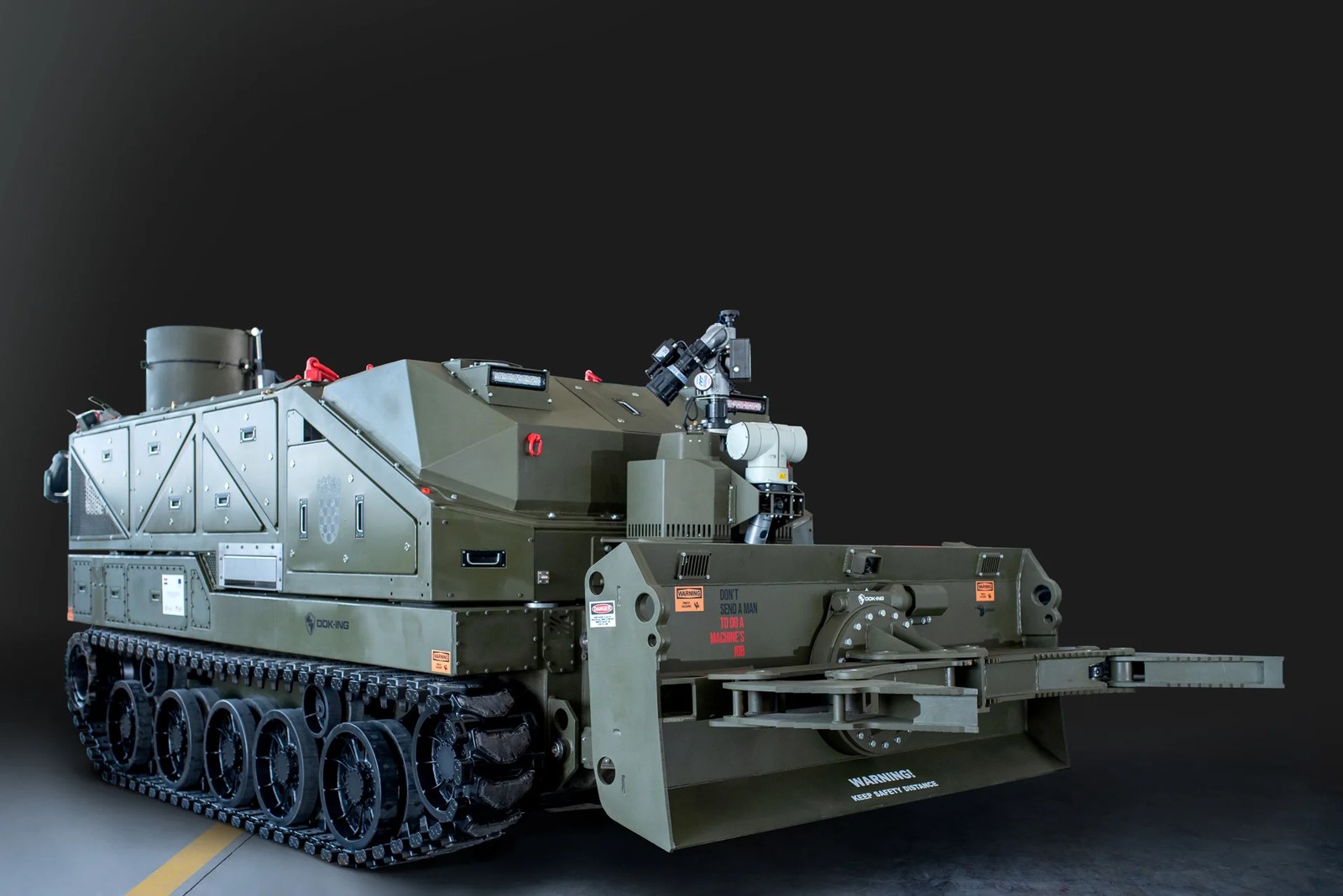

The MVC8 Komodo is DOK-ING's CBRN machine — the one sent in when the hazard is chemical, biological, radiological or nuclear rather than explosive. It is a 17,000 kg tracked vehicle, 7.2 m long, 2.3 m wide and 2.9 m tall with 0.34 m of ground clearance, limited to 30 km/h and controlled at line-of-sight ranges up to 1,500 m. Its CBRN mission module decontaminates objects with the robotic arm, personnel through a decontamination shower and surfaces with a front tool attachment, and can partially decontaminate itself through nozzles distributed over the machine. A sensor bundle carries CRN detection modules, temperature, oxygen and explosive-gas sensors, lidar and a meteorological station, and it collects solid, gas and liquid samples automatically. The front exchangeable tool — a blade and gripper of 1,200 kg — opens its claws to 1.8 m, rotates through 360 degrees, pushes 10 tonnes and lifts 2,000 kg. The rear manipulator arm lifts 990 kg at up to 4 m of outreach. Propulsion is hybrid.

FEATURES

  • Remote-controlled CBRN response and obstacle-clearance vehicle
  • Gross vehicle weight 17,000 kg (base vehicle with CBRN module, gripper and arm)
  • Dimensions 7.2 x 2.3 x 2.9 m
  • ground clearance 0.34 m
  • Maximum speed limited to 30 km/h
  • Line-of-sight control range up to 1,500 m
  • Hybrid propulsion
  • CBRN module: decontamination of objects, personnel and surfaces, plus self-decontamination
  • Sensor bundle: CRN detection, temperature, oxygen and explosive-gas sensors, lidar, MET station
  • Automated collection of solid, gas and liquid samples
  • Front exchangeable blade/gripper: 1,200 kg, claws opening 1.8 m, 360 degree rotation
  • Front tool blade pushing capacity 10 t
  • maximum lift 2,000 kg
  • Rear manipulator arm: maximum lift 990 kg, outreach 4 m
  • Firefighting and product control and mitigation capability

TECHNICAL SPECIFICATIONS

Verified
Physical
Weight17000 kg
DimensionsL 7.2 m × W 2.3 m × H 2.9 m
Payload2000 kg
Reach4 m
Mobility
Movement TypeWheeled
Speed8.33 km/h
EnvironmentMinefields, disaster sites and contaminated ground; on and off-road, operator at a distance
Sensing & Compute
Sensorscameras for day and night operation, situational-awareness and mapping sensors
Software / AIRemote control with area mapping and situational awareness
Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the DOK-ING MVC8 Komodo?

The MVC8 Komodo is DOK-ING's CBRN machine — the one sent in when the hazard is chemical, biological, radiological or nuclear rather than explosive.

Who makes the DOK-ING MVC8 Komodo?

The DOK-ING MVC8 Komodo is made by DOK-ING, a robotics company based in Croatia.

How much does the DOK-ING MVC8 Komodo cost?

DOK-ING has not publicly announced pricing for the DOK-ING MVC8 Komodo. You can enquire through RobotAIGeek for current pricing.

What is the DOK-ING MVC8 Komodo used for?

The DOK-ING MVC8 Komodo is designed for reconnaissance, rescue, security, and inspection. It is used in defence, government, and construction settings.

What is the payload capacity of the DOK-ING MVC8 Komodo?

The DOK-ING MVC8 Komodo has a payload capacity of 2,000 kg and a reach of 4 m.

How much does the DOK-ING MVC8 Komodo weigh?

The DOK-ING MVC8 Komodo weighs 17,000 kg.

How fast is the DOK-ING MVC8 Komodo?

The DOK-ING MVC8 Komodo can move at speeds of up to 8.33 km/h.
