DESCRIPTION

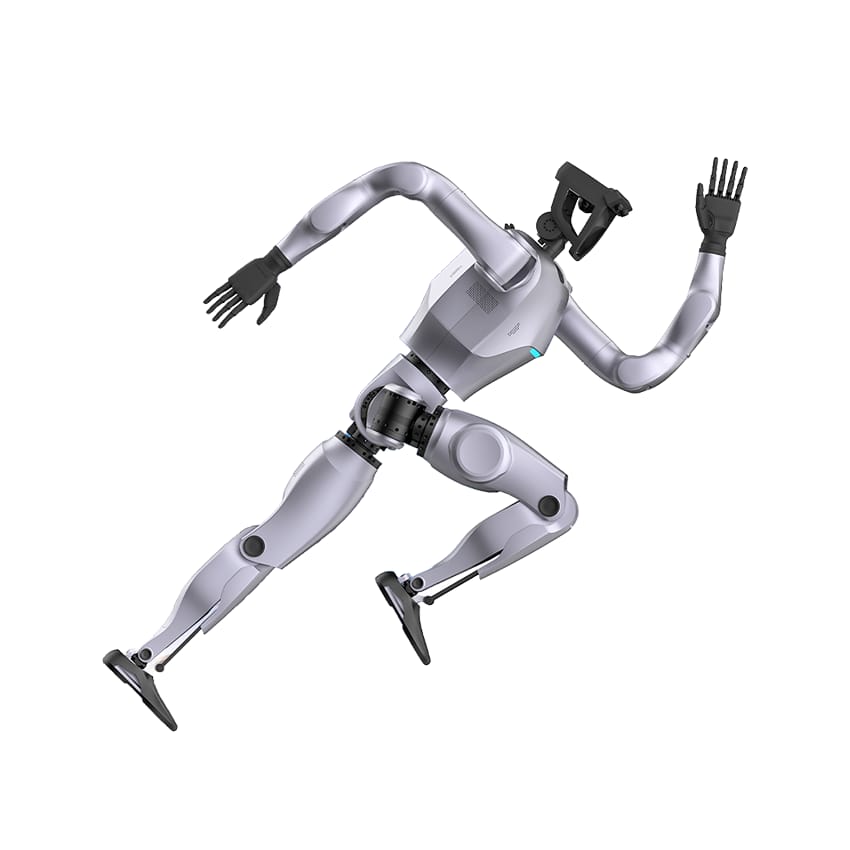

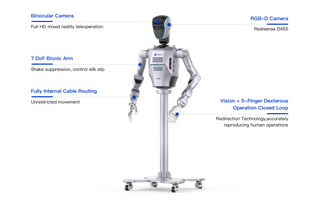

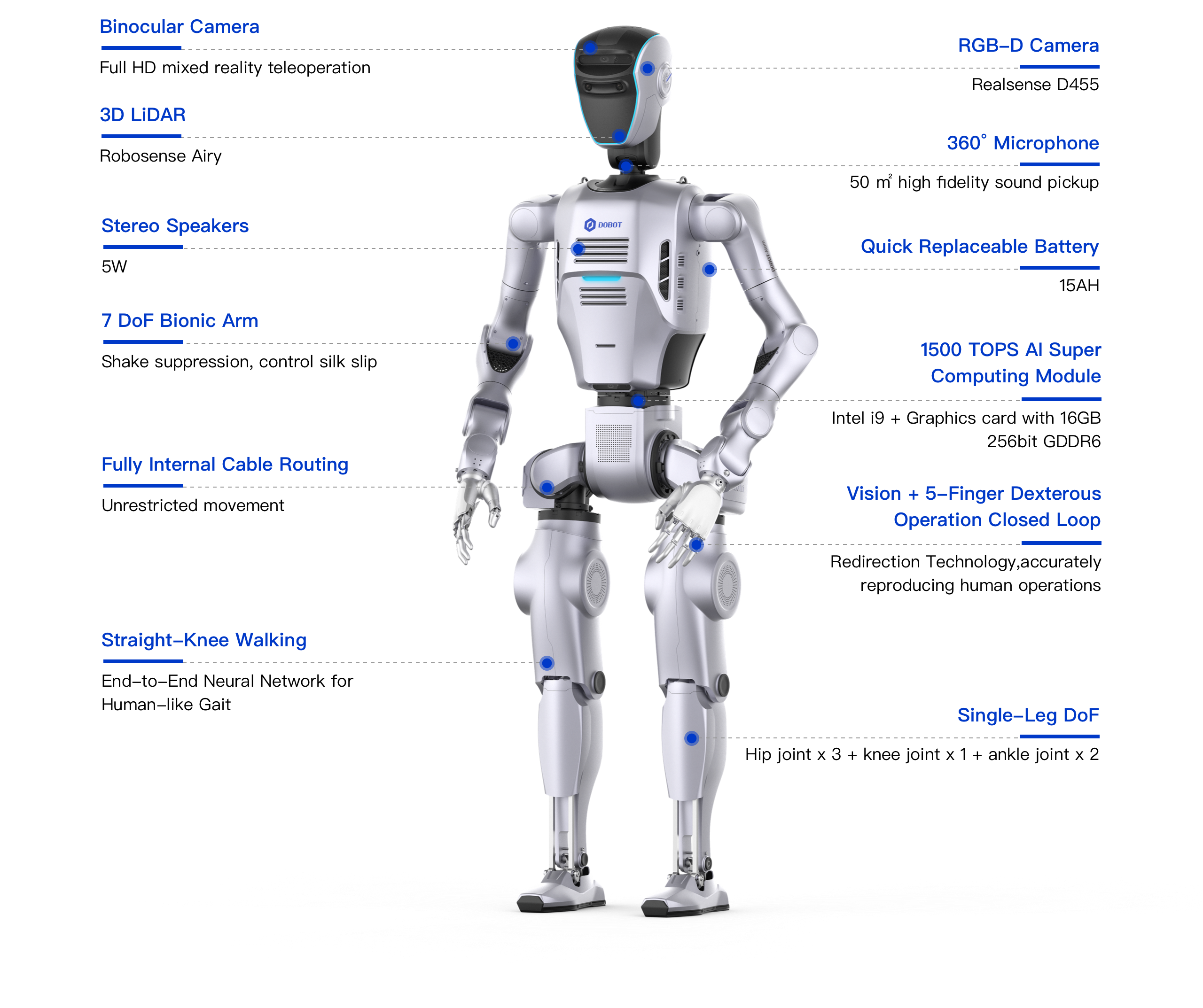

ATOM is Dobot Robotics' humanoid robot, built around dexterous upper-body manipulation rather than locomotion alone. The base model carries 28 upper-body degrees of freedom and the ATOM Max variant raises that to 41. Fine motor control comes from Dobot's Neuro-Driven Dexterity System, which applies servo-level vibration suppression under 200 Hz high-frequency control. Walking is handled by an Anthropomorphic Walking System using a straight-knee gait, which Dobot says cuts energy consumption by 42 percent against conventional bent-knee walking. On the software side, the Robot Operator Model-1 runs 100 million parameters at 24 Hz end-to-end control and decomposes tasks autonomously rather than following fixed scripts. Perception is binocular RGB vision on the base model, while ATOM Max adds a 60 FPS Full HD vision system and Intel RealSense D455 depth sensing. Dobot targets automotive assembly-line material handling, beverage preparation in coffee shops and night-time pharmacy dispensing.
FEATURES

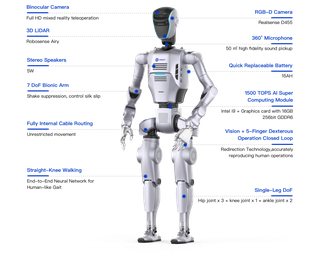

- 28 upper-body degrees of freedom (41 on ATOM Max)
- Neuro-Driven Dexterity System with servo-level vibration suppression
- 200 Hz high-frequency control

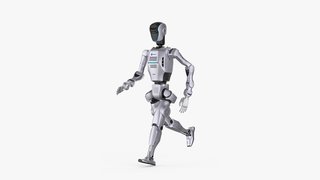

- Anthropomorphic Walking System with straight-knee gait
- 42 percent lower energy consumption than bent-knee walking
- Robot Operator Model-1 with 100M parameters at 24 Hz end-to-end control
- Autonomous task decomposition

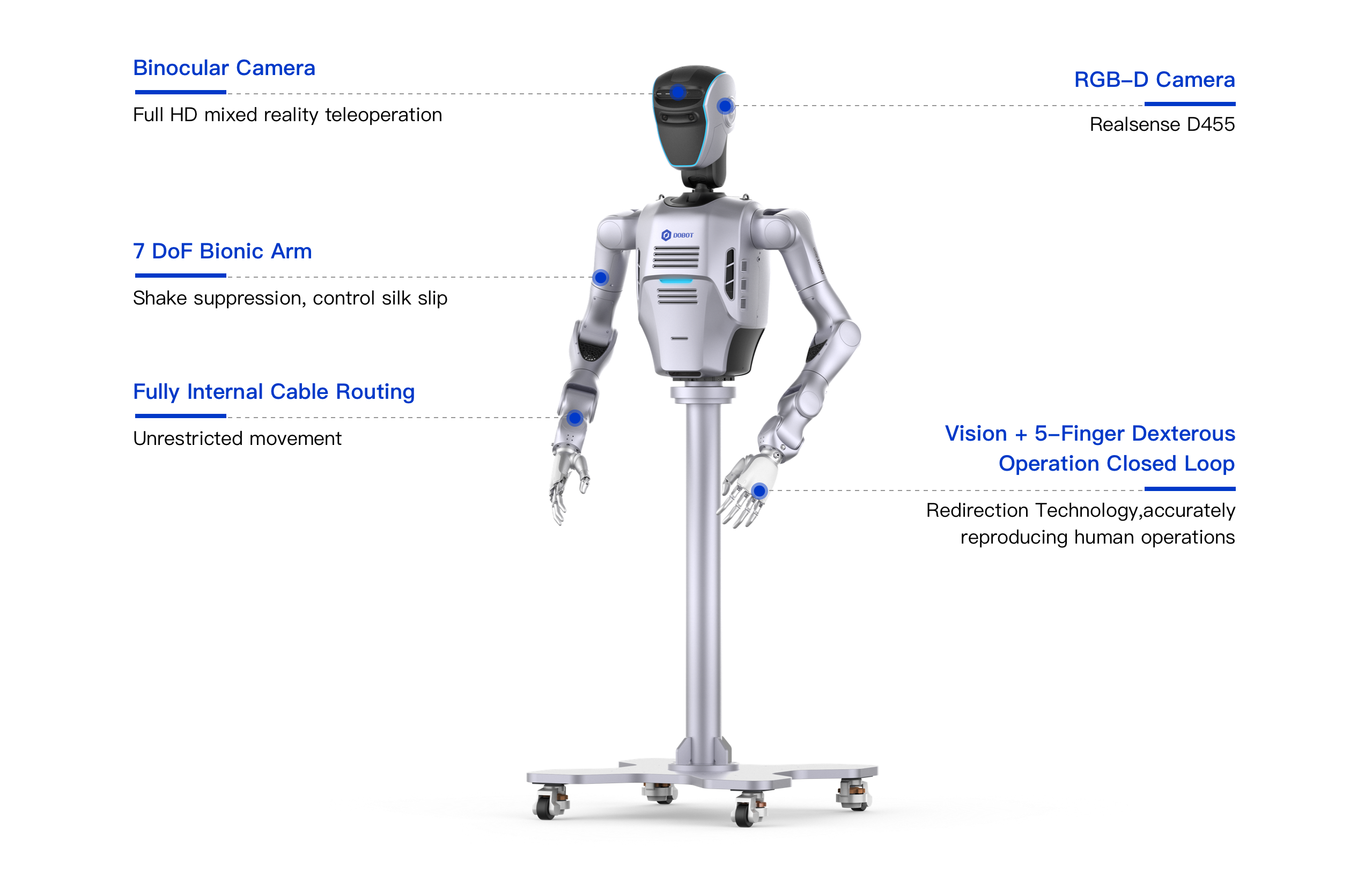

- Binocular RGB vision
- ATOM Max: 60 FPS Full HD vision and Intel RealSense D455 depth sensing

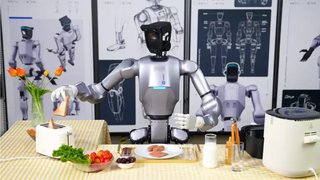

- Applied to automotive material handling, beverage preparation and pharmacy dispensing
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 58 kg |
|---|---|
| Dimensions | H 1.65 m |
| Payload | 30 kg |
| Materials | N/A |
| Mobility | |
| Movement Type | Humanoid |
| Speed | 2 km/h |
| Manipulation | High |

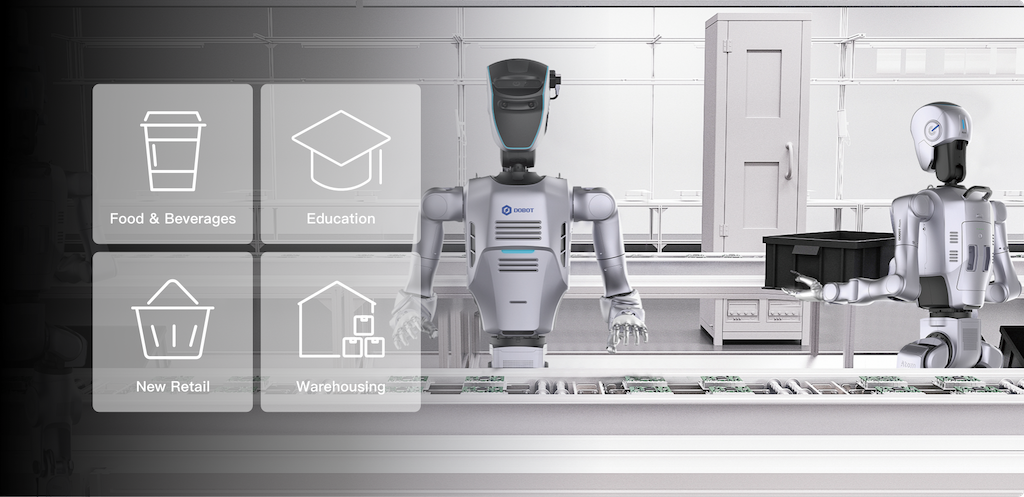

| Environment | Indoor industrial, commercial, research, logistics, warehousing, new retail, healthcare, and education environments; compact/narrow spaces and workstation heights of 700–1000 mm. |
| Actuators | Hollow-aligned joint assembly actuators; electric servo joints with optional 6-DoF dexterous hands |
| Power | |
| Battery Life | 2 hours |
| Charging Type | Electric |
| Charging Time | ~1 hour |
| Sensing & Compute | |
| Sensors | Cameras, Sensors |
| Connectivity | Ethernet, SDK |
| Software / AI | Embodied AI system |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 58 kg |
|---|---|
| Dimensions | H 1.65 m |
| Payload | 30 kg |
| Materials | N/A |
| Mobility | |
| Movement Type | Humanoid |
| Speed | 2 km/h |
| Manipulation | High |
| Environment | Indoor industrial, commercial, research, logistics, warehousing, new retail, healthcare, and education environments; compact/narrow spaces and workstation heights of 700–1000 mm. |
| Actuators | Hollow-aligned joint assembly actuators; electric servo joints with optional 6-DoF dexterous hands |
| Power | |
| Battery Life | 2 hours |
| Charging Type | Electric |
| Charging Time | ~1 hour |
| Sensing & Compute | |
| Sensors | Cameras, Sensors |
| Connectivity | Ethernet, SDK |
| Software / AI | Embodied AI system |
Images
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the DOBOT Atom (Humanoid Robot)?
ATOM is Dobot Robotics' humanoid robot, built around dexterous upper-body manipulation rather than locomotion alone. The base model carries 28 upper-body degrees of freedom and the ATOM Max variant raises that to 41.
Who makes the DOBOT Atom (Humanoid Robot)?
The DOBOT Atom (Humanoid Robot) is made by Dobot Robotics, a robotics company based in China.
How much does the DOBOT Atom (Humanoid Robot) cost?
Dobot Robotics has not publicly announced pricing for the DOBOT Atom (Humanoid Robot). You can enquire through RobotAIGeek for current pricing.
What is the DOBOT Atom (Humanoid Robot) used for?
The DOBOT Atom (Humanoid Robot) is designed for picking. It is used in manufacturing settings.
What is the payload capacity of the DOBOT Atom (Humanoid Robot)?
The DOBOT Atom (Humanoid Robot) has a payload capacity of 30 kg.
How much does the DOBOT Atom (Humanoid Robot) weigh?
The DOBOT Atom (Humanoid Robot) weighs 58 kg.
How fast is the DOBOT Atom (Humanoid Robot)?
The DOBOT Atom (Humanoid Robot) can move at speeds of up to 2 km/h.
What is the battery life of the DOBOT Atom (Humanoid Robot)?
The DOBOT Atom (Humanoid Robot) runs for 2 hours on a charge. It takes ~1 hour to charge.
