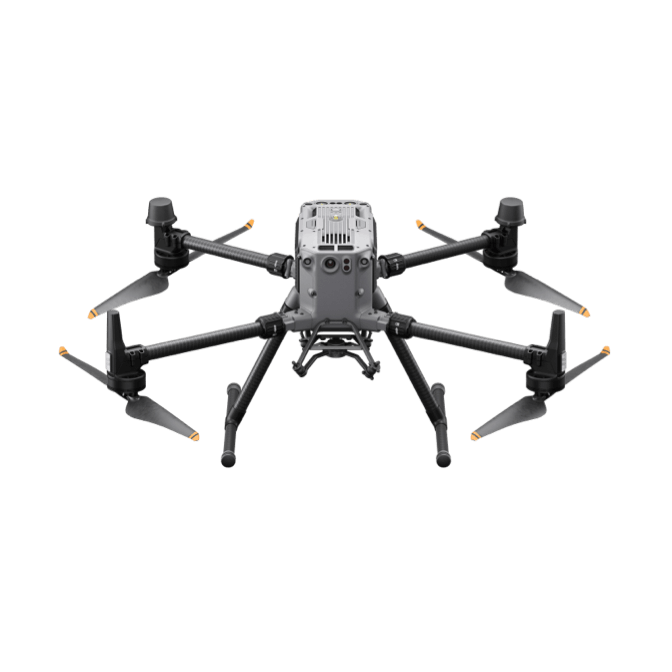

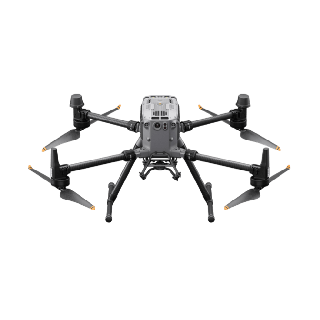

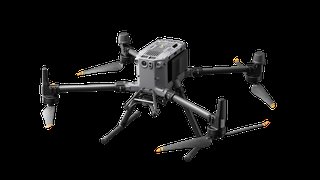

DJI Matrice 350 RTK

AerialChinaChinaReleased
DJI Matrice 350 RTK
Compare
Uses:
MappingSearch-And-RescueSurveyingInspectionMonitoringPower-line, infrastructure and industrial inspection, surveying, public safety, search and rescue
Price:
Not announced
Released:
2023

DESCRIPTION

DJI Matrice 350 RTK is an Aerial from DJI. It is built for Mapping, Search-And-Rescue, Surveying. Key figures: 3.8 kg, 55 min runtime, 2.7 kg payload, price $9,129–$11,129, released 2023.

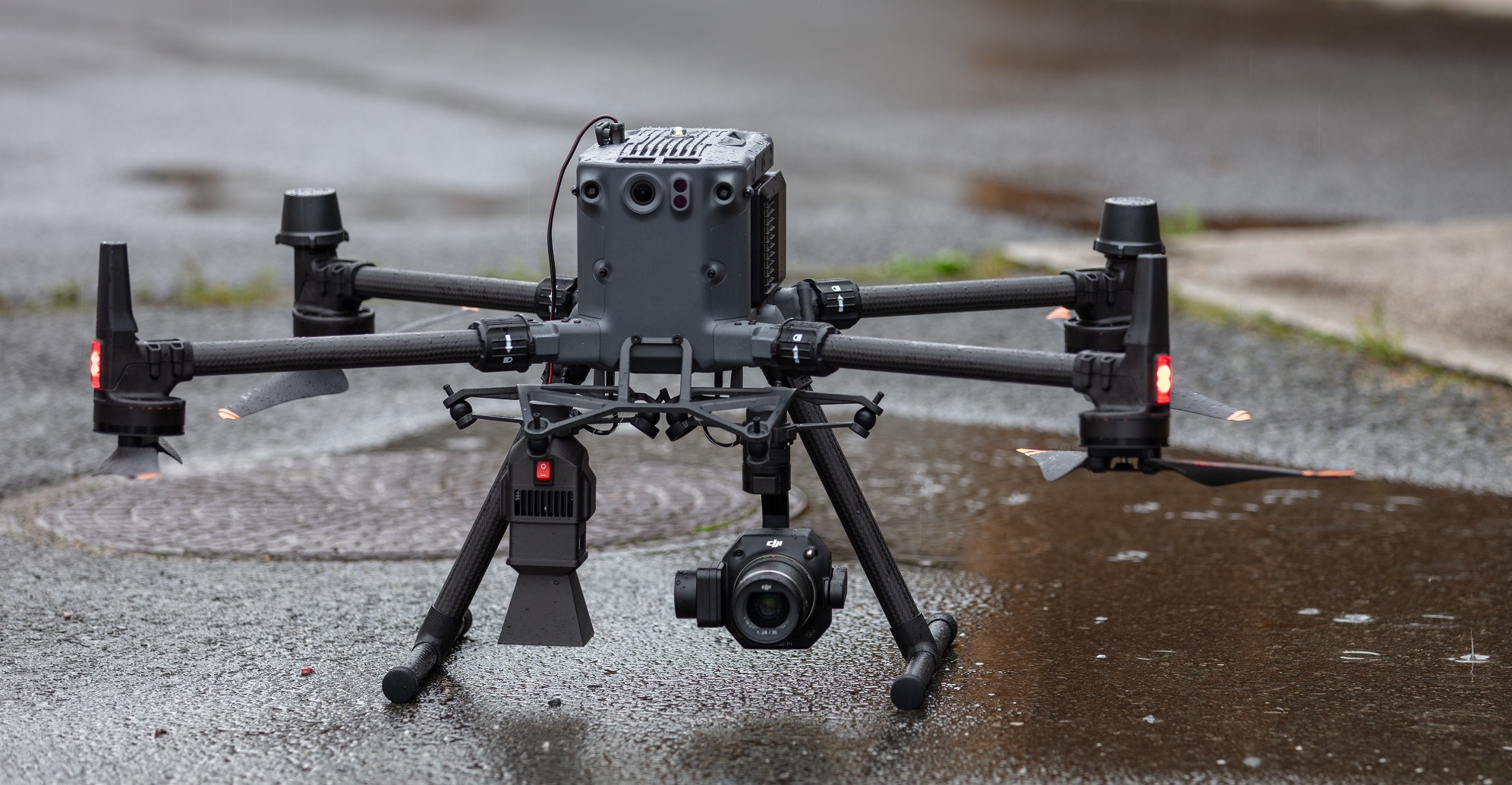

The DJI Matrice 350 RTK is DJI's flagship enterprise drone platform, the successor to the Matrice 300 RTK, built to carry payloads for inspection, surveying and mapping, public safety and search and rescue. It flies up to 55 minutes, carries up to 2.7 kg across single, dual or upward gimbal mounts (Zenmuse H20-series, L-series lidar, P1 and certified third-party payloads via DJI Payload SDK), and holds position to centimetre accuracy with built-in RTK. The airframe is rated IP55 and operates from -20 to 50 C, resists winds of up to 12 m/s and reaches 23 m/s. Six-direction vision and infrared sensing provide obstacle avoidance, a 1080p night-vision FPV camera helps in low light, and the O3 Enterprise link with four antennas reaches up to 20 km (FCC) with AES-256 encryption. Two hot-swappable TB65 batteries (263.2 Wh each) are rated for up to 400 cycles. It measures 810 x 670 x 430 mm unfolded, weighs 3.77 kg without batteries and has a 9.2 kg maximum takeoff weight. DJI launched it on 18 May 2023.

FEATURES

  • Max flight time 55 minutes
  • Payload up to 2.7 kg, single, dual and upward gimbal mounting
  • Compatible with Zenmuse H20/H30, L-series lidar, P1 and DJI Payload SDK third-party payloads
  • Built-in RTK, 1 cm + 1 ppm horizontal accuracy
  • IP55 rating, operating -20 to 50 C
  • Six-direction obstacle sensing (vision and infrared)
  • 1080p night-vision FPV camera
  • O3 Enterprise transmission up to 20 km (FCC), AES-256 encryption

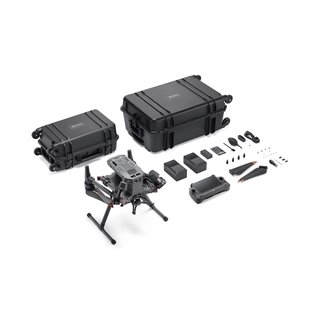

  • Two hot-swappable TB65 batteries, 263.2 Wh each, up to 400 cycles
  • Max horizontal speed 23 m/s, wind resistance 12 m/s
  • Max takeoff weight 9.2 kg

TECHNICAL SPECIFICATIONS

Verified
Physical
WeightApprox. 3–6 kg
DimensionsL 810 mm × W 670 mm × H 430 mm
Payload2.7 kg
Mobility
Movement TypeAerial
Speed82.8 km/h
EnvironmentOutdoor, IP55, -20 to 50 C
ActuatorsElectric brushless motors with folding propellers
Power
Battery LifeUp to 55 min
Charging TypeBattery
Charging TimeAbout 60 min for two TB65 batteries (220 V)
Sensing & Compute
Sensorssix-direction vision sensors, infrared ToF sensors, 1080p night-vision FPV camera, RTK GNSS
ConnectivityDJI O3 Enterprise transmission, up to 20 km (FCC), AES-256
Software / AIDJI Pilot 2, DJI Payload SDK
Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

FREQUENTLY ASKED QUESTIONS

What is the DJI Matrice 350 RTK?

The DJI Matrice 350 RTK is DJI's flagship enterprise drone platform, the successor to the Matrice 300 RTK, built to carry payloads for inspection, surveying and mapping, public safety and search and rescue.

Who makes the DJI Matrice 350 RTK?

The DJI Matrice 350 RTK is made by DJI, a robotics company based in China.

How much does the DJI Matrice 350 RTK cost?

Pricing for the DJI Matrice 350 RTK ranges from $9,129 to $11,129.

What is the DJI Matrice 350 RTK used for?

The DJI Matrice 350 RTK is designed for mapping, search-and-rescue, surveying, and inspection. It is used in energy, government, mining, and construction settings.

What is the payload capacity of the DJI Matrice 350 RTK?

The DJI Matrice 350 RTK has a payload capacity of 2.7 kg.

How much does the DJI Matrice 350 RTK weigh?

The DJI Matrice 350 RTK weighs 3.77 kg.

How fast is the DJI Matrice 350 RTK?

The DJI Matrice 350 RTK can move at speeds of up to 82.8 km/h.

What is the battery life of the DJI Matrice 350 RTK?

The DJI Matrice 350 RTK runs for Up to 55 min on a charge. It takes About 60 min for two TB65 batteries (220 V) to charge.
