Creative Brick Series (C1 / C202 / C203)
DESCRIPTION
Creative Brick Series (C1 / C202 / C203) is an Educational-Robots from Shanghai PartnerX Robotics (Abilix). It is built for Entertainment, Education, STEM education: robot building and programming.

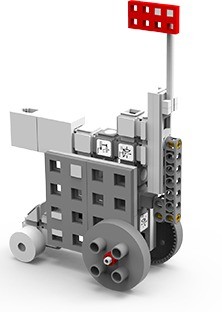

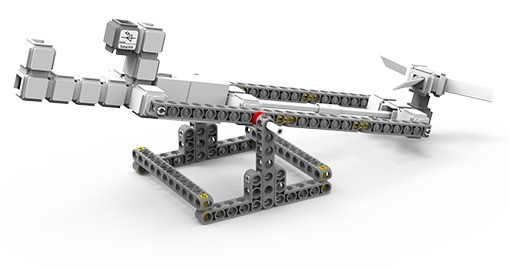

The Creative (C) series is Abilix's classroom brick system based on the geometry of points, lines and planes: cubes, beams and slabs connect on six faces without screws, and modular electronic components sit inside cubes. Transmission parts, connectors and actuators let students build realistic models such as a flag bot, an oscillating fan, a wind-driven seesaw or a mouth-opening beast. It is programmed with VJC 4.2, which switches between flowchart and C and converts flowcharts to C automatically, and runs on a controller with a dedicated lithium battery. Kits range from C1-P (244 parts, 3 motors, 15 sensors) to C1-S (456 parts, 4 motors, 15 sensors of 11 kinds) and the C202/C203 line-following kits.
FEATURES

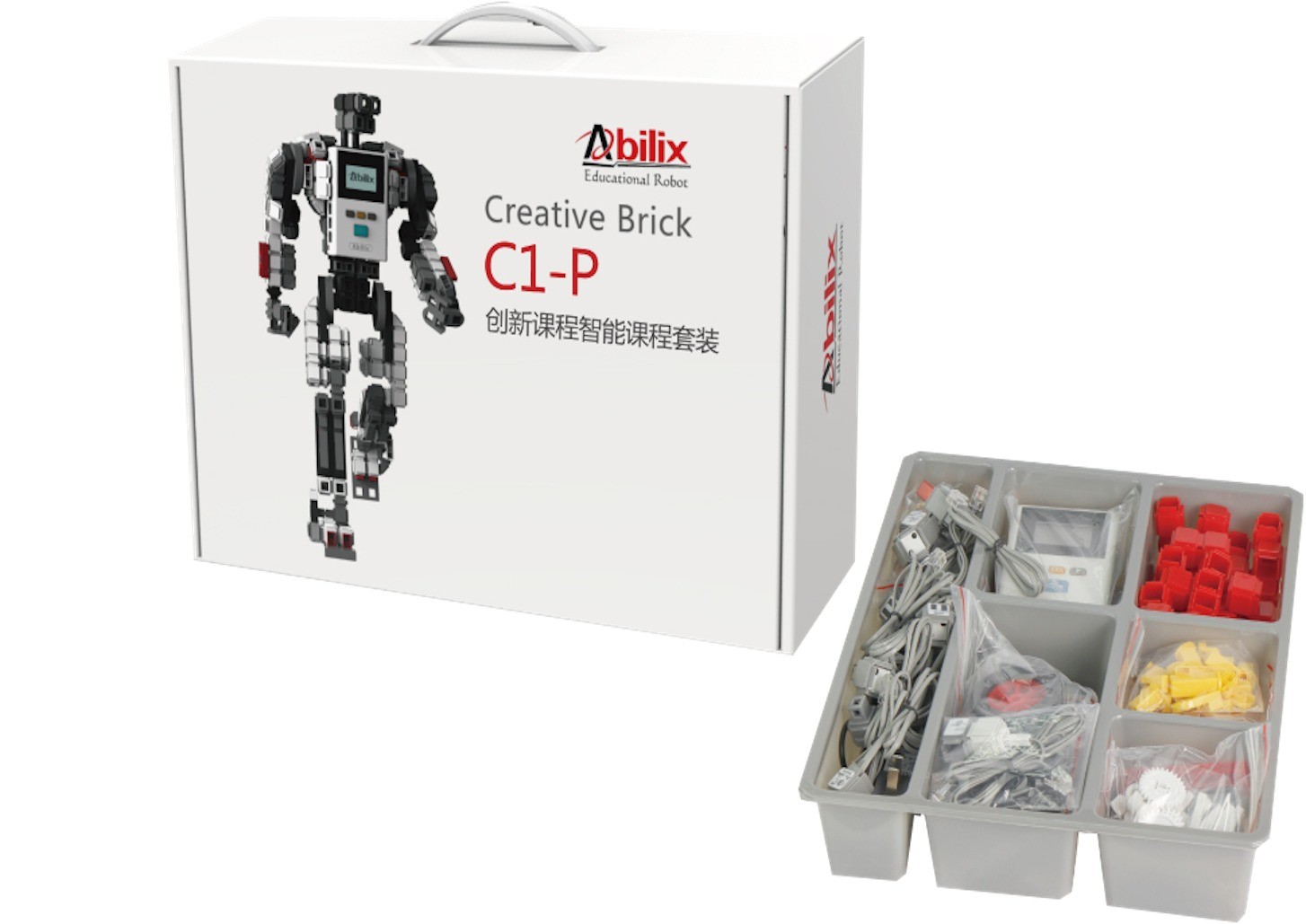

- C1-P: Components 244 pieces
- Actuators 1 Small Motor, 2 Closed-loop Motors
- Brick Types 34
- Sensors 15 from 8 kinds, Touch, Light, Counter, Grayscale, Infrared, Sound, Flame, Red Light
- C1-S: Components 456 pieces
- Actuators 4 Small Motors
- Brick Types 60
- Sensors 15 from 11 kinds, Touch, Temperature, Light, Counter, Grayscale, Sound, Flame, Red Light, Green Light, Yellow Light, Electromagnet

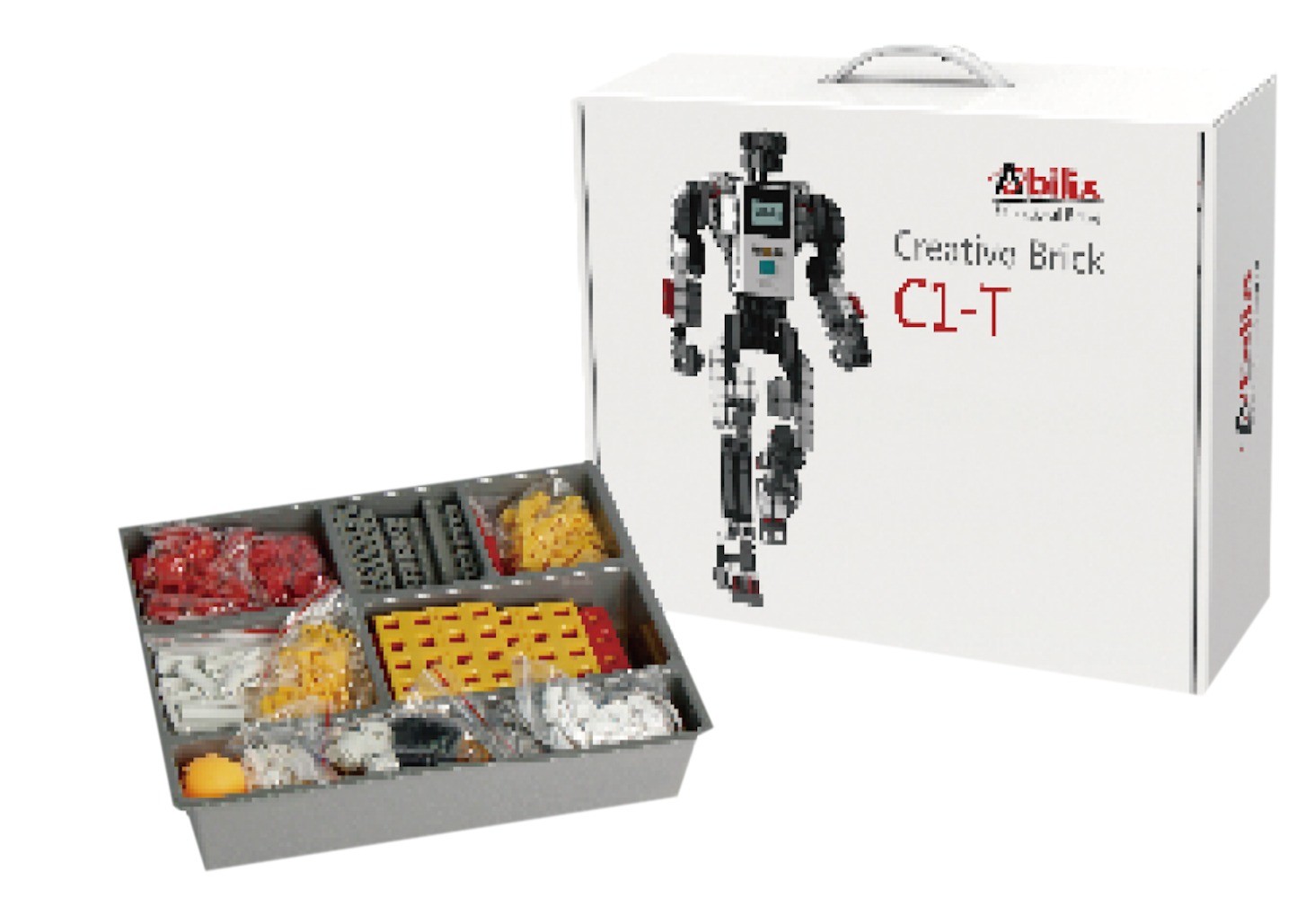

- C1-T: Components 421 pieces
- Brick Types 56

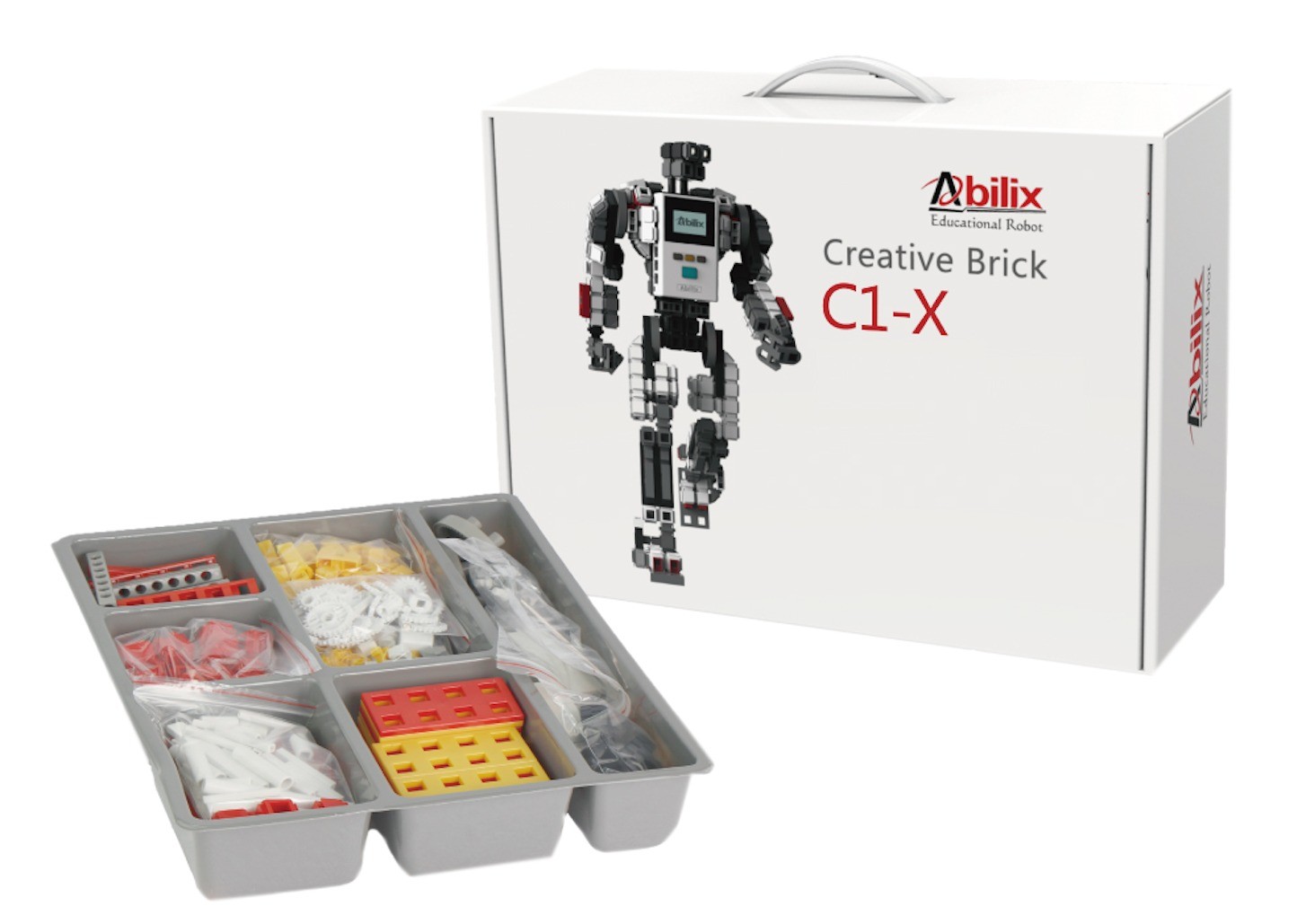

- C1-X: Components 366 pieces
- Actuators 2 Small motors
- Brick Types 58
- C202: Components 338 pieces
- Actuators 1 Small Motor, 2 Closed-loop Motors
- Brick Types 37
- Sensors 5 Grayscale Sensors
- C203: Components 343 pieces
- Actuators 3 Small Motors
- Brick Types 37
- Sensors 5 Grayscale Sensors
- Graded programming software
- Abilix curricula and WER contest support
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Other |
|---|---|
| Environment | Homes, classrooms and robotics clubs |
| Actuators | Kit motors / servos (see features) |
| Sensing & Compute | |
| Sensors | Counter, Electromagnet, Flame, Grayscale, Green Light, Infrared, Light, Red Light, Sound, Temperature, Touch, Yellow Light |
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Other |
|---|---|
| Environment | Homes, classrooms and robotics clubs |
| Actuators | Kit motors / servos (see features) |
| Sensing & Compute | |
| Sensors | Counter, Electromagnet, Flame, Grayscale, Green Light, Infrared, Light, Red Light, Sound, Temperature, Touch, Yellow Light |
Images
martti
martti
martti
martti
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Creative Brick Series (C1 / C202 / C203)?
The Creative (C) series is Abilix's classroom brick system based on the geometry of points, lines and planes: cubes, beams and slabs connect on six faces without screws, and modular electronic components sit inside cubes.
Who makes the Creative Brick Series (C1 / C202 / C203)?
The Creative Brick Series (C1 / C202 / C203) is made by Shanghai PartnerX Robotics (Abilix), a robotics company based in China.
How much does the Creative Brick Series (C1 / C202 / C203) cost?
Shanghai PartnerX Robotics (Abilix) has not publicly announced pricing for the Creative Brick Series (C1 / C202 / C203). You can enquire through RobotAIGeek for current pricing.
What is the Creative Brick Series (C1 / C202 / C203) used for?
The Creative Brick Series (C1 / C202 / C203) is designed for entertainment, education, and stem education: robot building and programming. It is used in consumer, education, and homes settings.
