Concrete Shear Wall Grinding Robot
DESCRIPTION
Concrete Shear Wall Grinding Robot is an Industrial-Robot from Bozhilin Robot Co., Ltd.. It is built for Construction, Grinding.

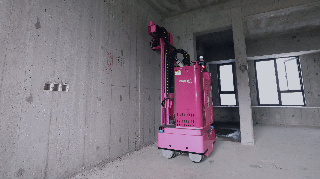

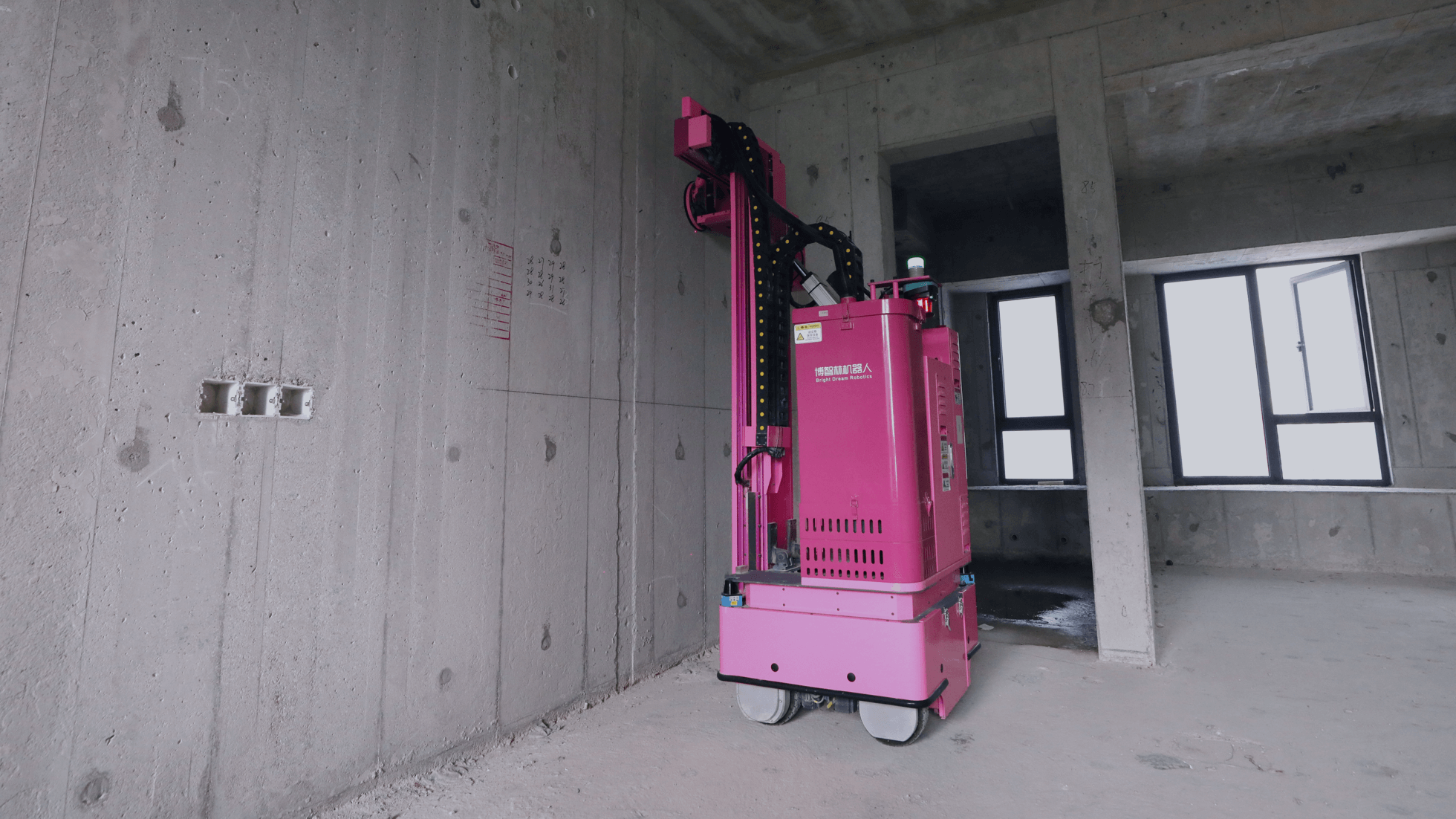

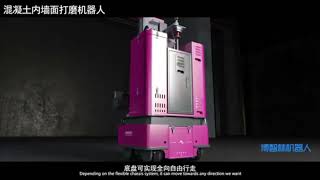

The Concrete Shear Wall Grinding Robot is one of the concrete-dressing robots developed by Bozhilin Robot, the construction-robotics company of Country Garden that markets its machines as Bright Dream Robotics; in North America the dealer ProBuild Robotics sells it as the concrete interior wall polishing robot. It corrects cast-in-place interior concrete shear walls that do not meet verticality and flatness standards, preparing a sound base for later decoration work. The wheeled robot navigates and plans its own path, then grinds the wall face with a fully enclosed grinding head while detecting grinding depth and collecting dust automatically. Once the operation parameters are entered it works unmanned, or one operator can run two machines; obstacle stopping and collision detection protect people nearby. Bright Dream rates its grinding efficiency at more than 1.7 times manual work. Combined with its screw-hole plugging robot and the concrete ceiling grinding robot, a crew of four can finish about 500 m² of a floor per day.
FEATURES
- Autonomous grinding of interior concrete shear walls
- Corrects verticality and flatness defects before finishing
- Automatic navigation and path planning
- Grinding depth detection
- Automatic dust recovery
- Fully enclosed grinding head
- Obstacle stop and collision detection
- Unmanned operation or one operator for two machines
- More than 1.7x the efficiency of manual grinding
- With companion robots, 4 workers per floor per day (about 500 m²)
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Indoor construction sites with cast-in-place concrete walls |
| Actuators | Fully enclosed grinding head with automatic dust recovery on a wheeled autonomous base |
| Sensing & Compute | |
| Sensors | Grinding depth detection, Obstacle and collision detection |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Indoor construction sites with cast-in-place concrete walls |
| Actuators | Fully enclosed grinding head with automatic dust recovery on a wheeled autonomous base |
| Sensing & Compute | |
| Sensors | Grinding depth detection, Obstacle and collision detection |
Images
martti
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Concrete Shear Wall Grinding Robot?
The Concrete Shear Wall Grinding Robot is one of the concrete-dressing robots developed by Bozhilin Robot, the construction-robotics company of Country Garden that markets its machines as Bright Dream Robotics; in North America the dealer ProBuild Robotics sells it as the concrete interior wall polishing robot.
Who makes the Concrete Shear Wall Grinding Robot?
The Concrete Shear Wall Grinding Robot is made by Bozhilin Robot Co., Ltd., a robotics company based in China.
How much does the Concrete Shear Wall Grinding Robot cost?
Bozhilin Robot Co., Ltd. has not publicly announced pricing for the Concrete Shear Wall Grinding Robot. You can enquire through RobotAIGeek for current pricing.
What is the Concrete Shear Wall Grinding Robot used for?
The Concrete Shear Wall Grinding Robot is designed for construction and grinding. It is used in construction settings.
