clubliner

Mariner 3S

Cleaning-Robots

SwitzerlandReleased

★Not rated yet

Compare

Sources:

mariner-3s.com

Industries:

Others Cleaning & Facilities Hotels

Uses:

Cleaning

Price:

Not announced

Model:

Mariner 3S clubliner / clubliner plus pool cleaning robot (pools up to 25 m)

Released:

2009

DESCRIPTION

clubliner is a Cleaning-Robots from Mariner 3S. It is built for Cleaning. Key figures: 16 kg, released 2009.

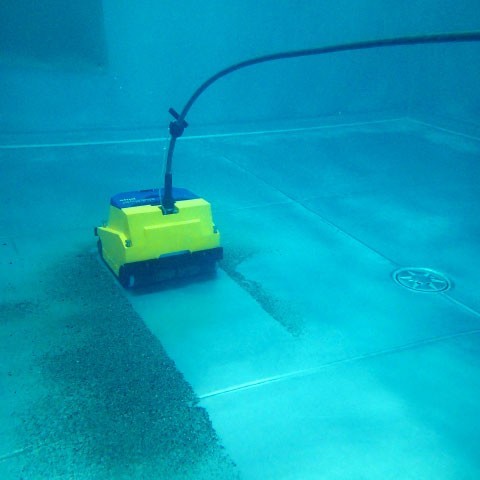

The clubliner is Mariner 3S's most compact pool-cleaning robot, built for pools up to 25 m long - hotel, wellness, school and spa pools - and for paddling pools with as little as 20 cm of water. It cleans the floor and the walls automatically, aiming to cover the whole pool in one cycle, and its compact body reaches along edges and into corners, leaving a cleaning track up to 530 mm wide. Over 5 kg of suction from a 500 l/min pump pulls dirt through two lamella filter cartridges in a removable filter box before the water reaches the pump. The 16 kg robot climbs inclines up to 28 degrees, travels at 12-15 m/min on a floating cable and is carried on a light trolley. The clubliner plus adds a basic sensor for lane-by-lane H, N and X drive patterns, obstacle bypassing and section cleaning, plus Bluetooth for the Mariner 3S app; the clubliner runs drive pattern X.

FEATURES

Pools up to 25 m
minimum water depth 20 cm, maximum 10 m
Robot 44 x 43 x 29 cm (W x L x H), 16 kg

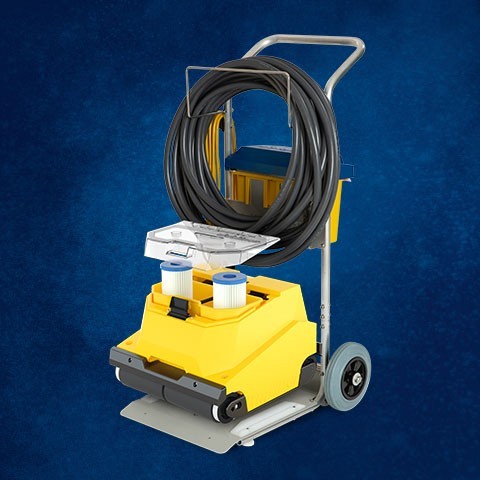

trolley with cable 21 kg
Cleaning width up to 530 mm
pump 500 l/min
suction over 5 kg
2 lamella filter cartridges (50/100/130 um) in a removable filter box
Travelling speed 12-15 m/min
climbs inclines up to 28 deg
Power 100-240 V AC, 0.4 kW
robot runs on 24 V DC
floating cable 25/30 m
clubliner: drive pattern X
clubliner plus: basic sensor, patterns H/N/X, obstacle bypass, section cleaning, Bluetooth app
Manual control by radio remote or Mariner 3S app: forward, back, turn, spin on the spot, 3 speeds
keypad emergency operation
Automatic switch-over on wall contact, after a set distance and on inclines
start-delay timer
up to 4 stored programmes
Works in fresh, sea, thermal and brine water
water temperature 10-40 deg C
IP68

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	16 kg
Dimensions	L 430 mm × W 440 mm × H 290 mm
Mobility
Movement Type	Aquatic
Speed	0.9 km/h
Environment	Public and private swimming pools: indoor, outdoor, thermal and natural pools
Sensing & Compute
Sensors	drive-pattern / obstacle sensor (basic or high-tech, model dependent), incline detection
Connectivity	Radio remote control (869/433 MHz); Bluetooth app on plus / sensor models

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	16 kg
Dimensions	L 430 mm × W 440 mm × H 290 mm
Mobility
Movement Type	Aquatic
Speed	0.9 km/h
Environment	Public and private swimming pools: indoor, outdoor, thermal and natural pools
Sensing & Compute
Sensors	drive-pattern / obstacle sensor (basic or high-tech, model dependent), incline detection
Connectivity	Radio remote control (869/433 MHz); Bluetooth app on plus / sensor models

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the clubliner?

The clubliner is Mariner 3S's most compact pool-cleaning robot, built for pools up to 25 m long - hotel, wellness, school and spa pools - and for paddling pools with as little as 20 cm of water.
