ChangingTek CT-PTSS2000-200
DESCRIPTION

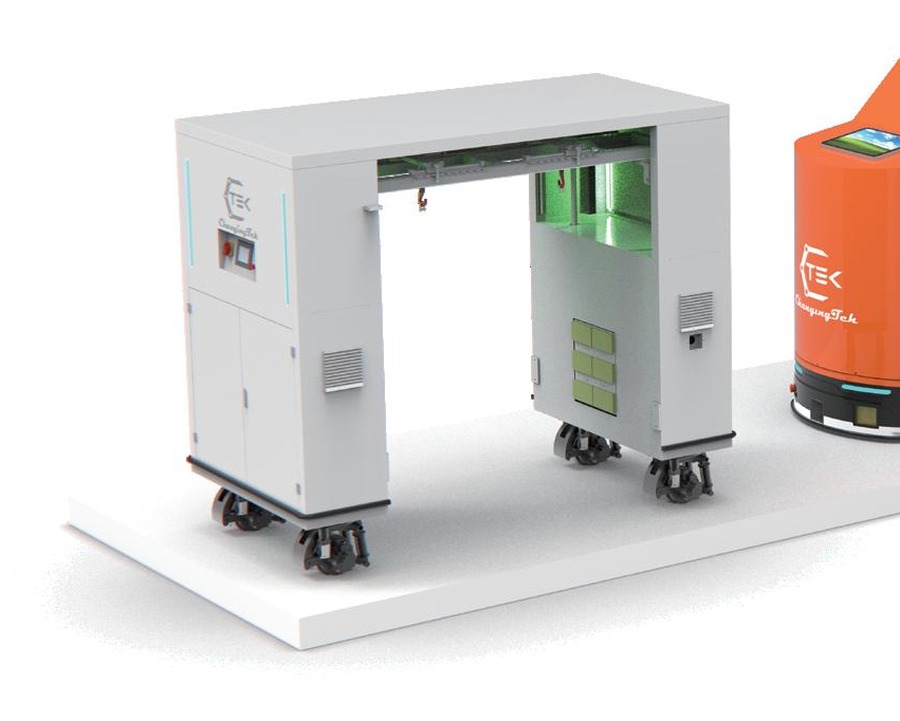

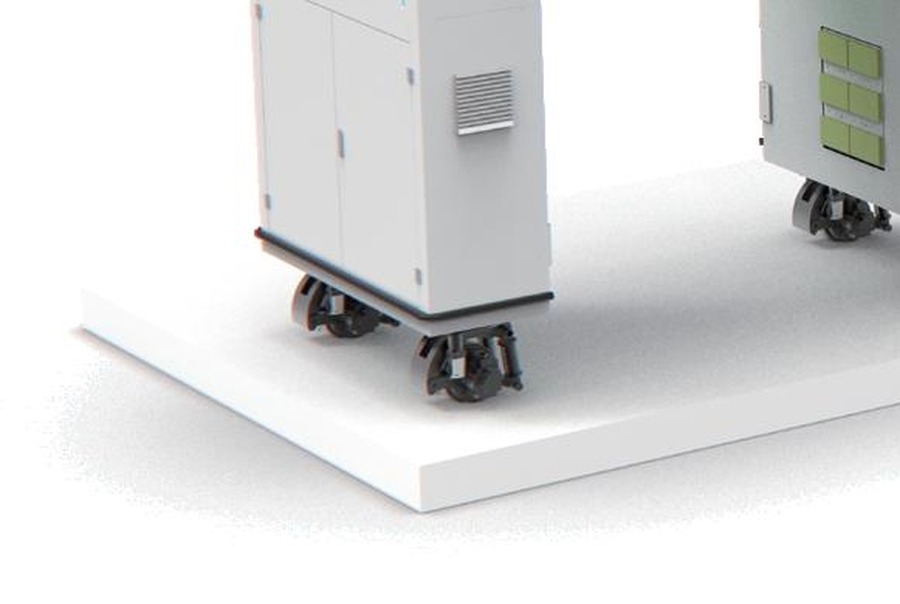

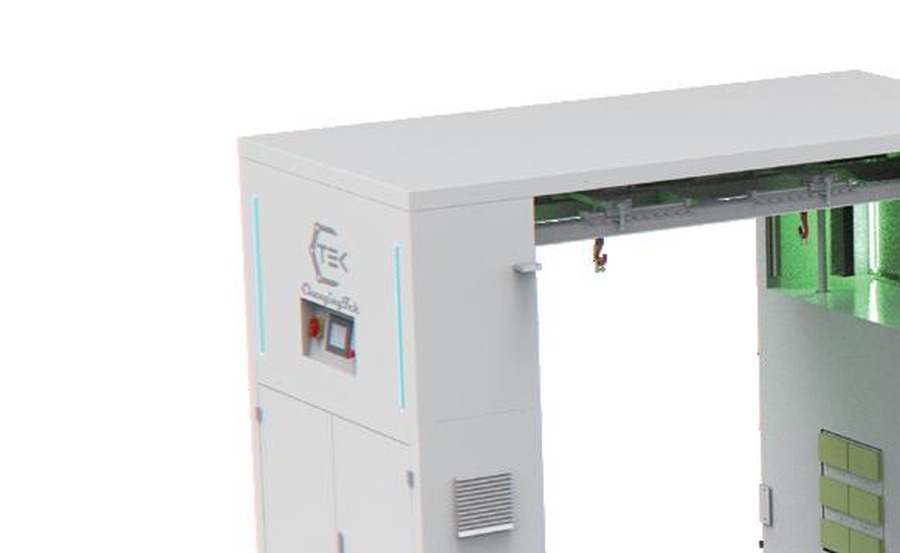

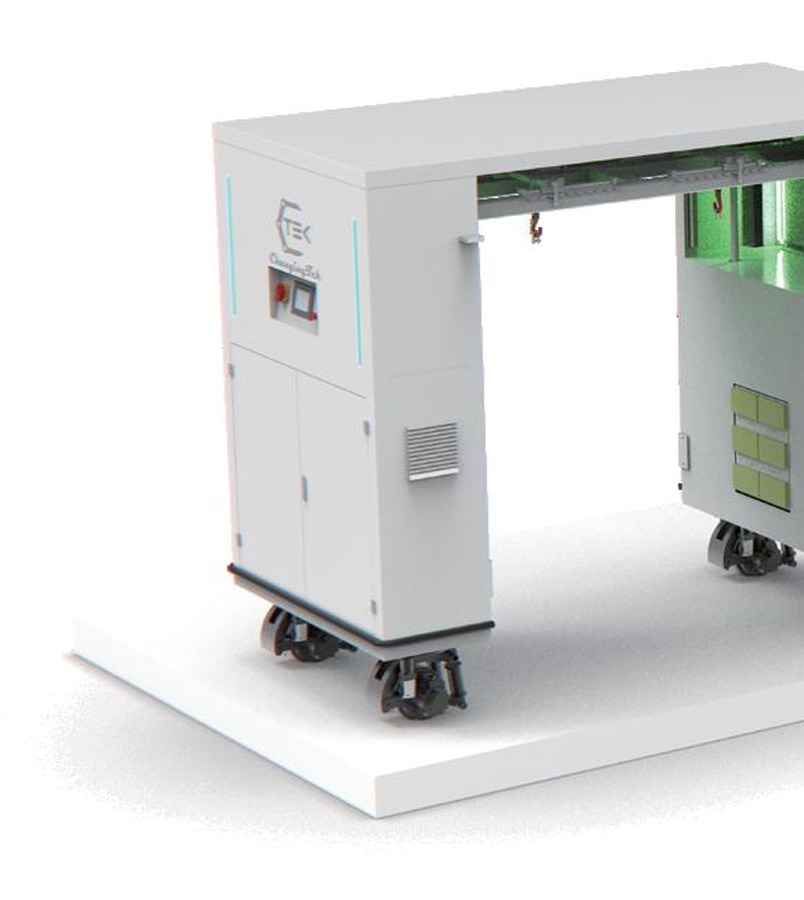

The CT-PTSS2000-200 is the heavy end of ChangingTek's Composite Robot Series: a multi-stage lifting mobile platform rated to carry two tonnes. At 2,800 by 1,300 mm and only 650 mm tall it is deliberately low-slung, built to drive underneath a load, lift it and move it rather than to carry it on top of a mast. It drives omnidirectionally, so it can translate sideways into position without needing room to turn — the property that matters most when manoeuvring a two-tonne load in a factory aisle. Navigation combines QR-code positioning with inertial navigation and it stops to within ±10 mm, which is tight enough to hand off to fixed automation at the end of a move. Power comes from a 38.5 Ah lithium iron phosphate pack charged from ordinary AC220V 50 Hz mains. It runs under the ChangingOS platform alongside the rest of the series, supporting both single-unit operation and multi-unit scheduling.
FEATURES
- 2,000 kg rated load
- 2,800 x 1,300 x 650 mm low-profile chassis designed to drive under and lift a load
- multi-stage lifting mechanism
- omnidirectional driving for sideways positioning without turning room
- QR-code positioning combined with inertial navigation
- stopping accuracy of ±10 mm
- 38.5 Ah lithium iron phosphate battery charged from AC220V 50 Hz mains
- runs the integrated ChangingOS platform with single-unit and multi-unit scheduling.
TECHNICAL SPECIFICATIONS
| Physical | |
| Dimensions | L 2.8 m × W 1.3 m × H 650 mm |
|---|---|
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor factory and warehouse floors |
| Actuators | Omnidirectional drive with a multi-stage lifting mechanism rated to 2,000 kg |
| Power | |
| Battery Life | LiFePO4 38.5 Ah |
| Sensing & Compute | |
| Software / AI | ChangingOS integrated control platform with multi-unit scheduling; QR-code plus inertial navigation |
TECHNICAL SPECIFICATIONS
| Physical | |
| Dimensions | L 2.8 m × W 1.3 m × H 650 mm |
|---|---|
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor factory and warehouse floors |
| Actuators | Omnidirectional drive with a multi-stage lifting mechanism rated to 2,000 kg |
| Power | |
| Battery Life | LiFePO4 38.5 Ah |
| Sensing & Compute | |
| Software / AI | ChangingOS integrated control platform with multi-unit scheduling; QR-code plus inertial navigation |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the ChangingTek CT-PTSS2000-200?
The CT-PTSS2000-200 is the heavy end of ChangingTek's Composite Robot Series: a multi-stage lifting mobile platform rated to carry two tonnes. At 2,800 by 1,300 mm and only 650 mm tall it is deliberately low-slung, built to drive underneath a load, lift it and move it rather than to carry it on top of a mast.
Who makes the ChangingTek CT-PTSS2000-200?
The ChangingTek CT-PTSS2000-200 is made by ChangingTek (Zhixing 知行机器人科技有限公司）, a robotics company based in China.
How much does the ChangingTek CT-PTSS2000-200 cost?
ChangingTek (Zhixing 知行机器人科技有限公司） has not publicly announced pricing for the ChangingTek CT-PTSS2000-200. You can enquire through RobotAIGeek for current pricing.
What is the ChangingTek CT-PTSS2000-200 used for?
The ChangingTek CT-PTSS2000-200 is designed for transport, heavy material transport in factories, production line feeding, and warehouse pallet and fixture movement. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the ChangingTek CT-PTSS2000-200?
The ChangingTek CT-PTSS2000-200 has a payload capacity of 2,000 kg.
