DESCRIPTION
Capra CAPRA200 Mobile Robot Platform is a Mobile-Robots from Capra Robotics. It is built for Inspection, Monitoring, Patrol. Key figures: 50 kg, 1200 min runtime, 50 kg payload.

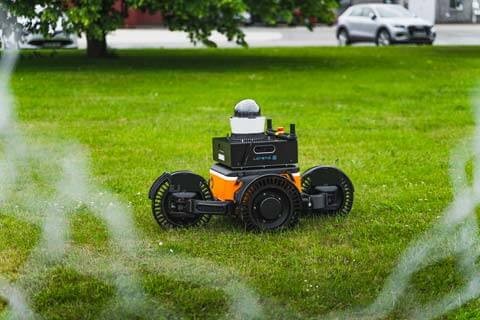

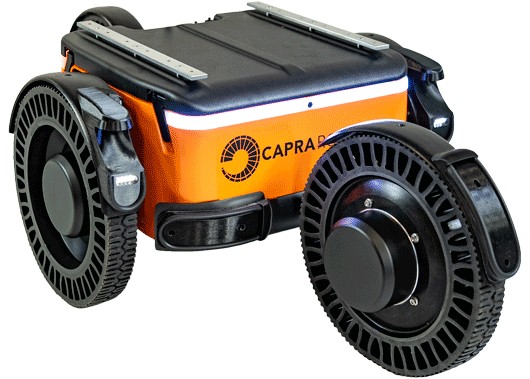

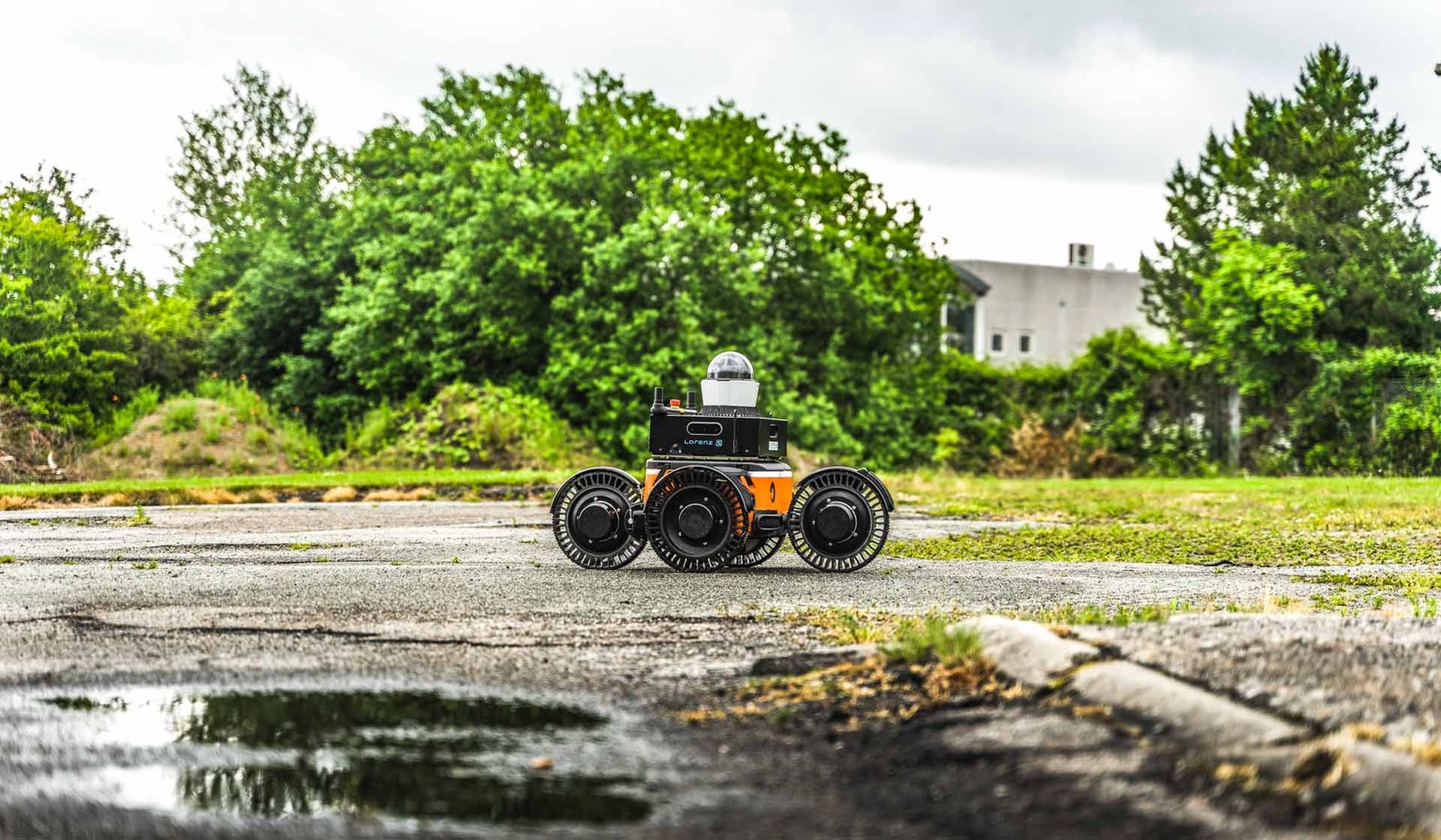

The CAPRA200 is the lighter of Capra Robotics' two outdoor-capable mobile robot platforms, built on the company's patented flexible four-wheel chassis that keeps all wheels on the ground over kerbs, gravel and rough terrain as well as on paved urban areas. Capra configures it with tools for jobs such as substation inspection and perimeter control (Capra Scout) or urban tasks like cigarette-butt removal and de-icing (Capra Urban), and integrators can add their own equipment through its ROS 2 interface. It measures 1,125 x 600 x 373 mm and weighs 50 kg with two batteries, has four 250 W hub motors, carries up to 50 kg and tows up to 200 kg at up to 6 km/h, and climbs 50% slopes and 140 mm steps. With up to four 25.9 V, 20 Ah Li-NMC batteries it runs up to 20 hours and 105 km, recharging wirelessly from 20 to 80% in an hour. It is IP65, works from -20 to +40 °C, senses with 2D and 3D lidar and a depth camera, meets ISO 3691-4 and RIA R15.08-1, and can be driven by VDA 5050 fleet systems over Wi-Fi or 5G.
FEATURES
- Patented flexible 4-wheel chassis for uneven terrain, kerbs and urban areas
- Max speed 6 km/h
- slope up to 50%
- climbs steps up to 140 mm
- 326 mm wheels, 126 mm clearance
- IP65
- 20 to +40 °C (heating below -10 °C)
- 100% relative humidity
- indoor and outdoor
- Wireless charging: 20-80% in 60 minutes
- Sensor suite: 2D lidar, 3D lidar, depth camera
- obstacle detection and avoidance
- Safety to ISO 3691-4 and RIA R15.08-1
- safety PLC interface and E-stop
- ROS 2 interface
- VDA 5050 fleet control
- Wi-Fi 5 and 5G dual SIM / e-SIM
- 24 V and 48 V user power outputs
- Gigabit Ethernet
- remote control for manual steering
- 1,125 x 600 x 373 mm
- 50 kg with 2 batteries
- turning radius 465 mm
- 4 x 250 W hub motors
- payload up to 50 kg
- towing up to 200 kg
- Up to 4 x 25.9 V 20 Ah Li-NMC batteries
- up to 20 h and 105 km

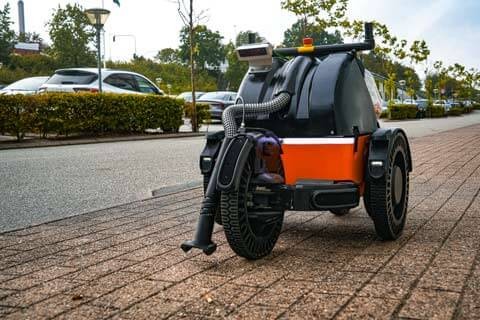

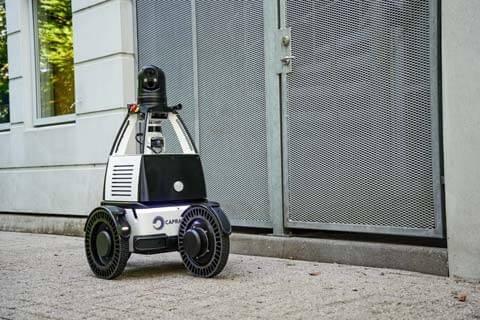

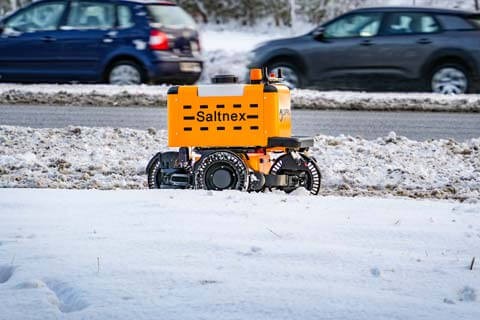

- Configurations: Capra Scout (substation inspection, perimeter control), Capra Urban (cigarette removal, de-icing)
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 50 kg |
|---|---|
| Dimensions | L 1.13 m × W 600 mm × H 373 mm |
| Payload | 50 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 6.01 km/h |
| Environment | Indoor and outdoor, rough terrain and urban areas, IP65, -20°C to 40°C |
| Actuators | 4 x 250 W hub motors |
| Power | |
| Battery Life | Up to 20 h (surface, incline and payload dependent) |
| Charging Time | 60 min (20-80%, wireless) |
| Sensing & Compute | |
| Sensors | 2D lidar, 3D lidar, depth camera |
| Connectivity | Wi-Fi 5 dual-band; 5G dual SIM and e-SIM; Gigabit Ethernet |
| Software / AI | ROS 2; VDA 5050 compatible |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 50 kg |
|---|---|
| Dimensions | L 1.13 m × W 600 mm × H 373 mm |
| Payload | 50 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 6.01 km/h |
| Environment | Indoor and outdoor, rough terrain and urban areas, IP65, -20°C to 40°C |
| Actuators | 4 x 250 W hub motors |
| Power | |
| Battery Life | Up to 20 h (surface, incline and payload dependent) |
| Charging Time | 60 min (20-80%, wireless) |
| Sensing & Compute | |
| Sensors | 2D lidar, 3D lidar, depth camera |
| Connectivity | Wi-Fi 5 dual-band; 5G dual SIM and e-SIM; Gigabit Ethernet |
| Software / AI | ROS 2; VDA 5050 compatible |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Capra CAPRA200 Mobile Robot Platform?
The CAPRA200 is the lighter of Capra Robotics' two outdoor-capable mobile robot platforms, built on the company's patented flexible four-wheel chassis that keeps all wheels on the ground over kerbs, gravel and rough terrain as well as on paved urban areas.
Who makes the Capra CAPRA200 Mobile Robot Platform?
The Capra CAPRA200 Mobile Robot Platform is made by Capra Robotics, a robotics company based in Denmark.
How much does the Capra CAPRA200 Mobile Robot Platform cost?
Capra Robotics has not publicly announced pricing for the Capra CAPRA200 Mobile Robot Platform. You can enquire through RobotAIGeek for current pricing.
What is the Capra CAPRA200 Mobile Robot Platform used for?
The Capra CAPRA200 Mobile Robot Platform is designed for inspection, monitoring, patrol, and transport. It is used in energy, facilities, warehouse & logistics, and security & patrol settings.
What is the payload capacity of the Capra CAPRA200 Mobile Robot Platform?
The Capra CAPRA200 Mobile Robot Platform has a payload capacity of 50 kg.
How much does the Capra CAPRA200 Mobile Robot Platform weigh?
The Capra CAPRA200 Mobile Robot Platform weighs 50 kg.
How fast is the Capra CAPRA200 Mobile Robot Platform?
The Capra CAPRA200 Mobile Robot Platform can move at speeds of up to 6.01 km/h.
What is the battery life of the Capra CAPRA200 Mobile Robot Platform?
The Capra CAPRA200 Mobile Robot Platform runs for Up to 20 h (surface, incline and payload dependent) on a charge. It takes 60 min (20-80%, wireless) to charge.
