DESCRIPTION
C100F CE is an Industrial-Robot from Zhejiang HuaRay Technology. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 160 kg, 360 min runtime, 1000 kg payload.
C100F CE is the CE-marked 1,000 kg build of iRAYPLE's low-profile under-ride lifting AMR, on the same 960 x 650 x 250 mm chassis as the C060F CE. It navigates by DM code, texture marker, laser(optional), reaches 1.5 m/s empty and 0.8 m/s loaded, stops within ±10 mm and runs 6.0 h per charge (charging: manual/auto). It talks to iRAYPLE's robot control and scheduling system over WiFi.
FEATURES
- Rated load 1000 kg
- machine weight 160 kg
- 960 mm × 650 mm × 250 mm
- Max. speed 1.5 m/s empty, 0.8 m/s loaded
- Navigation: DM code, texture marker, laser(optional)
- drive: Dual-Wheel Differential drive
- Lifting Process Distance: 60 mm
- Lifting Pallet Dimensions: 900 mm×560 mm
- Rotation Diameter: 1000 mm
- Stopping accuracy (no load): ±10 mm
- Climbing Ability: 3°(5%)
- Obstacle Crossing Height: 10 mm
- Trench Crossing Ability: 30 mm
- Obstacle Avoidance Method: Laser, TOF
- Charging Mode: Manual/Auto
- Communication Mode: WiFi
- Certifications: CE
- Operating time 6.0 h
- charging 1.5 h
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 160 kg |
|---|---|
| Dimensions | L 960 mm × W 650 mm × H 250 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 360 min |
| Charging Type | Manual/Auto |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, TOF depth cameras, downward code camera (QR/DM and floor-texture navigation), collision bumpers |
| Connectivity | WiFi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 160 kg |
|---|---|
| Dimensions | L 960 mm × W 650 mm × H 250 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 360 min |
| Charging Type | Manual/Auto |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, TOF depth cameras, downward code camera (QR/DM and floor-texture navigation), collision bumpers |
| Connectivity | WiFi |

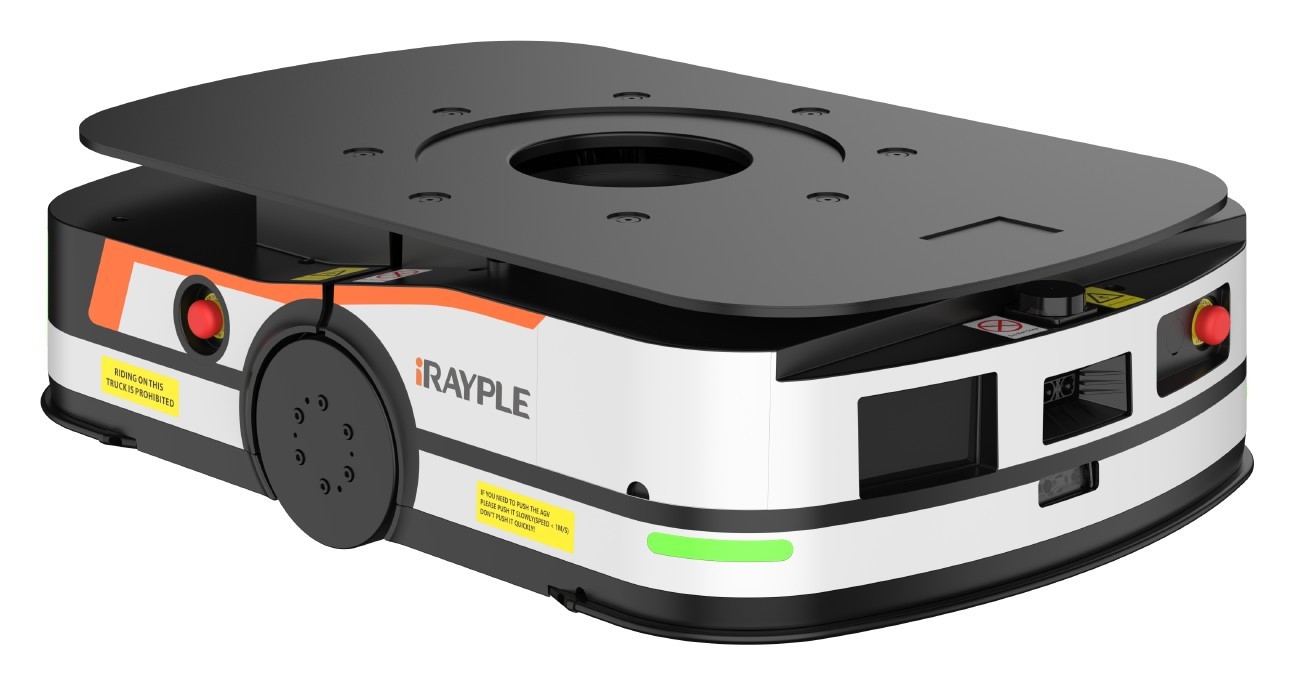

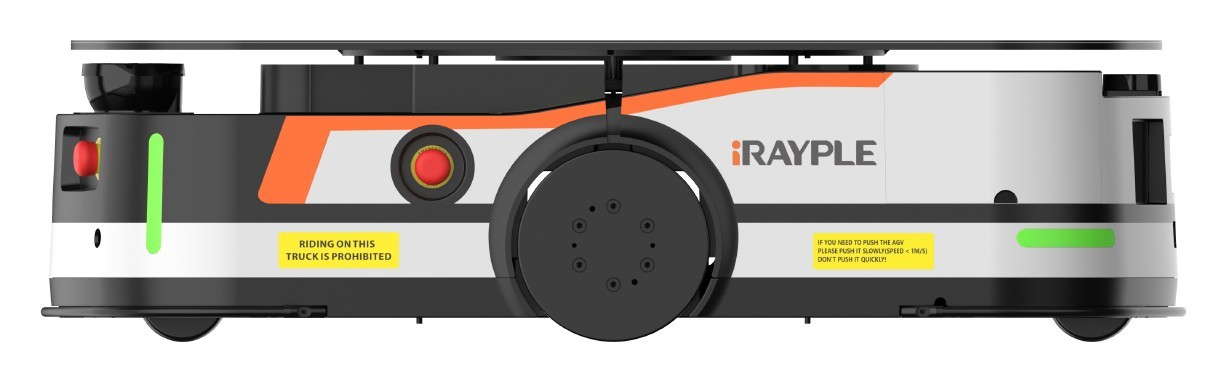

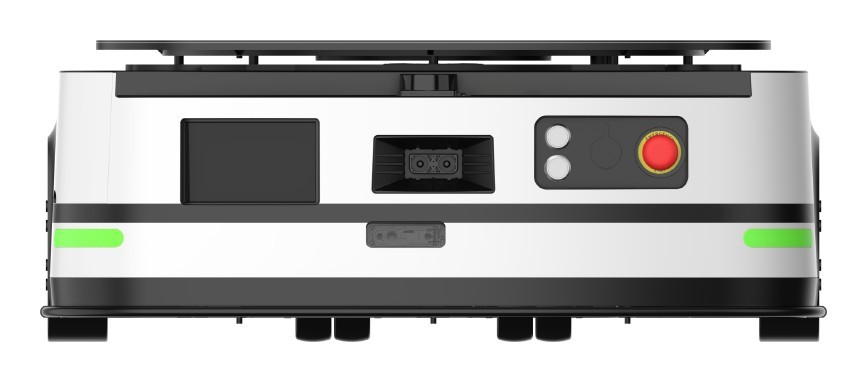

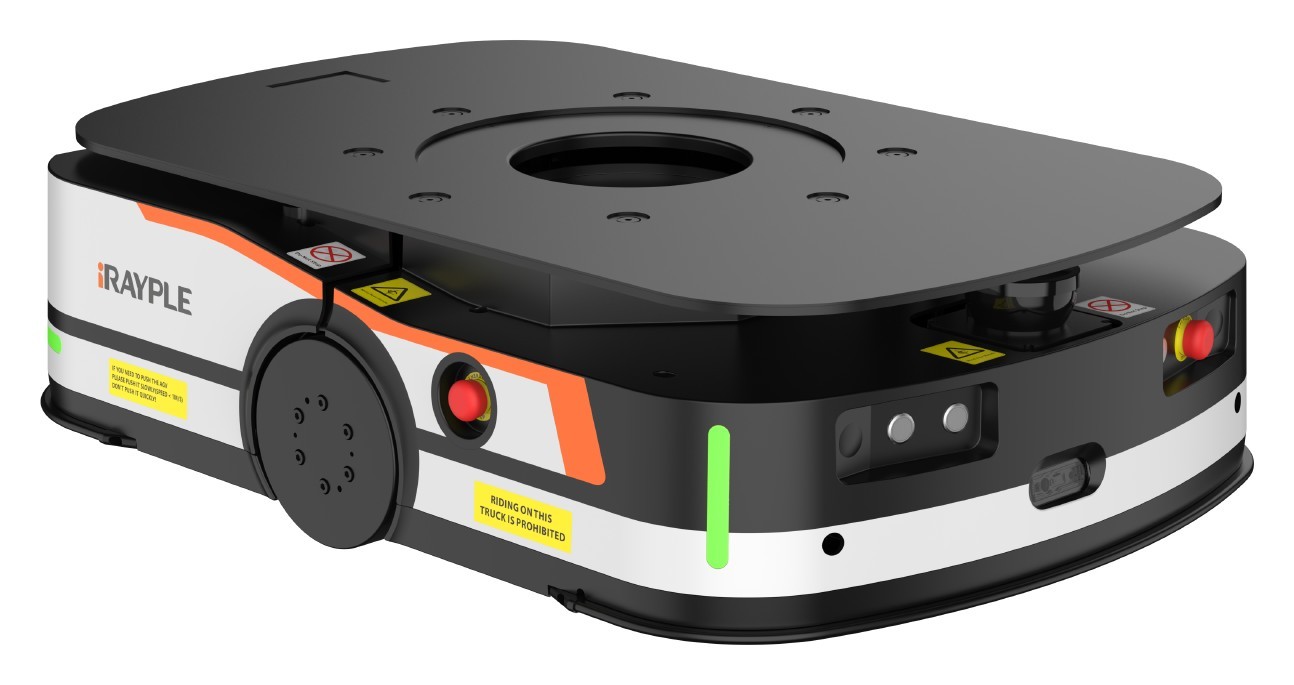

Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the C100F CE?
C100F CE is the CE-marked 1,000 kg build of iRAYPLE's low-profile under-ride lifting AMR, on the same 960 x 650 x 250 mm chassis as the C060F CE. It navigates by DM code, texture marker, laser(optional), reaches 1.5 m/s empty and 0.8 m/s loaded, stops within ±10 mm and runs 6.0 h per charge (charging: manual/auto).
Who makes the C100F CE?
The C100F CE is made by Zhejiang HuaRay Technology, a robotics company based in China.
How much does the C100F CE cost?
Zhejiang HuaRay Technology has not publicly announced pricing for the C100F CE. You can enquire through RobotAIGeek for current pricing.
What is the C100F CE used for?
The C100F CE is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the C100F CE?
The C100F CE has a payload capacity of 1,000 kg.
How much does the C100F CE weigh?
The C100F CE weighs 160 kg.
How fast is the C100F CE?
The C100F CE can move at speeds of up to 5.4 km/h.
What is the battery life of the C100F CE?
The C100F CE runs for about 360 minutes on a charge.
