DESCRIPTION
C100D CE is an Industrial-Robot from Zhejiang HuaRay Technology. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 172 kg, 360 min runtime, 1000 kg payload.
C100D CE is the CE-marked build of iRAYPLE's 1,000 kg under-ride lifting AMR on the 950 x 650 x 300 mm C-series chassis. It navigates by QR code/texture/laser SLAM, reaches 1.5 m/s empty, stops within ±10 mm and runs 6.0 h per charge (charging: manual/automatic, manually change battery). It talks to iRAYPLE's robot control and scheduling system over Wi-Fi.
FEATURES
- Rated load 1000 kg
- machine weight 172 kg
- 950 mm×650 mm×300 mm
- Max. speed 1.5 m/s
- Navigation: QR code/texture/laser SLAM
- drive: Two-wheel speed difference
- Lifting Process Distance: 60 mm
- Lifting Pallet Dimensions: 900 mm×560 mm
- Rotation Diameter: 1000 mm
- Stopping accuracy (no load): ±10 mm
- Climbing Ability: 3°/5%
- Obstacle Crossing Height: 10 mm
- Obstacle Avoidance Method: Laser, TOF
- Charging Mode: Manual/automatic, manually change battery
- Communication Mode: Wi-Fi
- Operating time 6.0 h
- charging 1.5 h
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 172 kg |
|---|---|
| Dimensions | L 950 mm × W 650 mm × H 300 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 360 min |
| Charging Type | Manual/automatic, manually change battery |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, TOF depth cameras, downward code camera (QR/DM and floor-texture navigation), collision bumpers |
| Connectivity | Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 172 kg |
|---|---|
| Dimensions | L 950 mm × W 650 mm × H 300 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 360 min |
| Charging Type | Manual/automatic, manually change battery |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, TOF depth cameras, downward code camera (QR/DM and floor-texture navigation), collision bumpers |
| Connectivity | Wi-Fi |

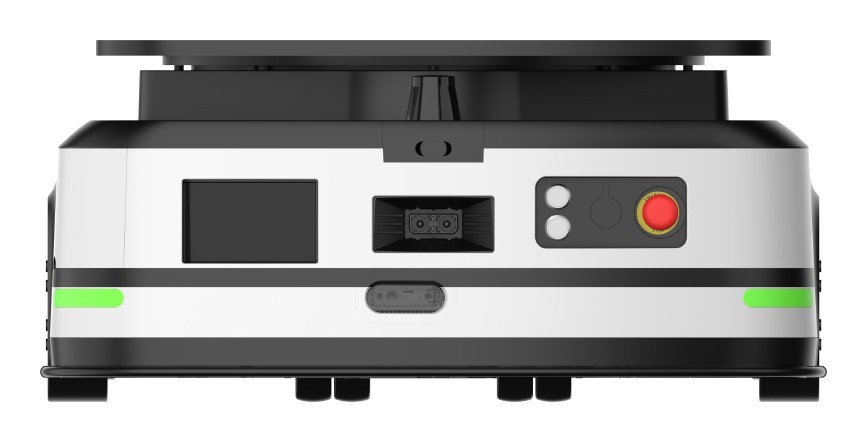

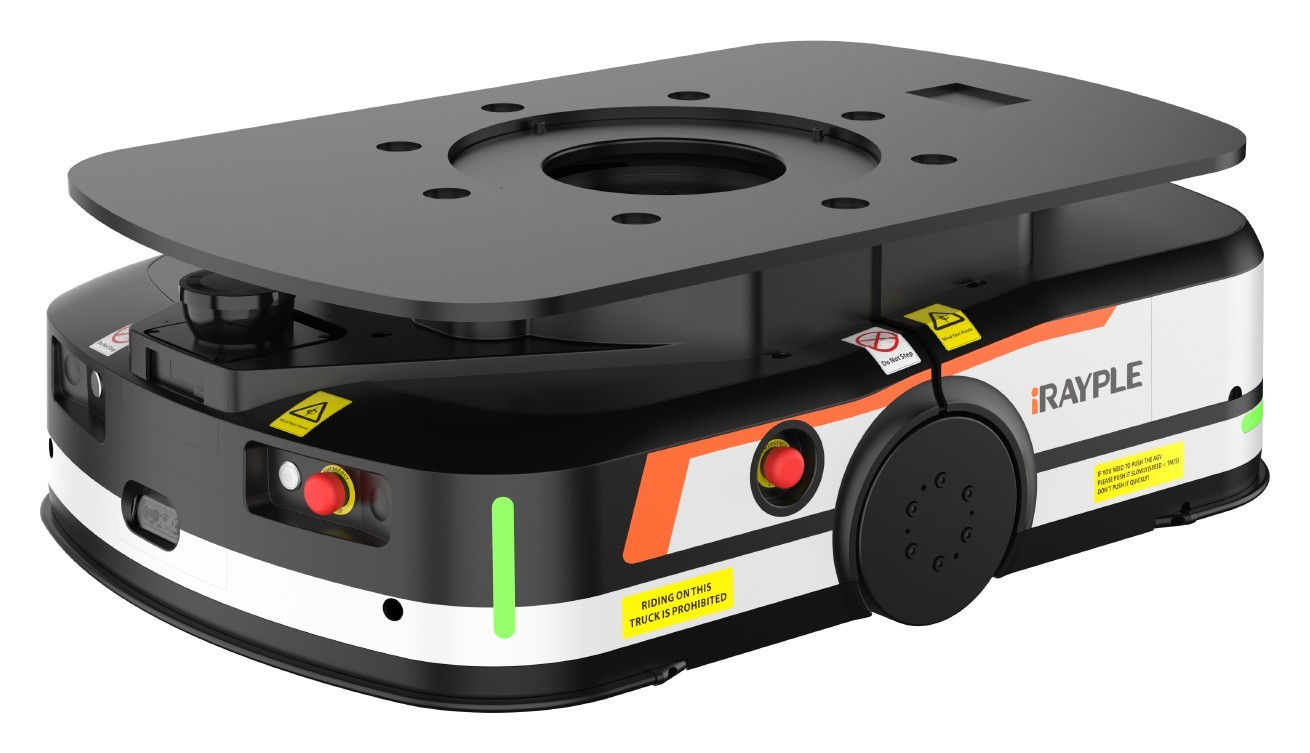

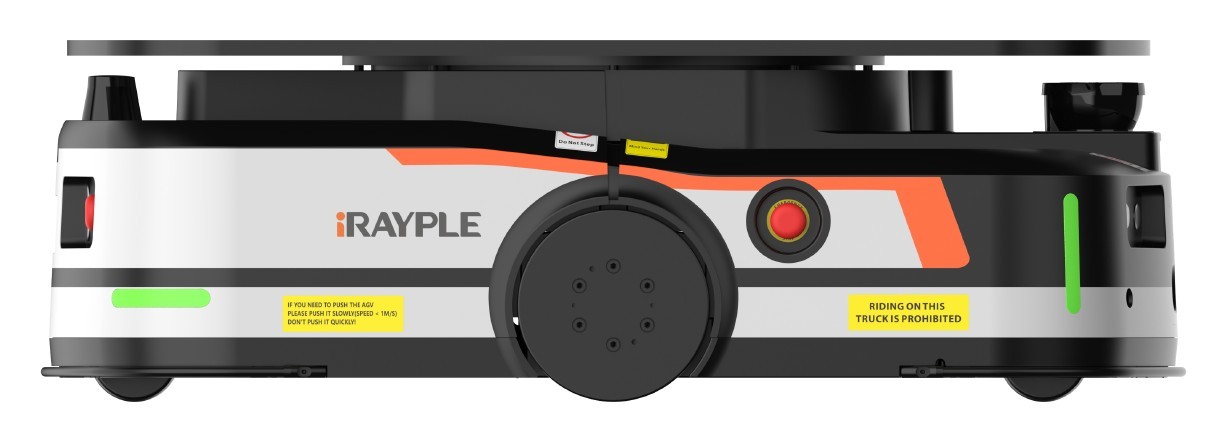

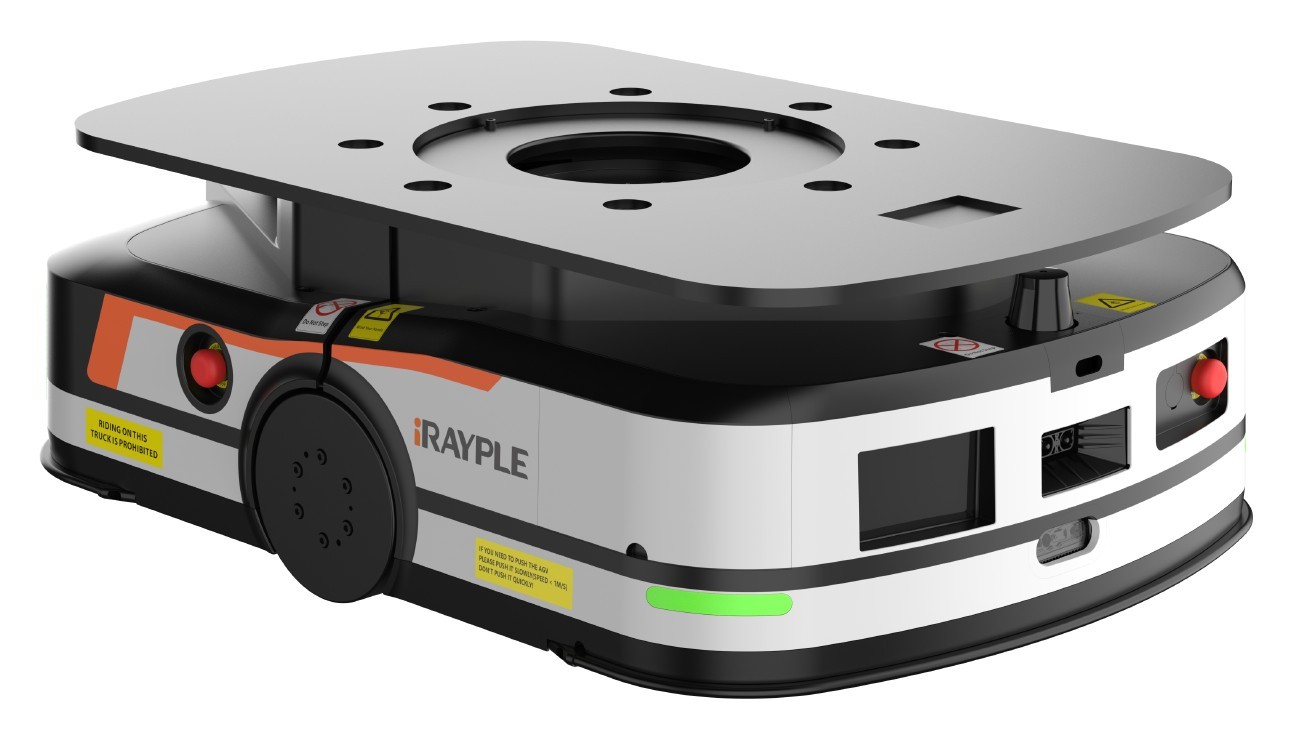

Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the C100D CE?
C100D CE is the CE-marked build of iRAYPLE's 1,000 kg under-ride lifting AMR on the 950 x 650 x 300 mm C-series chassis. It navigates by QR code/texture/laser SLAM, reaches 1.5 m/s empty, stops within ±10 mm and runs 6.0 h per charge (charging: manual/automatic, manually change battery).
Who makes the C100D CE?
The C100D CE is made by Zhejiang HuaRay Technology, a robotics company based in China.
How much does the C100D CE cost?
Zhejiang HuaRay Technology has not publicly announced pricing for the C100D CE. You can enquire through RobotAIGeek for current pricing.
What is the C100D CE used for?
The C100D CE is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the C100D CE?
The C100D CE has a payload capacity of 1,000 kg.
How much does the C100D CE weigh?
The C100D CE weighs 172 kg.
How fast is the C100D CE?
The C100D CE can move at speeds of up to 5.4 km/h.
What is the battery life of the C100D CE?
The C100D CE runs for about 360 minutes on a charge.
