DESCRIPTION
C100D is an Industrial-Robot from Zhejiang HuaRay Technology. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 170 kg, 480 min runtime, 1000 kg payload.

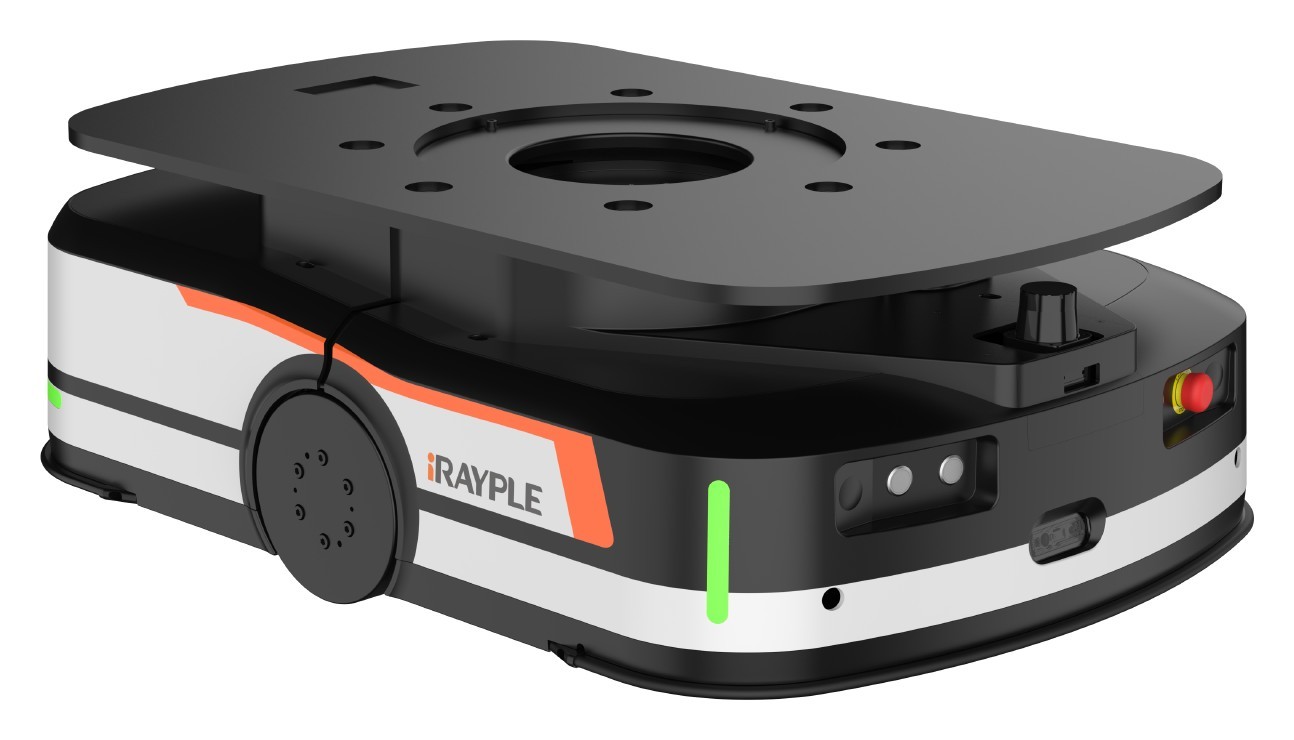

C100D is the 1,000 kg version of iRAYPLE's C-series under-ride (latent) lifting AMR: the same 950 x 650 x 300 mm chassis as the C060D, rated for one tonne and limited to 1.5 m/s. It navigates by QR code/texture/laser SLAM, reaches 1.5 m/s empty, stops within ±10 mm and runs 8.0 h per charge (charging: manual/automatic, manually change battery). It talks to iRAYPLE's robot control and scheduling system over Wi-Fi.
FEATURES
- Rated load 1000 kg
- machine weight 170 kg
- 950 mm×650 mm×300 mm
- Max. speed 1.5 m/s
- Navigation: QR code/texture/laser SLAM
- drive: Two-wheel speed difference
- Lifting Process Distance: 60 mm
- Lifting Pallet Dimensions: 900 mm×560 mm
- Rotation Diameter: 1000 mm
- Stopping accuracy (no load): ±10 mm
- Climbing Ability: 3°/5%
- Obstacle Crossing Height: 10 mm
- Obstacle Avoidance Method: Laser, TOF
- Charging Mode: Manual/automatic, manually change battery
- Communication Mode: Wi-Fi
- Operating time 8.0 h
- charging 2.0 h
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 170 kg |
|---|---|
| Dimensions | L 950 mm × W 650 mm × H 300 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/automatic, manually change battery |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, TOF depth cameras, downward code camera (QR/DM and floor-texture navigation), collision bumpers |
| Connectivity | Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 170 kg |
|---|---|
| Dimensions | L 950 mm × W 650 mm × H 300 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/automatic, manually change battery |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, TOF depth cameras, downward code camera (QR/DM and floor-texture navigation), collision bumpers |
| Connectivity | Wi-Fi |

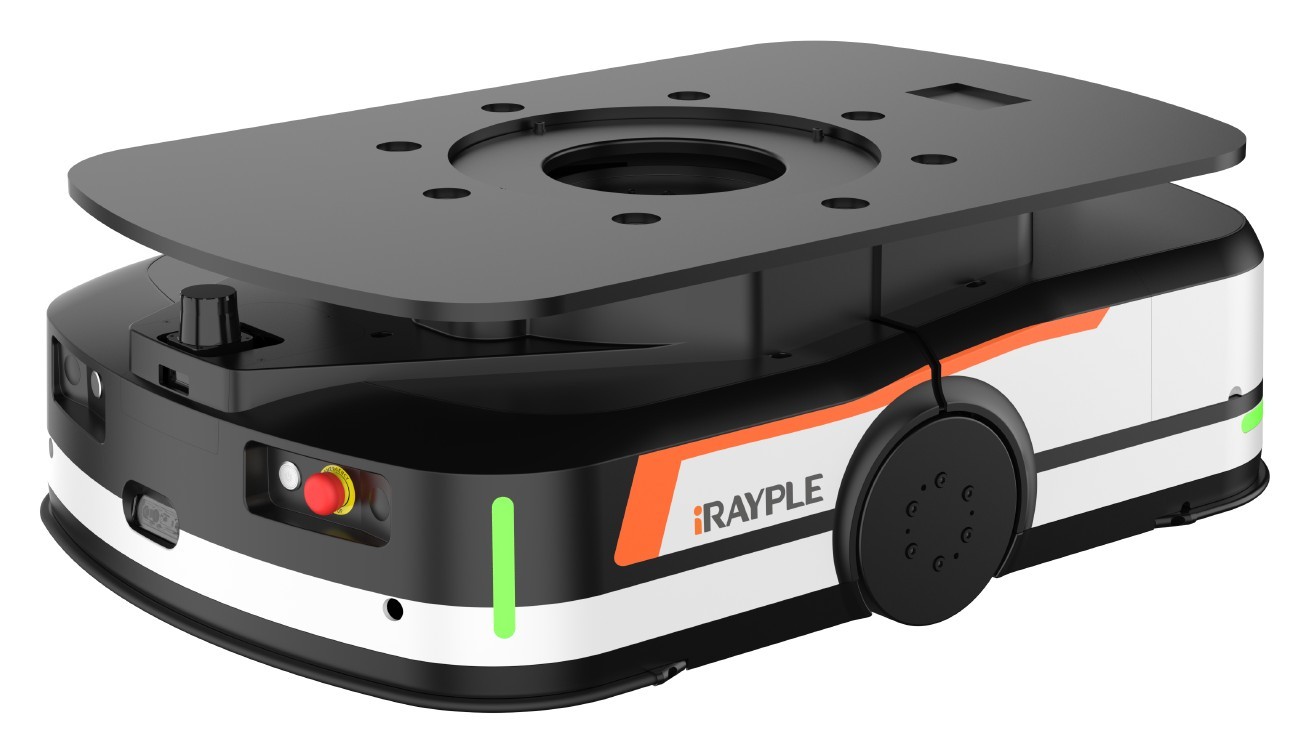

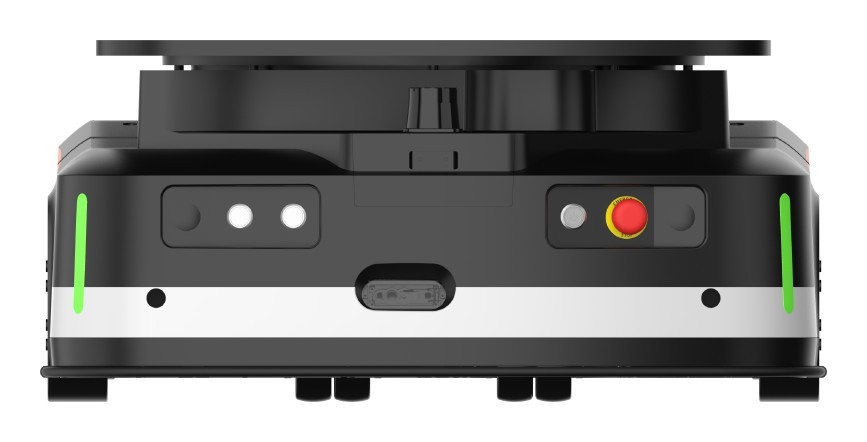

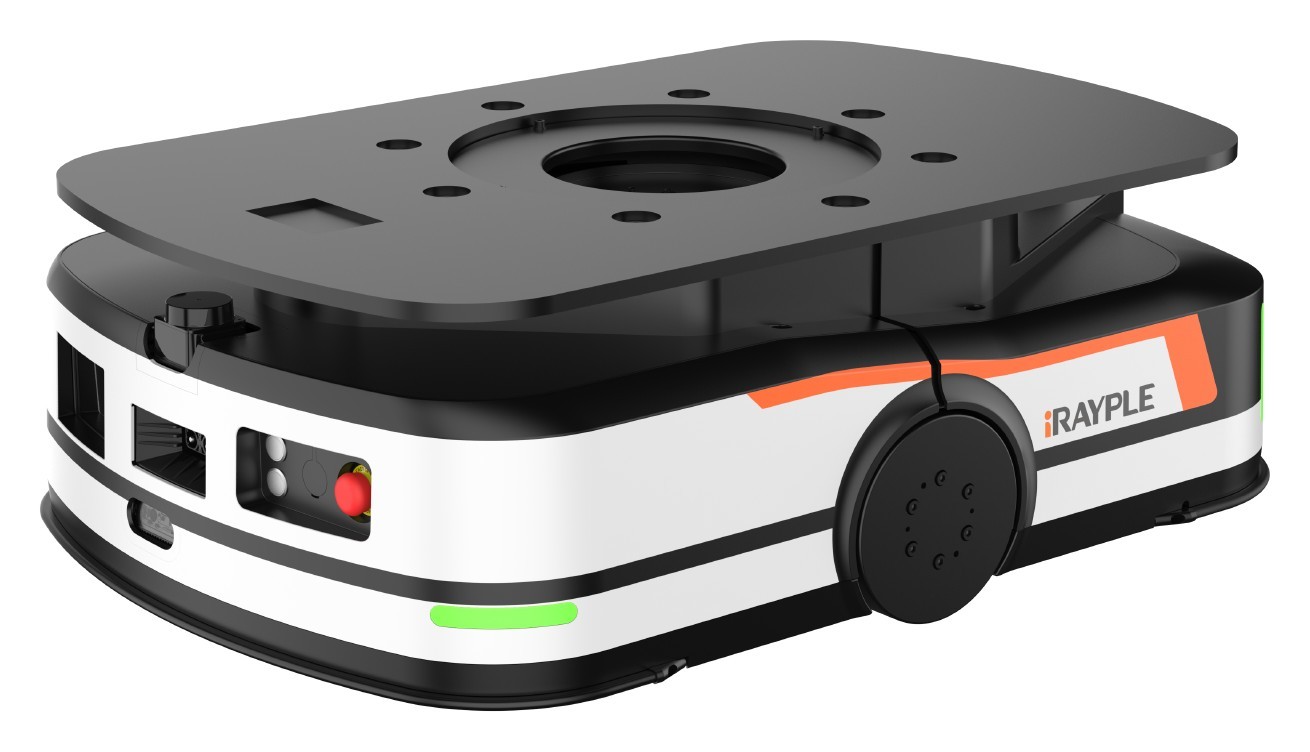

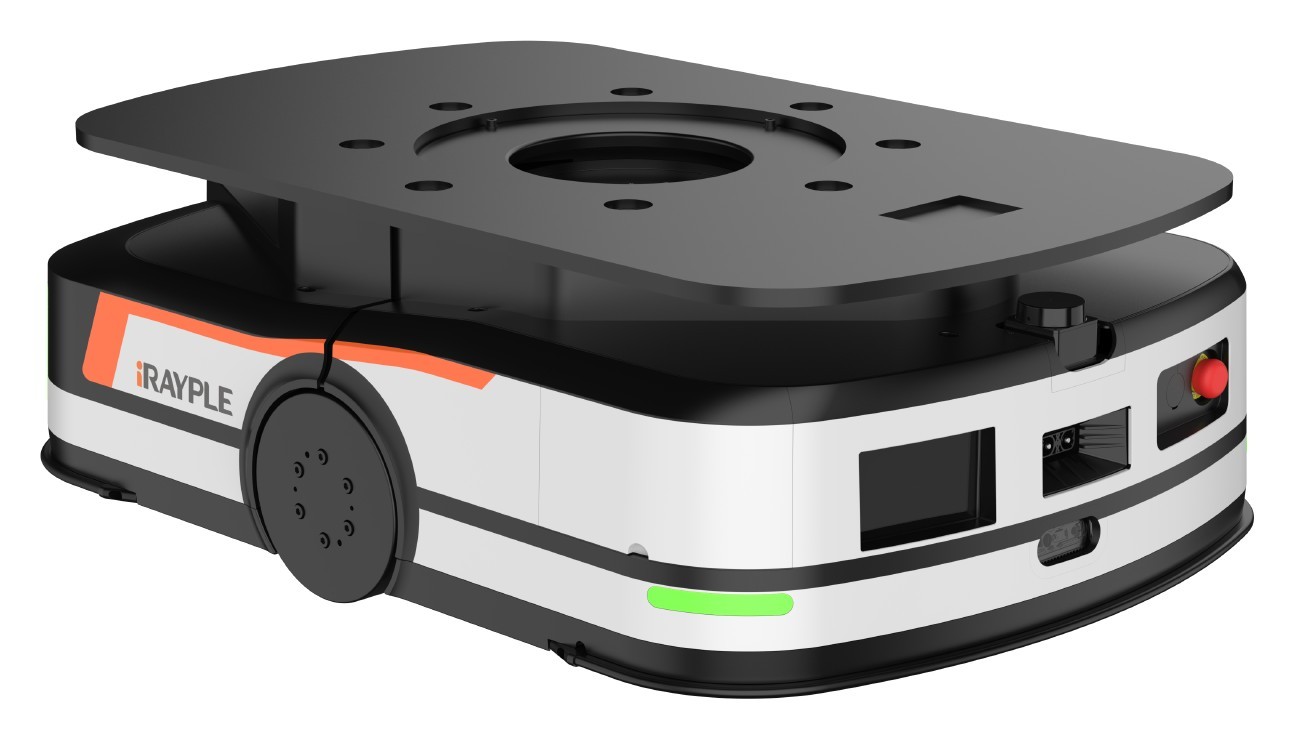

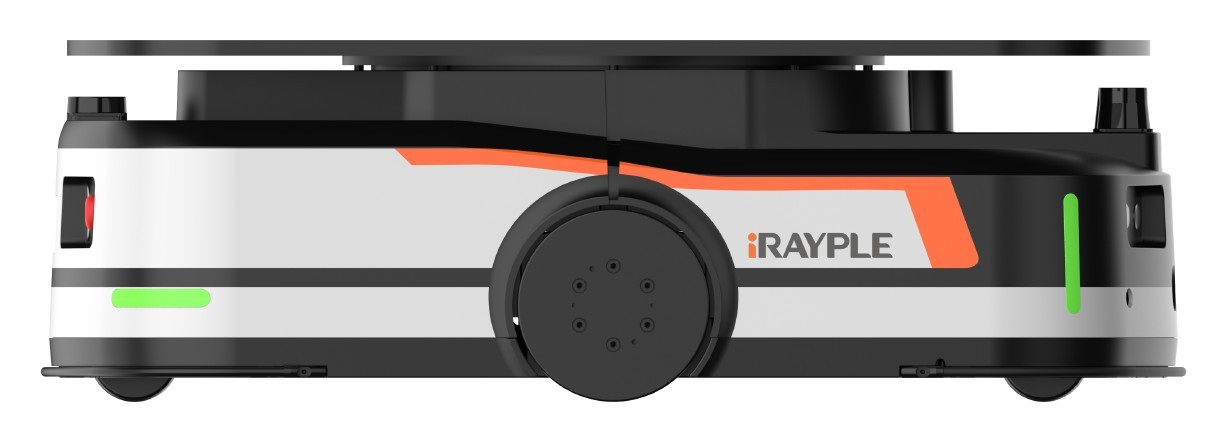

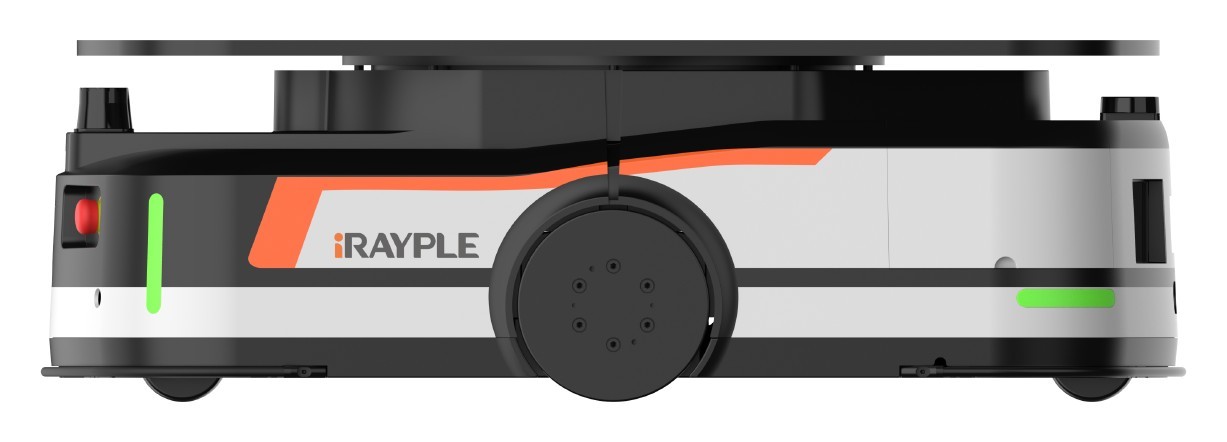

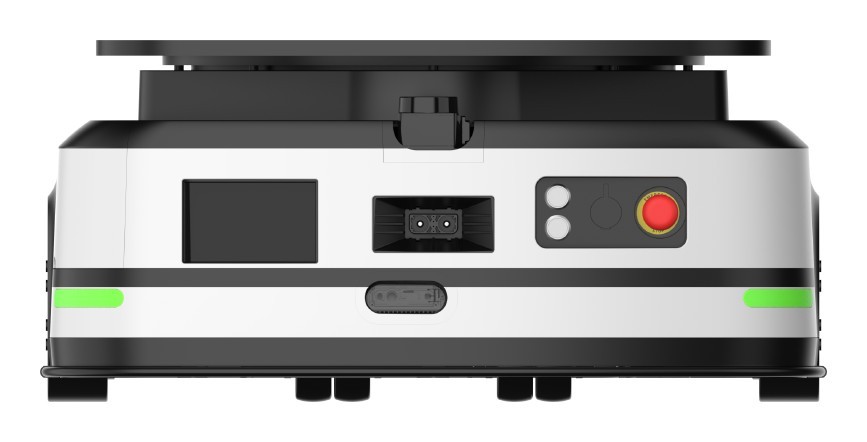

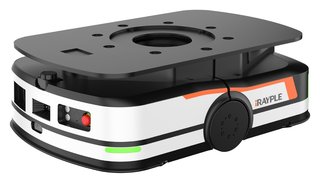

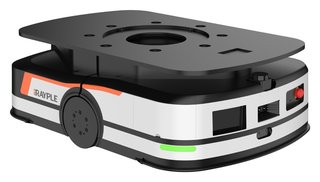

Images
martti
martti
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the C100D?
C100D is the 1,000 kg version of iRAYPLE's C-series under-ride (latent) lifting AMR: the same 950 x 650 x 300 mm chassis as the C060D, rated for one tonne and limited to 1.5 m/s.
Who makes the C100D?
The C100D is made by Zhejiang HuaRay Technology, a robotics company based in China.
How much does the C100D cost?
Zhejiang HuaRay Technology has not publicly announced pricing for the C100D. You can enquire through RobotAIGeek for current pricing.
What is the C100D used for?
The C100D is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the C100D?
The C100D has a payload capacity of 1,000 kg.
How much does the C100D weigh?
The C100D weighs 170 kg.
How fast is the C100D?
The C100D can move at speeds of up to 5.4 km/h.
What is the battery life of the C100D?
The C100D runs for about 480 minutes on a charge.
