DESCRIPTION

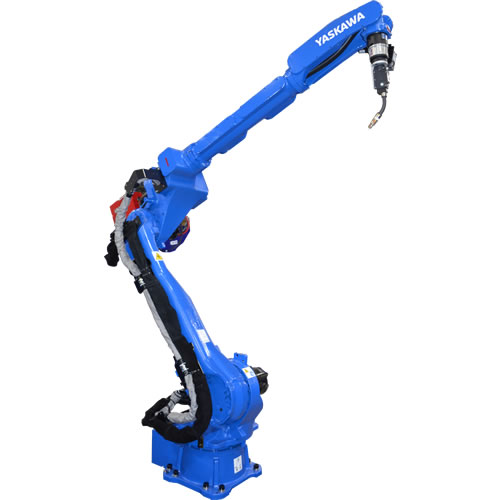

AR3120 is an Industrial-Robot from YASKAWA Electric. It is built for Welding. Key figures: 560 kg, 20 kg payload, 3124 mm reach, 6 degrees of freedom, released 2019.
Yaskawa Motoman AR3120 is a AR Series industrial robot with 20 kg payload and 3124 mm horizontal reach (560 kg mass, ±0.07 mm repeatability).
FEATURES
- Payload 20 kg
- Horizontal reach 3124 mm
- Vertical reach 5622 mm
- Mass 560 kg
- Repeatability ±0.07 mm
- 6 controlled axes
- Applications: Arc Welding
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 560 kg |
|---|---|
| Payload | 20 kg |
| Reach | 3.12 m |
| Repeatability | ±0.07 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Videos
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 560 kg |
|---|---|
| Payload | 20 kg |
| Reach | 3.12 m |
| Repeatability | ±0.07 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Images
martti
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the AR3120?
Yaskawa Motoman AR3120 is a AR Series industrial robot with 20 kg payload and 3124 mm horizontal reach (560 kg mass, ±0.07 mm repeatability).
Who makes the AR3120?
The AR3120 is made by YASKAWA Electric, a robotics company based in Japan.
How much does the AR3120 cost?
YASKAWA Electric has not publicly announced pricing for the AR3120. You can enquire through RobotAIGeek for current pricing.
What is the AR3120 used for?
The AR3120 is designed for welding. It is used in automotive and manufacturing settings.
What is the payload capacity of the AR3120?
The AR3120 has a payload capacity of 20 kg and a reach of 3.12 m.
How much does the AR3120 weigh?
The AR3120 weighs 560 kg.
How many degrees of freedom does the AR3120 have?
The AR3120 has 6 degrees of freedom.
When was the AR3120 released?
The AR3120 was released in 2019.
