설명

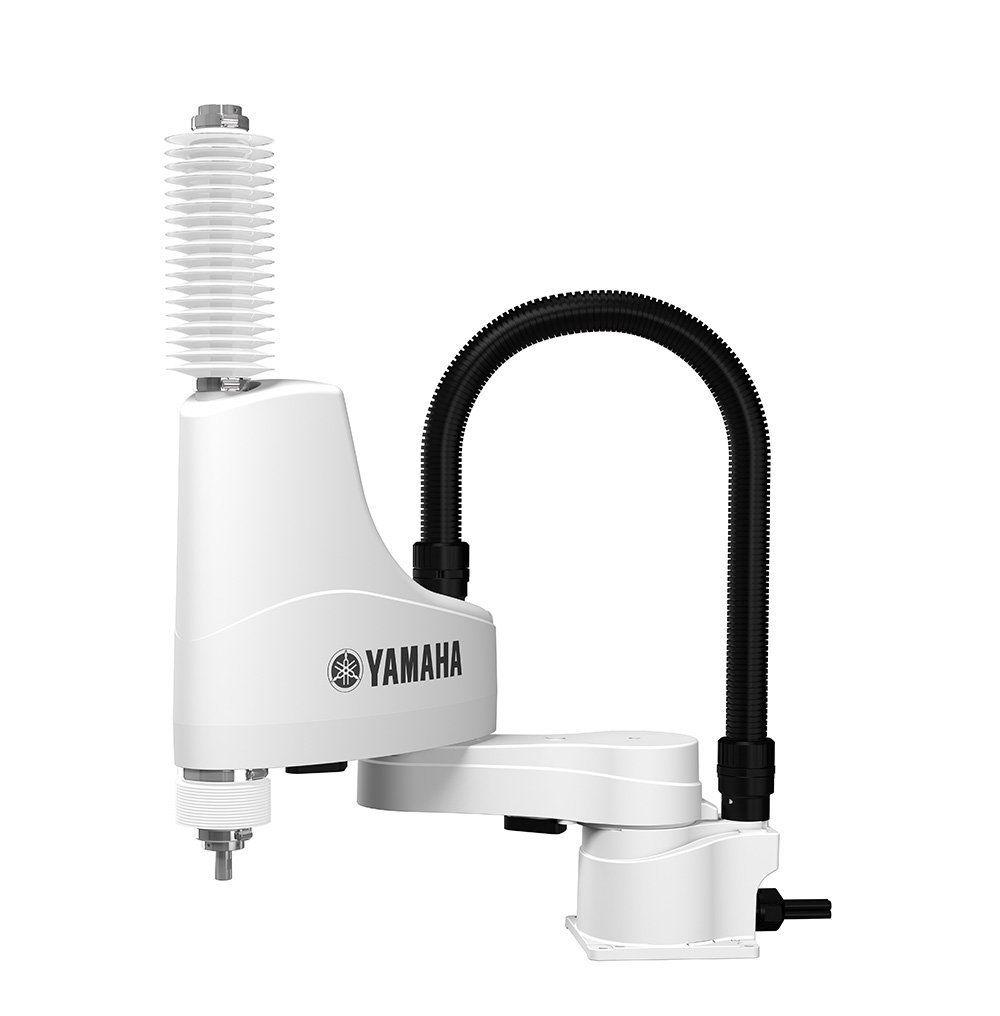

YK510XEC-10 is Yamaha Motor's ISO Class 4 cleanroom SCARA with a 510 mm arm, 10 kg maximum payload, and 0.42 s standard cycle time. It is the clean version of the cost-performance YK-XE platform and is intended for clean manufacturing environments.
주요 기능
- Exact-model Yamaha datasheet specifications for YK510XEC-10:
- Four-axis cleanroom SCARA
- total arm length 510 mm (X arm 235 mm, Y arm 275 mm)
- Z stroke 200 mm.
- Rotation ranges: X ±134°, Y ±147.5°, R ±360°.
- AC servo outputs (X/Y/Z/R): 400/200/200/200 W.
- Maximum speeds: X-Y synthesis 7.8 m/s
- Z 2 m/s
- R 2,600°/s.
- Repeatability at constant ambient temperature: X-Y ±0.01 mm, Z ±0.01 mm, R ±0.01°.
- Maximum payload 10 kg
- standard cycle time 0.42 s with 2 kg payload
- R-axis tolerable moment of inertia 0.3 kg·m².
- Robot weight 27 kg
- ISO Class 4 cleanliness (ISO 14644-1)
- intake air 60 Nℓ/min.
- RCX340 controller
- soft limits plus mechanical stoppers on X/Y/Z
- standard 3.5 m robot cable with 5 m and 10 m options.
- Family features: compact clean design, vibration-reduced high-speed operation, RCXiVY2+ vision integration, and support for CC-Link, EtherNet/IP, DeviceNet, PROFIBUS, PROFINET, and EtherCAT.
기술 사양
| 물리 사양 | |
| 무게 | 27 kg |
|---|---|
| 가반하중 | 10 kg |
| 도달거리 | 510 mm |
| 반복 정밀도 | ±0.01 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 4 |
기술 사양
| 물리 사양 | |
| 무게 | 27 kg |
|---|---|
| 가반하중 | 10 kg |
| 도달거리 | 510 mm |
| 반복 정밀도 | ±0.01 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 4 |
이미지
martti
이미지 기여
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the YK510XEC-10?
YK510XEC-10 is Yamaha Motor's ISO Class 4 cleanroom SCARA with a 510 mm arm, 10 kg maximum payload, and 0.42 s standard cycle time. It is the clean version of the cost-performance YK-XE platform and is intended for clean manufacturing environments.
Who makes the YK510XEC-10?
The YK510XEC-10 is made by Yamaha Motor Co., Ltd. (Robotics Division), a robotics company based in Japan.
How much does the YK510XEC-10 cost?
Yamaha Motor Co., Ltd. (Robotics Division) has not publicly announced pricing for the YK510XEC-10. You can enquire through RobotAIGeek for current pricing.
What is the YK510XEC-10 used for?
The YK510XEC-10 is designed for 조립, 머신 텐딩, 자재 취급, and 픽앤플레이스. It is used in 자동차, 전자, and 제조 settings.
What is the payload capacity of the YK510XEC-10?
The YK510XEC-10 has a payload capacity of 10 kg and a reach of 510 mm.
How much does the YK510XEC-10 weigh?
The YK510XEC-10 weighs 27 kg.
How many degrees of freedom does the YK510XEC-10 have?
The YK510XEC-10 has 4 degrees of freedom.
When was the YK510XEC-10 released?
The YK510XEC-10 was released in 2024.
