설명
YK400XEC-4 is Yamaha Motor's ISO Class 4 cleanroom SCARA with a 400 mm arm, 4 kg maximum payload, and 0.45 s standard cycle time. It is the clean version of the cost-performance YK-XE platform and is intended for clean manufacturing environments.
주요 기능
- Exact-model Yamaha datasheet specifications for YK400XEC-4:
- Four-axis cleanroom SCARA
- total arm length 400 mm (X arm 225 mm, Y arm 175 mm)
- Z stroke 150 mm.
- Rotation ranges: X ±132°, Y ±145°, R ±360°.
- AC servo outputs (X/Y/Z/R): 200/100/100/100 W.
- Maximum speeds: X-Y synthesis 6 m/s
- Z 1.1 m/s
- R 2,600°/s.
- Repeatability at constant ambient temperature: X-Y ±0.01 mm, Z ±0.01 mm, R ±0.01°.
- Maximum payload 4 kg
- standard cycle time 0.45 s with 2 kg payload
- R-axis tolerable moment of inertia 0.05 kg·m².
- Robot weight 18 kg
- ISO Class 4 cleanliness (ISO 14644-1)
- intake air 55 Nℓ/min.
- RCX340 controller
- soft limits plus mechanical stoppers on X/Y/Z
- standard 3.5 m robot cable with 5 m and 10 m options.

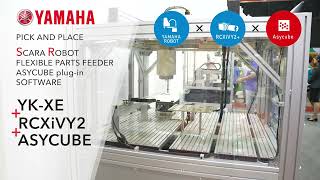

- Family features: compact clean design, vibration-reduced high-speed operation, RCXiVY2+ vision integration, and support for CC-Link, EtherNet/IP, DeviceNet, PROFIBUS, PROFINET, and EtherCAT.
기술 사양
| 물리 사양 | |
| 무게 | 18 kg |
|---|---|
| 가반하중 | 4 kg |
| 도달거리 | 400 mm |
| 반복 정밀도 | ±0.01 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 4 |
기술 사양
| 물리 사양 | |
| 무게 | 18 kg |
|---|---|
| 가반하중 | 4 kg |
| 도달거리 | 400 mm |
| 반복 정밀도 | ±0.01 mm |
| 이동성 | |
| 이동 방식 | 고정형 |
| 자유도 | 4 |
이미지
martti
이미지 기여
로봇 포럼
포럼 불러오는 중...
평가
자주 묻는 질문
What is the YK400XEC-4?
YK400XEC-4 is Yamaha Motor's ISO Class 4 cleanroom SCARA with a 400 mm arm, 4 kg maximum payload, and 0.45 s standard cycle time. It is the clean version of the cost-performance YK-XE platform and is intended for clean manufacturing environments.
Who makes the YK400XEC-4?
The YK400XEC-4 is made by Yamaha Motor Co., Ltd. (Robotics Division), a robotics company based in Japan.
How much does the YK400XEC-4 cost?
Yamaha Motor Co., Ltd. (Robotics Division) has not publicly announced pricing for the YK400XEC-4. You can enquire through RobotAIGeek for current pricing.
What is the YK400XEC-4 used for?
The YK400XEC-4 is designed for 조립, 머신 텐딩, 자재 취급, and 픽앤플레이스. It is used in 자동차, 전자, and 제조 settings.
What is the payload capacity of the YK400XEC-4?
The YK400XEC-4 has a payload capacity of 4 kg and a reach of 400 mm.
How much does the YK400XEC-4 weigh?
The YK400XEC-4 weighs 18 kg.
How many degrees of freedom does the YK400XEC-4 have?
The YK400XEC-4 has 4 degrees of freedom.
When was the YK400XEC-4 released?
The YK400XEC-4 was released in 2024.
