Perceptyne PR-DUO

Perceptyne
Collaborative-RobotIndiaIndiaプロトタイプ
Perceptyne PR-DUO
比較
情報源:
perceptyne.com
産業:
エレクトロニクス倉庫・物流製造
用途:
組立マシンテンディングピック＆プレース点検
価格:
未発表

説明

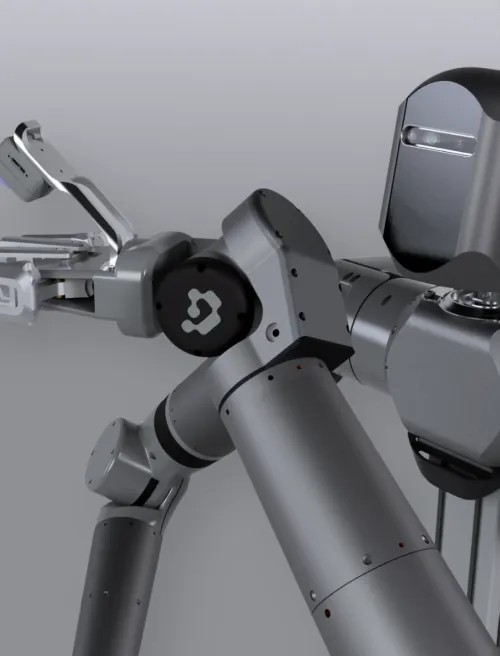

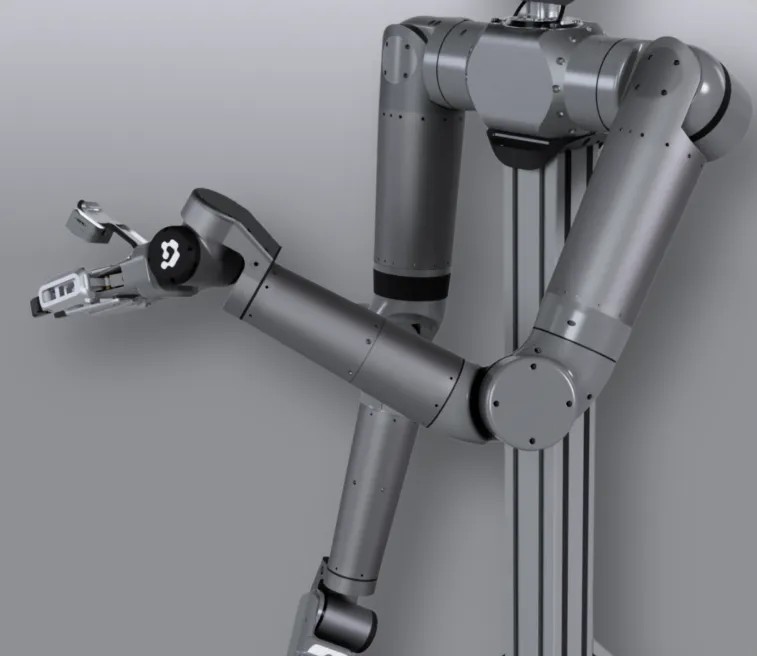

PR-DUO is the same dual-arm torso as the PR-OMNI without the mobile base — a workstation robot on a column, meant for jobs where two hands have to cooperate in a tight footprint. Perceptyne's own claim for it is range rather than force: it handles objects from 5 cm to 50 cm at a single station. It stands 5 ft 2 in (about 1,575 mm), weighs 120 kg in aluminium, and carries two 7-DOF arms of 800 mm each at 5 kg per arm, with an 800 mm vertical gantry that lifts the torso and a maximum vertical approach speed of 1 m/s. The sensing is Perceptyne's standard set: force-torque at every joint to plus or minus 10 g, tactile sensing at the fingertips, three RGBD cameras, visual servoing, and the Physical Intelligence layer on an Nvidia Jetson Orin with an Intel NUC. A Pico4 headset can teleoperate it.

特長

  • Stationary dual-arm workstation robot, column-mounted
  • Handles objects from 5 cm to 50 cm at one workstation
  • Height 5 ft 2 in (about 1,575 mm)
  • 120 kg
  • aluminium body, modular design
  • Dual arms, 7 DOF each
  • 800 mm arm reach
  • Payload 5 kg per arm
  • 800 mm vertical gantry range
  • maximum vertical approach speed 1 m/s
  • 3 RGBD cameras
  • Force-torque sensing at every joint with a least count of plus or minus 10 g
  • Tactile sensing at the end effectors
  • Visual servoing enabled
  • Native Physical Intelligence (PhI) layer
  • runs open-source models natively
  • Teleoperation through a VR headset (Pico4)
  • Nvidia Jetson Orin plus Intel NUC onboard compute

技術仕様

検証済み
本体
重量120 kg
寸法H 1.57 m
可搬重量10 kg
リーチ800 mm
移動性能
移動方式固定型
自由度14
使用環境Indoor industrial workstations; compact footprint for tight cells
センシング・演算
センサーforce-torque sensing at every joint (+/-10 g), tactile sensing at end effectors, 3 RGBD cameras
ソフトウェア / AINative Physical Intelligence (PhI) layer; runs open-source models; VR teleoperation (Pico4)
メーカー情報第三者情報情報源なし情報源のステータスは、このロボットに登録された情報源に基づきます。

よくある質問

What is the Perceptyne PR-DUO?

PR-DUO is the same dual-arm torso as the PR-OMNI without the mobile base — a workstation robot on a column, meant for jobs where two hands have to cooperate in a tight footprint. Perceptyne's own claim for it is range rather than force: it handles objects from 5 cm to 50 cm at a single station.

Who makes the Perceptyne PR-DUO?

The Perceptyne PR-DUO is made by Perceptyne, a robotics company based in India.

How much does the Perceptyne PR-DUO cost?

Perceptyne has not publicly announced pricing for the Perceptyne PR-DUO. You can enquire through RobotAIGeek for current pricing.

What is the Perceptyne PR-DUO used for?

The Perceptyne PR-DUO is designed for 組立, マシンテンディング, ピック＆プレース, and 点検. It is used in エレクトロニクス, 倉庫・物流, and 製造 settings.

What is the payload capacity of the Perceptyne PR-DUO?

The Perceptyne PR-DUO has a payload capacity of 10 kg and a reach of 800 mm.

How much does the Perceptyne PR-DUO weigh?

The Perceptyne PR-DUO weighs 120 kg.

How many degrees of freedom does the Perceptyne PR-DUO have?

The Perceptyne PR-DUO has 14 degrees of freedom.
