描述
UFACTORY xArm 6是UFactory的Collaborative-Robot。 面向组装、机床操作、拾放设计。 关键数据:12.5 kg、负载 5 kg、臂展 700 mm、6 自由度、价格 $8,399–$8,594、2018 年发布。

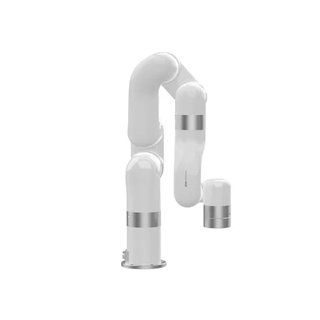

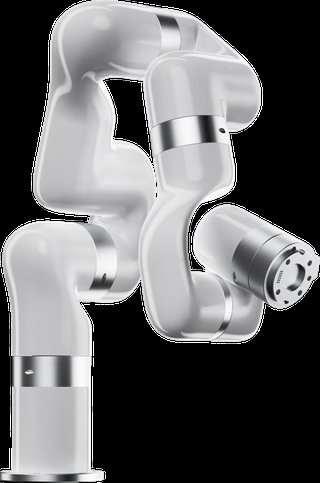

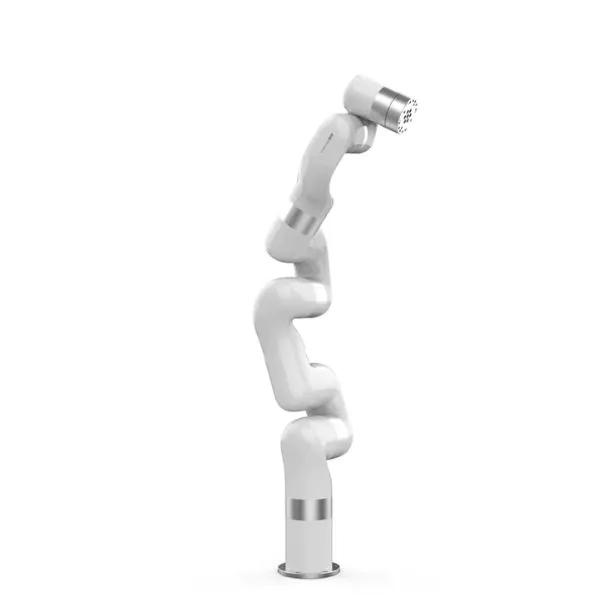

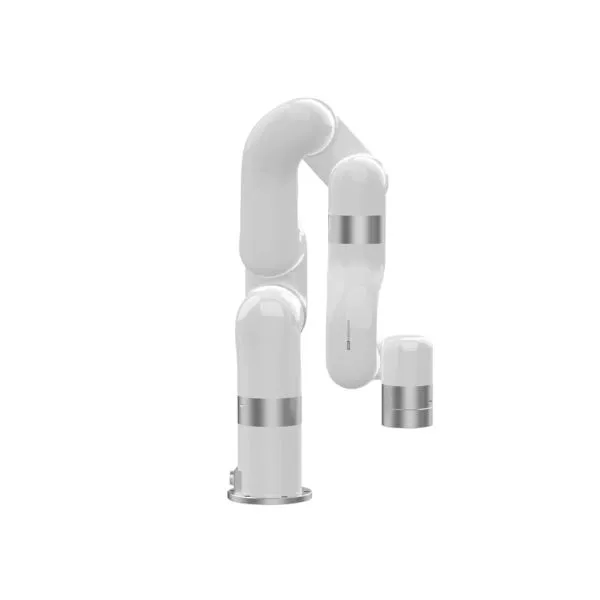

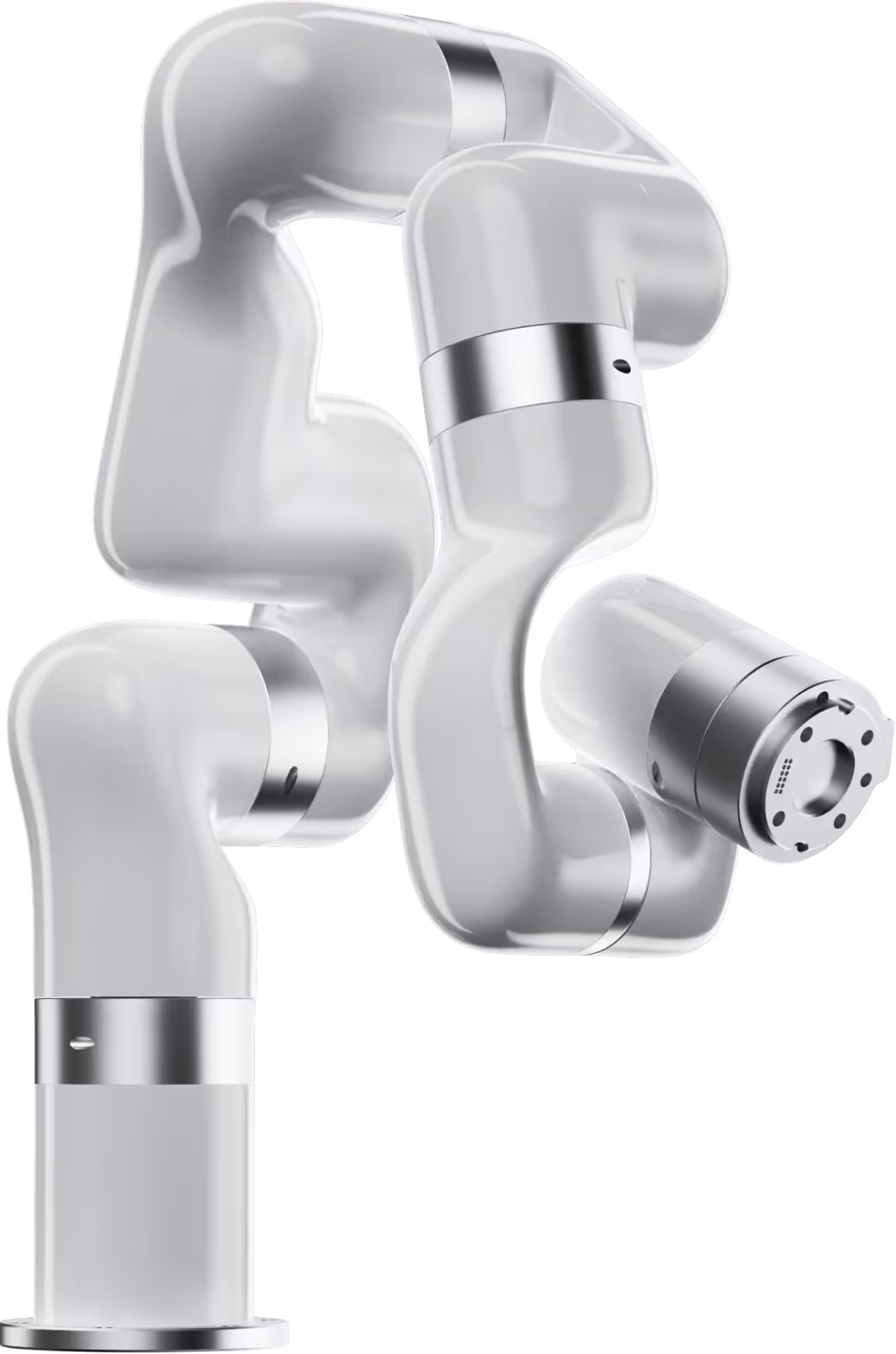

The UFACTORY xArm 6 is a 6-axis collaborative robot from UFACTORY, suitable for industrial automation. It features a 5 kg payload and a 700 mm reach with ±0.1 mm repeatability. Weighing 12.5 kg, the robot is built with carbon fiber and includes industrial-grade harmonic drives and servomotors for continuous operation. It supports hand teaching and has collision detection for safe human-robot interaction.
功能特点

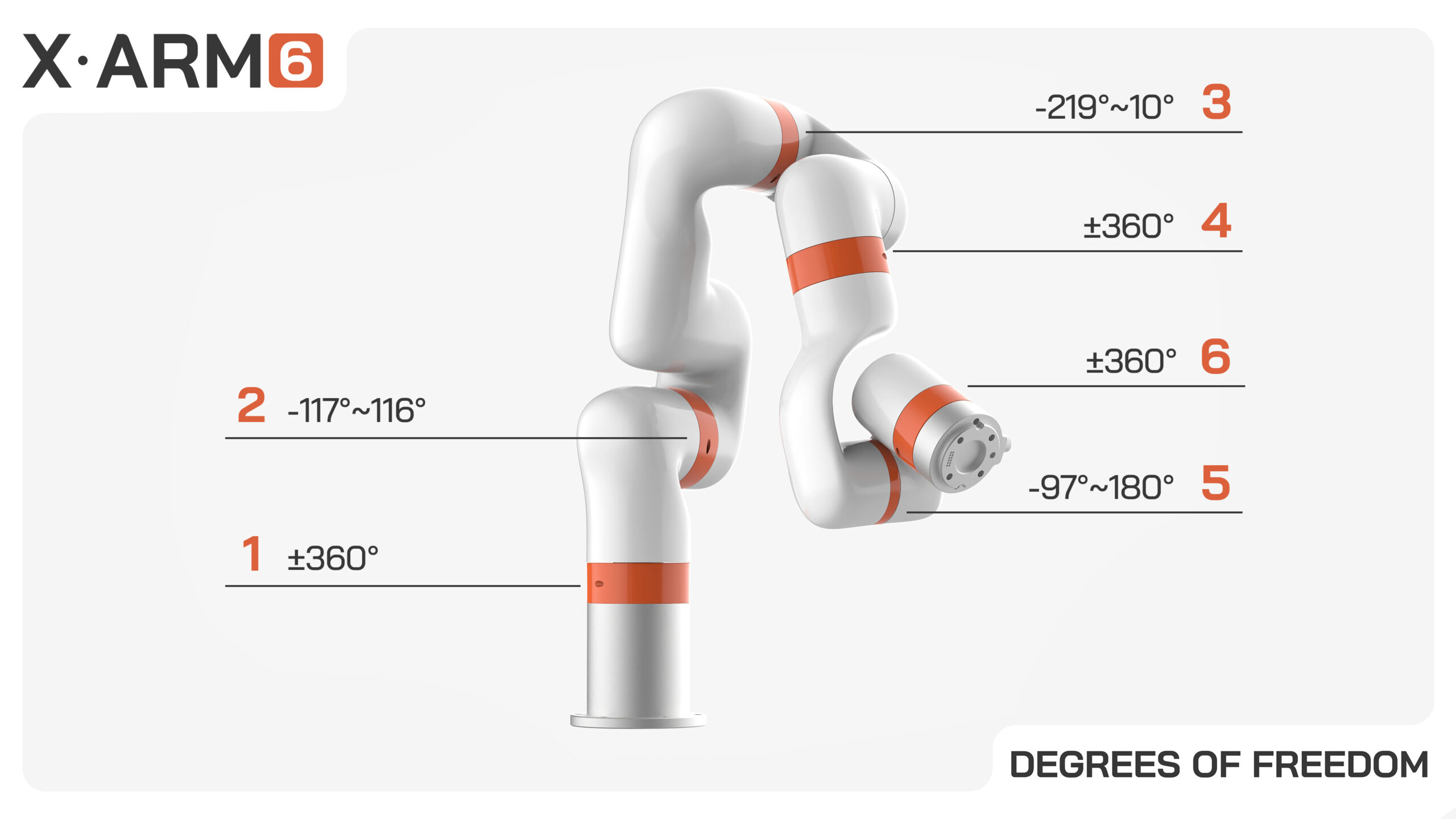

- 6 degrees of freedom
- 5 kg payload
- 700 mm reach
- ±0.1 mm repeatability
技术规格
已验证| 物理参数 | |
| 重量 | 12.5 kg |
|---|---|
| 负载 | 5 kg |
| 臂展 | 700 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
| 速度 | 3.6 km/h |
机器人论坛
正在加载论坛...
技术规格
已验证| 物理参数 | |
| 重量 | 12.5 kg |
|---|---|
| 负载 | 5 kg |
| 臂展 | 700 mm |
| 移动能力 | |
| 运动类型 | 文具 |
| 自由度 | 6 |
| 速度 | 3.6 km/h |




图片贡献
机器人论坛
正在加载论坛...
评分
常见问题
What is the UFACTORY xArm 6?
The UFACTORY xArm 6 is a 6-axis collaborative robot from UFACTORY, suitable for industrial automation. It features a 5 kg payload and a 700 mm reach with ±0.1 mm repeatability. Weighing 12.5 kg, the robot is built with carbon fiber and includes industrial-grade harmonic drives and servomotors for continuous operation.
Who makes the UFACTORY xArm 6?
The UFACTORY xArm 6 is made by UFactory, a robotics company based in China.
How much does the UFACTORY xArm 6 cost?
Pricing for the UFACTORY xArm 6 ranges from $8,399 to $8,594.
What is the UFACTORY xArm 6 used for?
The UFACTORY xArm 6 is designed for 组装, 机床操作, 拾放, and 研究. It is used in 研究, 物流, and 制造业 settings.
What is the payload capacity of the UFACTORY xArm 6?
The UFACTORY xArm 6 has a payload capacity of 5 kg and a reach of 700 mm.
How much does the UFACTORY xArm 6 weigh?
The UFACTORY xArm 6 weighs 12.5 kg.
How fast is the UFACTORY xArm 6?
The UFACTORY xArm 6 can move at speeds of up to 3.6 km/h.
How many degrees of freedom does the UFACTORY xArm 6 have?
The UFACTORY xArm 6 has 6 degrees of freedom.
