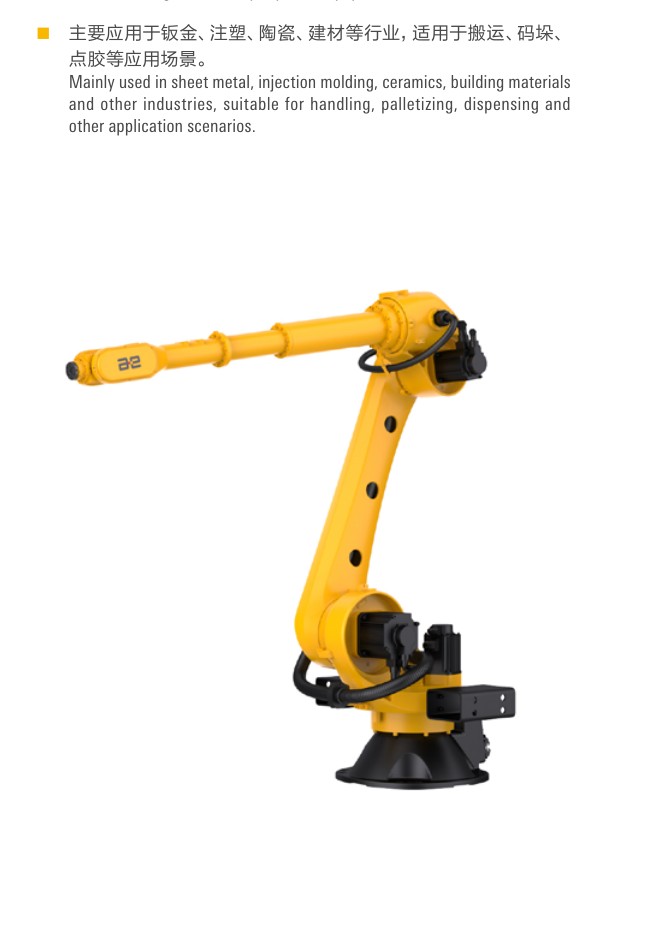

Peitian AIR20-3100

Peitian Robot
Industrial-RobotChinaChina已发布
Peitian AIR20-3100
对比
来源：
cdn.robotaigeek.com
行业：
研究制造业
用途：
组装拾放Loading and unloadinghandlingpalletisinginjection mouldingweldinggrinding and polishingdispensingpacking
价格：
未公布

描述

The AIR20-3100 is a medium-payload six-axis articulated arm from Peitian's AIR range, carrying 20 kg to a reach of 3097 mm. Peitian quotes position repeatability of ±0.03mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling. The manipulator weighs 550 kg. It is sealed to IP54(Wrist: IP67), and can be mounted Floor or ceiling. It runs on Peitian's ARC5-280 controller cabinet.

功能特点

  • Six-axis articulated industrial robot arm
  • Rated payload 20 kg
  • Maximum reach 3097 mm
  • Manipulator weight 550 kg
  • Position repeatability ±0.03mm
  • Ingress protection IP54(Wrist: IP67)
  • Mounting: Floor / ceiling
  • Compatible controller cabinets: ARC5-280
  • Working range Axis 1 rotation -170°/+170°
  • Axis 2 arm -100°/+100°
  • Axis 3 arm -110°/+165°
  • Axis 4 wrist -350°/+350°
  • Axis 5 bend -125°/+125°
  • Axis 6 turn -360°/+360°
  • Rotation rate Axis 1 rotation 185°/s
  • Axis 2 arm 180°/s
  • Axis 3 arm 180°/s
  • Axis 4 wrist 310°/s
  • Axis 5 bend 375°/s
  • Axis 6 turn 470°/s
  • Ambient temperature 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m
  • No corrosive, flammable or explosive gases permitted in the operating environment

技术规格

物理参数
重量550 kg
负载20 kg
臂展3.1 m
移动能力
运动类型文具
自由度6
操作能力高
作业环境Industrial indoor use, 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m; no corrosive, flammable or explosive gases
执行器6-axis six-axis articulated manipulator, mounted Floor or ceiling
感知与计算
软件 / AIDriven by Peitian ARC5-280 controller cabinets
来源：制造商官网来源：第三方暂无来源来源状态基于该机器人已登记的资料来源。

常见问题

What is the Peitian AIR20-3100?

The AIR20-3100 is a medium-payload six-axis articulated arm from Peitian's AIR range, carrying 20 kg to a reach of 3097 mm. Peitian quotes position repeatability of ±0.03mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling.

Who makes the Peitian AIR20-3100?

The Peitian AIR20-3100 is made by Peitian Robot, a robotics company based in China.

How much does the Peitian AIR20-3100 cost?

Peitian Robot has not publicly announced pricing for the Peitian AIR20-3100. You can enquire through RobotAIGeek for current pricing.

What is the Peitian AIR20-3100 used for?

The Peitian AIR20-3100 is designed for 组装, 拾放, loading and unloading, and handling. It is used in 研究 and 制造业 settings.

What is the payload capacity of the Peitian AIR20-3100?

The Peitian AIR20-3100 has a payload capacity of 20 kg and a reach of 3.1 m.

How much does the Peitian AIR20-3100 weigh?

The Peitian AIR20-3100 weighs 550 kg.

How many degrees of freedom does the Peitian AIR20-3100 have?

The Peitian AIR20-3100 has 6 degrees of freedom.
