DESCRIPTION
Zoei-S is an Industrial-Robot from DF Automation. It is built for Material-Handling, Transport. Key figures: 480 min runtime, 300 kg payload.

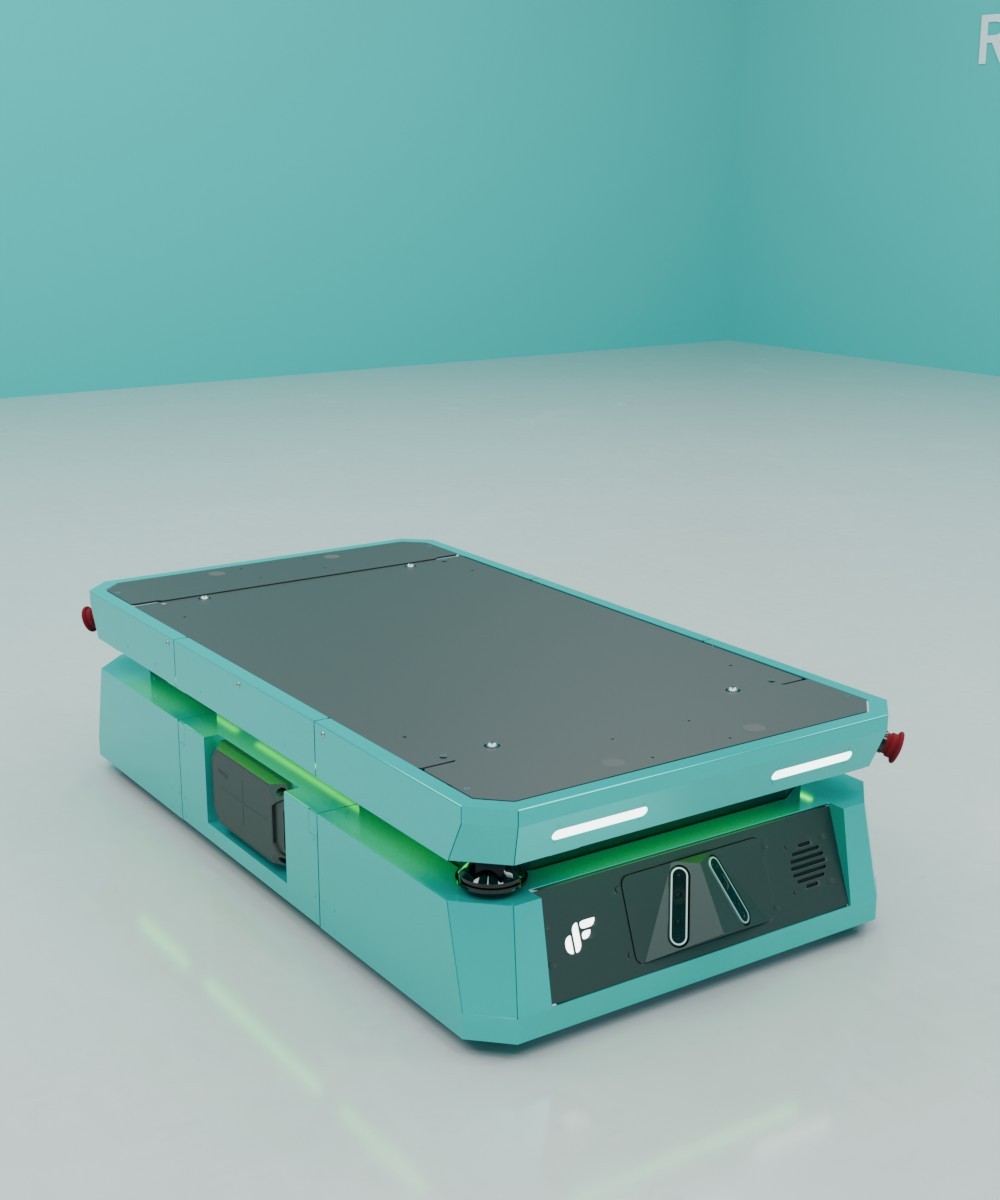

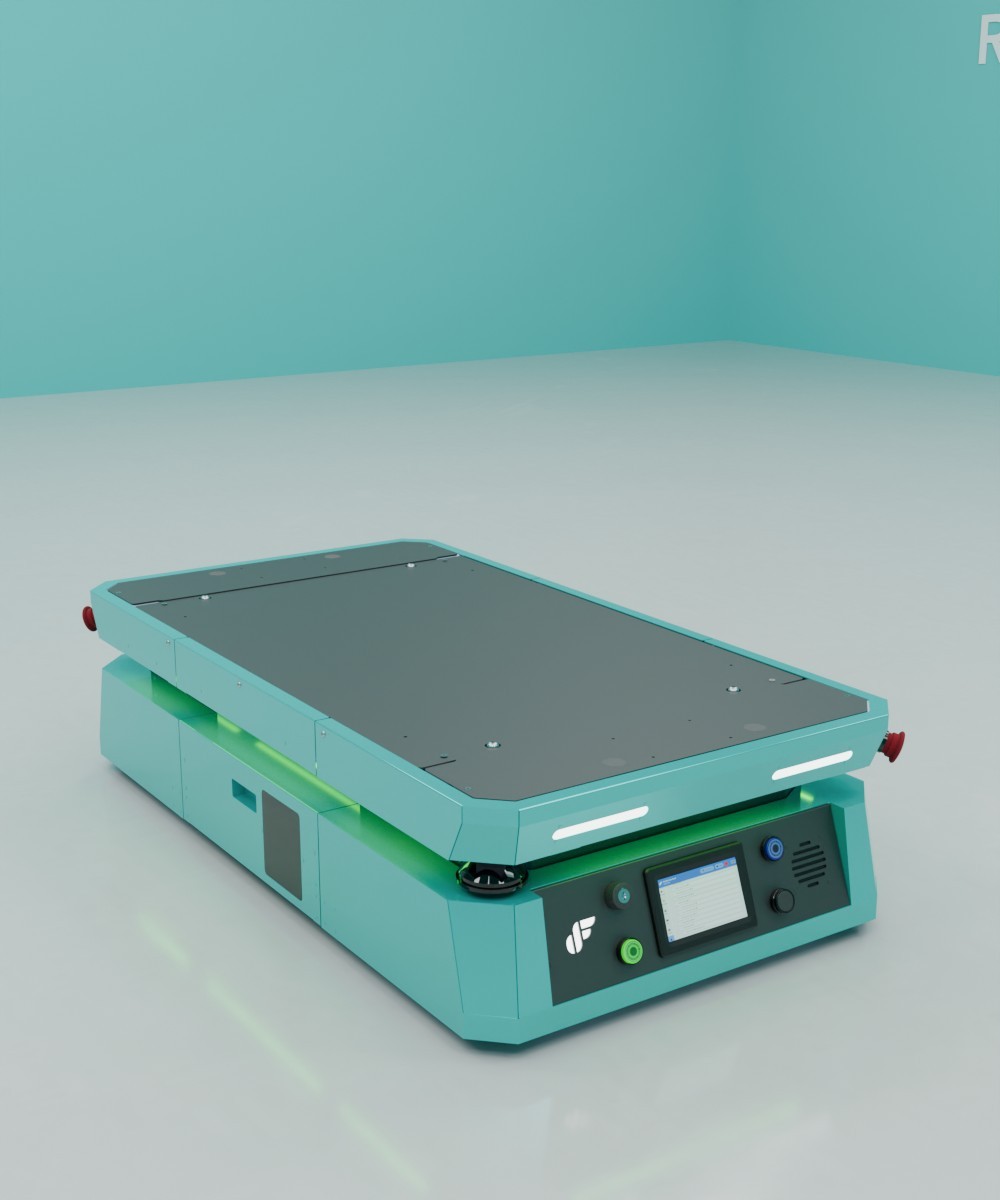

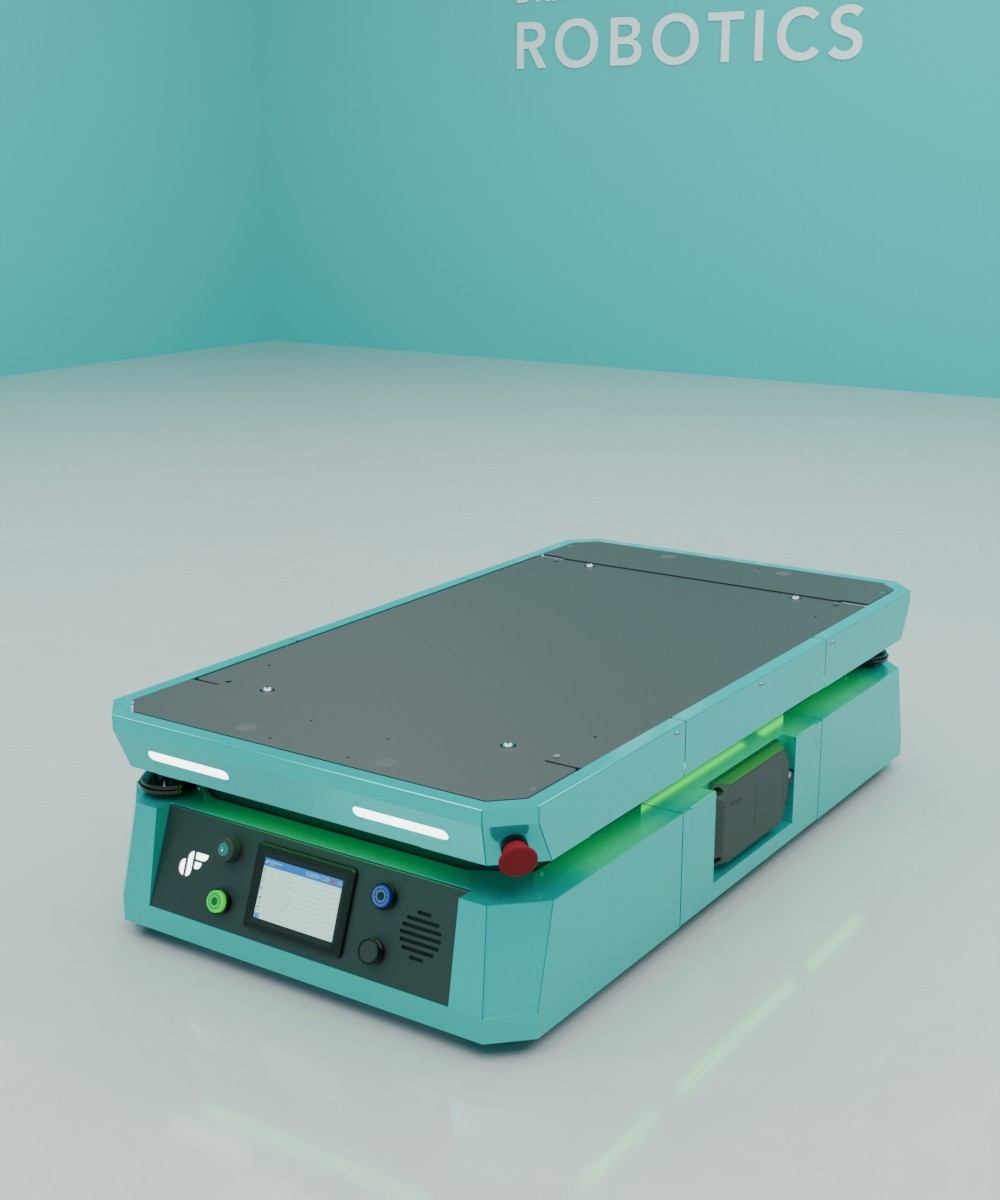

Zoei-S is DF Automation & Robotics' omnidirectional autonomous mobile robot: mecanum wheels let it move sideways, diagonally and rotate in place, so it can work in tight spaces and line up precisely with workstations, and it is designed as a base for collaborative robot arms and to meet clean-room requirements. The low 1,100 x 600 x 277 mm body carries 300 kg, travels at up to 0.76 m/s with 3,150 N traction, crosses 166 mm gaps and 23 mm steps and climbs 7%. It navigates by laser natural features with markers for ±10 mm docking accuracy, runs about 8 hours or 10 km on a 51.2 V, 50 Ah battery, and recharges in about 2 hours on a wireless charger.
FEATURES
- Mecanum drive: omnidirectional movement
- Payload 300 kg
- 1,100 x 600 x 277 mm
- Speed up to 0.76 m/s
- traction force 3,150 N
- gradeability 7%
- Traversable gap 166 mm
- step 23 mm (straight path)
- Laser natural-feature navigation
- marker/docking accuracy +/-10 mm, +/-1 deg
- 51.2 V 50 Ah battery
- ~8 h (10 km) running time
- ~2 h wireless auto charging
- Cobot integration
- clean-room design
- NavWiz mapping and flowchart task programming
- DFleet fleet management
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.1 m × W 600 mm × H 277 mm |
|---|---|
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.74 km/h |
| Environment | Factories and clean rooms (indoor) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Wireless automatic charging |
| Sensing & Compute | |
| Sensors | laser scanner |
| Connectivity | Wi-Fi |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.1 m × W 600 mm × H 277 mm |
|---|---|
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.74 km/h |
| Environment | Factories and clean rooms (indoor) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Wireless automatic charging |
| Sensing & Compute | |
| Sensors | laser scanner |
| Connectivity | Wi-Fi |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Zoei-S?
Zoei-S is DF Automation & Robotics' omnidirectional autonomous mobile robot: mecanum wheels let it move sideways, diagonally and rotate in place, so it can work in tight spaces and line up precisely with workstations, and it is designed as a base for collaborative robot arms and to meet clean-room requirements.
Who makes the Zoei-S?
The Zoei-S is made by DF Automation, a robotics company based in Malaysia.
How much does the Zoei-S cost?
DF Automation has not publicly announced pricing for the Zoei-S. You can enquire through RobotAIGeek for current pricing.
What is the Zoei-S used for?
The Zoei-S is designed for material-handling and transport. It is used in electronics and manufacturing settings.
What is the payload capacity of the Zoei-S?
The Zoei-S has a payload capacity of 300 kg.
How fast is the Zoei-S?
The Zoei-S can move at speeds of up to 2.74 km/h.
What is the battery life of the Zoei-S?
The Zoei-S runs for about 480 minutes on a charge.
