DESCRIPTION
YL-180 is a Mobile-Robots from GE Creative. It is built for Intralogistics, Material-Handling, Transport. Key figures: 65 kg, 300 min runtime, 200 kg payload, price ¥2,980,000.

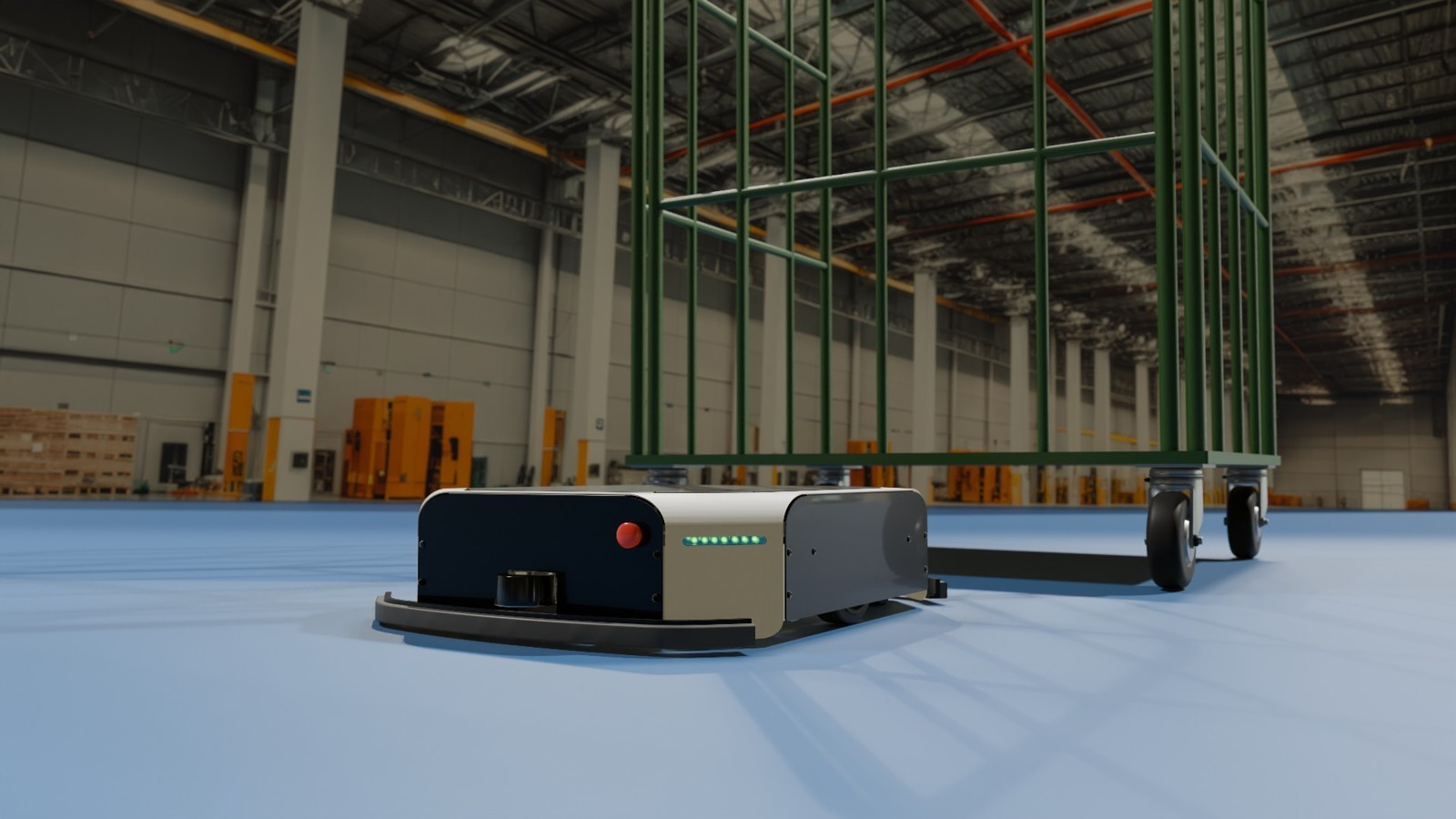

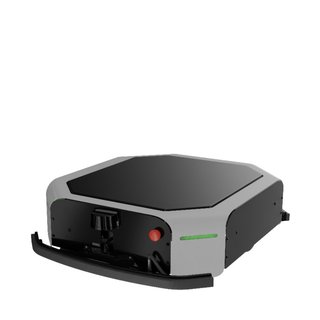

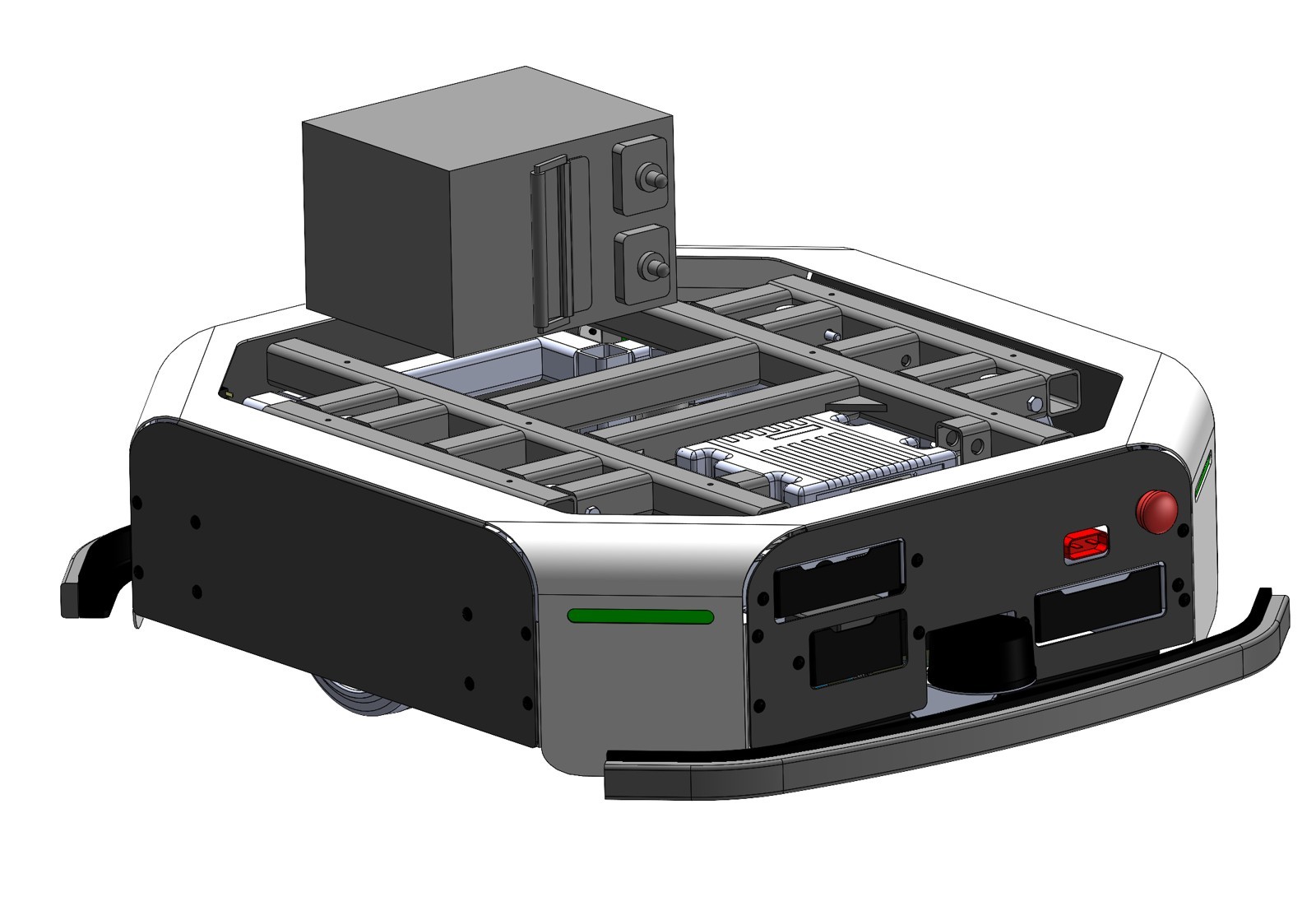

The YL-180 is YOKOIDO's entry lift-up autonomous mobile robot, only 180 mm tall - among the lowest in its class - so it can drive under roll cages and existing carts, lift them by 40 mm and carry up to 200 kg. GE Creative priced it at 2,980,000 yen to bring a 200 kg-class AMR under three million yen, and offers it for a two-week rental trial. It navigates by 2D LiDAR SLAM and can add magnetic-tape AGV guidance for accurate stopping (hybrid mode), travels at up to 50 m/min (3 km/h) with spin turns, stops within +/-50 mm and runs 4 to 5 hours on a battery with a connector for quick swaps. Two laser area sensors, two bumper switches and two emergency stops protect people. The 785 x 600 x 180 mm robot weighs 65 kg, is set up by the customer through a simple Web UI with no construction work, and its colour can be customised; the design is registered in Japan.
FEATURES
- Lift-up (under-ride) transport, lift +40 mm
- payload 200 kg
- Height 180 mm
- 785 x 600 mm footprint
- 65 kg
- Max 50 m/min (3 km/h)
- stop accuracy +/-50 mm
- 2D LiDAR SLAM standard
- magnetic-tape AGV hybrid option
- Safety: 2 laser area sensors, 2 bumper switches, 2 emergency stops
- Operating time 4-5 h
- swappable battery with connector
- cable charger, auto-charging on request
- Price JPY 2,980,000 (published June 2026)
- two-week rental available
- Web UI set-up in the browser
- no construction work needed
- Forward/reverse, curves and spin turns
- Wi-Fi 2.4 or 5 GHz
- Bluetooth remote control
- PLC (control panel) linkage on request
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 65 kg |
|---|---|
| Dimensions | L 785 mm × W 600 mm × H 180 mm |
| Payload | 200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3 km/h |
| Environment | Factories and warehouses; under roll cages and carts |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | 2D LiDAR, 2 laser area sensors, bumper switches, magnetic tape sensor (option) |
| Connectivity | Wi-Fi 2.4/5 GHz; Bluetooth remote control; Web UI |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 65 kg |
|---|---|
| Dimensions | L 785 mm × W 600 mm × H 180 mm |
| Payload | 200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3 km/h |
| Environment | Factories and warehouses; under roll cages and carts |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | 2D LiDAR, 2 laser area sensors, bumper switches, magnetic tape sensor (option) |
| Connectivity | Wi-Fi 2.4/5 GHz; Bluetooth remote control; Web UI |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the YL-180?
The YL-180 is YOKOIDO's entry lift-up autonomous mobile robot, only 180 mm tall - among the lowest in its class - so it can drive under roll cages and existing carts, lift them by 40 mm and carry up to 200 kg.
Who makes the YL-180?
The YL-180 is made by GE Creative, a robotics company based in Japan.
How much does the YL-180 cost?
The YL-180 is priced at around ¥2,980,000.
What is the YL-180 used for?
The YL-180 is designed for intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the YL-180?
The YL-180 has a payload capacity of 200 kg.
How much does the YL-180 weigh?
The YL-180 weighs 65 kg.
How fast is the YL-180?
The YL-180 can move at speeds of up to 3 km/h.
What is the battery life of the YL-180?
The YL-180 runs for about 300 minutes on a charge.
