DESCRIPTION
XR5 1000 is a Consumer-Robot from Cub Cadet. It is built for Service, Autonomous lawn mowing with edge trimming on slopes up to 45 %. Key figures: 10.5 kg, 50 min runtime.

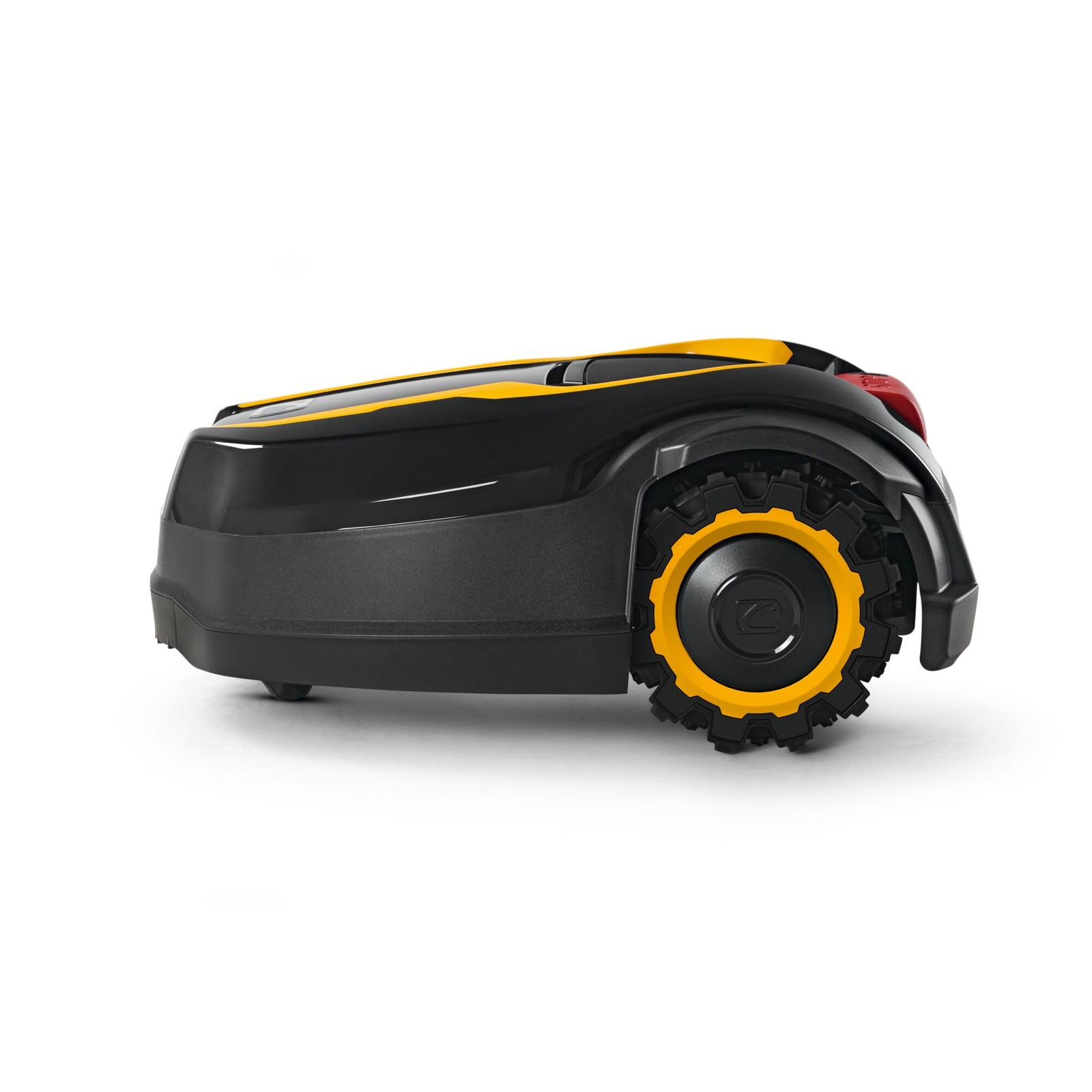

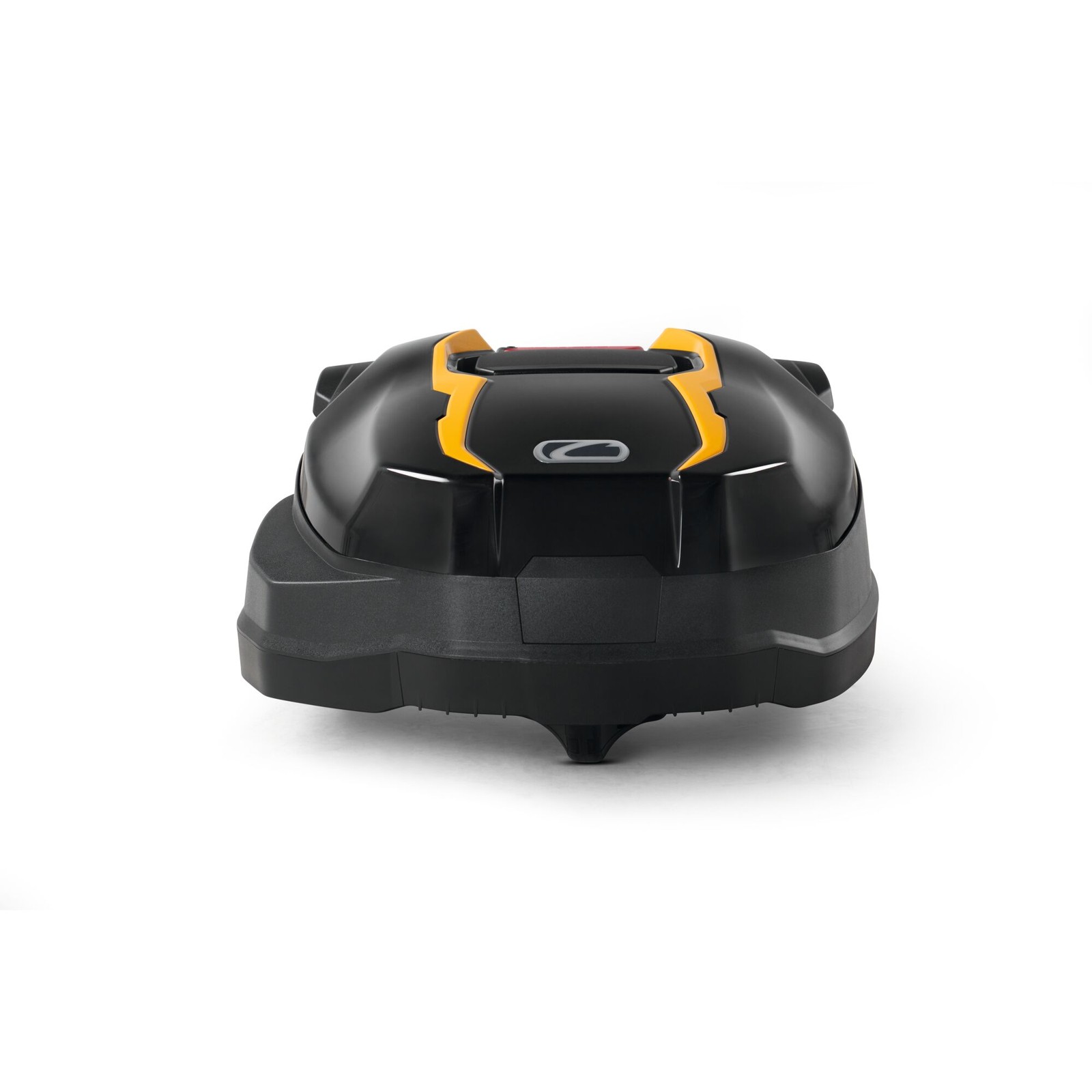

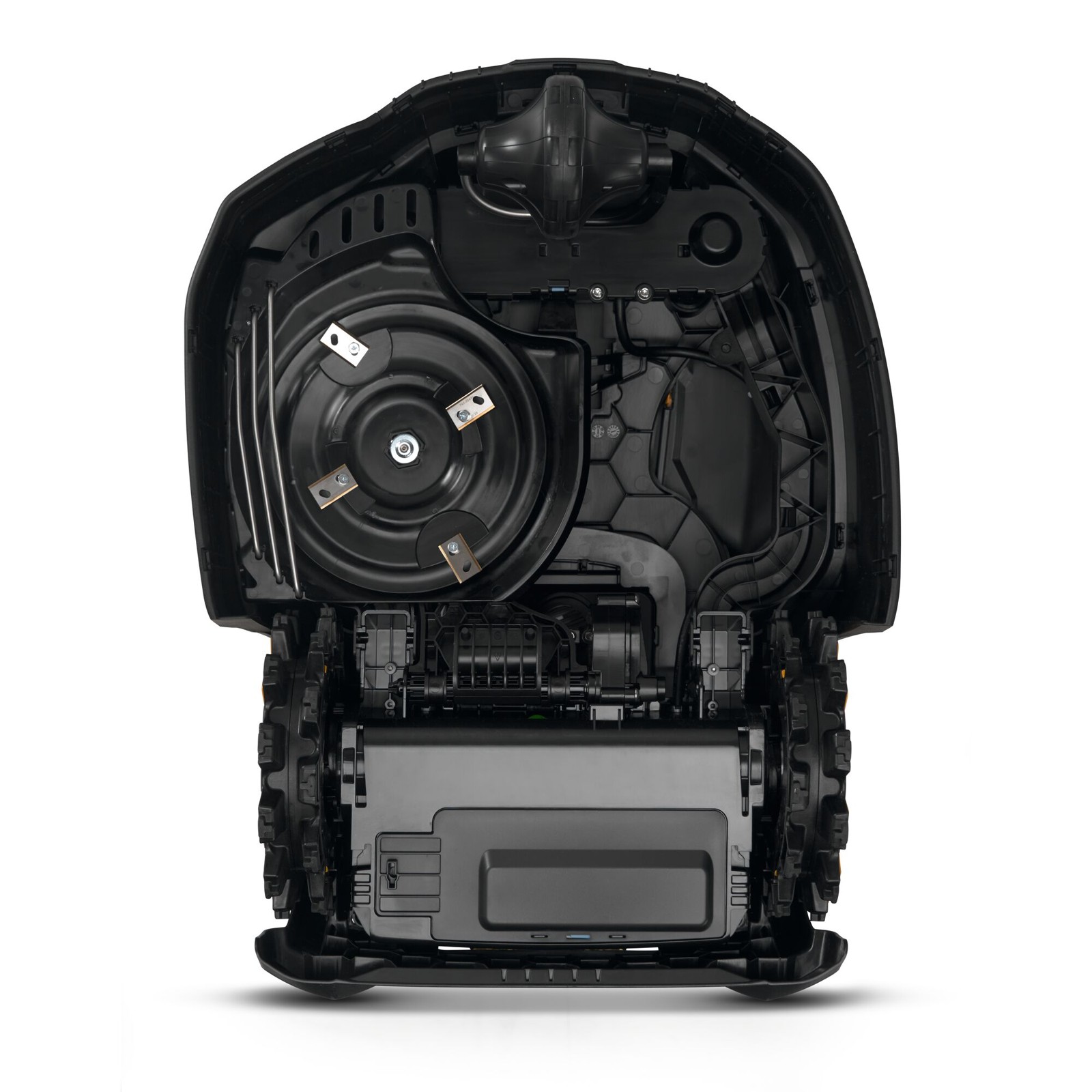

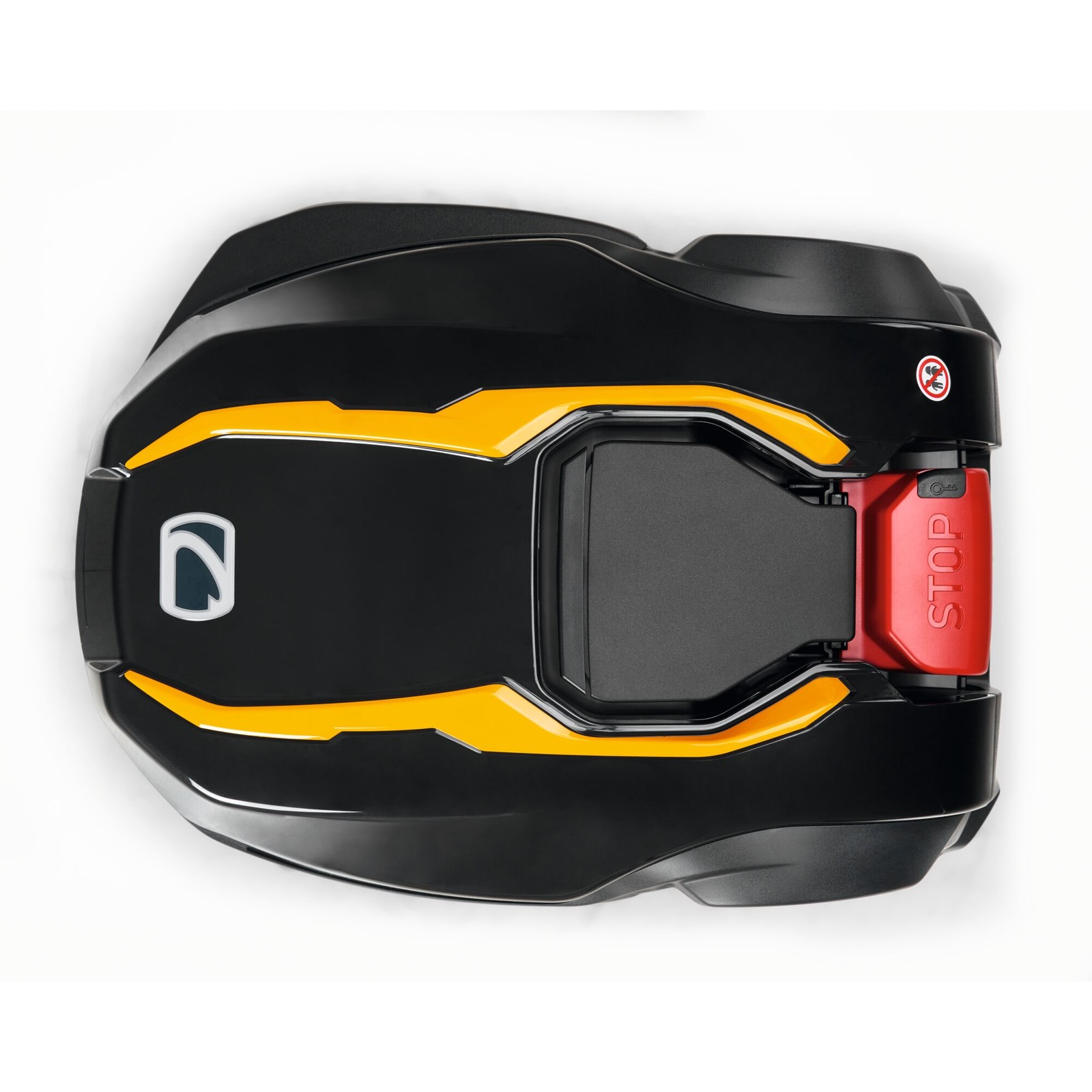

The Cub Cadet XR5 1000 is a boundary-wire robotic lawn mower from the XR5 ENDURO SERIES, rated for lawns of up to 1,000 m2. A single cutting disc with four steel blades gives a 21 cm cut for small and medium gardens. It mows in an intelligent pattern at about 58 m2 an hour, runs 40-50 minutes per charge on an 18.15 V, 4.9 Ah lithium-ion battery and recharges in 60-120 minutes, and can manage a main zone, four sub zones and separate zones. A floating deck follows uneven ground, Edge Mode cuts beyond the wheels for a neat edge, patented high-traction wheels climb slopes of up to 45 %, and the cutting height runs from 15 to 100 mm. A 4.3-inch touchscreen and a Bluetooth 5.0 smartphone app handle schedules, manual control and mowing history, while a 360-degree bump sensor, lift and tilt sensors, PIN code, alarm and GSM tracking protect it. It measures 67 x 51 x 28 cm, weighs 10.5 kg and runs at 50 dB(A) sound pressure (61 dB(A) sound power).
FEATURES
- Recommended lawn area up to 1,000 m2
- performance 58 m2/h
- Cutting width 21 cm
- 4 cutting blades
- Battery 18.15 V Li-ion 4.9 Ah
- running time 40-50 min
- charging 60-120 min
- 67 x 51 x 28 cm
- 10.5 kg
- LpA 50 dB(A), LwA 61 dB(A)
- power consumption 4.0 kWh/month
- Edge Mode: cuts beyond the wheel for a precise lawn edge
- Floating deck follows uneven ground
- patented cutting system
- Handles slopes up to 24 deg / 45 %
- patented high-traction all-terrain wheels
- Cutting height 15-100 mm
- brushless DC drive
- self-cleaning wheels and deck
- 4.3-inch HD colour touchscreen
- intelligent mowing pattern
- Turbo mode
- 360-degree bump sensor
- lift and tilt sensors
- alarm and PIN code
- GSM module for theft tracking
- Smartphone app over Bluetooth 5.0 (up to 10 m): weekly schedule, manual control, mowing history, alerts
- 1 main zone, 4 sub zones and separate zones
- RoboHome garage optional
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 10.5 kg |
|---|---|
| Dimensions | L 670 mm × W 510 mm × H 280 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Outdoor residential lawns (boundary wire) |
| Power | |
| Battery Life | 50 min |
| Sensing & Compute | |
| Sensors | 360-degree bump sensor, lift sensor, tilt sensor, boundary wire sensor |
| Connectivity | Bluetooth 5.0 app; GSM module |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 10.5 kg |
|---|---|
| Dimensions | L 670 mm × W 510 mm × H 280 mm |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Outdoor residential lawns (boundary wire) |
| Power | |
| Battery Life | 50 min |
| Sensing & Compute | |
| Sensors | 360-degree bump sensor, lift sensor, tilt sensor, boundary wire sensor |
| Connectivity | Bluetooth 5.0 app; GSM module |
Images




Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the XR5 1000?
The Cub Cadet XR5 1000 is a boundary-wire robotic lawn mower from the XR5 ENDURO SERIES, rated for lawns of up to 1,000 m2. A single cutting disc with four steel blades gives a 21 cm cut for small and medium gardens.
Who makes the XR5 1000?
The XR5 1000 is made by Cub Cadet, a robotics company based in United States.
How much does the XR5 1000 cost?
Cub Cadet has not publicly announced pricing for the XR5 1000. You can enquire through RobotAIGeek for current pricing.
What is the XR5 1000 used for?
The XR5 1000 is designed for service and autonomous lawn mowing with edge trimming on slopes up to 45 %. It is used in consumer and homes settings.
How much does the XR5 1000 weigh?
The XR5 1000 weighs 10.5 kg.
What is the battery life of the XR5 1000?
The XR5 1000 runs for about 50 minutes on a charge.
