DESCRIPTION
VISION-E is an Industrial-Robot from Daum und Partner Maschinenbau (dpm). It is built for Material-Handling, Transport. Key figures: 3000 kg payload.

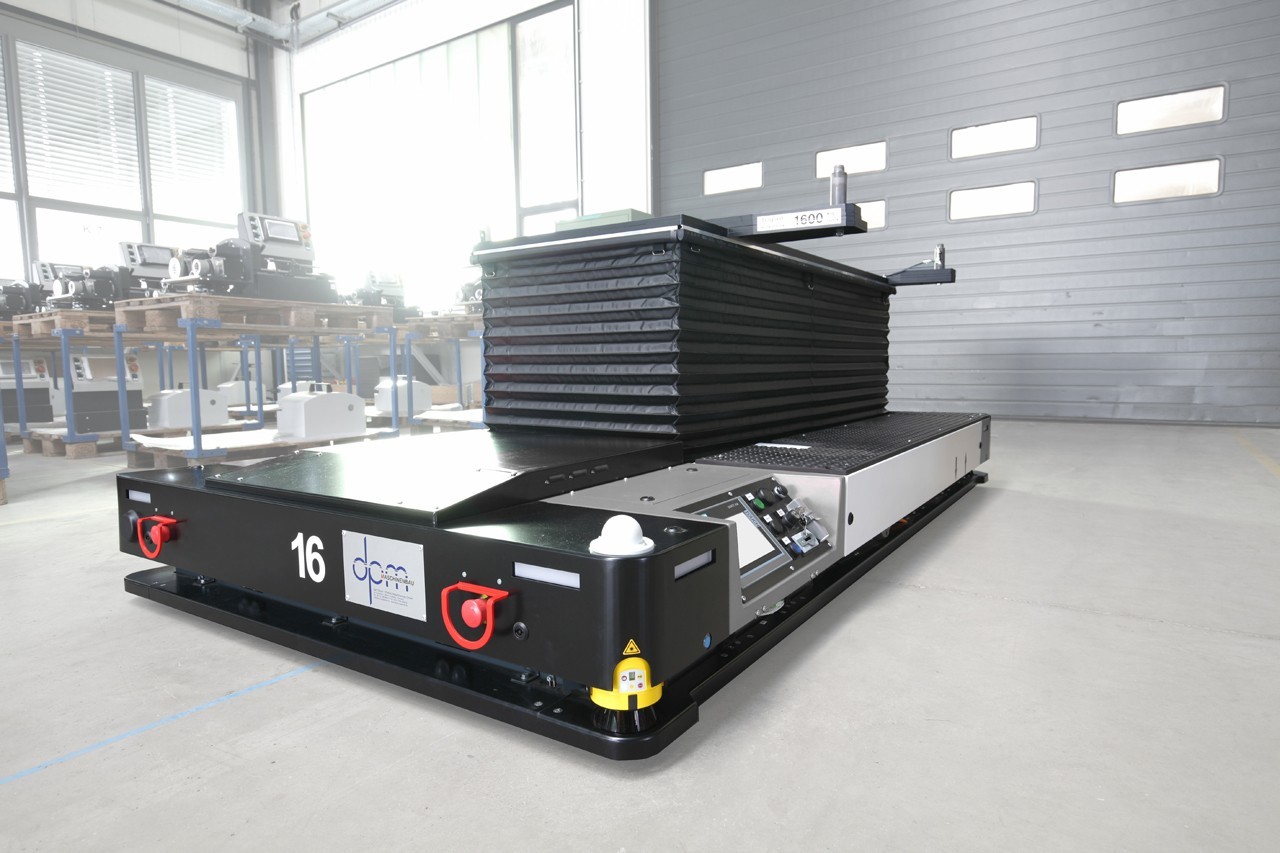

VISION-E is dpm's AGV for automotive final assembly, built to carry car bodies and complete cars, including electric cars, through the assembly line. Modifiable load holders adapt it to different body types, a lift table brings the vehicle to the right working height, and it can supply external power to the car being built. dpm quotes payloads of up to 3.0 t and speeds up to 1.6 m/s, with battery or inductive power and optical or inductive guidance, under Siemens S7 control with safety laser scanners. Used together with the VARIOCART, it lets carmakers configure and build different models and drive variants flexibly on the same line.
FEATURES
- Final-assembly AGV for car bodies and complete cars (incl. electric cars)
- Lift table
- modifiable load holders
- External power supply for the car possible
- Payload up to 3.0 t
- Speed up to 1.6 m/s
- Power: battery or inductive
- Guidance: optical or inductive
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 3000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Automotive final assembly lines (indoor) |
| Sensing & Compute | |
| Sensors | safety laser scanner |
| Connectivity | Wi-Fi / iWLAN; Profisafe |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 3000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Automotive final assembly lines (indoor) |
| Sensing & Compute | |
| Sensors | safety laser scanner |
| Connectivity | Wi-Fi / iWLAN; Profisafe |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VISION-E?
VISION-E is dpm's AGV for automotive final assembly, built to carry car bodies and complete cars, including electric cars, through the assembly line.
Who makes the VISION-E?
The VISION-E is made by Daum und Partner Maschinenbau (dpm), a robotics company based in Germany.
How much does the VISION-E cost?
Daum und Partner Maschinenbau (dpm) has not publicly announced pricing for the VISION-E. You can enquire through RobotAIGeek for current pricing.
What is the VISION-E used for?
The VISION-E is designed for material-handling and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the VISION-E?
The VISION-E has a payload capacity of 3,000 kg.
How fast is the VISION-E?
The VISION-E can move at speeds of up to 5.76 km/h.
