DESCRIPTION
VARIOCART is an Industrial-Robot from Daum und Partner Maschinenbau (dpm). It is built for Material-Handling, Transport. Key figures: 1000 kg payload.

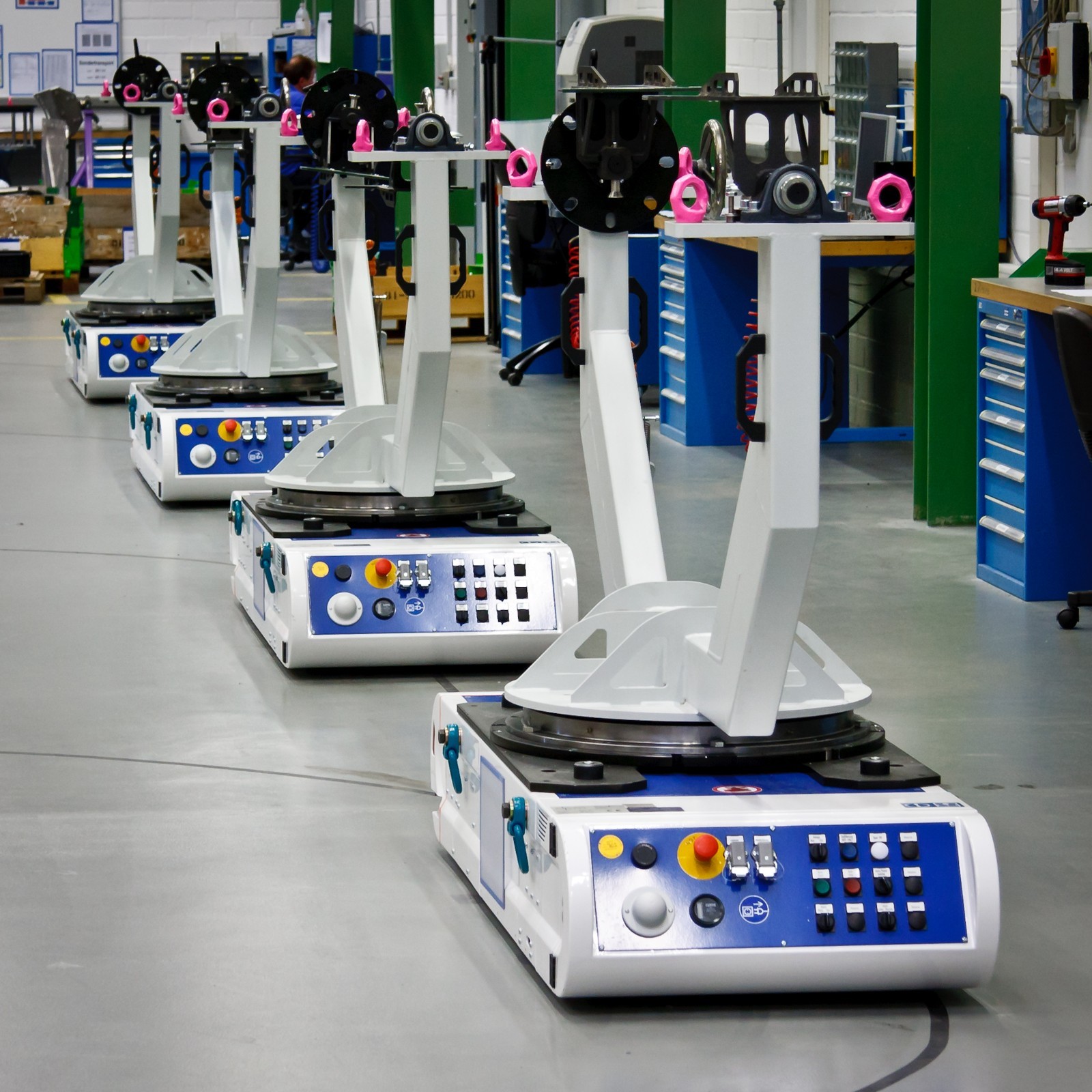

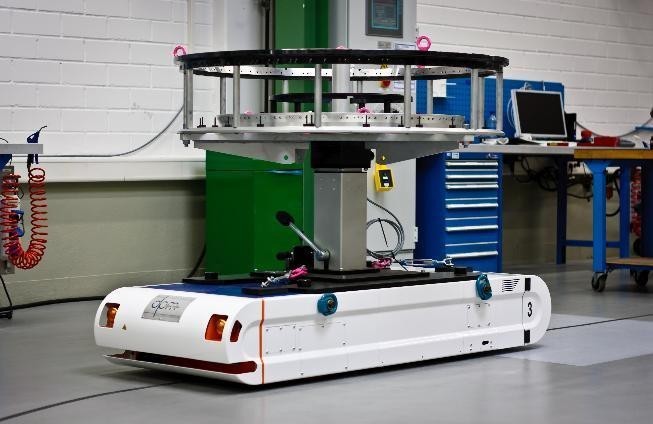

VARIOCART is a configurable automated guided vehicle line from dpm for pre-assembly lines and intralogistics. As an assembly AGV it carries modules such as bumpers through pre-assembly stations at working height, and as an underride AGV it moves containers, pre-assembly assemblies or car bodies between areas; a tugger version picks up loads by pin. Each vehicle is adapted to the customer's task in dimensions and payload. dpm quotes a payload of 1 t when carrying and 1.6 t when hauling, speeds up to 1.6 m/s, power from batteries, Powercaps or inductive supply, and guidance by optical, magnetic or inductive lanes or free SLAM navigation, under Siemens S7 control. VARIOCART vehicles are in use at MTU Aero Engines and, combined with the VISION-E, in electric-car final assembly.
FEATURES
- Configurable AGV for pre-assembly modules (e.g. bumpers), containers and car bodies
- Payload 1 t load-bearing / 1.6 t load-hauling
- Speed up to 1.6 m/s
- Power: battery, Powercap or inductive
- Guidance: optical, magnetic, inductive or SLAM
- Underride and tugger (pin pick-up, up to 2 t) versions
- Siemens S7 control
- safety laser scanners
- Reference: MTU Aero Engines
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Automotive and industrial pre-assembly lines and intralogistics (indoor) |
| Sensing & Compute | |
| Sensors | safety laser scanner |
| Connectivity | Wi-Fi / iWLAN; Profisafe (assembly lines) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Automotive and industrial pre-assembly lines and intralogistics (indoor) |
| Sensing & Compute | |
| Sensors | safety laser scanner |
| Connectivity | Wi-Fi / iWLAN; Profisafe (assembly lines) |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VARIOCART?
VARIOCART is a configurable automated guided vehicle line from dpm for pre-assembly lines and intralogistics. As an assembly AGV it carries modules such as bumpers through pre-assembly stations at working height, and as an underride AGV it moves containers, pre-assembly assemblies or car bodies between areas; a tugger…
Who makes the VARIOCART?
The VARIOCART is made by Daum und Partner Maschinenbau (dpm), a robotics company based in Germany.
How much does the VARIOCART cost?
Daum und Partner Maschinenbau (dpm) has not publicly announced pricing for the VARIOCART. You can enquire through RobotAIGeek for current pricing.
What is the VARIOCART used for?
The VARIOCART is designed for material-handling and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the VARIOCART?
The VARIOCART has a payload capacity of 1,000 kg.
How fast is the VARIOCART?
The VARIOCART can move at speeds of up to 5.76 km/h.
