DESCRIPTION
Unidelta is a Delivery-Robots from EFY Intelligent. It is built for Delivery, Transport. Key figures: 20 min runtime, 5 kg payload.

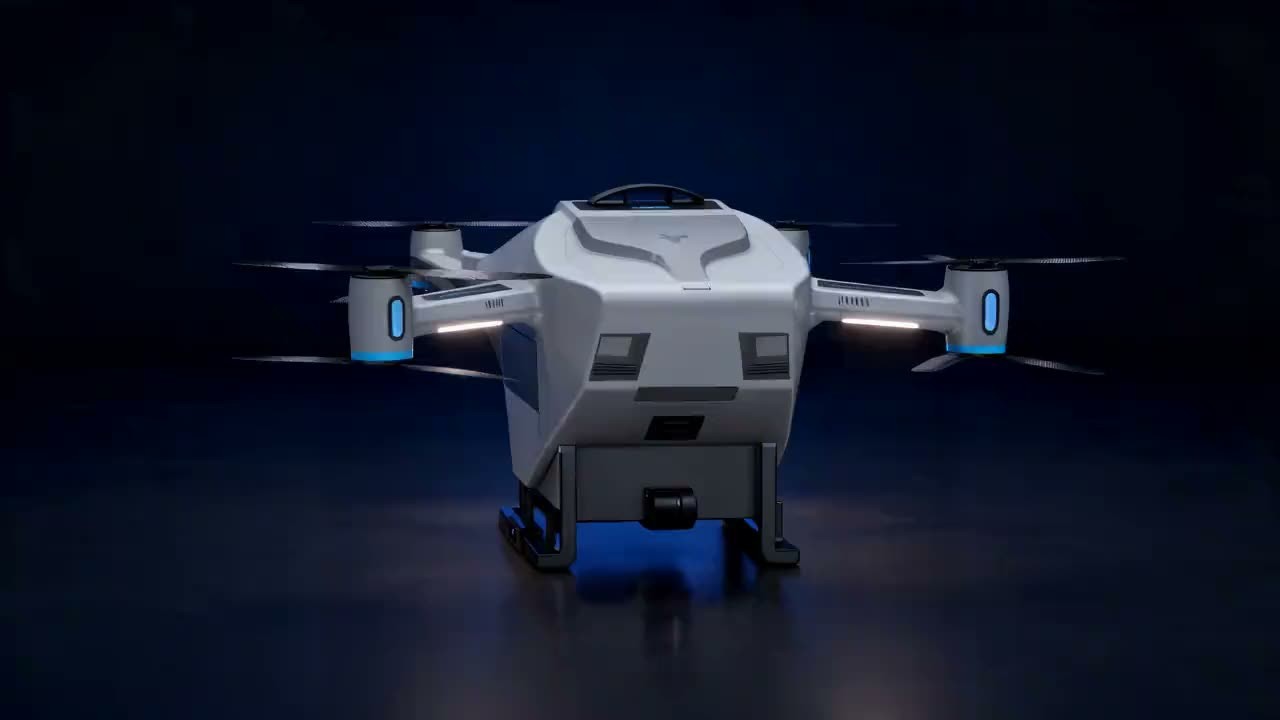

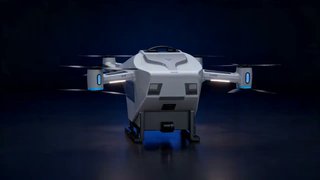

Unidelta is EFY Intelligent's Y6 logistics drone: three arms each carry a coaxial pair of motors, one propeller above and one below, around an integrated intelligent cargo compartment, and it is flown from EFY's Unihangar D1 hangar with manual or unmanned loading. The 350 x 350 x 250 mm, 30-litre cargo case carries up to 5 kg and can be dropped in flight. On a 1.2 m wheelbase and 1.4 x 1.4 x 0.63 m frame it takes off at up to 23 kg, flies at up to 12 m/s for up to 20 minutes or 10 km, holds position in wind up to level 5 and is rated IP54, with intelligent monitoring and charging, propeller alignment, and redundant satellite navigation and landing guidance for positioning within ±15 cm.
FEATURES
- Y6 coaxial layout: 3 arms, 6 motors, 6 propellers
- Integrated cargo compartment 350 x 350 x 250 mm, 30 L, up to 5 kg
- in-flight drop
- Max take-off weight 23 kg
- wheelbase 1.2 m
- size 1.4 x 1.4 x 0.63 m
- Max speed 12 m/s
- max endurance 20 min
- max flight distance 10 km
- Wind resistance level 5
- IP54
- Intelligent monitoring, propeller alignment and intelligent charging
- Position precision +/-15 cm
- redundant GNSS, heading and landing guidance
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.4 m × W 1.4 m × H 630 mm |
|---|---|
| Payload | 5 kg |
| Mobility | |
| Movement Type | Aerial |
| Speed | 43.2 km/h |
| Environment | Distribution legs between hubs; operated from the Unihangar D1 dock |
| Power | |
| Battery Life | 20 min |
| Sensing & Compute | |
| Sensors | redundant GNSS, landing guidance sensors |
| Connectivity | Datalink; cloud management |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.4 m × W 1.4 m × H 630 mm |
|---|---|
| Payload | 5 kg |
| Mobility | |
| Movement Type | Aerial |
| Speed | 43.2 km/h |
| Environment | Distribution legs between hubs; operated from the Unihangar D1 dock |
| Power | |
| Battery Life | 20 min |
| Sensing & Compute | |
| Sensors | redundant GNSS, landing guidance sensors |
| Connectivity | Datalink; cloud management |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Unidelta?
Unidelta is EFY Intelligent's Y6 logistics drone: three arms each carry a coaxial pair of motors, one propeller above and one below, around an integrated intelligent cargo compartment, and it is flown from EFY's Unihangar D1 hangar with manual or unmanned loading.
Who makes the Unidelta?
The Unidelta is made by EFY Intelligent, a robotics company based in China.
How much does the Unidelta cost?
EFY Intelligent has not publicly announced pricing for the Unidelta. You can enquire through RobotAIGeek for current pricing.
What is the Unidelta used for?
The Unidelta is designed for delivery and transport. It is used in government and warehouse & logistics settings.
What is the payload capacity of the Unidelta?
The Unidelta has a payload capacity of 5 kg.
How fast is the Unidelta?
The Unidelta can move at speeds of up to 43.2 km/h.
What is the battery life of the Unidelta?
The Unidelta runs for about 20 minutes on a charge.
