DESCRIPTION
Turf Tank Lite is a Mobile-Robots from Turf Tank. It is built for Painting, Service, Sports field line marking. Key figures: 45 kg, 300 min runtime.

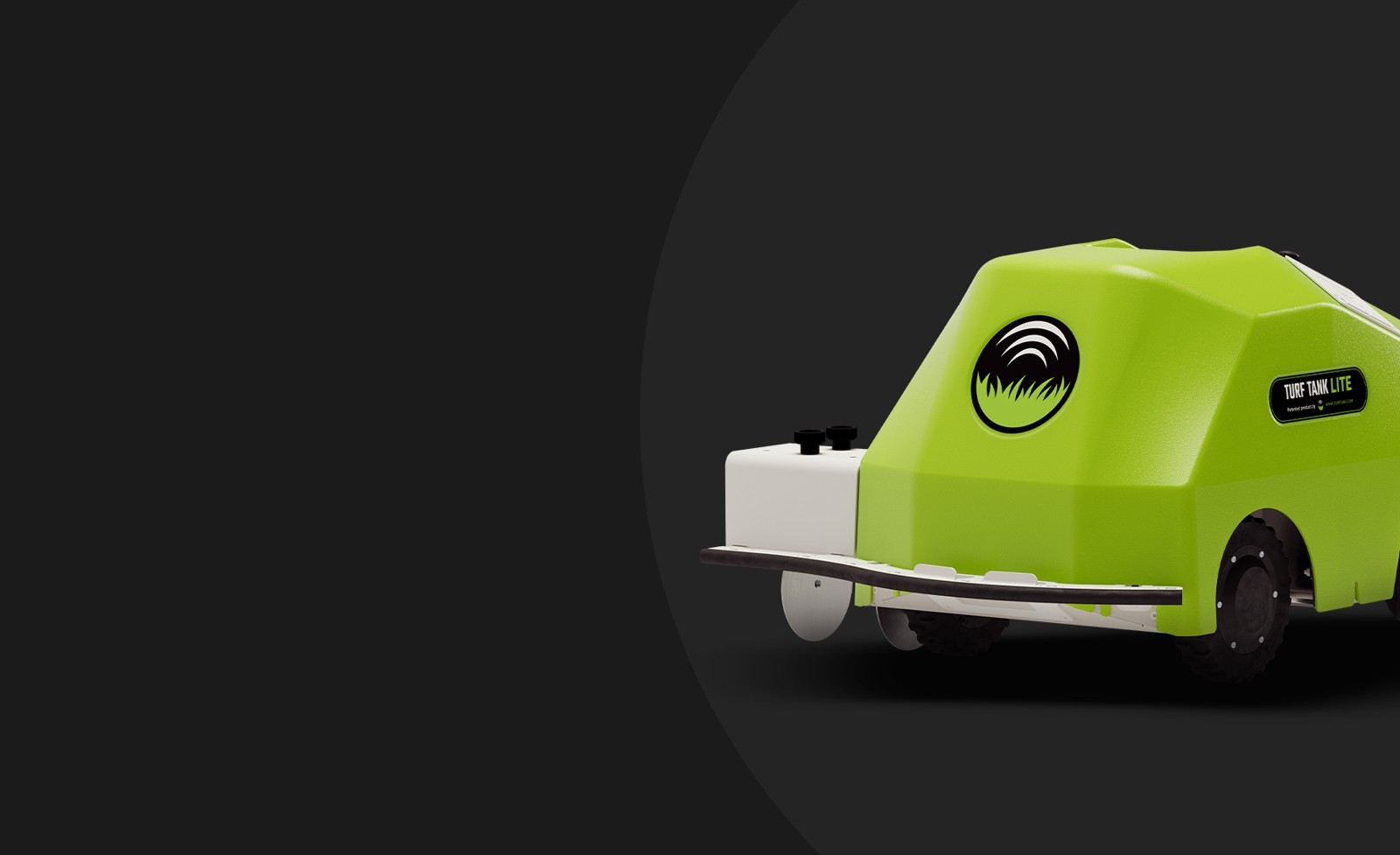

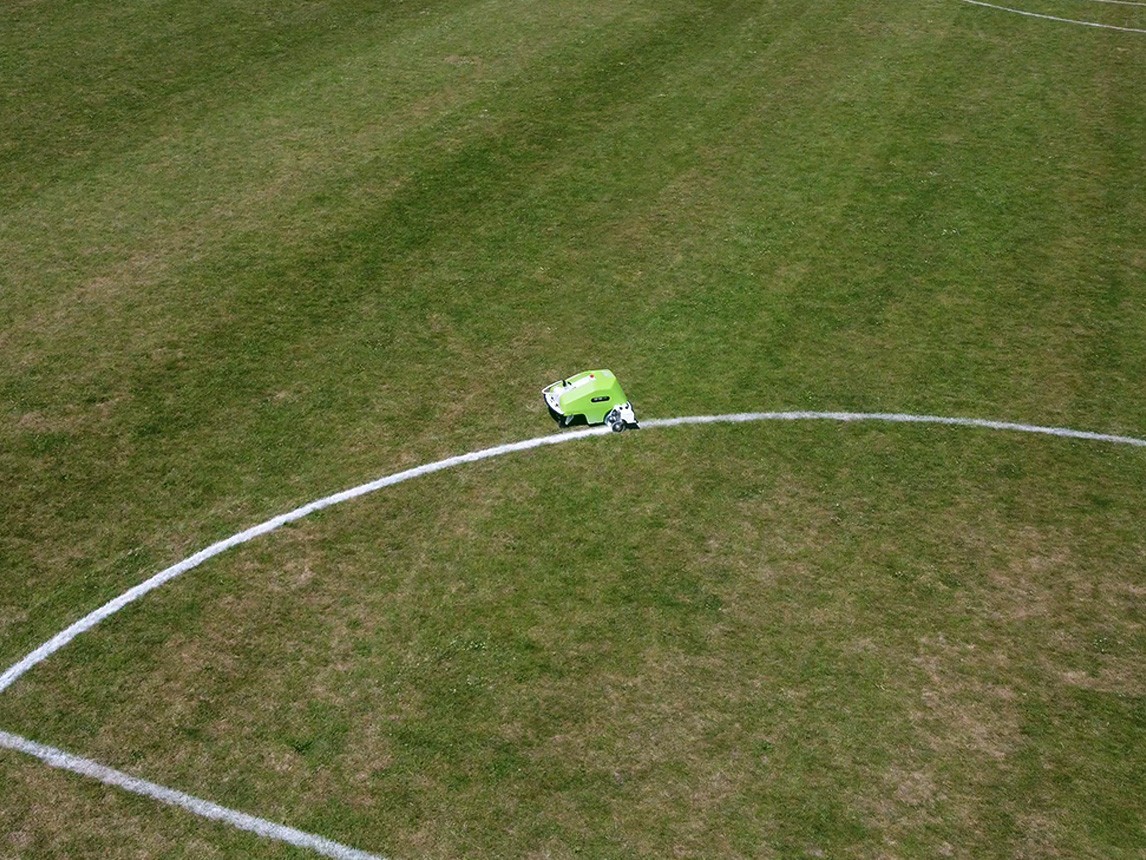

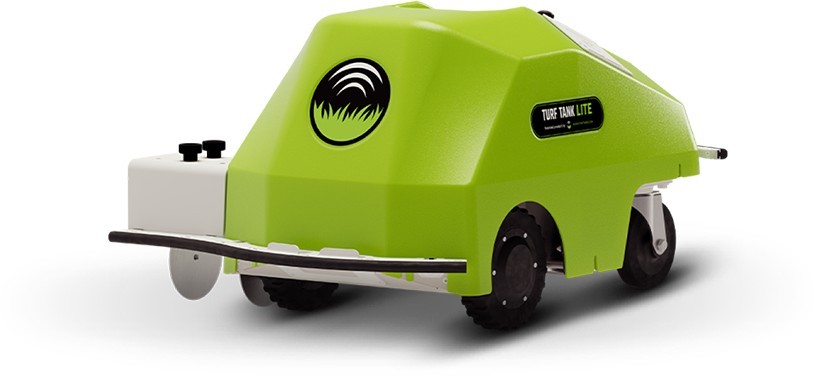

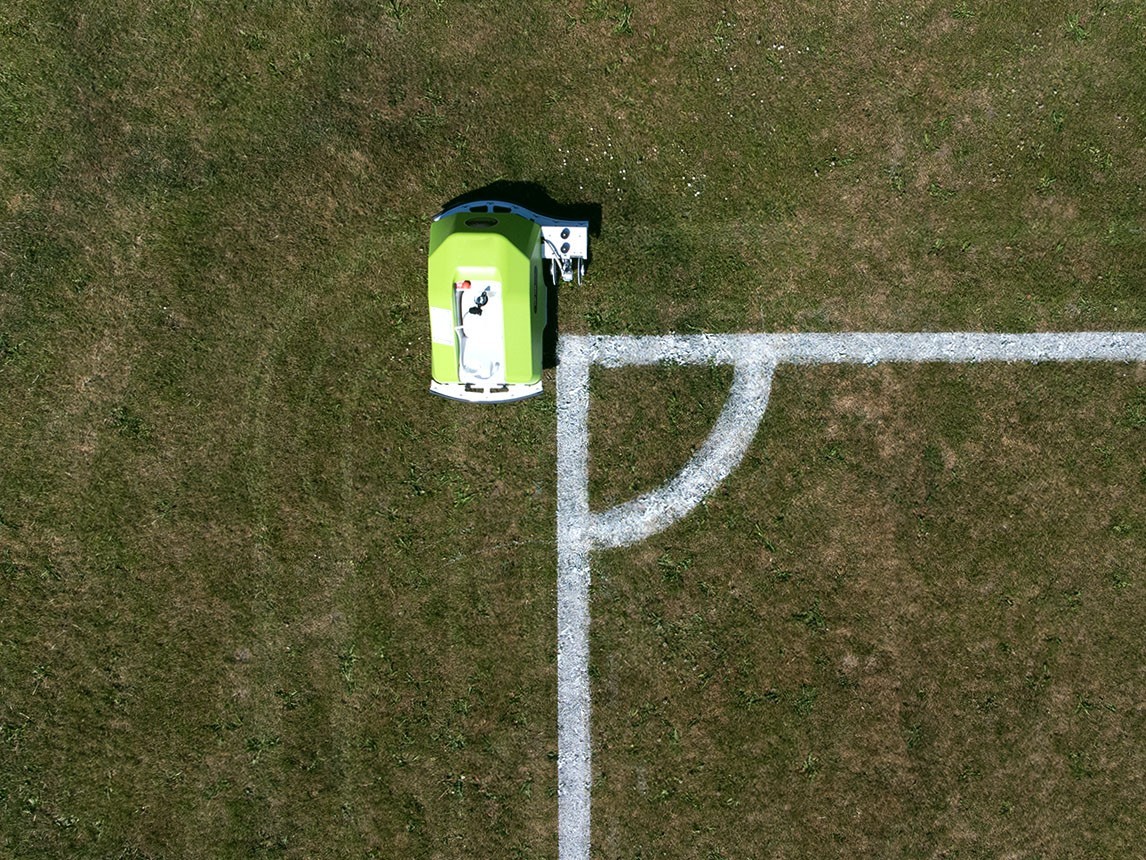

Turf Tank Lite is the compact, lighter member of Turf Tank's line-marking range, designed for smaller organizations that mark fields for just one or two sports while keeping the same painting quality as the larger robots. Its sprayer module is placed to avoid tracking wet paint, and its 10 L (2.6-gallon) paint tank covers up to five soccer fields without refilling; the robot grows with the organization as more layouts are added. Like Turf Tank's other line markers, it navigates by RTK-GNSS with a local base station, stores line coordinates so it can over-mark exactly on the original lines only when fields are in use, and is controlled from a tablet app with more than 120 sport layouts, a drag-and-drop field editor, dashed and custom lines, and paint and time estimates. It paints natural grass, artificial turf, infield dirt and asphalt, and two individually powered brushless motors drive it over uneven ground. The robot measures 978 x 743 x 535 mm and weighs 45 kg; it paints at 1 m/s and transits at 1.4 m/s, and a 680 Wh battery gives 5+ hours of operation.
FEATURES
- RTK-GNSS positioning with local base station
- Tablet app: drag-and-drop editor, time and paint estimates
- Paint capacity 10 L (2.6 US gal)
- up to 5 soccer fields per fill
- Battery 680 Wh
- 5+ h
- Painting speed 1 m/s
- transit 1.4 m/s
- Sprayer placed to prevent wet-paint tracking
- interchangeable nozzle and screen plates
- Size 978 x 743 x 535 mm
- weight 45 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 45 kg |
|---|---|
| Dimensions | L 978 mm × W 743 mm × H 535 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Outdoor sports fields: natural grass, artificial turf, infield dirt, asphalt |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | RTK-GNSS receiver (with local base station) |
| Connectivity | Tablet / mobile app; cloud |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 45 kg |
|---|---|
| Dimensions | L 978 mm × W 743 mm × H 535 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Outdoor sports fields: natural grass, artificial turf, infield dirt, asphalt |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | RTK-GNSS receiver (with local base station) |
| Connectivity | Tablet / mobile app; cloud |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Turf Tank Lite?
Turf Tank Lite is the compact, lighter member of Turf Tank's line-marking range, designed for smaller organizations that mark fields for just one or two sports while keeping the same painting quality as the larger robots.
Who makes the Turf Tank Lite?
The Turf Tank Lite is made by Turf Tank, a robotics company based in Denmark.
How much does the Turf Tank Lite cost?
Turf Tank has not publicly announced pricing for the Turf Tank Lite. You can enquire through RobotAIGeek for current pricing.
What is the Turf Tank Lite used for?
The Turf Tank Lite is designed for painting, service, and sports field line marking. It is used in commercial, facilities, and leisure-tourism settings.
How much does the Turf Tank Lite weigh?
The Turf Tank Lite weighs 45 kg.
How fast is the Turf Tank Lite?
The Turf Tank Lite can move at speeds of up to 3.6 km/h.
What is the battery life of the Turf Tank Lite?
The Turf Tank Lite runs for about 300 minutes on a charge.
