DESCRIPTION
Tele-Robotic Diagnostics System is a Collaborative-Robot from ViTachyon Robotics. It is built for Medical-Assistance, Inspection, Remote. Key figures: 6 degrees of freedom.

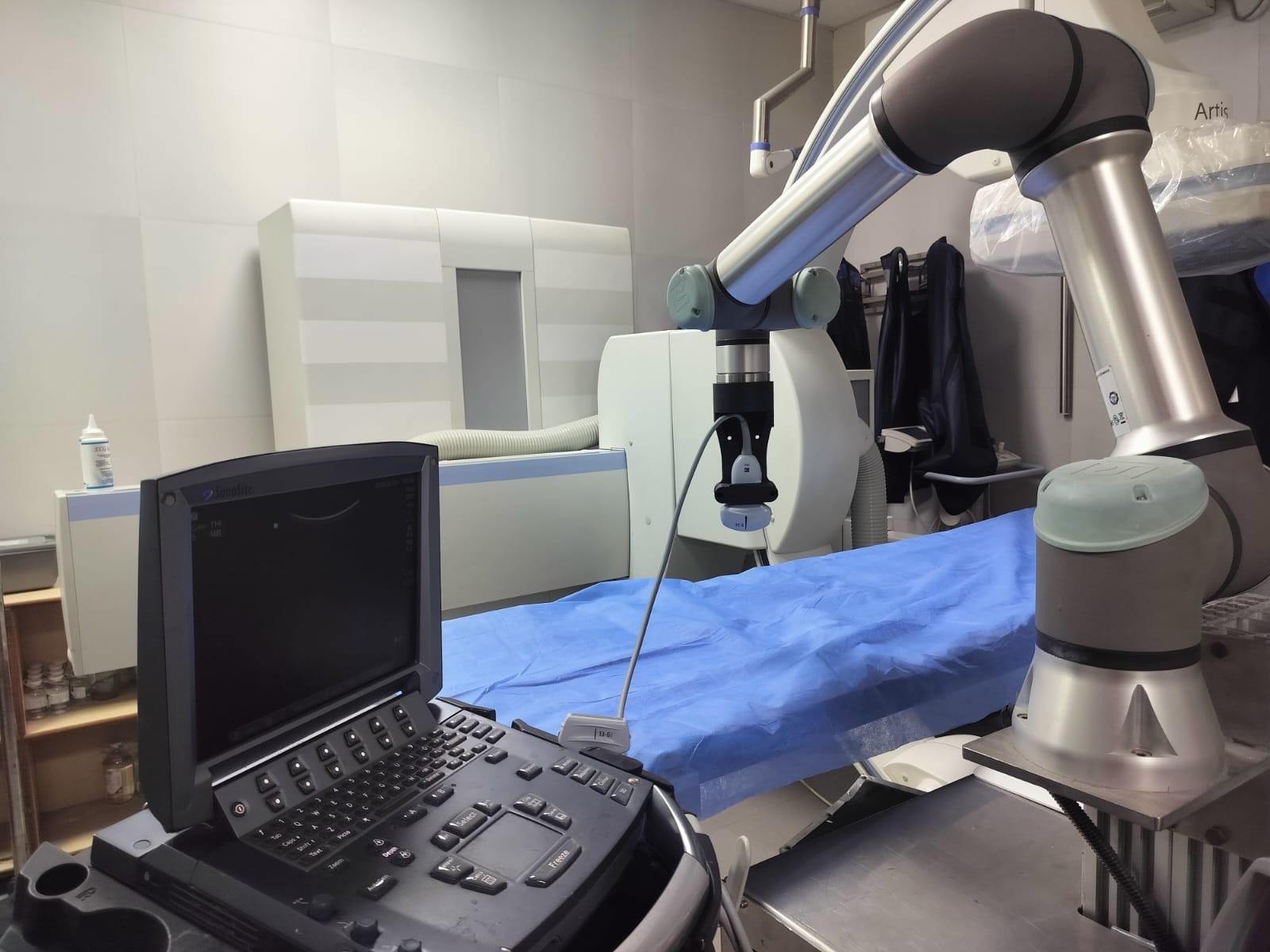

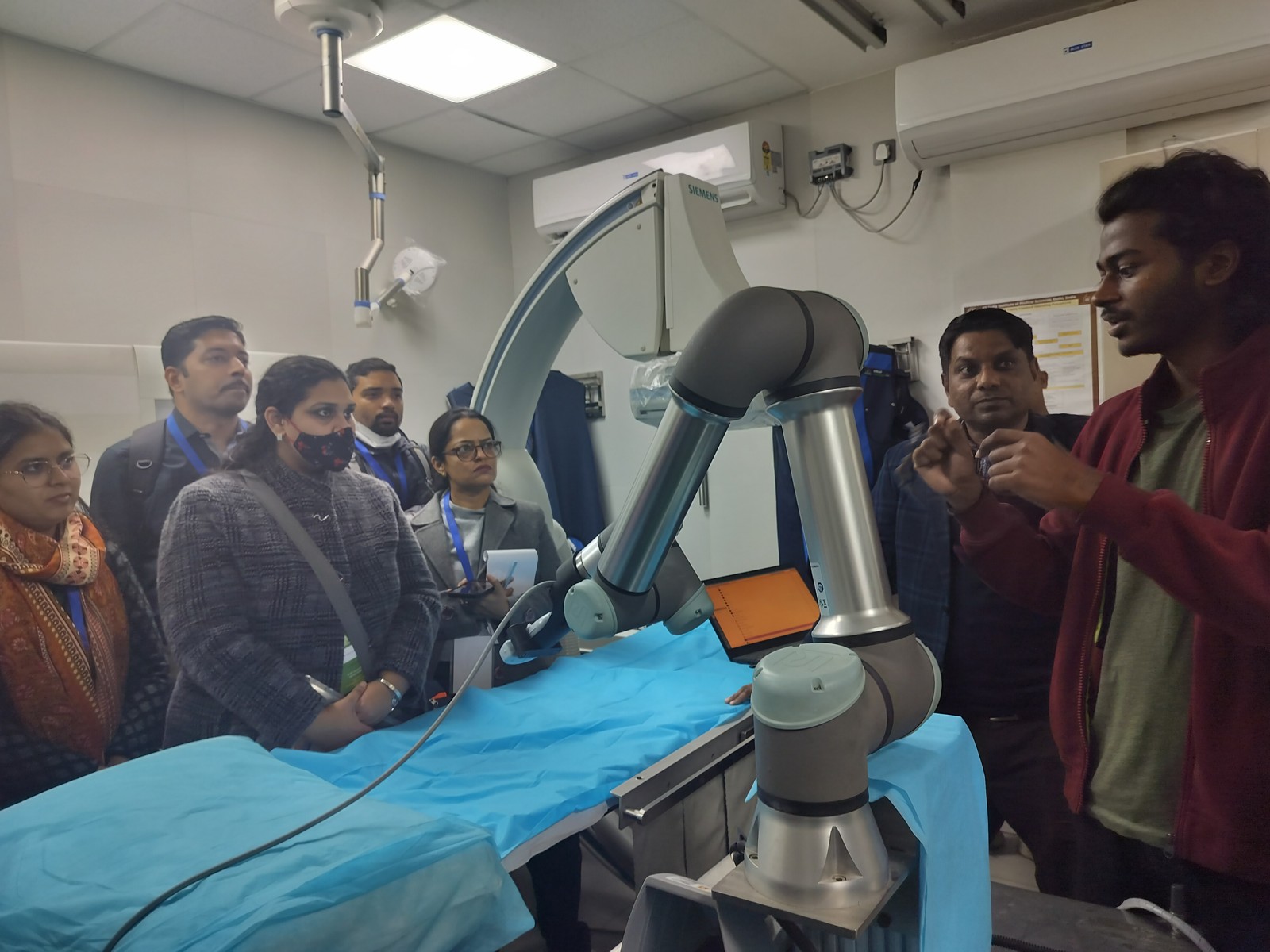

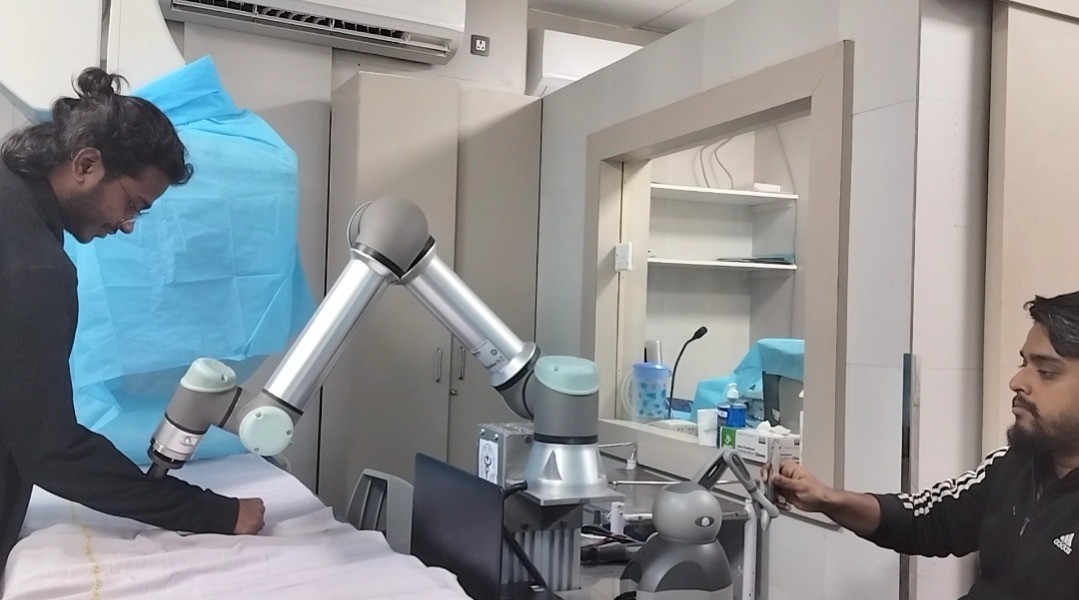

The Tele-Robotic Diagnostics System from ViTachyon Robotics lets a radiologist carry out an ultrasound scan on a patient in another location. A Patient Side Robotic Unit (PSRU), a collaborative robot arm fitted with a probe holder, holds the ultrasound probe against the patient, while the radiologist moves a Doctor Side Haptic Unit and watches the live ultrasound image. The probe can be manipulated in six degrees of freedom. The haptic unit reflects contact forces back to the radiologist so that the feel of a bedside examination is kept, and a secure telemetry subsystem carries the control commands and imaging between the two sites. The company describes its role as building the teleoperation and control stack that turns the clinician's hand motion into stable probe motion. A working prototype was demonstrated in May 2024. In December 2025 the system was trialled across several locations on the AIIMS New Delhi campus, and it was then demonstrated over long distance with the clinician at AIIMS New Delhi and the patient at India's Maitri research station in Antarctica, covering B-mode scans (abdominal, musculoskeletal, thyroid and soft tissue) and Doppler workflows. The site states it is not yet for commercial sale or clinical use.
FEATURES
- Patient Side Robotic Unit (PSRU): collaborative robot arm with ultrasound probe holder
- Doctor Side Haptic Unit with force reflection
- Full 6-degree-of-freedom probe manipulation on the patient side
- Secure telemetry subsystem for remote control across distances
- Real-time ultrasound imaging feedback to the radiologist
- Supports B-mode scanning: abdominal screening, musculoskeletal imaging, thyroid and soft-tissue scans
- Supports Doppler-enabled workflows
- Tested under latency and bandwidth variation over long-distance links
- Works with a standard portable ultrasound machine
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Stationary |
|---|---|
| Degrees of Freedom | 6 |
| Environment | Hospital ultrasound rooms and remote clinical sites |
| Sensing & Compute | |
| Sensors | Force reflection on the doctor-side haptic unit, Ultrasound probe imaging |
| Connectivity | Secure telemetry link between doctor and patient sites |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Stationary |
|---|---|
| Degrees of Freedom | 6 |
| Environment | Hospital ultrasound rooms and remote clinical sites |
| Sensing & Compute | |
| Sensors | Force reflection on the doctor-side haptic unit, Ultrasound probe imaging |
| Connectivity | Secure telemetry link between doctor and patient sites |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Tele-Robotic Diagnostics System?
The Tele-Robotic Diagnostics System from ViTachyon Robotics lets a radiologist carry out an ultrasound scan on a patient in another location.
Who makes the Tele-Robotic Diagnostics System?
The Tele-Robotic Diagnostics System is made by ViTachyon Robotics, a robotics company based in India.
How much does the Tele-Robotic Diagnostics System cost?
ViTachyon Robotics has not publicly announced pricing for the Tele-Robotic Diagnostics System. You can enquire through RobotAIGeek for current pricing.
What is the Tele-Robotic Diagnostics System used for?
The Tele-Robotic Diagnostics System is designed for medical-assistance, inspection, remote, and scanning. It is used in research and healthcare settings.
How many degrees of freedom does the Tele-Robotic Diagnostics System have?
The Tele-Robotic Diagnostics System has 6 degrees of freedom.
