DESCRIPTION

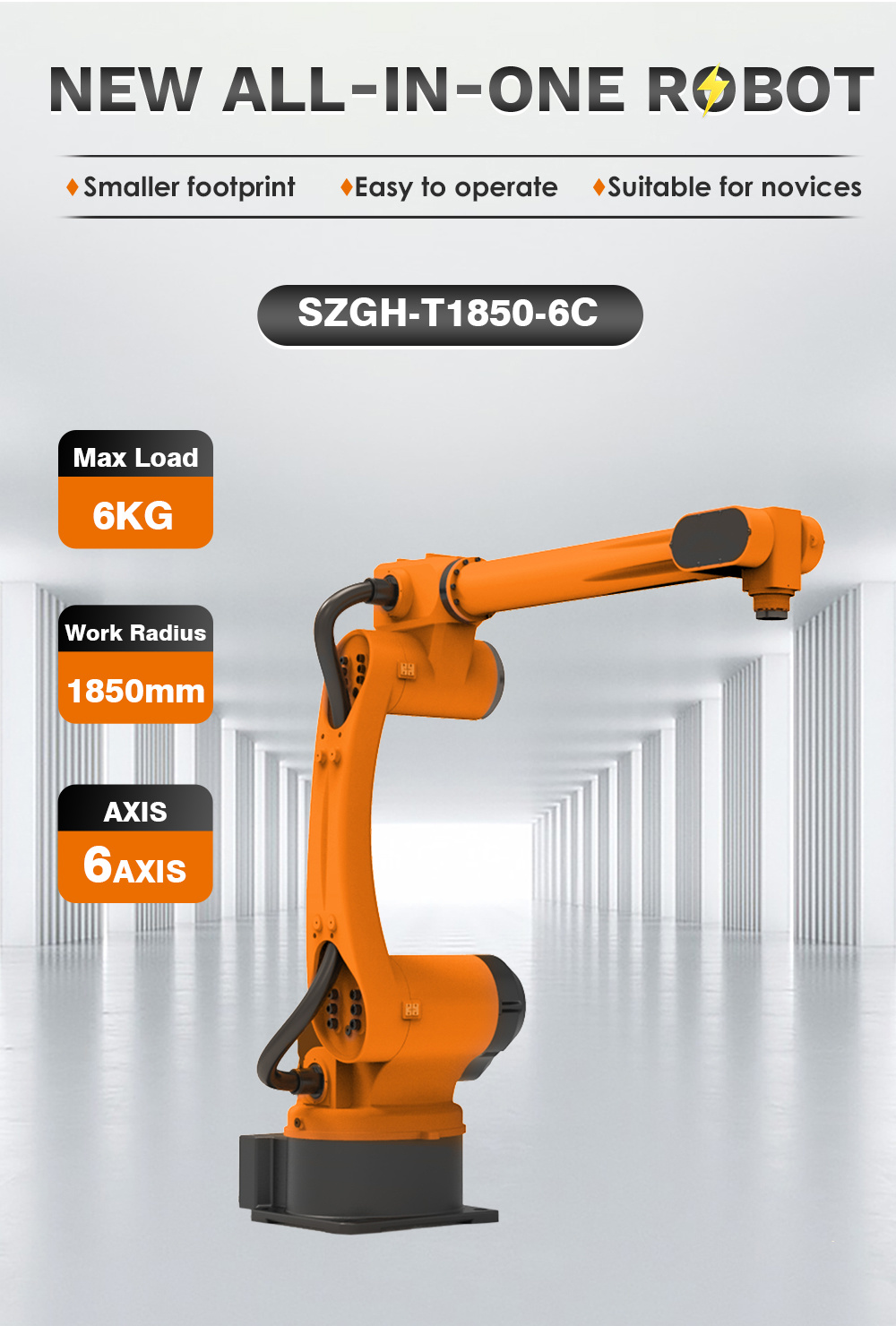

The SZGH-T1850-6C 6-axis All-In-One Robot robot is designed for high-speed and stable performance. With a load capacity of 6 kg and a maximum reach of 1850 mm, this robot is engineered to deliver exceptional efficiency and reliability. It is ideal for a wide range of applications, including loading and unloading, palletizing, and stamping.
FEATURES
- Payload: 6kg
- Reach: 1850mm
- 6 controlled axes
- Repeatability: ±0.05mm
- Robot mass: 165kg
- Structure: Integrated
- Mounting: Floor mounted Ceiling mounted
- Ambient temperature: 0°C~45°C

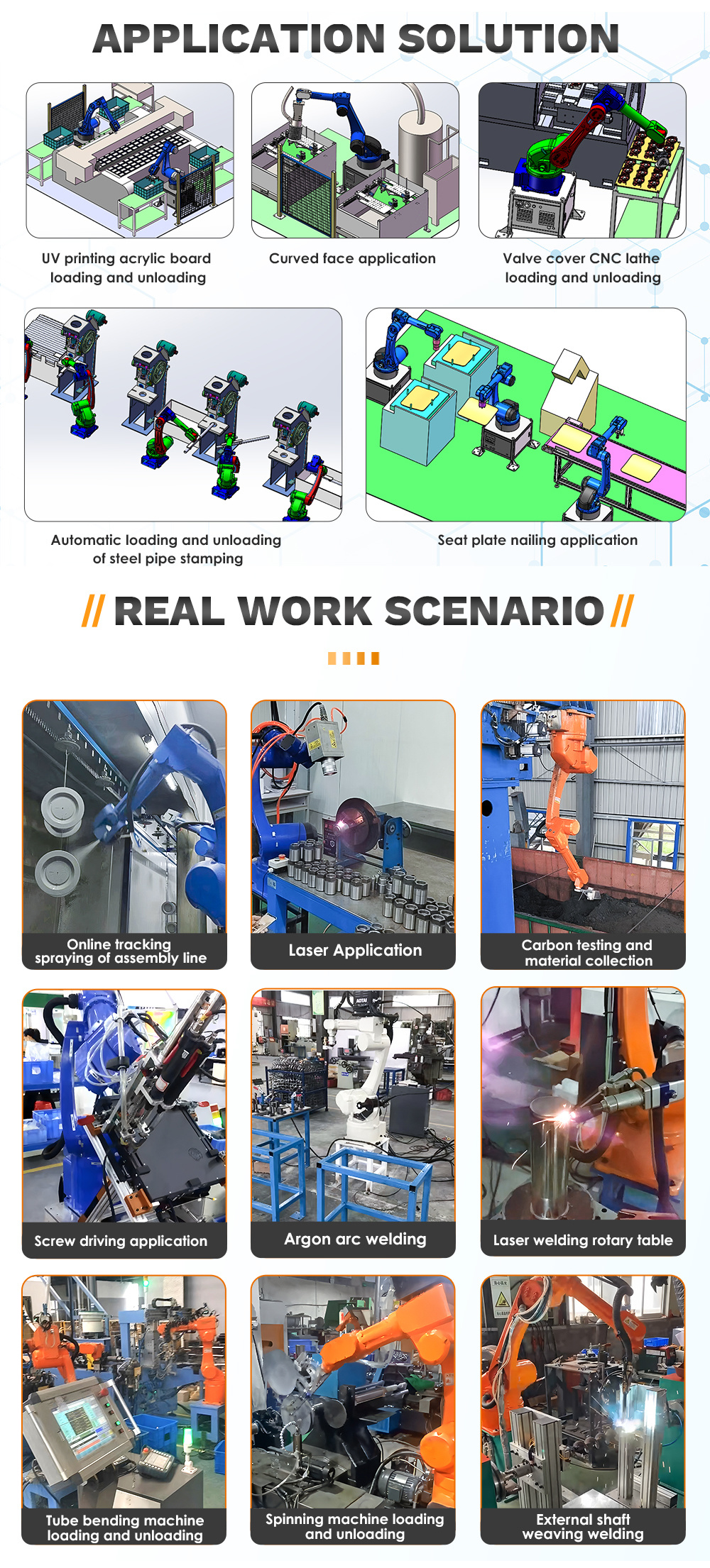

- Applications: Fully automated stamping line, Automatic loading and unloading of saw blades
- Warranty period: 2 Years
- Replaces manual palletizing, efficiency increased by 300%
- The main body is made of aluminum with lightweight design
- small inertia, 25% faster acceleration
- RV reducer has higher accuracy and reduces downtime
- Applicable material types: cartons, woven bags, plastic barrels, pallets, etc. Optional fixtures: suction cups, grippers, clamps, to achieve multi-material switching
- Supports multiple communication modes, including EtherCAT, Profinet, Ethernet/IP, OPCUACA, etc
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 165 kg |
|---|---|
| Payload | 6 kg |
| Reach | 1.85 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Speed | 14.4 km/h |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 165 kg |
|---|---|
| Payload | 6 kg |
| Reach | 1.85 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Speed | 14.4 km/h |
Images
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-T1850-6C?
The SZGH-T1850-6C 6-axis All-In-One Robot robot is designed for high-speed and stable performance. With a load capacity of 6 kg and a maximum reach of 1850 mm, this robot is engineered to deliver exceptional efficiency and reliability.
Who makes the SZGH-T1850-6C?
The SZGH-T1850-6C is made by Shenzhen Guanhong Automation, a robotics company based in China.
How much does the SZGH-T1850-6C cost?
Shenzhen Guanhong Automation has not publicly announced pricing for the SZGH-T1850-6C. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-T1850-6C used for?
The SZGH-T1850-6C is designed for intralogistics, material-handling, and palletizing. It is used in manufacturing settings.
What is the payload capacity of the SZGH-T1850-6C?
The SZGH-T1850-6C has a payload capacity of 6 kg and a reach of 1.85 m.
How much does the SZGH-T1850-6C weigh?
The SZGH-T1850-6C weighs 165 kg.
How fast is the SZGH-T1850-6C?
The SZGH-T1850-6C can move at speeds of up to 14.4 km/h.
How many degrees of freedom does the SZGH-T1850-6C have?
The SZGH-T1850-6C has 6 degrees of freedom.
