DESCRIPTION
SZGH-P1950-B-6 is an Industrial-Robot from SZGH Automation. It is built for Coating, Painting, Spraying. Key figures: 170 kg, 6 kg payload, 1950 mm reach, 6 degrees of freedom.

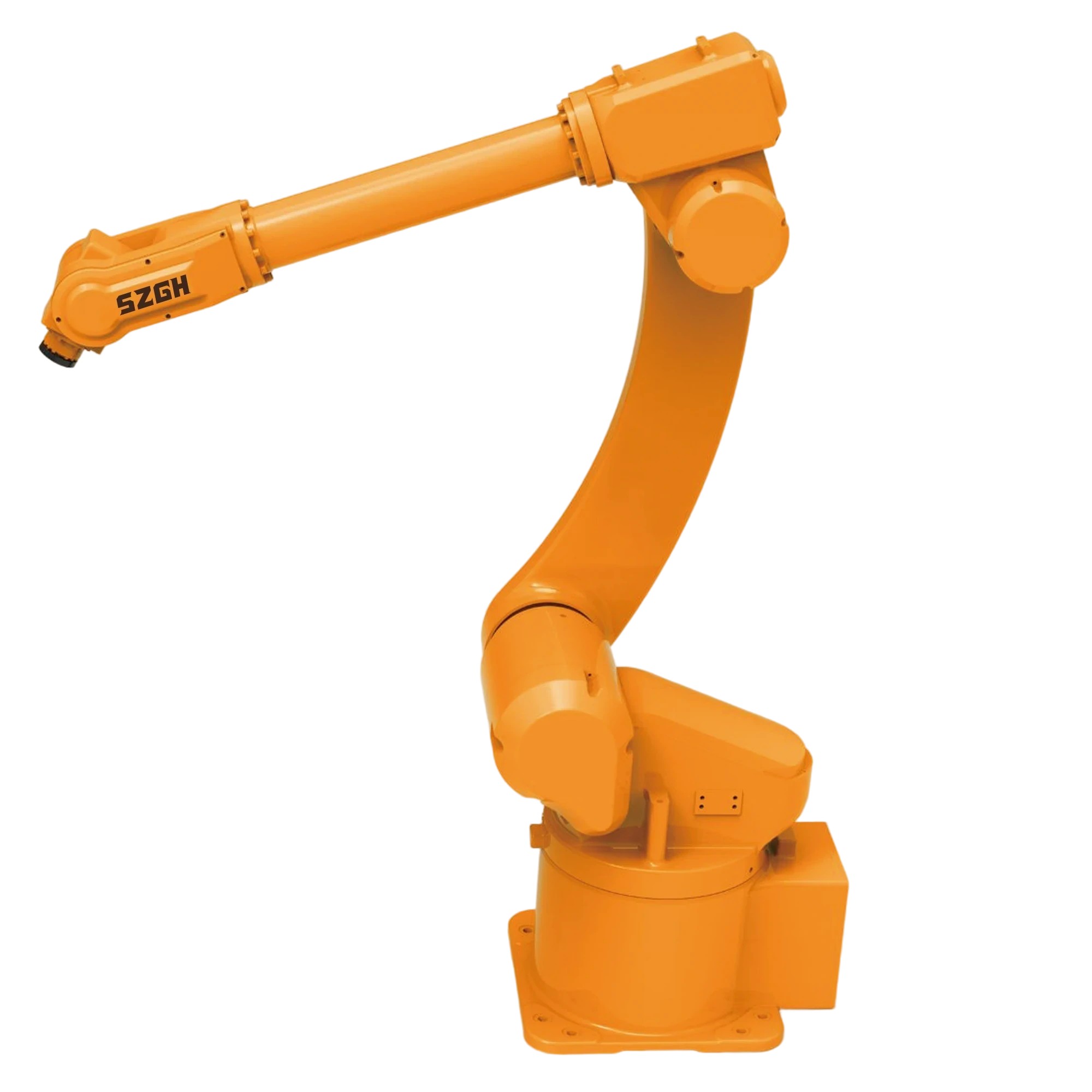

The SZGH-P1950-B-6 is a six-axis articulated spray-painting robot from ShenZhen GuanHong Automation with a long 1950 mm reach. It carries 6 kg with ±0.08 mm repeatability, weighs about 170 kg and mounts on the ground, a bracket or the ceiling. SZGH describes it as dust-proof and waterproof with a wide motion range, for harsh painting environments; its case study is rotary painting of injection-moulded parts.
FEATURES
- Payload: 6 kg
- Reach: 1950 mm
- Repeatability: ±0.08 mm
- Structure: articulated, 6 axes
- Motion range: J1 ±165°, J2 +135°/-70°, J3 +60°/-75°, J4 ±150°, J5 +30°/-240°, J6 ±360°
- Max speed: J1-J3 148°/s, J4-J5 222°/s, J6 360°/s
- Dust-proof and waterproof (SZGH)
- Weight: about 170 kg
- Mounting: ground, bracket or ceiling
- Ambient temperature: 5-45 °C
- Controller display languages: Chinese, English, Russian, Vietnamese, Korean
- Warranty: 2 years, with lifelong technical support
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 170 kg |
|---|---|
| Payload | 6 kg |
| Reach | 1.95 m |
| Repeatability | ±0.08 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 5-45 °C; dust-proof and waterproof |
| Sensing & Compute | |
| Software / AI | SZGH robot controller; pendant display in Chinese, English, Russian, Vietnamese and Korean |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 170 kg |
|---|---|
| Payload | 6 kg |
| Reach | 1.95 m |
| Repeatability | ±0.08 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 5-45 °C; dust-proof and waterproof |
| Sensing & Compute | |
| Software / AI | SZGH robot controller; pendant display in Chinese, English, Russian, Vietnamese and Korean |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-P1950-B-6?
The SZGH-P1950-B-6 is a six-axis articulated spray-painting robot from ShenZhen GuanHong Automation with a long 1950 mm reach. It carries 6 kg with ±0.08 mm repeatability, weighs about 170 kg and mounts on the ground, a bracket or the ceiling.
Who makes the SZGH-P1950-B-6?
The SZGH-P1950-B-6 is made by SZGH Automation, a robotics company based in China.
How much does the SZGH-P1950-B-6 cost?
SZGH Automation has not publicly announced pricing for the SZGH-P1950-B-6. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-P1950-B-6 used for?
The SZGH-P1950-B-6 is designed for coating, painting, and spraying. It is used in manufacturing settings.
What is the payload capacity of the SZGH-P1950-B-6?
The SZGH-P1950-B-6 has a payload capacity of 6 kg and a reach of 1.95 m.
How much does the SZGH-P1950-B-6 weigh?
The SZGH-P1950-B-6 weighs 170 kg.
How many degrees of freedom does the SZGH-P1950-B-6 have?
The SZGH-P1950-B-6 has 6 degrees of freedom.
