DESCRIPTION
SZGH-P1500-B-6 is an Industrial-Robot from SZGH Automation. It is built for Coating, Painting, Spraying. Key figures: 150 kg, 6 kg payload, 1500 mm reach, 6 degrees of freedom.

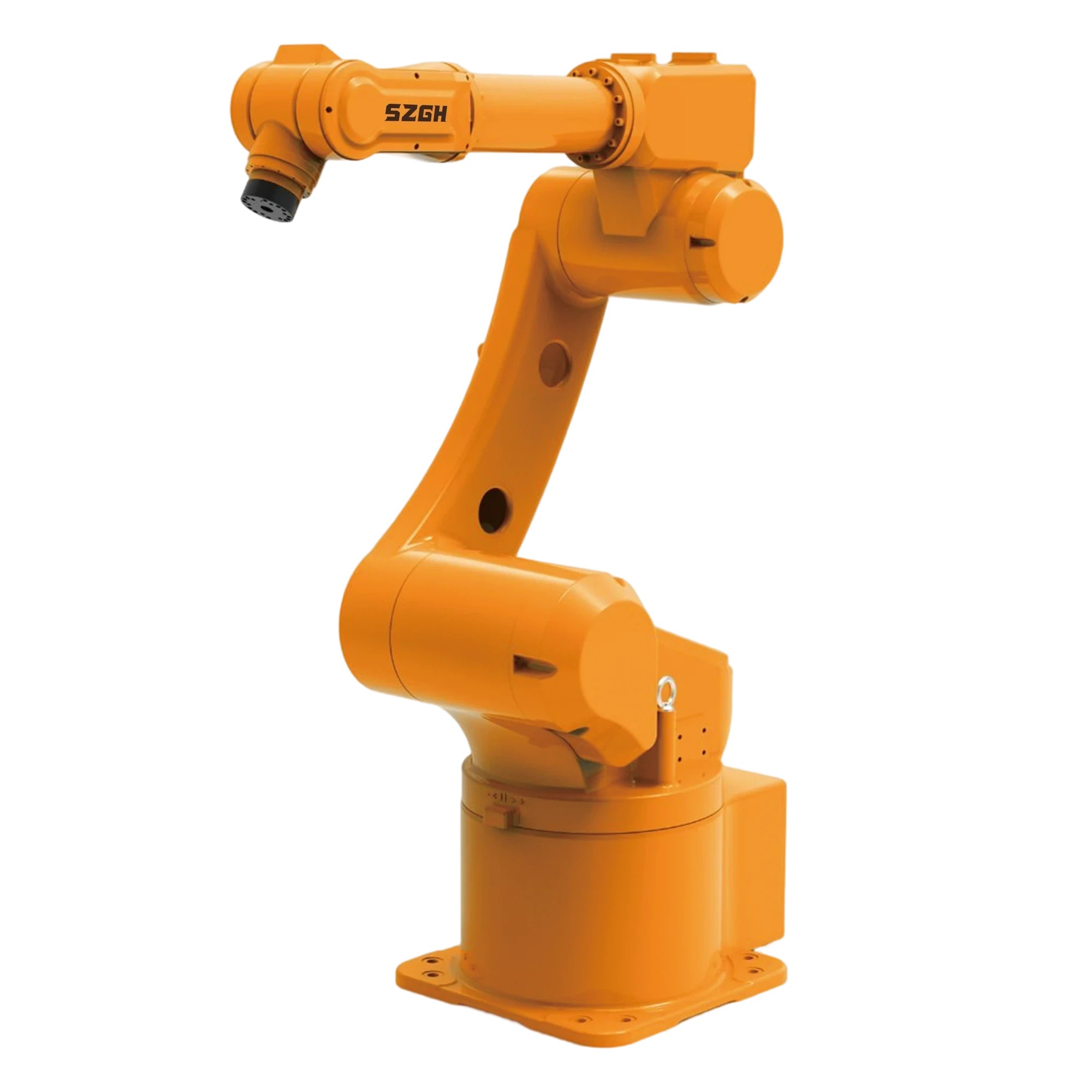

The SZGH-P1500-B-6 is a six-axis articulated spray-painting robot from ShenZhen GuanHong Automation and, according to SZGH, the first painting robot the company launched. It carries 6 kg over a 1500 mm reach with ±0.05 mm repeatability, weighs about 150 kg and mounts on the ground, a bracket or the ceiling. SZGH says it is usually built into workstations with non-standard turntables or hanging conveyors; its case study is a hanging-line tracking and painting cell that cut labour cost and raised yield for a customer.
FEATURES
- Payload: 6 kg
- Reach: 1500 mm
- Repeatability: ±0.05 mm
- Structure: articulated, 6 axes

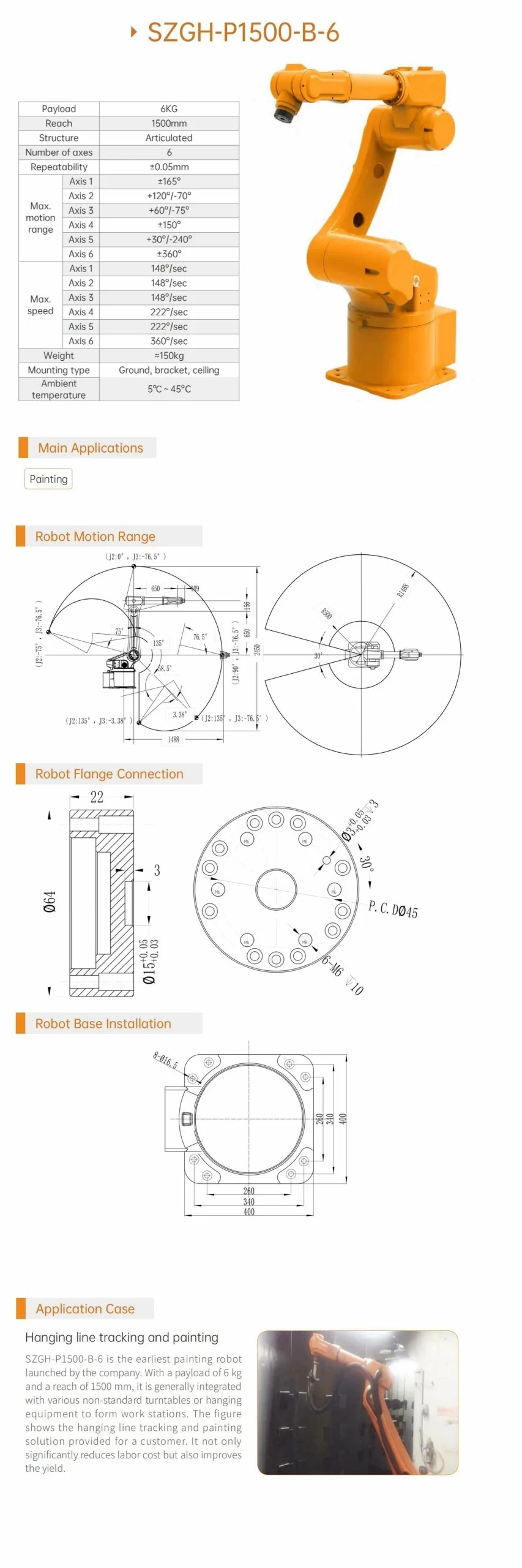

- Motion range: J1 ±165°, J2 +120°/-70°, J3 +60°/-75°, J4 ±150°, J5 +30°/-240°, J6 ±360°
- Max speed: J1-J3 148°/s, J4-J5 222°/s, J6 360°/s
- Weight: about 150 kg
- Mounting: ground, bracket or ceiling
- Ambient temperature: 5-45 °C
- Controller display languages: Chinese, English, Russian, Vietnamese, Korean
- Warranty: 2 years, with lifelong technical support
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 150 kg |
|---|---|
| Payload | 6 kg |
| Reach | 1.5 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 5-45 °C |
| Sensing & Compute | |
| Software / AI | SZGH robot controller; pendant display in Chinese, English, Russian, Vietnamese and Korean |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 150 kg |
|---|---|
| Payload | 6 kg |
| Reach | 1.5 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 5-45 °C |
| Sensing & Compute | |
| Software / AI | SZGH robot controller; pendant display in Chinese, English, Russian, Vietnamese and Korean |
Images
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-P1500-B-6?
The SZGH-P1500-B-6 is a six-axis articulated spray-painting robot from ShenZhen GuanHong Automation and, according to SZGH, the first painting robot the company launched. It carries 6 kg over a 1500 mm reach with ±0.05 mm repeatability, weighs about 150 kg and mounts on the ground, a bracket or the ceiling.
Who makes the SZGH-P1500-B-6?
The SZGH-P1500-B-6 is made by SZGH Automation, a robotics company based in China.
How much does the SZGH-P1500-B-6 cost?
SZGH Automation has not publicly announced pricing for the SZGH-P1500-B-6. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-P1500-B-6 used for?
The SZGH-P1500-B-6 is designed for coating, painting, and spraying. It is used in manufacturing settings.
What is the payload capacity of the SZGH-P1500-B-6?
The SZGH-P1500-B-6 has a payload capacity of 6 kg and a reach of 1.5 m.
How much does the SZGH-P1500-B-6 weigh?
The SZGH-P1500-B-6 weighs 150 kg.
How many degrees of freedom does the SZGH-P1500-B-6 have?
The SZGH-P1500-B-6 has 6 degrees of freedom.
COMPARE WITH SIMILAR ROBOTS
See how this robot stacks up against its closest alternatives
- SZGH-P1500-B-6 vs Welding robot KW1012B-2010
- SZGH-P1500-B-6 vs Robot welding KW1010B-1440
- SZGH-P1500-B-6 vs Robotic palletizer KW1010M-1500
- SZGH-P1500-B-6 vs Universal robot KW1012B-1550

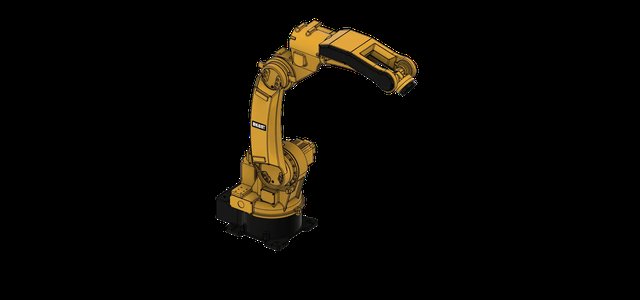

- SZGH-P1500-B-6 vs UniBot iR18-1000
