SZGH-HZ1500-10K

SZGH Automation

Industrial-Robot China

ChinaReleased

★Not rated yet

Compare

Sources:

szghrobot.com

Industries:

Automotive Manufacturing

Uses:

Welding

Price:

Not announced

DESCRIPTION

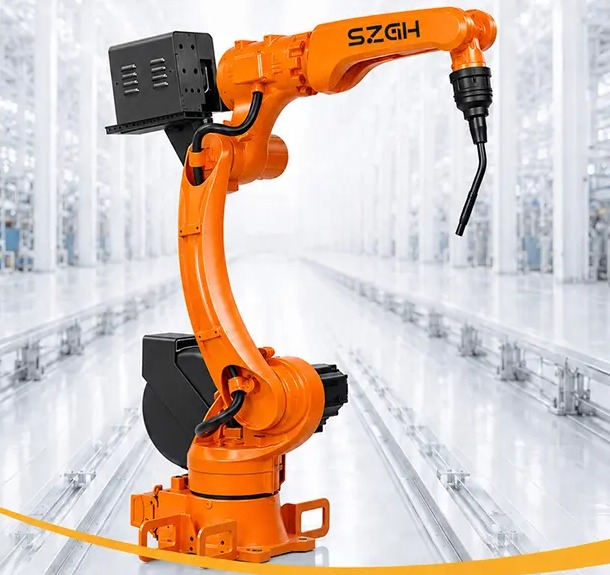

SZGH-HZ1500-10K is an Industrial-Robot from SZGH Automation. It is built for Welding. Key figures: 145 kg, 10 kg payload, 1500 mm reach, 6 degrees of freedom.

The SZGH-HZ1500-10K is a six-axis arc-welding robot from ShenZhen GuanHong Automation, launched by SZGH as a new model alongside its HZ welding range. It carries 10 kg over a 1500 mm reach with ±0.03 mm repeatability and weighs about 145 kg, with an IP65-rated body and IP67 wrist, a built-in Ø8 mm air line and 16 inputs / 16 outputs for the user. SZGH lists it for gas-shielded, TIG, MIG/MAG, pulse, spot and laser welding of carbon steel, stainless steel, aluminium and brass, and shows it on sheet-metal, cabinet-frame, metal-structure, auto-part and furniture-frame welding.

FEATURES

Payload: 10 kg
Reach: 1500 mm
Repeatability: ±0.03 mm

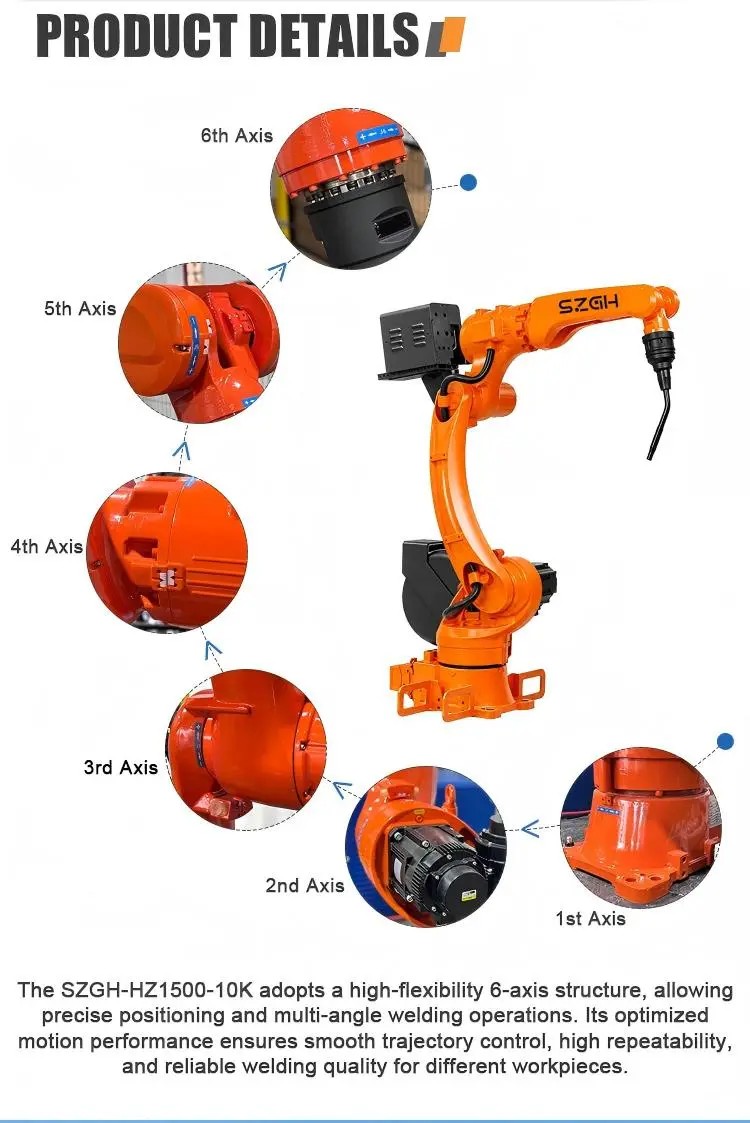

6 axes

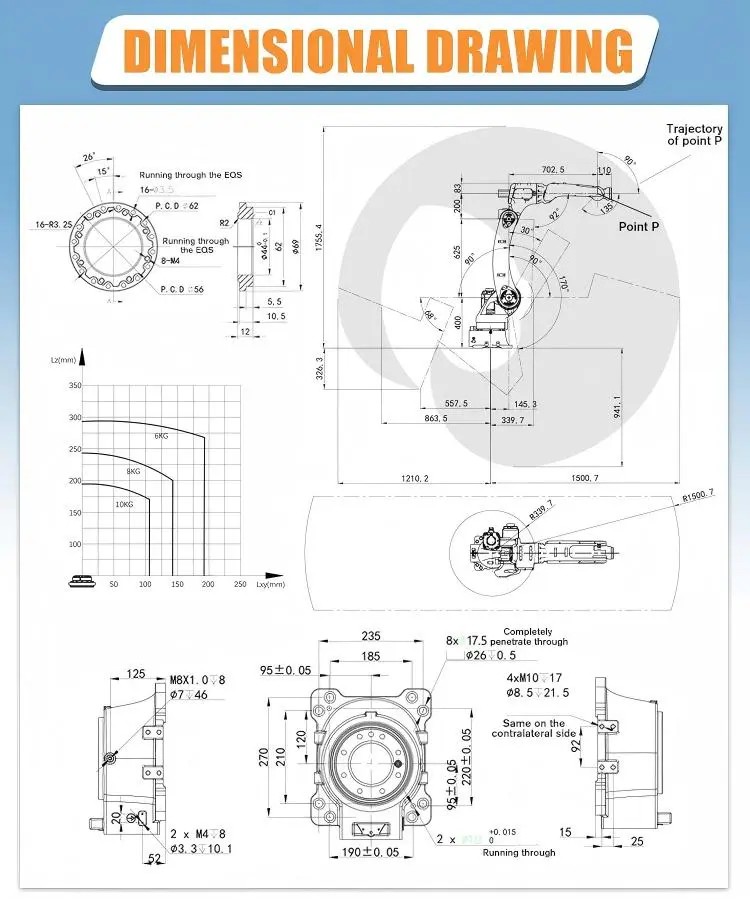

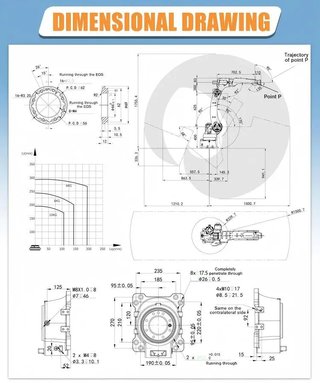

Motion range: J1 ±170°, J2 +155°/-80°, J3 +80°/-175°, J4 ±180°, J5 ±130°, J6 ±360°
Max speed: J1 180°/s, J2 142°/s, J3 185°/s, J4 389°/s, J5 407°/s, J6 700°/s
Rated torque: J4 22 Nm, J5 22 Nm, J6 10 Nm
Body weight: 145 kg
Protection: IP65 body, IP67 wrist
Built-in Ø8 mm air pipe
User I/O: 16 inputs / 16 outputs (24 VDC)
Operating temperature: 0-45 °C, humidity 20-80% RH non-condensing
Processes: MIG/MAG, TIG, pulse, spot and laser welding

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	145 kg
Payload	10 kg
Reach	1.5 m
Repeatability	±0.03 mm
Mobility
Movement Type	Stationary
Degrees of Freedom	6
Environment	Operating temperature 0-45 °C, humidity 20-80% RH non-condensing; IP65 body, IP67 wrist
Sensing & Compute
Connectivity	User I/O: 16 inputs / 16 outputs (24 VDC)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	145 kg
Payload	10 kg
Reach	1.5 m
Repeatability	±0.03 mm
Mobility
Movement Type	Stationary
Degrees of Freedom	6
Environment	Operating temperature 0-45 °C, humidity 20-80% RH non-condensing; IP65 body, IP67 wrist
Sensing & Compute
Connectivity	User I/O: 16 inputs / 16 outputs (24 VDC)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the SZGH-HZ1500-10K?

The SZGH-HZ1500-10K is a six-axis arc-welding robot from ShenZhen GuanHong Automation, launched by SZGH as a new model alongside its HZ welding range.
