DESCRIPTION

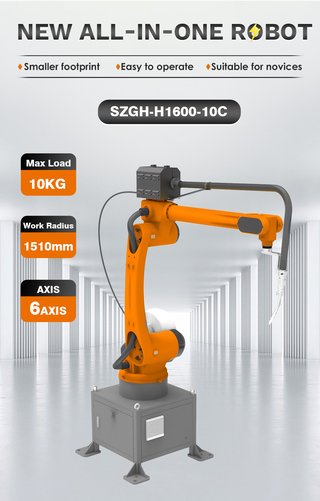

The SZGH-H1600-10C 6-axis All-In-One Robot robot is designed for high-speed and stable performance. With a load capacity of 10 kg and a maximum reach of 1510mm, this robot is engineered to deliver exceptional efficiency and reliability. It is ideal for a welding
FEATURES
- Payload: 10kg
- Reach: 1510mm
- 6 controlled axes
- Repeatability: ±0.05mm
- Robot mass: 227kg
- Structure: Integrated
- Mounting: Ground-mounted
- Ambient temperature: 0°C~45°C

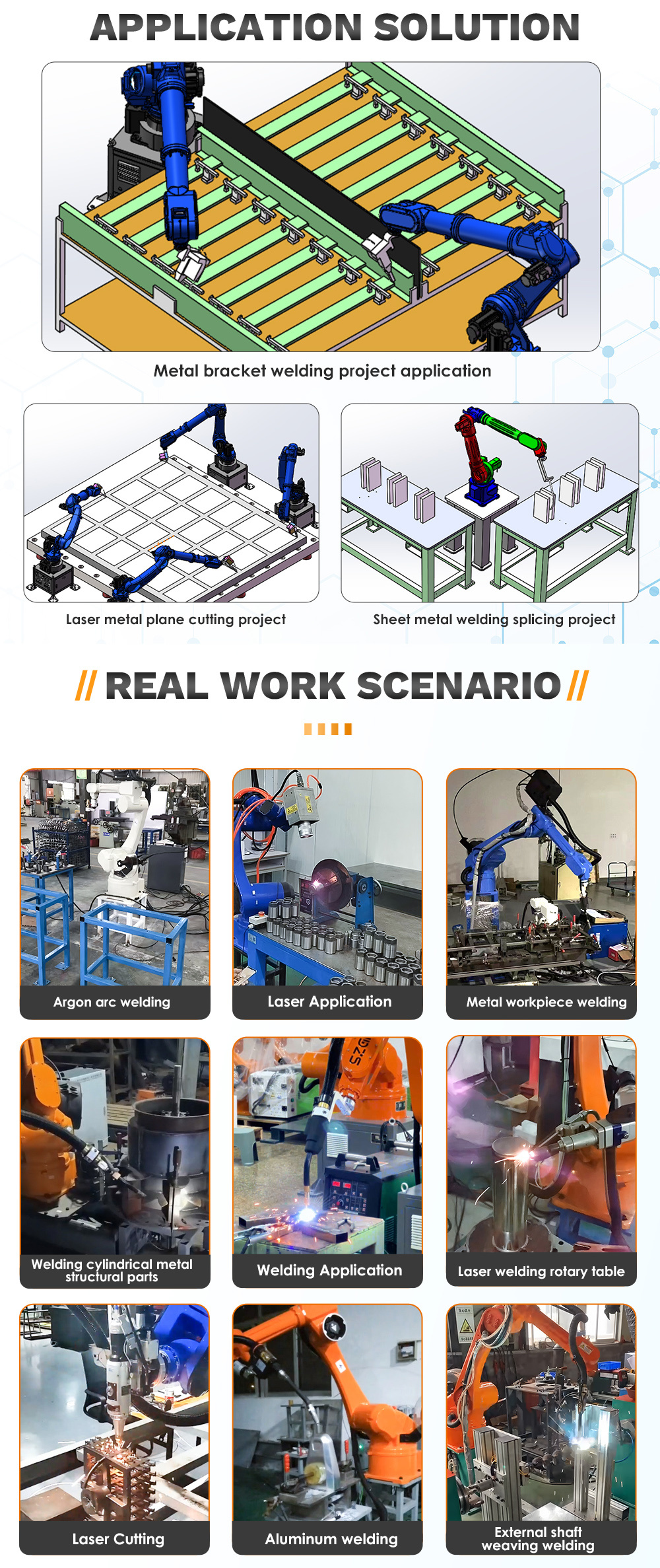

- Applications: Fully automated welding line
- Warranty period: 2 Years
- Replaces manual welding, efficiency increased by 300%
- The main body is made of aluminum with lightweight design
- small inertia, 25% faster acceleration
- RV reducer has higher accuracy and reduces downtime
- Supports multiple communication modes, including EtherCAT, Profinet, Ethernet/IP, OPCUACA, etc

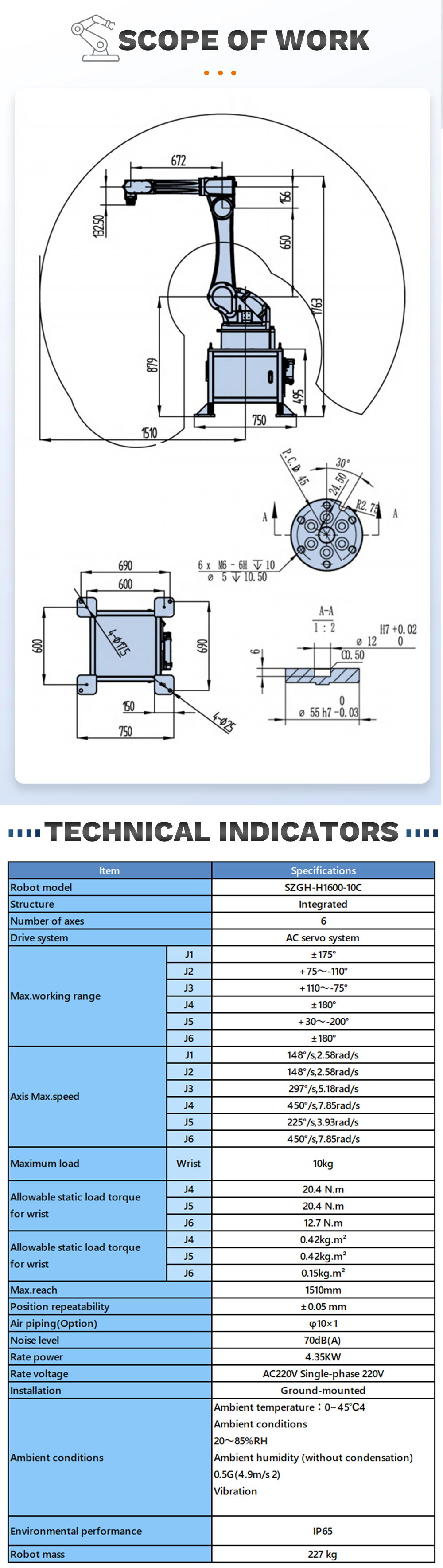

TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 227 kg |
|---|---|
| Payload | 10 kg |
| Reach | 1.51 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Speed | 14.4 km/h |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 227 kg |
|---|---|
| Payload | 10 kg |
| Reach | 1.51 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Speed | 14.4 km/h |
Images
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-H1600-10C?
The SZGH-H1600-10C 6-axis All-In-One Robot robot is designed for high-speed and stable performance. With a load capacity of 10 kg and a maximum reach of 1510mm, this robot is engineered to deliver exceptional efficiency and reliability. It is ideal for a welding
Who makes the SZGH-H1600-10C?
The SZGH-H1600-10C is made by Shenzhen Guanhong Automation, a robotics company based in China.
How much does the SZGH-H1600-10C cost?
Shenzhen Guanhong Automation has not publicly announced pricing for the SZGH-H1600-10C. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-H1600-10C used for?
The SZGH-H1600-10C is designed for welding. It is used in manufacturing settings.
What is the payload capacity of the SZGH-H1600-10C?
The SZGH-H1600-10C has a payload capacity of 10 kg and a reach of 1.51 m.
How much does the SZGH-H1600-10C weigh?
The SZGH-H1600-10C weighs 227 kg.
How fast is the SZGH-H1600-10C?
The SZGH-H1600-10C can move at speeds of up to 14.4 km/h.
How many degrees of freedom does the SZGH-H1600-10C have?
The SZGH-H1600-10C has 6 degrees of freedom.
