DESCRIPTION

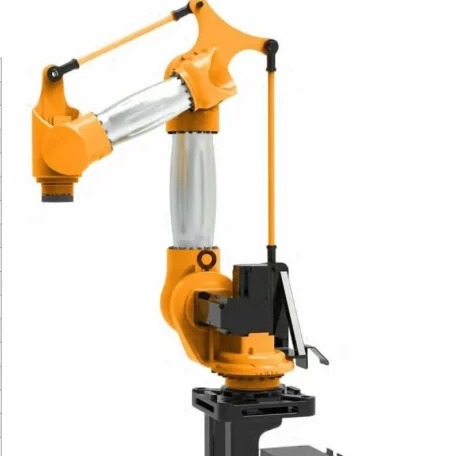

The SZGH-G1000-B-4 is a 4-axis industrial robot from Shenzhen Guanhong Automation (SZGH), rated to carry 6kg with a maximum reach of 1000mm.
FEATURES
- Payload: 6kg
- Reach: 1000mm
- 4 controlled axes
- Repeatability: ±0.2mm
- Robot mass: 60kg
- Structure: Articulathed
- Mounting: Gruond,Bracket,Ceiling
- Ambient temperature: 5°C~45°C
- Applications: Material handling, Parts transmission, Stacking,Machine management, packaging
- Controller display languages: Chinese,English,Russian,Vietnamese,Korean,more language options under development
- Warranty period: 2 Years

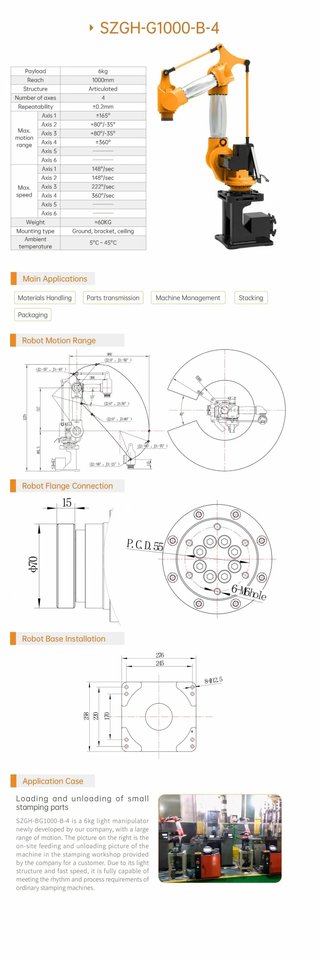

TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 60 kg |
|---|---|
| Payload | 6 kg |
| Reach | 1 m |
| Repeatability | ±0.2 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 60 kg |
|---|---|
| Payload | 6 kg |
| Reach | 1 m |
| Repeatability | ±0.2 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
Images
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-G1000-B-4?
The SZGH-G1000-B-4 is a 4-axis industrial robot from Shenzhen Guanhong Automation (SZGH), rated to carry 6kg with a maximum reach of 1000mm.
Who makes the SZGH-G1000-B-4?
The SZGH-G1000-B-4 is made by Shenzhen Guanhong Automation, a robotics company based in China.
How much does the SZGH-G1000-B-4 cost?
Shenzhen Guanhong Automation has not publicly announced pricing for the SZGH-G1000-B-4. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-G1000-B-4 used for?
The SZGH-G1000-B-4 is designed for intralogistics, material-handling, and palletizing. It is used in manufacturing settings.
What is the payload capacity of the SZGH-G1000-B-4?
The SZGH-G1000-B-4 has a payload capacity of 6 kg and a reach of 1 m.
How much does the SZGH-G1000-B-4 weigh?
The SZGH-G1000-B-4 weighs 60 kg.
How many degrees of freedom does the SZGH-G1000-B-4 have?
The SZGH-G1000-B-4 has 4 degrees of freedom.
