SZGH-B3100-G-4

Shenzhen Guanhong Automation
Industrial-RobotChinaChinaReleased
SZGH-B3100-G-4
Compare
Sources:
szghrobot.com
Industries:
Manufacturing
Uses:
IntralogisticsMaterial-Handlingpalletizing
Price:
Not announced

DESCRIPTION

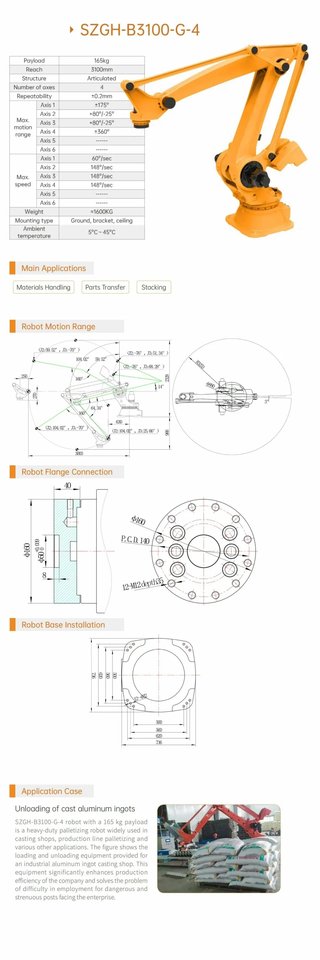

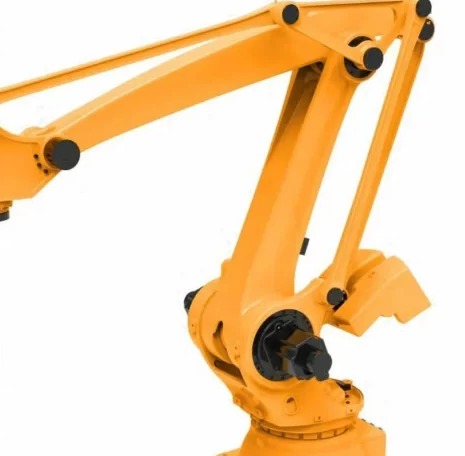

The SZGH-B3100-G-4 is a 4-axis industrial robot from Shenzhen Guanhong Automation (SZGH), rated to carry 165kg with a maximum reach of 3100mm.

FEATURES

  • Payload: 165kg
  • Reach: 3100mm
  • 4 controlled axes
  • Repeatability: ±0.2mm
  • Robot mass: 1600kg
  • Structure: Articulated
  • Mounting: Horizontal
  • Ambient temperature: 5°C~45°C
  • Applications: Material handling, Parts transmission, Stacking
  • Controller display languages: Chinese, English, Russian, Vietnamese, Korean, and more language options are under development
  • Warranty period: 2 Years

TECHNICAL SPECIFICATIONS

Verified
Physical
Weight1600 kg
Payload165 kg
Reach3.1 m
Repeatability±0.2 mm
Mobility
Movement TypeStationary
Degrees of Freedom4
Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

Videos

Inside SZGH: CNC Machine Tools & Industrial Robot Factory Tour | Made in China, Shared Worldwide
Aug 4, 2026
Robot Video

Inside SZGH: CNC Machine Tools & Industrial Robot Factory Tour | Made in China, Shared Worldwide

marttimarttiflag
SZGH Robot Factory Tour | Industrial Robot Arms for Intelligent Manufacturing
Aug 4, 2026
Robot Video

SZGH Robot Factory Tour | Industrial Robot Arms for Intelligent Manufacturing

marttimarttiflag
SZGH-B2300-E-4 Dual Suction Cup Handling Application
Aug 4, 2026
Robot Video

SZGH-B2300-E-4 Dual Suction Cup Handling Application

marttimarttiflag

FREQUENTLY ASKED QUESTIONS

What is the SZGH-B3100-G-4?

The SZGH-B3100-G-4 is a 4-axis industrial robot from Shenzhen Guanhong Automation (SZGH), rated to carry 165kg with a maximum reach of 3100mm.

Who makes the SZGH-B3100-G-4?

The SZGH-B3100-G-4 is made by Shenzhen Guanhong Automation, a robotics company based in China.

How much does the SZGH-B3100-G-4 cost?

Shenzhen Guanhong Automation has not publicly announced pricing for the SZGH-B3100-G-4. You can enquire through RobotAIGeek for current pricing.

What is the SZGH-B3100-G-4 used for?

The SZGH-B3100-G-4 is designed for intralogistics, material-handling, and palletizing. It is used in manufacturing settings.

What is the payload capacity of the SZGH-B3100-G-4?

The SZGH-B3100-G-4 has a payload capacity of 165 kg and a reach of 3.1 m.

How much does the SZGH-B3100-G-4 weigh?

The SZGH-B3100-G-4 weighs 1,600 kg.

How many degrees of freedom does the SZGH-B3100-G-4 have?

The SZGH-B3100-G-4 has 4 degrees of freedom.
