DESCRIPTION

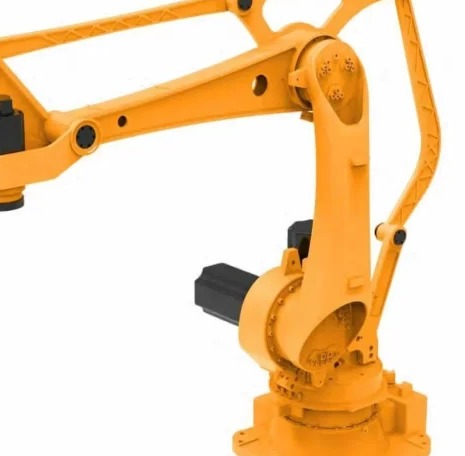

The SZGH-B2300-E-4 is a 4-axis industrial robot from Shenzhen Guanhong Automation (SZGH), rated to carry 50kg with a maximum reach of 2300mm.
FEATURES
- Payload: 50kg
- Reach: 2300mm
- 4 controlled axes
- Repeatability: ±0.2mm
- Robot mass: 660kg
- Structure: Articulated
- Mounting: Horizontal
- Ambient temperature: 5°C~45°C
- Applications: Material handling,Parts transmission,Stacking,Deburring,Cutting
- Controller display languages: Chinese, English, Russian, Vietnamese, Korean, and more language options are under development
- Warranty period: 2 Years

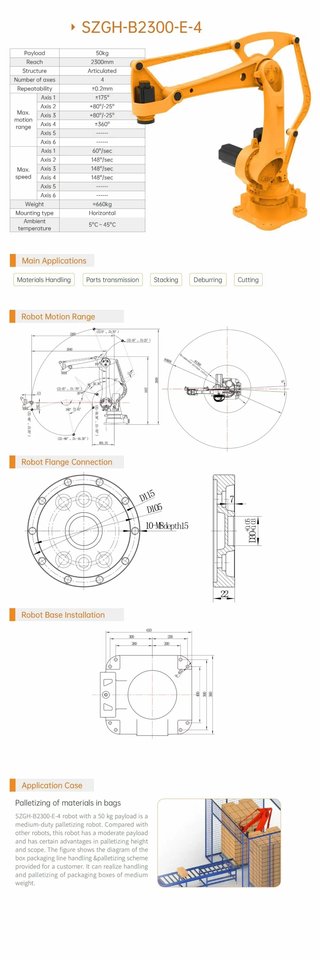

TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 660 kg |
|---|---|
| Payload | 50 kg |
| Reach | 2.3 m |
| Repeatability | ±0.2 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 660 kg |
|---|---|
| Payload | 50 kg |
| Reach | 2.3 m |
| Repeatability | ±0.2 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
Images
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SZGH-B2300-E-4?
The SZGH-B2300-E-4 is a 4-axis industrial robot from Shenzhen Guanhong Automation (SZGH), rated to carry 50kg with a maximum reach of 2300mm.
Who makes the SZGH-B2300-E-4?
The SZGH-B2300-E-4 is made by Shenzhen Guanhong Automation, a robotics company based in China.
How much does the SZGH-B2300-E-4 cost?
Shenzhen Guanhong Automation has not publicly announced pricing for the SZGH-B2300-E-4. You can enquire through RobotAIGeek for current pricing.
What is the SZGH-B2300-E-4 used for?
The SZGH-B2300-E-4 is designed for intralogistics, material-handling, and palletizing. It is used in manufacturing settings.
What is the payload capacity of the SZGH-B2300-E-4?
The SZGH-B2300-E-4 has a payload capacity of 50 kg and a reach of 2.3 m.
How much does the SZGH-B2300-E-4 weigh?
The SZGH-B2300-E-4 weighs 660 kg.
How many degrees of freedom does the SZGH-B2300-E-4 have?
The SZGH-B2300-E-4 has 4 degrees of freedom.
When was the SZGH-B2300-E-4 released?
The SZGH-B2300-E-4 was released in 2026.
