DESCRIPTION
StoreBiter HDS is an Industrial-Robot from GEBHARDT Intralogistics Group. It is built for Intralogistics, Pallet-Transportation, Inventory. Key figures: 1500 kg payload.

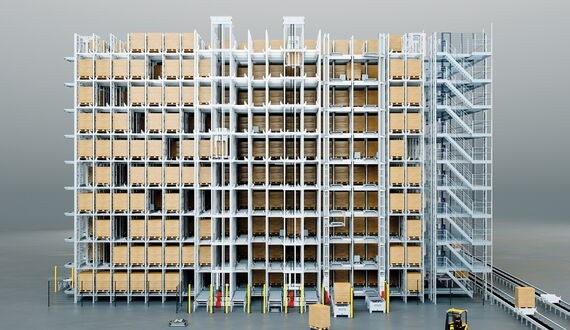

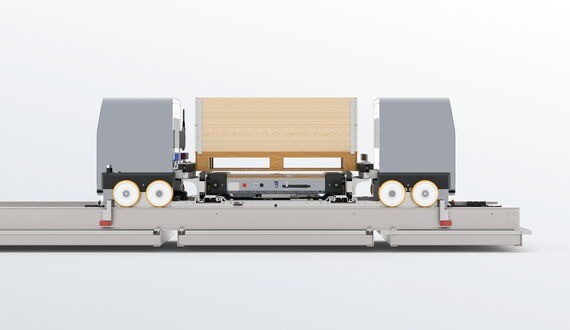

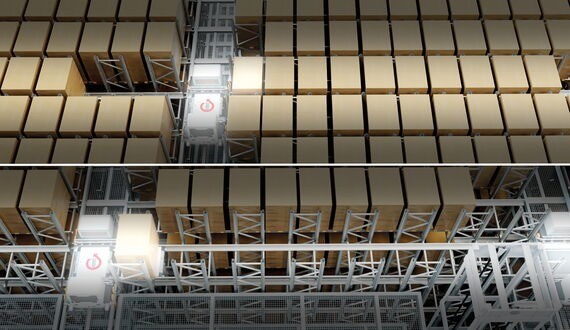

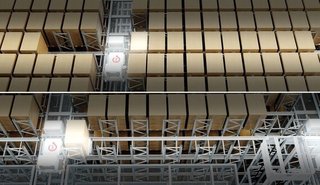

The StoreBiter HDS ('Hive and Drone') is GEBHARDT's mother-daughter pallet shuttle system for high-density pallet storage. A high-performance mother shuttle carries a daughter shuttle, which drives into storage channels to store and retrieve pallets and mesh boxes up to 1,500 kg - up to 25 pallets deep. Its low overall height suits buildings where stacker cranes are not economical, it runs FIFO or LIFO with sequence-controlled storage and retrieval, accelerates at up to 1.2 m/s2, connects to conveyors or AGVs and uses no lithium-ion batteries; the scalable mother-daughter design adapts to any building structure.
FEATURES
- Mother-daughter shuttle concept
- Load carriers up to 1,500 kg
- pallets and mesh boxes
- Up to 25-deep storage
- Acceleration up to 1.2 m/s2
- Low overall height
- FIFO/LIFO
- sequence-controlled
- No lithium-ion technology
- Connects to conveyor systems or AGVs
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1500 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Warehouses and production plants |
| Sensing & Compute | |
| Software / AI | GEBHARDT logistics software |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1500 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Warehouses and production plants |
| Sensing & Compute | |
| Software / AI | GEBHARDT logistics software |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the StoreBiter HDS?
The StoreBiter HDS ('Hive and Drone') is GEBHARDT's mother-daughter pallet shuttle system for high-density pallet storage. A high-performance mother shuttle carries a daughter shuttle, which drives into storage channels to store and retrieve pallets and mesh boxes up to 1,500 kg - up to 25 pallets deep.
Who makes the StoreBiter HDS?
The StoreBiter HDS is made by GEBHARDT Intralogistics Group, a robotics company based in Germany.
How much does the StoreBiter HDS cost?
GEBHARDT Intralogistics Group has not publicly announced pricing for the StoreBiter HDS. You can enquire through RobotAIGeek for current pricing.
What is the StoreBiter HDS used for?
The StoreBiter HDS is designed for intralogistics, pallet-transportation, inventory, and automated intralogistics. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the StoreBiter HDS?
The StoreBiter HDS has a payload capacity of 1,500 kg.
