DESCRIPTION

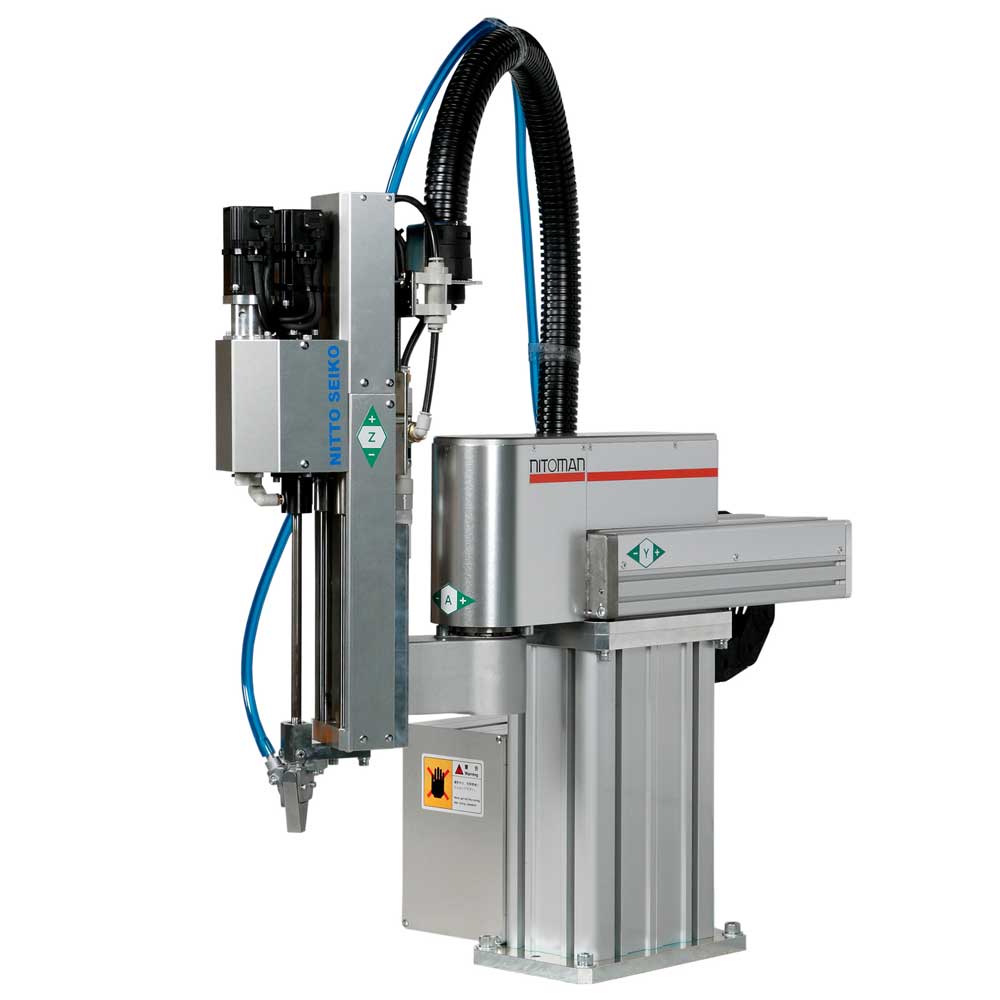

The SR780Y-THETA-Z (SR780Yθ) is Nitto Seiko America's heavy-duty Yθ screw driving robot for high-power fastening of M5–M8 screws, with AC-servo Y/θ and Z stroke, NITTO spindle driver, and blow-fed centerboard hopper feed.
FEATURES
- Screw sizes M5–M8 (max length 35 mm)
- Torque range 3.92–15.70 Nm
- Max chuck stroke 100 mm (3.94 in)
- Yθ + Z AC servo axes
- NITTO driver
- Blow-fed hopper with single-shuttle escapement
- Parent JP SR780Yθ cites up to 22 Nm max class
TECHNICAL SPECIFICATIONS
| Mobility | |
| Movement Type | Stationary |
|---|---|
TECHNICAL SPECIFICATIONS
| Mobility | |
| Movement Type | Stationary |
|---|---|
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SR780Y-THETA-Z?
The SR780Y-THETA-Z (SR780Yθ) is Nitto Seiko America's heavy-duty Yθ screw driving robot for high-power fastening of M5–M8 screws, with AC-servo Y/θ and Z stroke, NITTO spindle driver, and blow-fed centerboard hopper feed.
Who makes the SR780Y-THETA-Z?
The SR780Y-THETA-Z is made by Nitto Seiko America, a robotics company based in United States.
How much does the SR780Y-THETA-Z cost?
Nitto Seiko America has not publicly announced pricing for the SR780Y-THETA-Z. You can enquire through RobotAIGeek for current pricing.
What is the SR780Y-THETA-Z used for?
The SR780Y-THETA-Z is designed for assembly, pick-and-place, and inspection. It is used in automotive, electronics, and manufacturing settings.
