DESCRIPTION

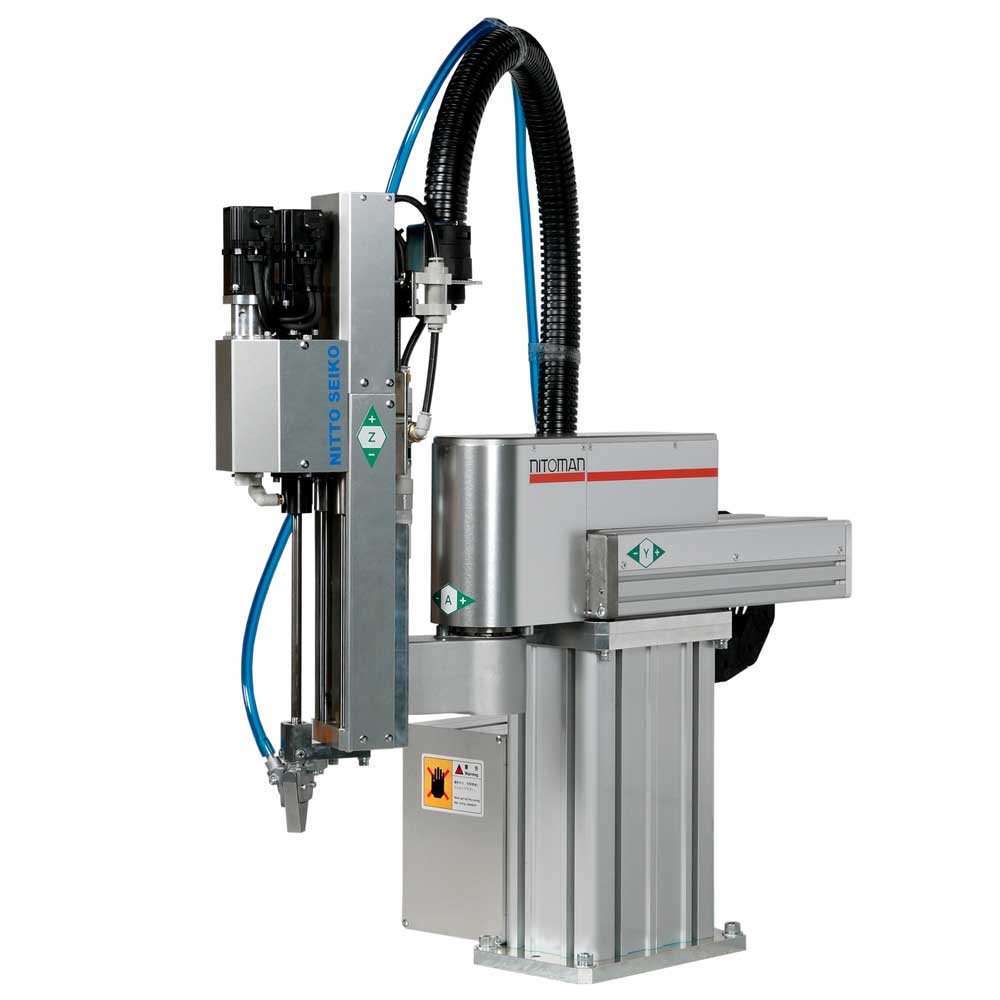

The SR580Y-THETA-Z (SR580Yθ-Z) is Nitto Seiko America's medium-duty three-axis Yθ-Z screw driving robot for space-saving automated fastening of M2–M5 screws with closed-loop thrust control and blow-feed or pickup.
FEATURES
- Screws M2–M5 (max length 18 mm
- US page)
- Torque 0.29–2.94 Nm (US) / 0.3–3.0 N·m (JP)
- Three axes simultaneous
- Z fastening stroke 100 mm [150 opt]
- Locating ±0.05 mm
- Y envelope 200–500 mm
- Θ radius 200–300 mm / 180°
- Max speeds Y 1000 mm/s, θ 360°/s, Z 720 mm/s
- Machine weight ~37 kg
- Air 0.4–0.5 MPa
- Vacuum tube screw hold
- KX/[NX] driver
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 37 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 3 |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 37 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 3 |
Images
martti
martti
martti
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SR580Y-THETA-Z?
The SR580Y-THETA-Z (SR580Yθ-Z) is Nitto Seiko America's medium-duty three-axis Yθ-Z screw driving robot for space-saving automated fastening of M2–M5 screws with closed-loop thrust control and blow-feed or pickup.
Who makes the SR580Y-THETA-Z?
The SR580Y-THETA-Z is made by Nitto Seiko America, a robotics company based in United States.
How much does the SR580Y-THETA-Z cost?
Nitto Seiko America has not publicly announced pricing for the SR580Y-THETA-Z. You can enquire through RobotAIGeek for current pricing.
What is the SR580Y-THETA-Z used for?
The SR580Y-THETA-Z is designed for assembly, pick-and-place, and inspection. It is used in automotive, electronics, and manufacturing settings.
How much does the SR580Y-THETA-Z weigh?
The SR580Y-THETA-Z weighs 37 kg.
How many degrees of freedom does the SR580Y-THETA-Z have?
The SR580Y-THETA-Z has 3 degrees of freedom.
When was the SR580Y-THETA-Z released?
The SR580Y-THETA-Z was released in 2023.
